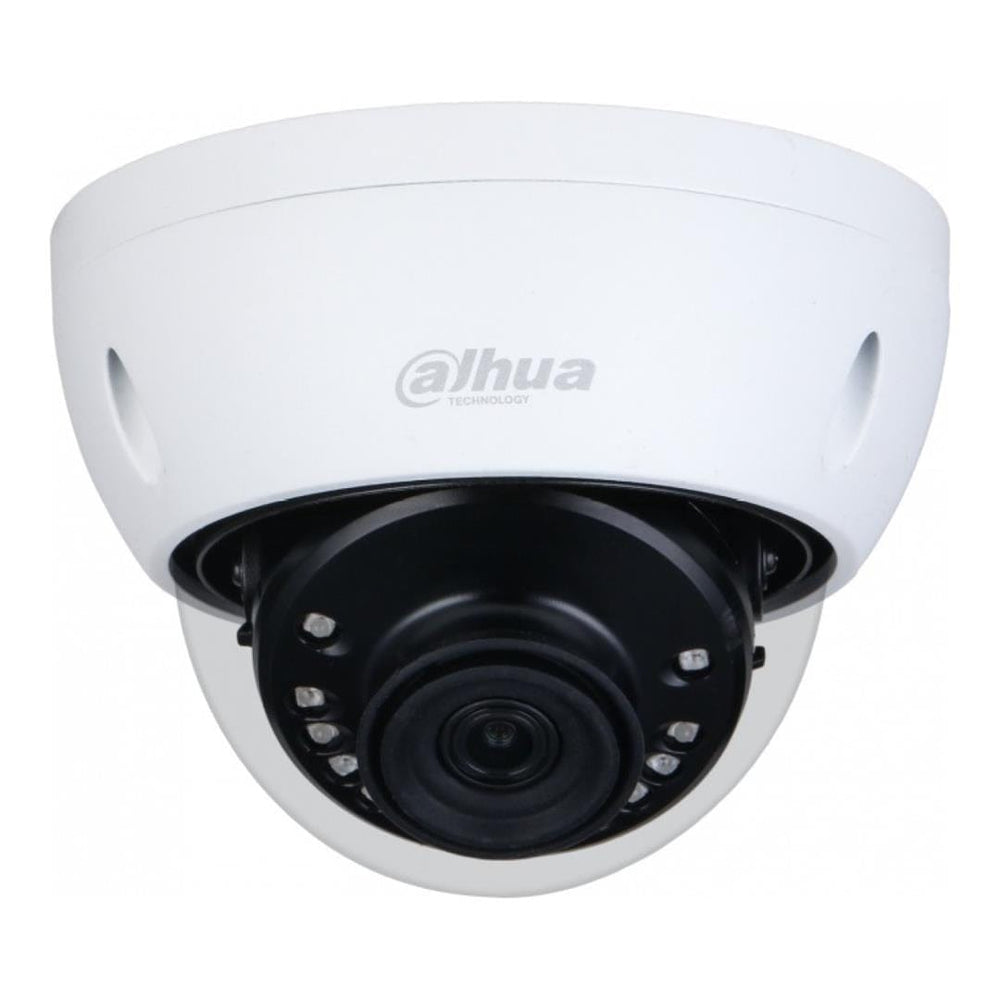

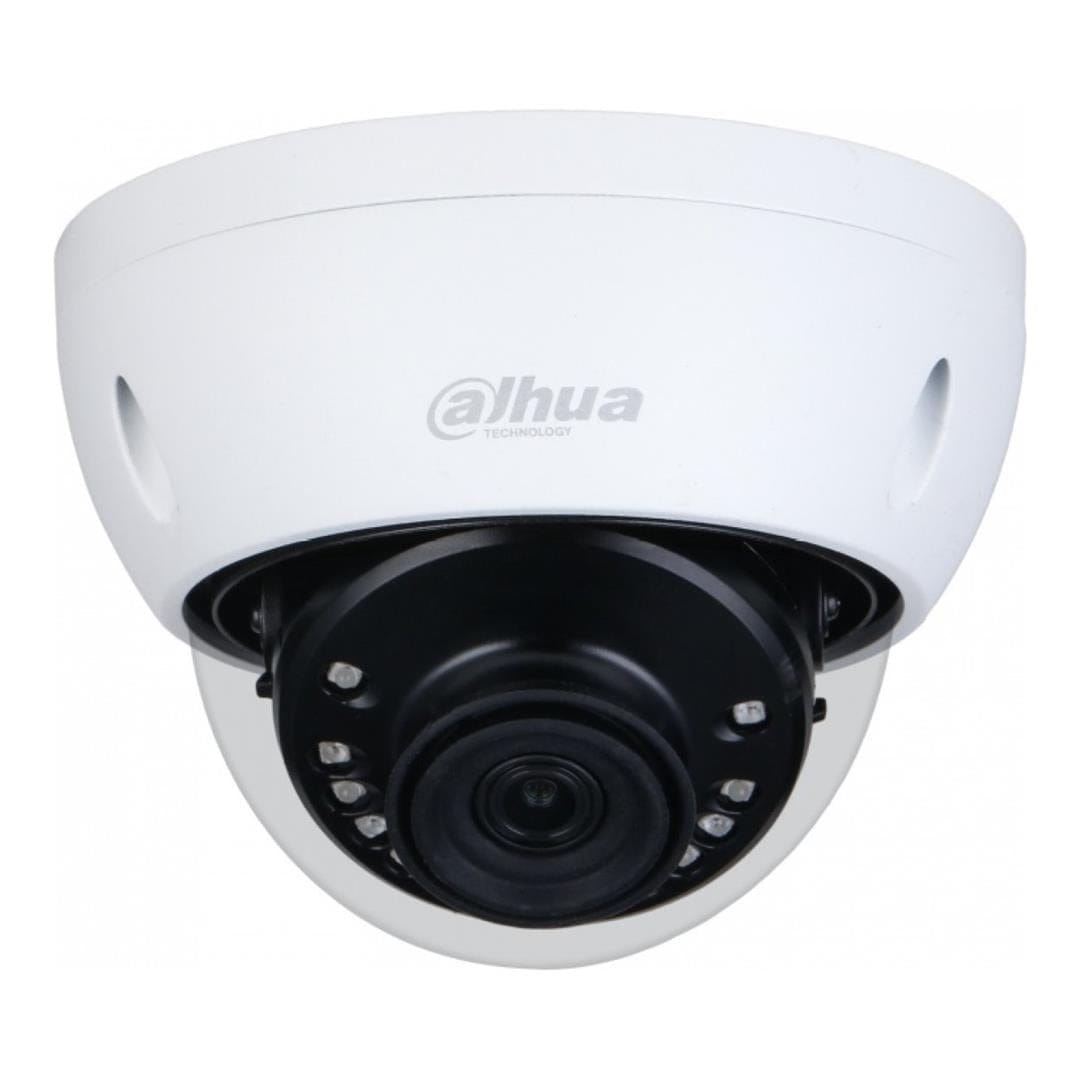

Dahua HAC-HDBW1500EP 5MP 2.8mm IR Starlight Fixed Dome Camera

Dahua HAC-HDBW1500EP 5MP 2.8mm IR Starlight Fixed Dome Camera

Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance make the camera an ideal choice for SMB solutions.

• Max 25 fpsat 5MP (16:9 video output)
• CVI/CVBS/AHD/TVI switchable
• 3.6mm fixed lens (2.8mm optional)
• Max. IR length 30 m, Smart IR
• IP67, IK10, DC12V

Functions

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.

Long Distance Transmission

HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700 m for 5MP HD video through coaxial cable, and up to 300 m through UTP cable.

Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Smart IR

The camera is designed with IR LED illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua's unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera

Multi-formats

The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu. This feature makes the camera compatible with most end users' existing HD/SD DVRs.

Multi-language OSD

OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.

Specifications:

Image Sensor:

1/2.7 inch CMOS

Max. Resolution:

2880 (H) × 1620 (V)

Pixel:

5MP

Scanning System:

Progressive

Electronic Shutter Speed:

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio:

> 65 dB

Min. Illumination:

0.005Lux Lux/F1.6, 30IRE, 0 Lux IR on

Illumination Distance:

30 m (98.4 ft)

Illuminator On/Off Control:

Auto; manual

Illuminator Number:

12

Pan/Tilt/Rotation Range:

• Pan: 0°–355°
• Tilt: 0°–65°
• Rotation: 0°–355°

Lens Type:

Fixed-focal

Mount Type:

M12

Focal Length:

2.8 mm

Max. Aperture:

F1.6

Field of View:

2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical)

Iris Type:

Fixed iris

Close Focus Distance:

2.8 mm: 0.9 m (3.0 ft)

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance:

Auto; manual

Gain Control:

Auto; manual

Noise Reduction:

2D NR

Smart IR:

Yes

Mirror:

Off/On

Privacy Masking:

Off/On (8 area, rectangle)

Video Output:

Video output choices of CVI/TVI/AHD/CVBS by one BNC port
