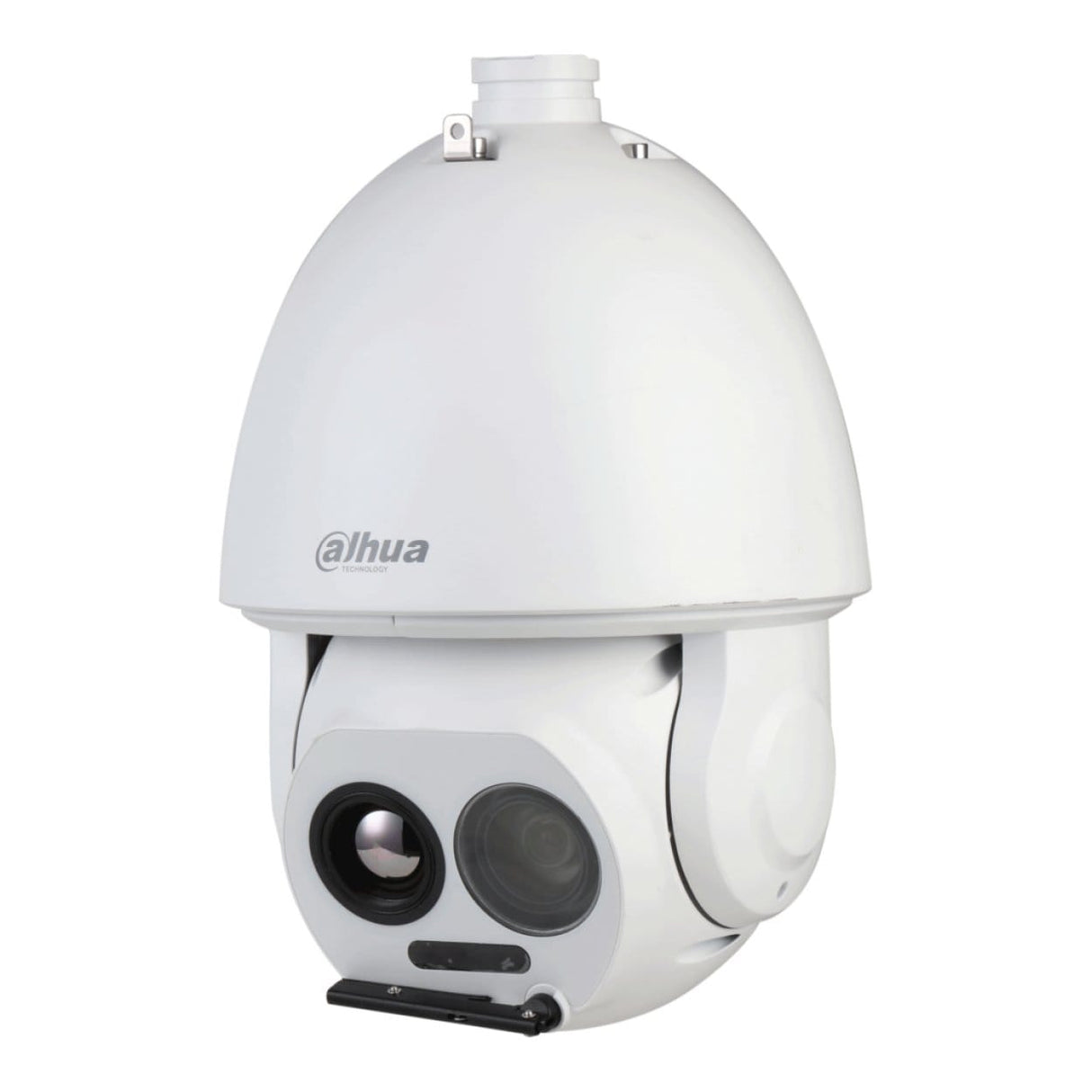

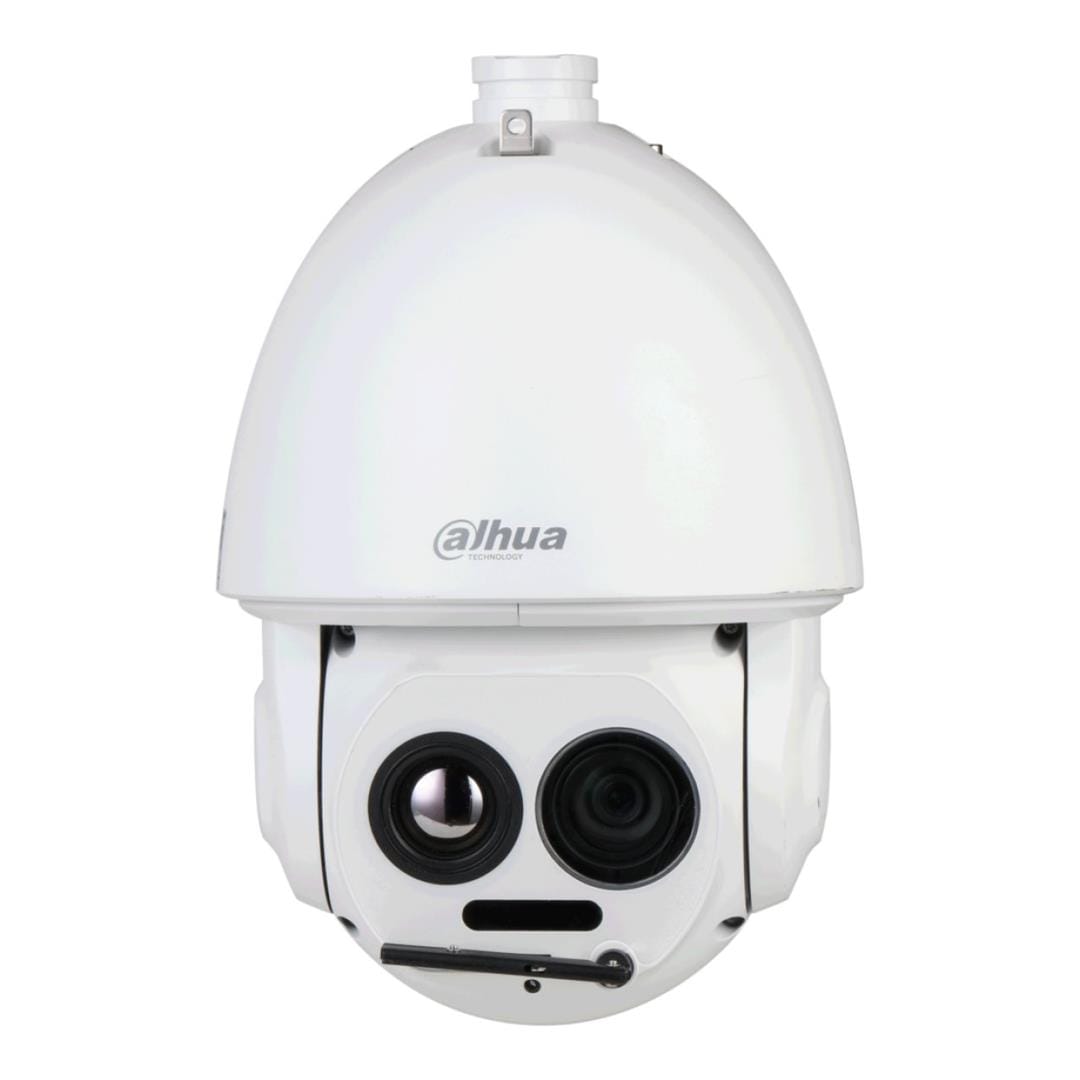

Dahua DHI-TPC-SD5441 4MP IR Thermal Hybrid Speed Dome Camera

Dahua DHI-TPC-SD5441 4MP IR Thermal Hybrid Speed Dome Camera

The Dahua DHI-TPC-SD5441-B50Z45-DC-S24 is a high-performance thermal hybrid speed dome camera designed for advanced perimeter protection, long-range detection, and critical infrastructure monitoring. Combining a thermal imaging sensor with a 4MP visible-light PTZ camera, this dual-spectrum solution delivers accurate detection, recognition, and tracking of people, vehicles, and potential threats in complete darkness, adverse weather conditions, and challenging environments. Featuring intelligent AI-powered analytics, thermal fire detection, and powerful PTZ functionality, the camera is ideally suited for industrial facilities, utilities, airports, ports, correctional facilities, and perimeter security applications.

Thermal Imaging Benefits

The integrated thermal imaging sensor detects heat signatures rather than visible light, enabling reliable monitoring in:

• Complete darkness
• Fog and haze
• Smoke-filled environments
• Light rain and adverse weather conditions
• Large perimeter installations

This allows the camera to identify potential threats that may not be visible to conventional CCTV systems.

AI and Intelligent Analytics

Advanced AI functions include:

• Intrusion detection
• Tripwire protection
• Human and vehicle classification
• Smart tracking
• Thermal fire detection
• Early warning alerts
• Behaviour analysis
• Intelligent event filtering

These capabilities help minimise false alarms while improving detection accuracy.

Features:

• Dual-spectrum thermal and visible-light surveillance
• Uncooled VOx thermal imaging sensor
• 4MP visible-light PTZ camera
• 45x optical zoom PTZ module
• 50mm thermal lens
• Intelligent perimeter protection
• Thermal fire and smoke detection
• AI-powered human and vehicle classification
• Smart tracking functionality
• Long-range thermal detection capabilities
• 360° continuous pan rotation
• High-speed PTZ movement
• Smart IR illumination
• Starlight low-light technology
• Intelligent video analytics
• H.265+/H.265 video compression
• IP66-rated weatherproof protection
• Surge and lightning protection
• Suitable for mission-critical security applications

PTZ Performance

The integrated 45x optical zoom camera enables operators to:

• Monitor large areas from a single installation point
• Automatically track moving targets
• Zoom in for detailed identification
• Perform rapid incident verification
• Support active perimeter response strategies
• Ideal Applications
• Critical infrastructure protection
• Airports and transportation hubs
• Ports and harbours
• Oil and gas facilities
• Power stations and substations
• Industrial plants
• Mining operations
• Border and perimeter security
• Correctional facilities
• Military and government sites
• Large commercial campuses

Specifications:

Product Type: Thermal Hybrid PTZ Network Camera

Manufacturer: Dahua

Model: DHI-TPC-SD5441-B50Z45-DC-S24

Camera Type: Dual-Spectrum Thermal + Visible PTZ

Thermal Sensor: Uncooled VOx Microbolometer

Thermal Resolution: 400 × 300

Thermal Lens: 50mm

Thermal Sensitivity: ≤40mK

Visible Camera Resolution: 4MP

Visible Sensor: 1/1.8" Progressive CMOS

Optical Zoom: 45x

Visible Lens: 5.9mm – 265.5mm

Video Compression: H.265+, H.265, H.264+, H.264

Pan Range: 360° Endless Rotation

Tilt Range: -20° to +90°

Presets: Up to 300

Intelligent Tracking: Yes

Human/Vehicle Classification: Yes

Perimeter Protection: Yes

Fire Detection: Yes

Smart Tracking: Yes

Audio Support: Yes

Alarm I/O: Yes

Edge Storage: MicroSD Card Support

Network Interface: RJ45 10/100Mbps

Power Supply: 24V AC / Hi-PoE

Protection Rating: IP66

Surge Protection: 6kV

Operating Temperature: -40°C to +70°C
