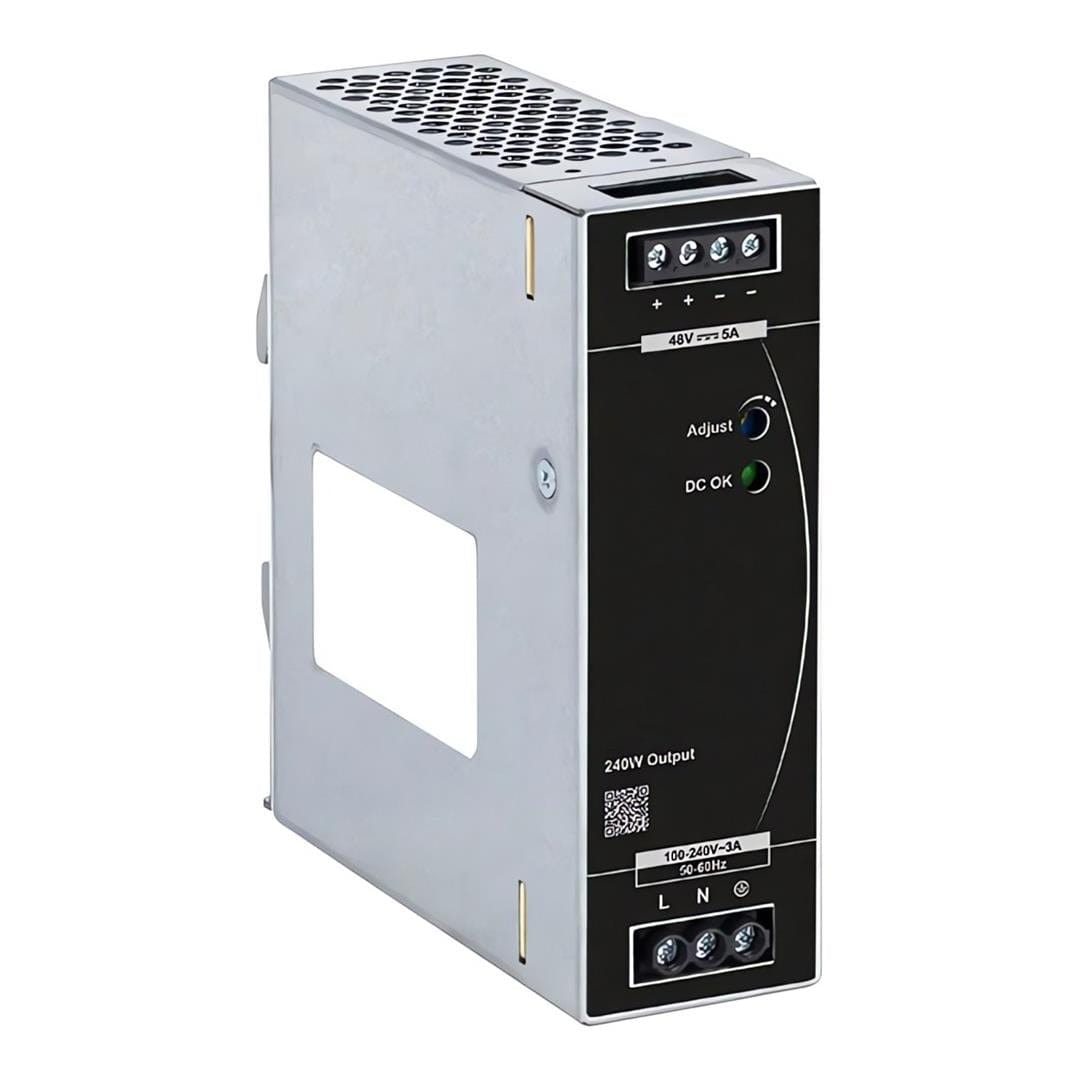

Hikvision 48V 240W Industrial DIN Rail Power Supply DRL-48V240W1EN

Hikvision 48V 240W Industrial DIN Rail Power Supply DRL-48V240W1EN

Features

• Universal AC input voltage range
• Built-in constant current circuit for reactive loads
• High power density
• Operate from -30°C to +70°C with -40°C Cold Start
• Reduced no-load power consumption
• Compliance with DOE VI Energy Standard
• Compliance to SEMI F47 @ 200Vac

Technical Specification

Output Voltage: 48V

Output Power: 240W

Output Current: 5A

Rise Time: 30ms typ. @ 115Vac & 230Vac

Start-up Time: 500ms typ. @ 115Vac & 230Vac

Hold-up Time: 20ms typ. @ 115Vac (100% load) ; 20ms typ. @ 230Vac (100% load)

Nominal Input Voltage: 100 - 240Vac

Input Voltage Range: 90 - 264Vac

Input Current: 2.5A typ. @ 115Vac, 1.3A typ. @ 230Vac

Max Inrush Current (Cold Start): 40A typ. @ 230Vac

Dimensions (H x W x D): 123.6 x 40 x 116.8 mm

Unit Weight: 0.62 kg

Terminal Input: 3 Pins (Rated 300V/30A)

Terminal Output: 4 Pins (Rated 300V/20A)

Wire Input: AWG 18-12

Wire Output: AWG 18-12
