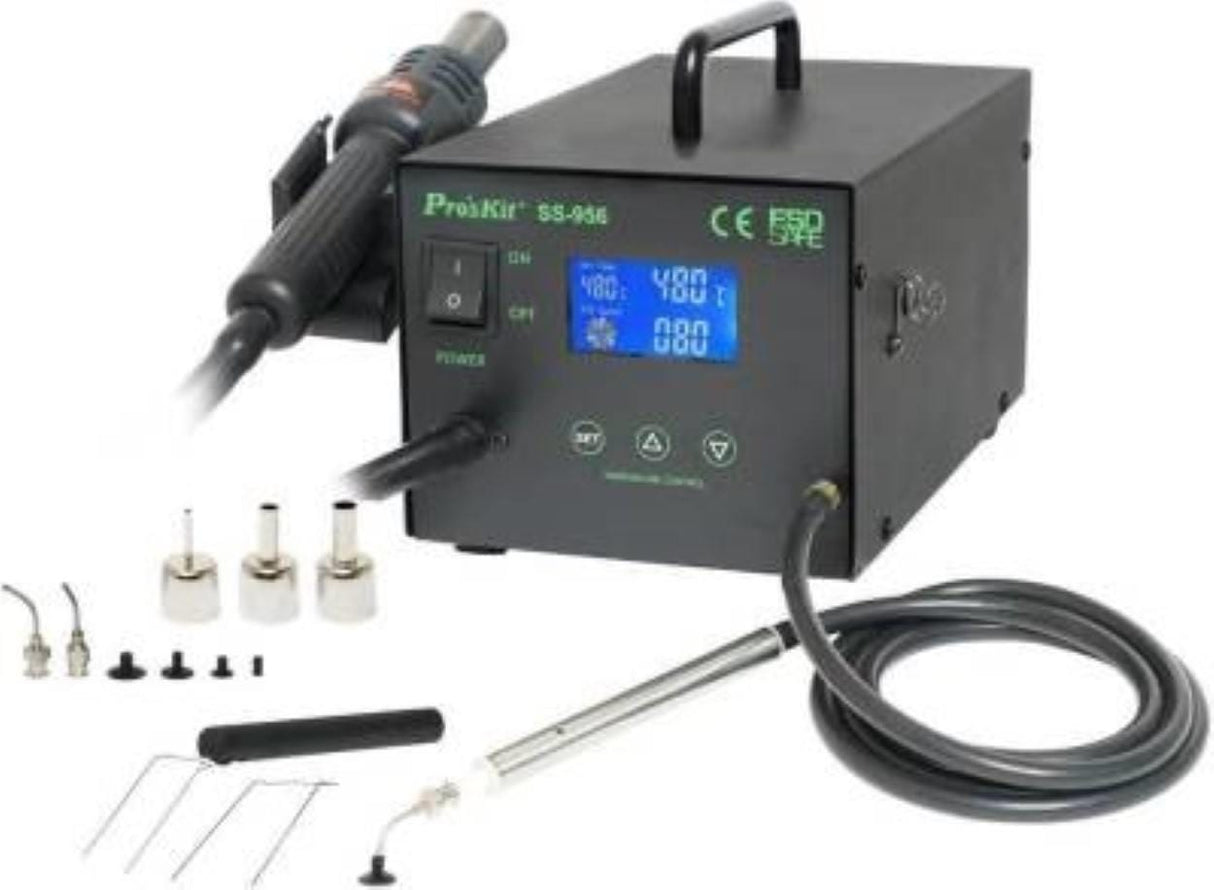

Pro'sKit Smart Rework Station 600W with Vacuum Pickup NET-SS-956B

Pro'sKit Smart Rework Station 600W with Vacuum Pickup NET-SS-956B

Station Specifications:
Function control: switch with two positions
Noise level: <50 dB
Air temperature control: buttons
Air capacity indication: value 20 to 100
Motor / pump type: diaphragm pump
Change ° C / ° F: yes
Temperature setting: digital
Temperature calibration: digital
Hot air gun connector: fixed
Detachable power cable: yes
Power cable: 3 x 0.75 mm2
Power cable length: 130 cm
Standard plug: B
Power supply: 220 V
Fuse dimensions: O5 x 20 mm
Fuse rating: 5 A / 250 V
Enclosure: 1.1 ± 0.1 mm
Housing characteristics: monochromatic
Housing material: iron
Housing color: black
Dimensions without accessories: 250 x 230 x 170 mm
Net weight without accessories: 3.2 kg

Heat gun
Soldering temperature range: up to 480 ° C
Maximum air capacity: 24 L / min
Temperature accuracy: 480 ± 20 ° C
Temperature drop: <2 ° C
Temperature stability: ± 20 ° C
Awakening: yes
Automatic cooling: <100 ° C
Warm-up time to 160 ° C: 10 seconds
Warm-up time to 300 ° C: 15 seconds
Plug or connector: fixed
Heating element: Ni-Cr
Heating element supply: AC 220 to 240 V, 50 Hz
Heating element consumption: 600 W
Heating element resistance: 80 ± 7
Cylinder material: stainless steel
Energy management: AC 220 to 240 V, 50 Hz
Housing material: PPS
Net dimensions without cable and accessories: 190 x O44 x O22 mm
Earthing nozzle resistance: <0.1
Earthing potential of the nozzle: <0.002 V
High voltage test: 1250 V / 5 mA / 5 s
Net weight with cable and without accessories: 230 g

Pistol stand
Gun holder: attached to the station

Standard accessories
Model: 9SS-968B-HG
Nozzle model: 9SS-900-A1, 9SS-900-A2, 9SS-900-A3
Nozzle dimensions: O2.2 mm, O6.6 mm, O8.5 mm
Number of nozzles: 3 pcs
Material of hot air head: iron
