Pro'sKit Multifunction Cable Tester MT-7071K

Pro'sKit Multifunction Cable Tester MT-7071K

Features:

• Tests RJ11, RJ12, RJ45 and COAX
• Cable Length Measurement up to 1200m
• Wire Tracing up to 3km
• Cable Mapping and Status Indication - up to 8
• Remote Units
• Non-Contact Voltage Detection

The MT-7071K Included 8+1 remote units, let you measures cable length up to 1200M (4000ft), and locate and verify the cable status and troubleshoot wiring. Ideal for all installation and maintenance fields of telecommunication, networking, datacom, Audio/Video, cable TV, and all weather cabling, etc.

Cable Length Measurement up to 1200M

Measuring cable length to opens up to 1200M. Calibration accuracy: ±3%
Length measurement in feet, yard or meters
Cable length measurements without remote attached

Calibration Parameters

Can determine actual Calibration parameters with known length of cable for cable length test
Allows setting 1-7 Calibration parameters

Wire Tracing up to 3KM

The tone and probe kit let you easily tracking wire directly in connection with live telecommunication equipment and router

Cable Mapping & status Indication

Display the result of pin to pin cable mapping
Display cable status and troubleshoot wiring for continuity, shorts, opens and crossover.
Max support to 8 remote units

Non Contact Voltage detection

Tests voltage from 90 ~ 1000V, special design to make sure the power is off before testing for circuit protection

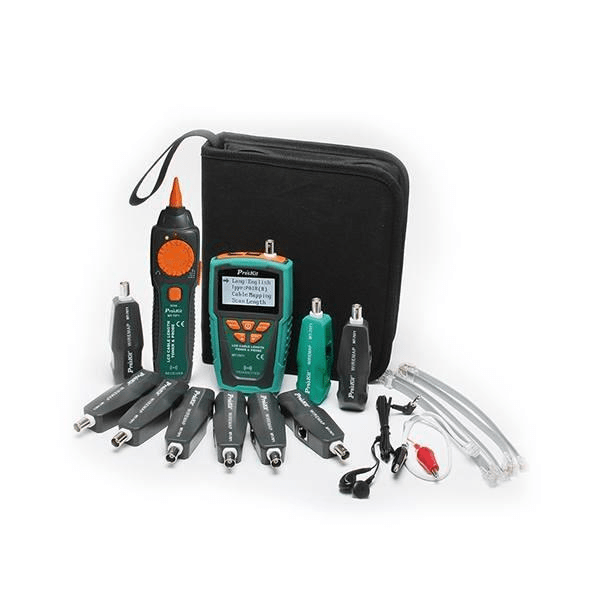

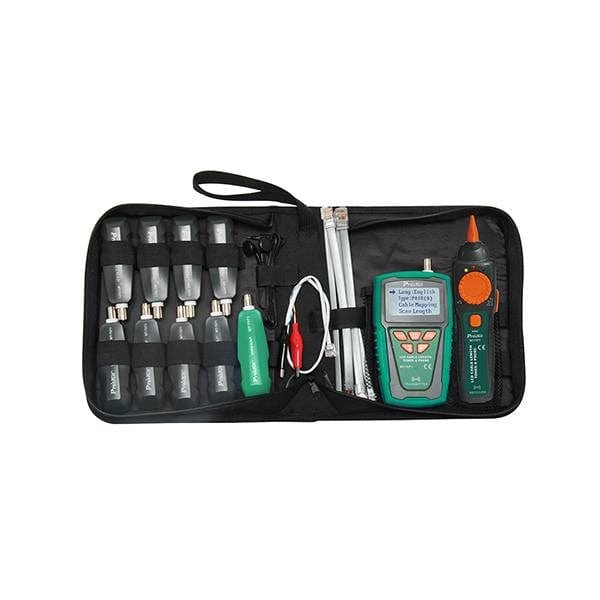

What's in the Box:

1 x toner

1 x receiver

1 plus 8 x remote unit

1 x rj45 cable patch cord

1 x rj11/12 cable patch cord

1 x alligator clips patch cord

1 x earphones

1 x pouch bag
