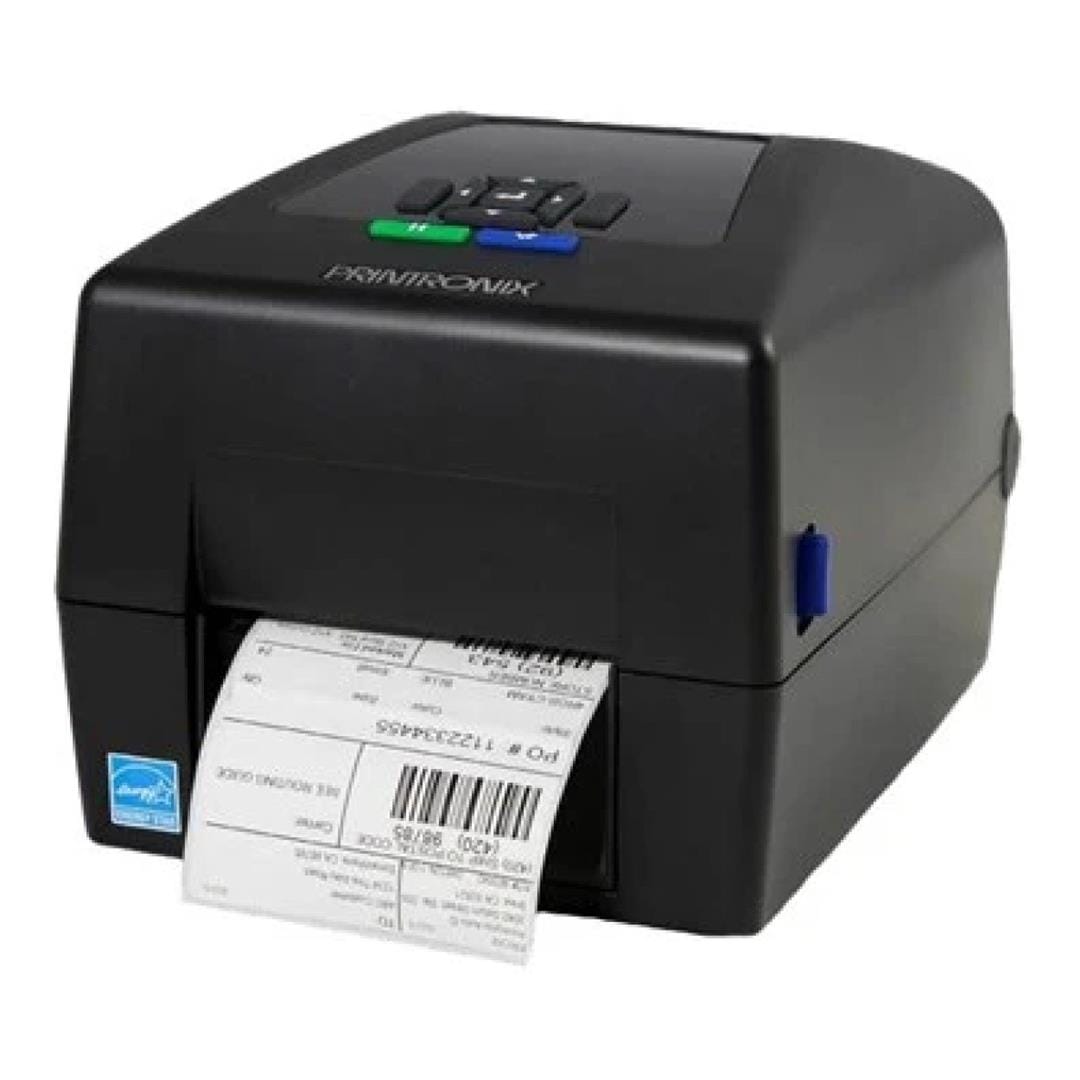

Printronix T800 Thermal Transfer Label Printer T820-300-0

Printronix T800 Thermal Transfer Label Printer T820-300-0

The TSC TTP-286MT (99-135A002-0002) is an industrial-grade thermal transfer label printer engineered for wide-format, high-volume labelling applications. Designed for demanding environments such as manufacturing, logistics, and warehousing, it delivers reliable performance with a strong emphasis on durability and efficiency.

With its 203 DPI resolution and wide print capability of up to 8.5 inches (216 mm), the printer is particularly suited for large labels, including pallet labels, compliance signage, drum labels, and multi-column formats.

The TTP-286MT supports both thermal transfer and direct thermal printing, offering flexibility across different label materials and use cases. Its high-speed output of up to 152 mm per second ensures efficient processing in high-demand environments.

A standout feature is the 4.3-inch colour touchscreen interface, which simplifies setup, monitoring, and operation. Combined with a powerful processor and large memory (512 MB Flash / 256 MB SDRAM), it efficiently handles complex print jobs and large data volumes.

Built with a die-cast aluminium frame, the printer is designed for long-term durability in industrial settings. It also supports large media rolls and long ribbons (up to 600 metres), reducing downtime from frequent replacements.

Specifications:

Brand: TSC

Model: TTP-286MT (99-135A002-0002)

Print Technology: Thermal transfer & direct thermal

Resolution: 203 DPI (8 dots/mm)

Max Print Width: 216 mm (8.5")

Max Media Width: 241 mm (9.5")

Print Speed: Up to 152 mm/sec (6 ips)

Memory: 256 MB SDRAM / 512 MB Flash

Ribbon Capacity: Up to 600 m

Display: 4.3" colour touchscreen

Connectivity: USB, USB Host, RS232, Parallel, Ethernet

Media Types: Continuous, die-cut, fan-fold, tag, black mark, perforated

Construction: Die-cast aluminium frame

Use Case: Industrial labelling (logistics, manufacturing, compliance, signage)
