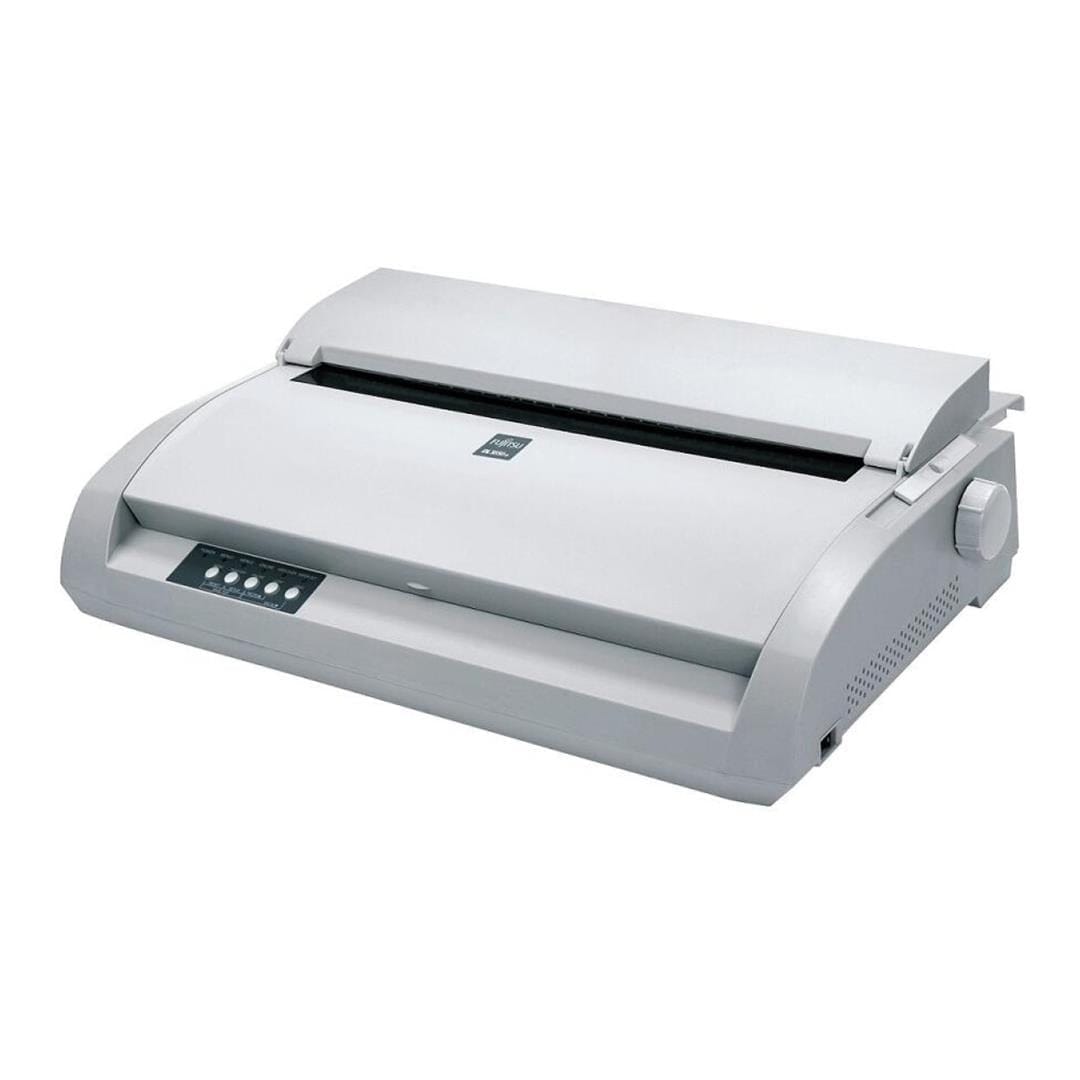

Fujitsu DL3850+ 24-pin Serial Dot Matrix Printer KA02014-B611

Fujitsu DL3850+ 24-pin Serial Dot Matrix Printer KA02014-B611

The Fujitsu DL3850+ (KA02014-B611) is a heavy-duty 24-pin serial dot matrix printer designed for high-reliability printing in environments that require continuous forms and multi-part documents. It uses impact printing technology with a durable print head capable of producing clear text, barcodes and forms at high speeds.

This printer is commonly deployed in sectors such as logistics, manufacturing, retail back-offices and finance, where carbon-copy forms, invoices, delivery notes and reports must be printed continuously. The DL3850+ is built for long operational life with a rugged mechanism, high ribbon yield and support for multiple industry printer emulations, ensuring compatibility with legacy systems and enterprise applications.

Fujitsu DL3850+ High performance Serial Dot Matrix Printer, RS-232C, Centronics (KA02014-B611)

High Quality. Silent Printing. Low Profile.

• Compact, low profile 136 column design
• Ultra-low noise emissions - 49dBA
• 24-pin printhead for high-quality output
• Multiple Interface Options

Specifications:

Printer Type: Serial impact dot matrix printer

Print Technology: 24-pin impact dot matrix

Print Method: Bi-directional printing with logical seeking

Output Colour: Monochrome (via ribbon)

Maximum Print Width: 136 columns

Maximum Print Speed: Up to 537 characters per second (cps)

Print Resolution: Up to 360 × 360 dpi

Copy Capability: 1 original + 4 copies (multi-part forms)

Input Buffer: Up to 128 KB

Barcode Support: Code 39, EAN-13, EAN-8, Codabar, Code 128, Interleaved 2 of 5, UPC-A, POSTNET

Parallel (IEEE1284): Yes

Serial (RS-232C): Yes

USB Type-B: Yes

Compatible Ribbons:

• Fujitsu Serial Dot Matrix Ribbon Cartridge (DL3750+, DL3850+, DL7400,DL7400Pro), BLACK, Keying Ribbon, KA02086-C802
