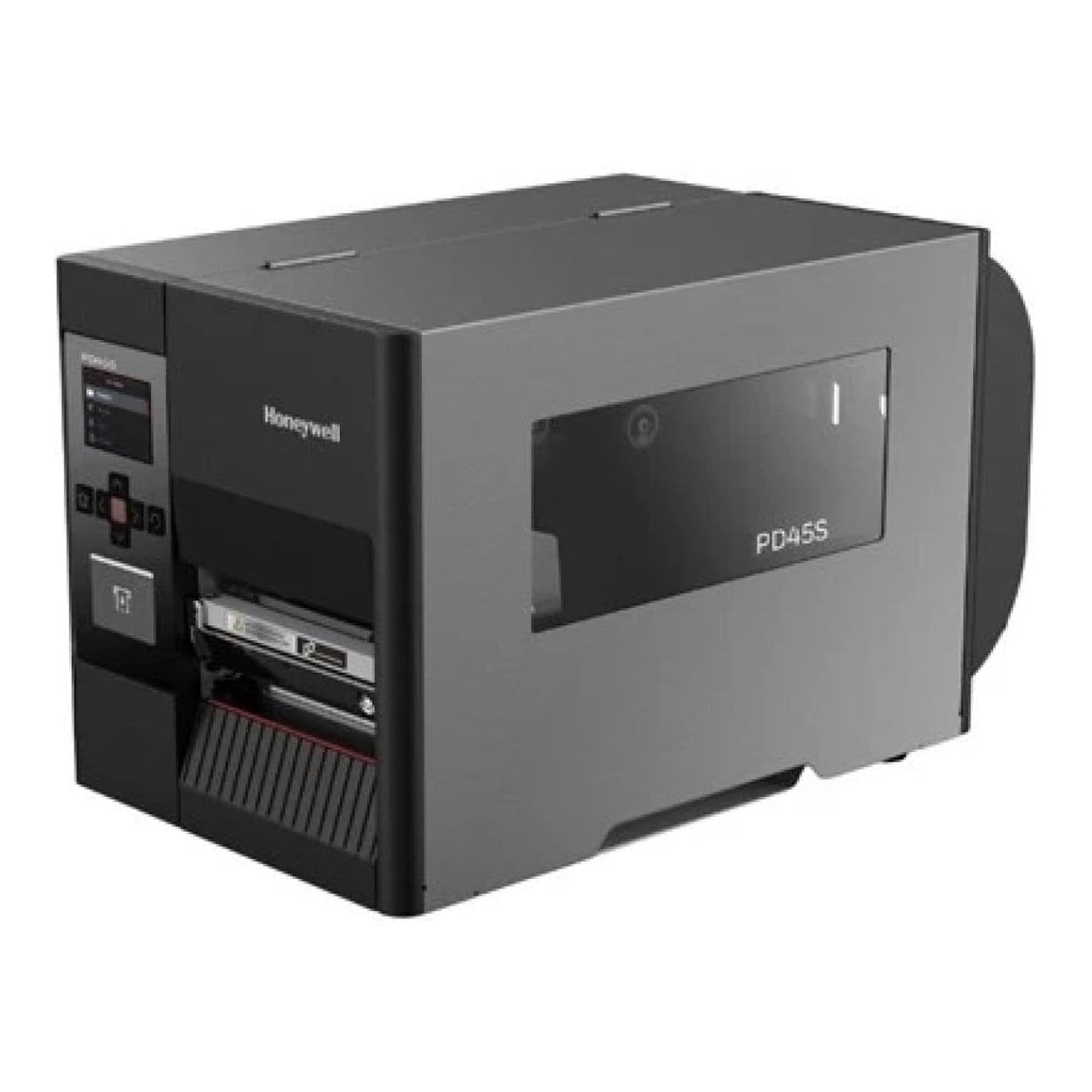

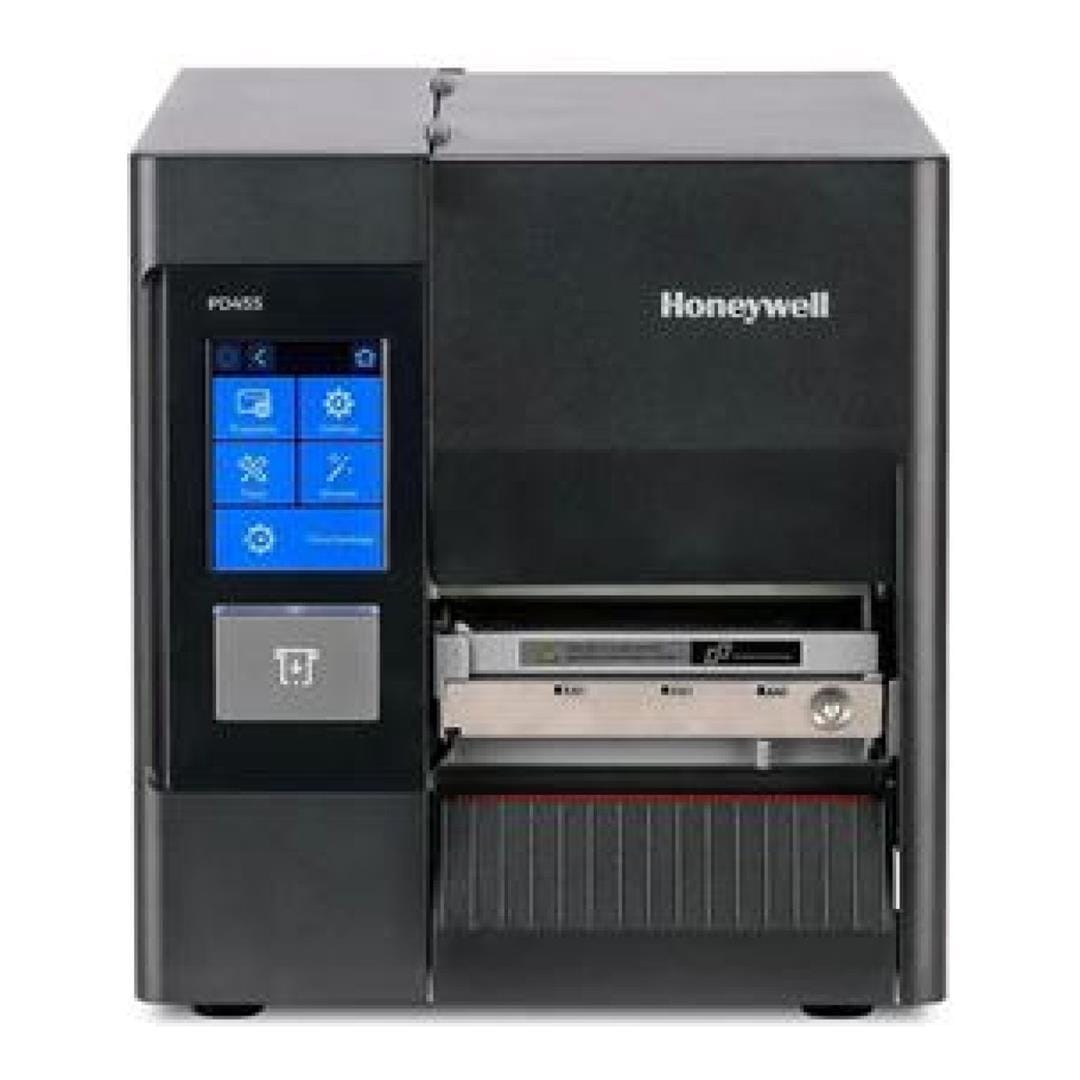

Honeywell PD45S Thermal Transfer Label Printer PD45S0C0010020200

Honeywell PD45S Thermal Transfer Label Printer PD45S0C0010020200

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.

The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell’s patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.

Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.

The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.

Specifications:

Product: Honeywell PD45S0C

Print technology: Direct thermal / Thermal transfer

Colour: No

Maximum resolution: 203 x 203 DPI

Print speed: 250 mm/sec

Internal memory: 128 MB

Flash memory: 128 MB

Maximum printing width: 10.8 cm

Minimum print length: 4.8 m

Paper handling

• Ribbon width: 11 cm
• Ribbon length: 450 m
• Maximum roll diameter: 8 cm
• Media thickness: 0.224 mm

Connectivity technology: Wired

Ethernet LAN: Yes

USB port: Yes

RS-232 ports: 1

Built-in display: Yes

Display: LCD

Display diagonal: 6.6 cm (2.6")

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz
