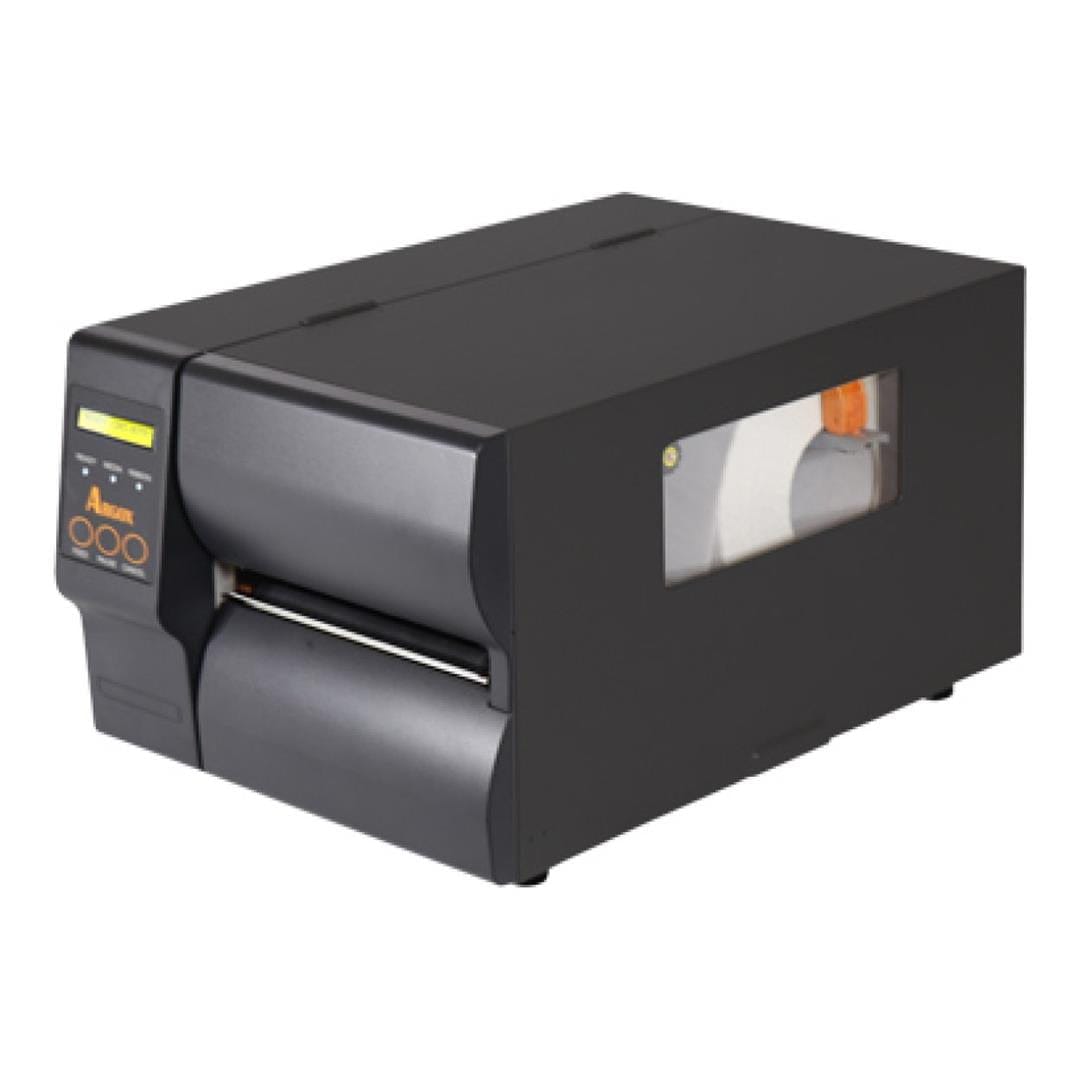

Argox IX6-250 PRO Barcode Thermal Transfer Label Printer ARG 99-IX602-003

Argox IX6-250 PRO Barcode Thermal Transfer Label Printer ARG 99-IX602-003

Stable and Durable

High quality metal case can protects machine from damage, hold up in any demanding environments.

Automatic Language Emulation Detection

Automatic adopting commonly used printer control languages for maximized user friendliness. (Auto-Detection & Auto-Conversion)

Media Shaft Keep Printing Smoothly

Unique media shaft technology keeps your critical printing tasks running efficiently, avoid process slowdown.

Indented Interface

The indented interfaces can protect accidental water spilling and save the working space.

Specifications:

Printing Method: Direct Thermal & Thermal Transfer

Printing Resolution: 203 dpi (8 dots/mm)

Printing Speed: 6 ips

Printing Length: 100”(2540 mm)

Printing Width: Max. 6.6”(168 mm)

Memory: 128MB SDRAM, 128MB Flash ROM (USB storage up to 32GB)

CPU Type: 32 bit RISC micro processor

Sensors: Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)

Media Type: Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper

Media:

• Max. width: 6.8”(173 mm). Min. width: 2” (50.8 mm).
• Thickness: 0.0025”~0.01” (0.0635 mm~0.254 mm); 8.26”(210 mm)OD on a 3”(76 mm) ID core.
• 7”(177.8 mm) OD on a 1.5”(38 mm) ID core

Ribbon:

• Max. width: 6.78”(172 mm). Min. width: 2” (50.8 mm).
• Length:max 450m Wax, Max OD 3.2” (81.3 mm).
• Core size ID 1”(25.4 mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)

Fonts:

• Internal character sets standard
• 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
• Internal fonts are expandable up to 24×24 4 direction 0 ~ 270 rotation
• Soft fonts are downloadable
• Ability to print any Windows True Type font easily. Support scalable font

1D Barcodes:

• UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial
• 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked,
• GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked

2D Barcodes: QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode

Operation Interface: LED indicator x 3, Button x 3, LCD Display x 1

Interface: USB device, RS-232, Ethernet, USB host x 2

Software-label Editing: Windows Driver (Windows XP/Vista/Win7/Win8/Win10), BarTender® from Seaguall Scientific

Programming Language: Standard: PPLA+PPLB+PPLZ

Graphics:

• PPLA: PCX, BMP, IMG, HEX,GDI
• PPLB: PCX, BMP, Binary raster, GDI
• PPLZ: GRF, Hex, GDI

Software-Utility: Printer Tool
