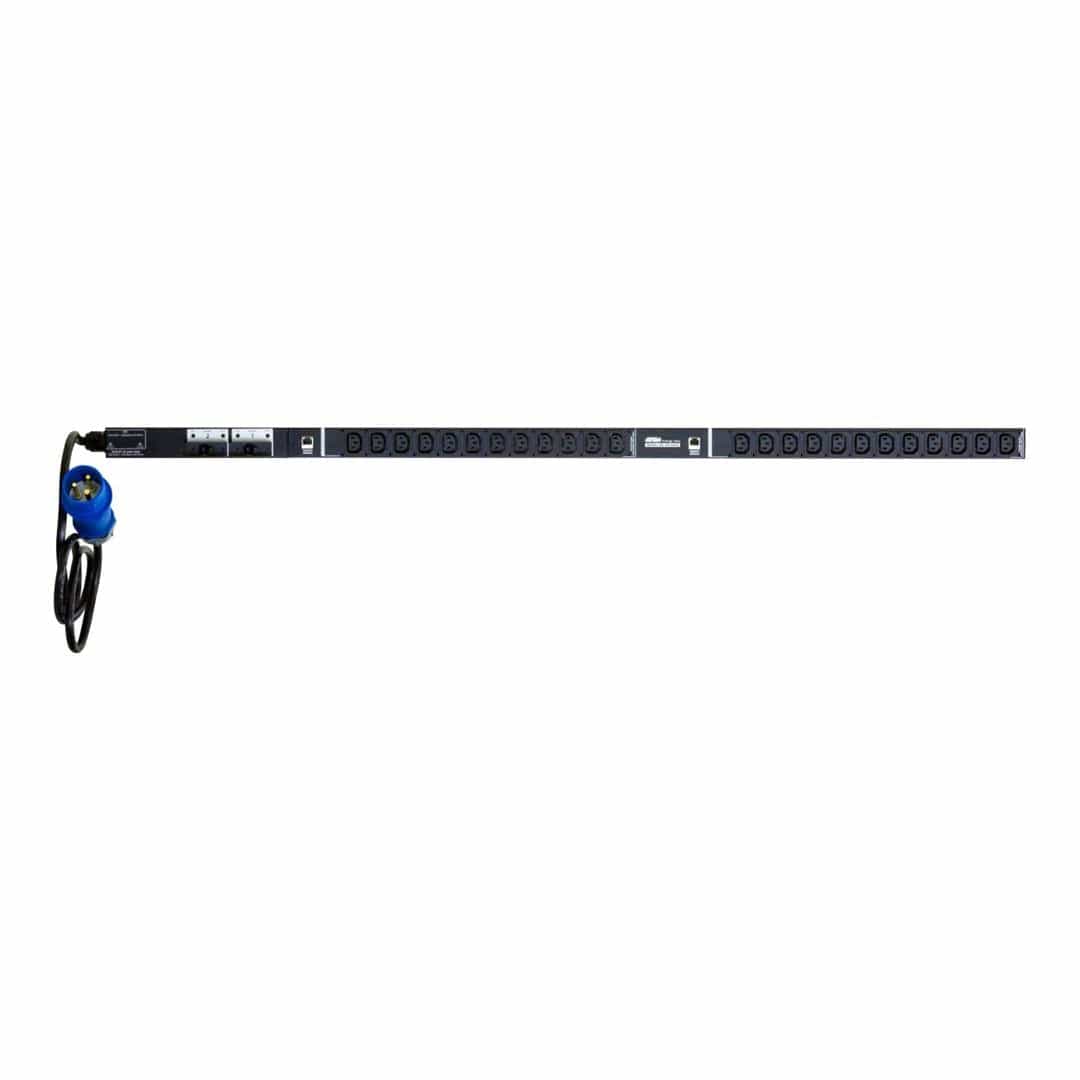

Aten PE1324G 24-Port 0U Power Distribution Unit

Aten PE1324G 24-Port 0U Power Distribution Unit

The PE1324 Energy PDU contains 24 AC outlets and is available in IEC or NEMA socket configurations. The PE1324 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 24 AC outlets.

The PE1324 Energy PDU can be integrated into an installation with the EC1000 Energy Box*, allowing you to monitor the real-time current and environmental conditions of the Energy PDU from the front panel of the EC1000 at the rack, or via Web GUI remotely – making your server room efficiently green with ease.

Features:

• Space saving 0U rack mount design
• IEC or NEMA outlet models
• Real-time PDU current monitoring

Technical Specifications:

Electrical

Nominal Input Voltage: 100 – 240 VAC

Maximum Input Current: 32 A (Max)

Input Frequency: 50–60 Hz

Input Connection: IEC 60309 32A

Input Power: 7360 VA (Max)

Outlet Type: Total: 24 × IEC320 C13

• Bank 1: Outlet 1–12; 12 × C13

Bank 2: Outlet 13–24; 12 × C13

Nominal Output Voltage: 100 – 240 VAC

Maximum Output Current (Outlet): 10 A (Max)

Maximum Output Current (Bank): 16 A (Max)

Maximum Output Current (Total): 32 A (Max)

Breakers: 2 × 16 A UL489 Breaker

Metering: Bank Level Current Monitoring (via EC1000 Energy Box)

Outlet Switching: None

Environment Sensor Ports: 0

Metering Accuracy: Current Range 0.1–1 A ±0.1 A, 1–20 A ±1%

Physical Properties

Dimensions (L × W × H): 130.00 × 4.04 × 4.40 cm (51.18 × 1.59 × 1.73 in)

Weight: 3.60 kg (7.93 lb)

Power Cord Length: 1.6 m

Environmental

Temperature (Operating / Storage): 0–50 °C / -20–60 °C

Humidity (Operating & Storage): 0–80% RH, Non-Condensing

Compliance

EMC Verification: CE, C-Tick, Others by Request

Safety Verification: TUV-CB, GOST, Others by Request

What's in the Box:

• 1x PE1324 Energy PDU
• (Fixed power cable 150 cm - IEC 60309 - 32A power plug)
• 1x Mounting Kit
• 1x User Instructions
