APC AP7821B 1U Rack Metered 16A 208/230V 8 x C13 Power Distribution Unit

APC AP7821B 1U Rack Metered 16A 208/230V 8 x C13 Power Distribution Unit

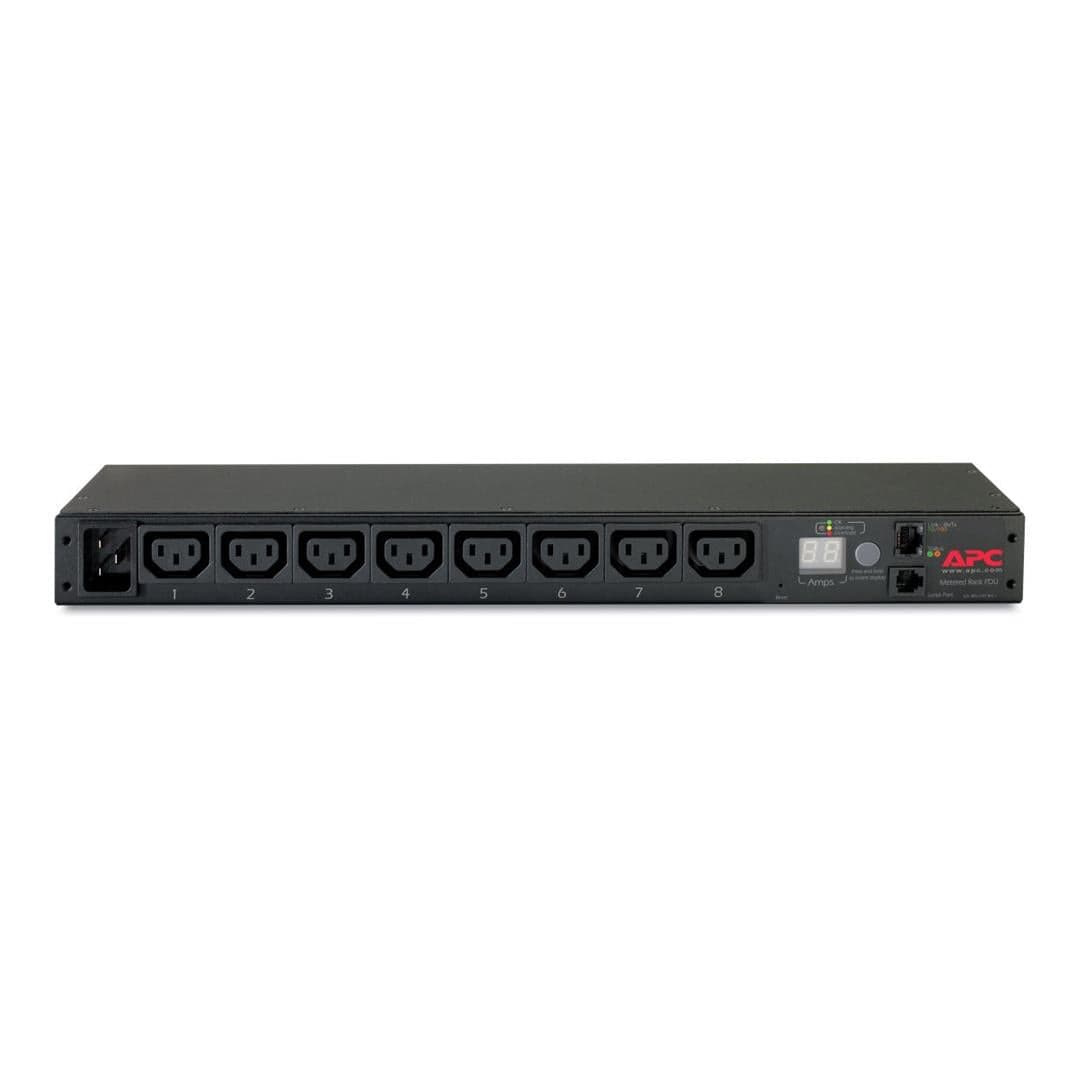

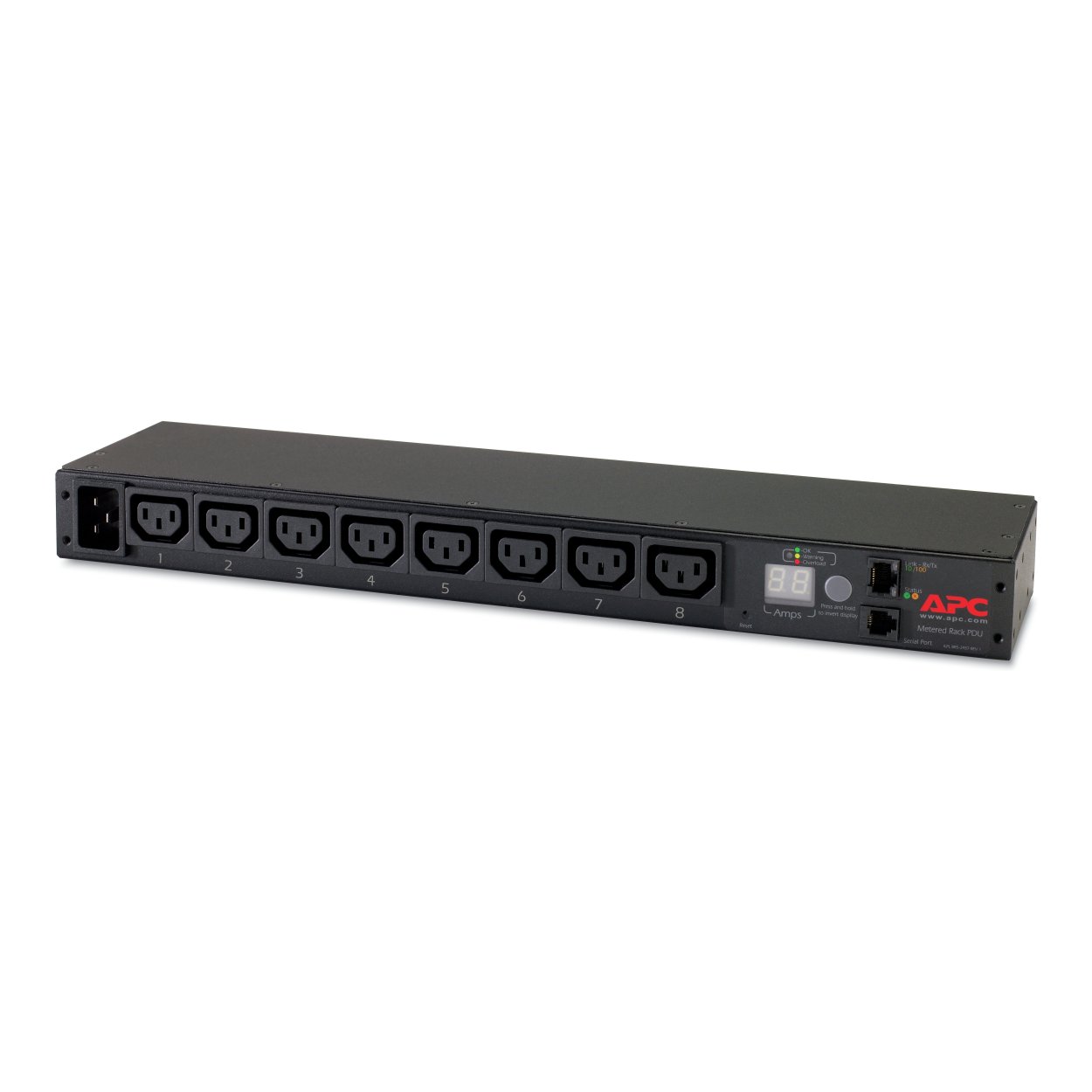

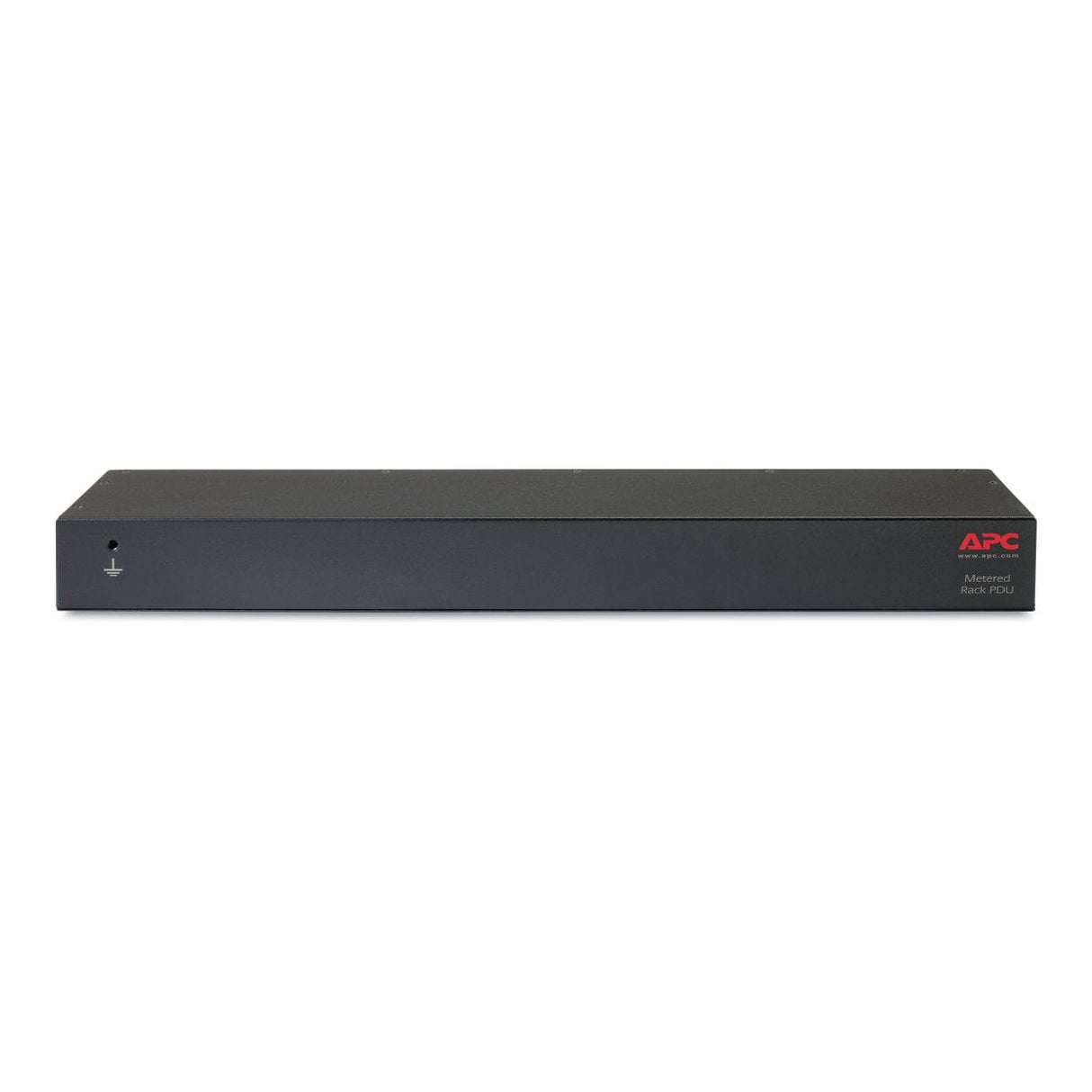

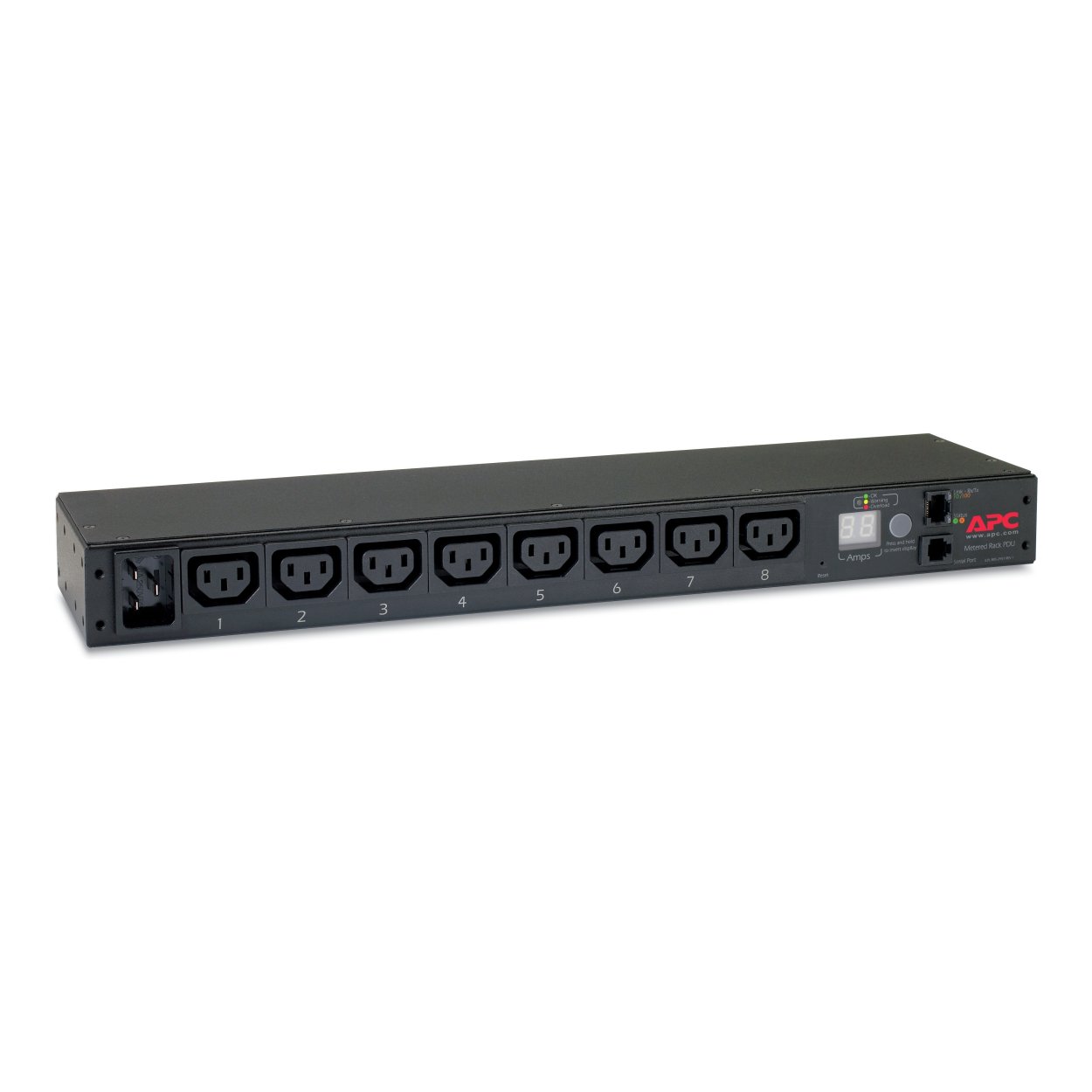

It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 16A and operates at 208-230V. The PDU features 8 IEC 60320 C13 outlets and an 8.2-foot power cord with an IEC 60320 C20 plug. It has a load capacity of 3300 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Features:

• Provides 8 IEC 60320 C13 outlets for comprehensive power distribution
• Horizontal mounting to fit various rack configurations, conserving space
• Supports up to 16A, 208V to 230V power distribution, ensuring reliable power delivery
• Includes a cord retention bracket and toolless mounting kit for quick setup

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Local Current Monitoring Display

The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Local and web-based monitoring

Status available to customers both in the data center and remotely.

Availability

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Local Current Monitoring Display

The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Integrates with StruxureWare Data Center Expert

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Agility

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Technical Specifications:

Product Type: Power Distribution Unit (PDU)
PDU Type: Metered
Mounting Mode: Rack-mounted
Rack Units: 1U
Mounting Position: Horizontal
Mounting Location: Front or Rear
Mounting Preference: No preference

Cord Length: 2.4 m

Provided Equipment:

• Cord retention bracket(s)
• Installation guide
• Rack mounting brackets
• User manual

Input Voltage:

• 200 V
• 208 V
• 230 V

Output Voltage:

• 208 V
• 230 V

Rated Current: 16 A
Input Current Limit: 20 A
Load Capacity: 3300 VA
Network Frequency: 50 / 60 Hz

Input Plug Type: IEC 60320 C20

Outlet Type and Quantity:

• 8 × IEC 60320 C13

Dimensions:
Height: 44 mm
Width: 444 mm
Depth: 102 mm

Net Weight: 1.74 kg

Environmental Specifications:

Product Certifications:

• cUL listed
• C-Tick
• CE
• CSA
• GOST
• UL listed
• VCCI
• VDE

Standards Compliance:

• FCC Part 15 Class A
• ICES-003
• UL 60950

Operating Conditions:
Ambient Temperature: -5 °C to 45 °C
Relative Humidity: 5% to 95%
Operating Altitude: 0 to 10,000 ft

Storage Conditions:
Storage Temperature: -25 °C to 65 °C
Storage Relative Humidity: 5% to 95%
Storage Altitude: 0 to 15,240 m

Packaging Information:

Package Type: PCE
Units per Package: 1
Package Dimensions:

• Height: 6.4 cm
• Width: 33.7 cm
• Length: 47 cm

Package Weight: 2.92 kg

Warranty:
24 Months
