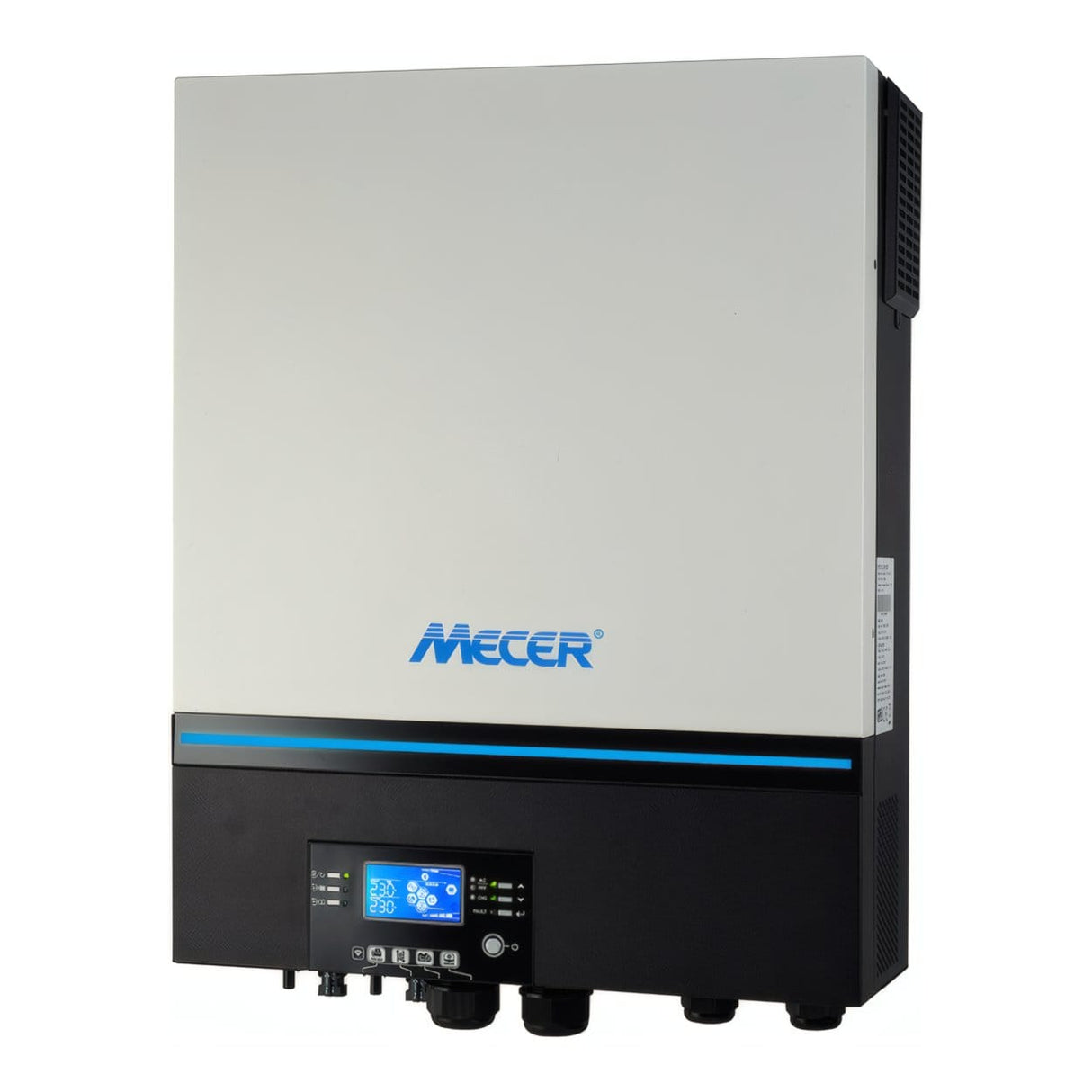

Mecer Axpert MAX Off-Grid 8kVA/8kW MPPT 48V Pure Sine Wave Inverter SOL-I-AX-8M

Mecer Axpert 8K 8kVA/8kW Hybrid Pure Sine Wave Inverter SOL-I-AX-8M

Features

• Customizable status LED bar with RGB light
• Built-in Wi-Fi for mobile monitoring (Android/iOS Apps are available)
• Supports USB On-the-Go function
• Reserved communication port for BMS
• Battery independent function
• Configurable AC/PV output usage timer and prioritization
• Selectable high-power charging current
• Compatible to Utility mains or generator input

Technical Specification

• Model: SOL-I-AX-8M
• Rated Power: 8000VA/8000W
• Parallel Capability: Yes, 6 units. Parallel card included

Input

• Voltage: 230 VAC
• Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto sensing)

Output

• AC Voltage Regulation (Line & Batt Mode): 230VAC ± 5%
• Surge Power: 16 000VA
• Efficiency (Peak): 90% ~ 93%
• Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure sine wave
• No Load Power Consumption: <70W

Battery

• Battery Voltage: 48V DC
• Floating Charge Voltage: 54V DC
• Overcharge Protection: 66V DC

Solar Charger & AC Charger

• Solar Charger Type: MPPT
• Maximum PV Array Power: 8000W
• Number of MPPTs: 2 x 4000W
• MPP Range @ Operating Voltage: 90 ~ 450 VDC
• Maximum PV Array Open Circuit Voltage: 500 VDC
• Maximum Solar Charge Current: 120 A
• Maximum AC Charge Current: 120 A
• Maximum Charge Current: 120 A

Physical

• Dimension, D x W x H (mm): 147.4 x 432.5 x 553.6.
• Net Weight (kgs): 18.4 kg
• Communication Interface: RS232, USB, Dry Contact, Wi-Fi, RS485

Environment

• Humidity: 5% to 95% Relative Humidity (Non-condensing).
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C.
