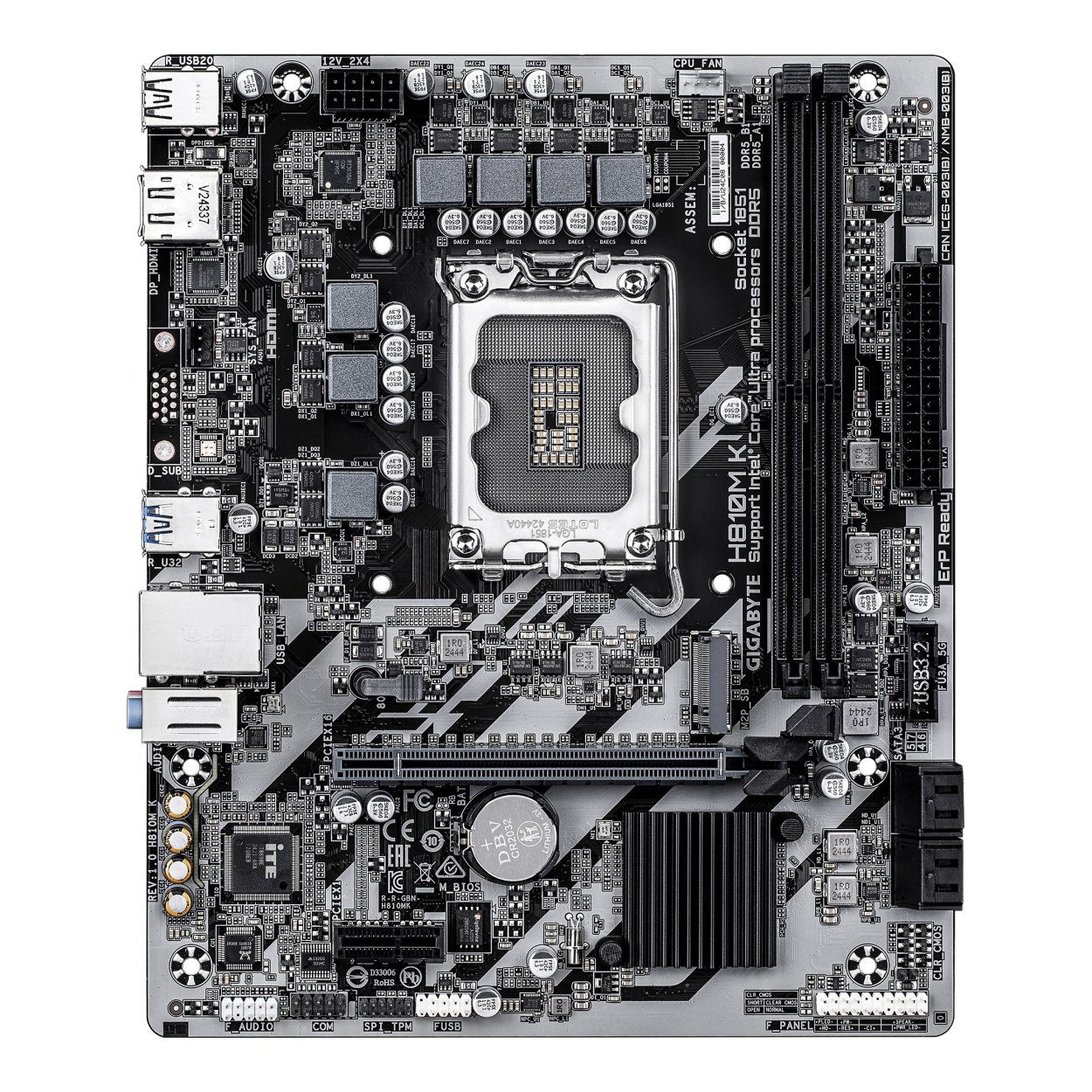

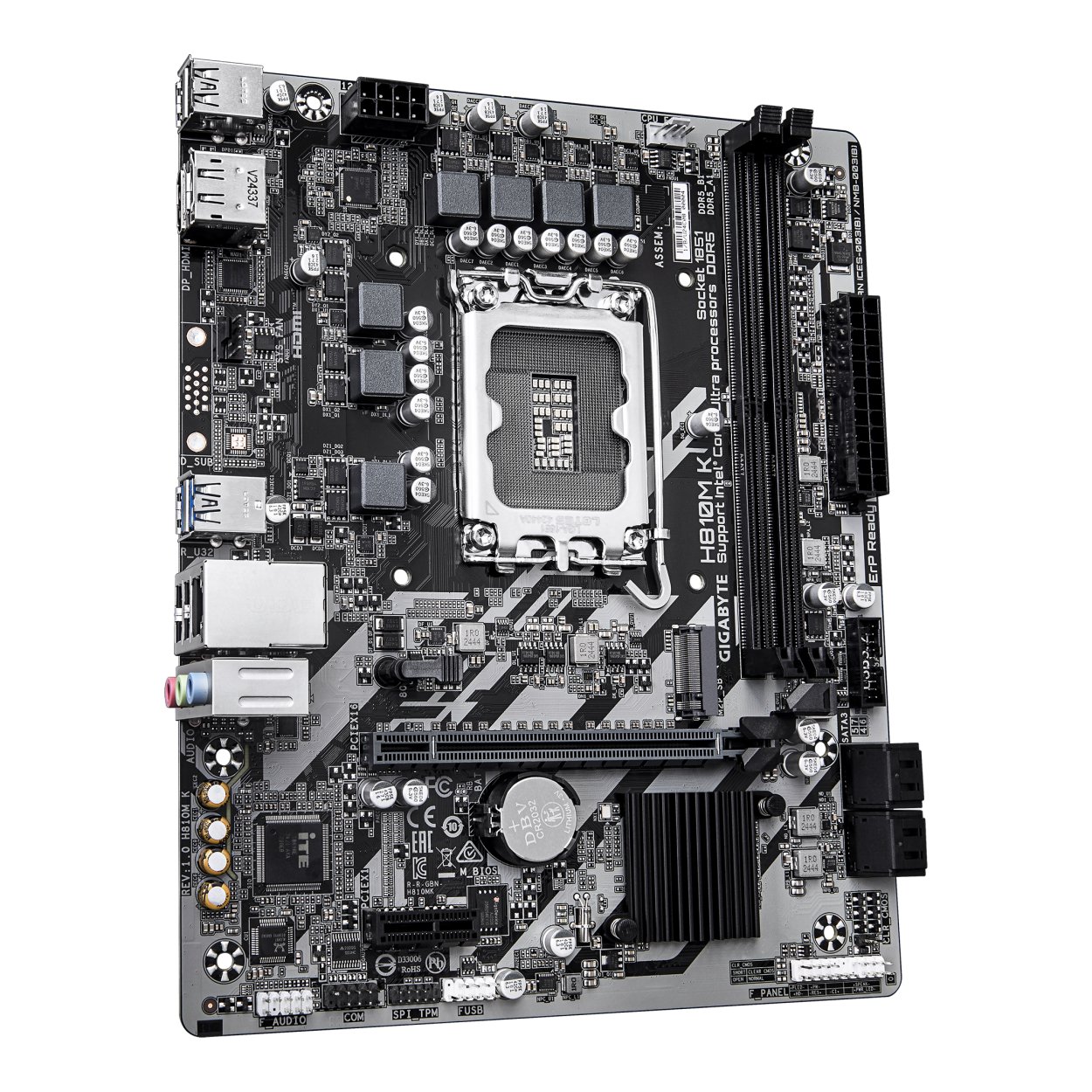

Gigabyte H810M H Intel LGA 1851 mATX Motherboard

Gigabyte H810M H Intel LGA 1851 mATX Motherboard

Features:

• Supports Intel® Core™ Ultra processors (Series 2)
• Hybrid 4+1+2 phases VRM solution
• EZ-Latch: PCIe x16 Slot with Quick Release Design
• Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
• Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
• Fast Networking: GbE LAN
• Extended Connectivity: HDMI

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

Technical Specifications:

CPU: LGA1851 socket, supports Intel® Core™ Ultra Processors
Chipset: Intel® H810 Express Chipset
Memory: 2 x DDR5 DIMM slots, up to 128 GB, dual channel. Supports DDR5 6400/5600 MT/s, ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode), non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, and XMP memory modules
Onboard Graphics: Intel® HD Graphics support. 1 x HDMI, max resolution 4096x2160@60Hz, HDMI 2.1, HDCP 2.3; 1 x D-Sub, max resolution 1920x1200@60Hz
Audio: Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out supported
LAN: Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots: 1 x PCIe x16 (PCIe 4.0 x16), 1 x PCIe x1 (PCIe 3.0 x1)
Storage Interface: 1 x M.2 (Socket 3, type 2280, PCIe 4.0 x4/x2 SSD support); 4 x SATA 6Gb/s connectors, RAID 0/1/5/10 support
USB: 1 x USB Type-C® (USB 3.2 Gen 1, internal header); 3 x USB 3.2 Gen 1 (1 back panel, 2 internal); 7 x USB 2.0/1.1 (4 back panel, 3 internal)
Internal I/O Connectors: 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 2 x system fan, 2 x addressable RGB Gen2 LED headers, 1 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x S/PDIF Out, 1 x USB Type-C® header (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x TPM header, 1 x serial port header, 1 x Clear CMOS jumper
Back Panel Connectors: 1 x PS/2, 1 x HDMI, 1 x D-Sub, 1 x USB 3.2 Gen 1, 5 x USB 2.0/1.1, 1 x RJ-45, 3 x audio jacks
I/O Controller: iTE® I/O Controller Chip
H/W Monitoring: Voltage, temperature, fan speed, fan fail warning, fan speed control, water cooling flow detection
BIOS: 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: GIGABYTE Control Center (GCC), Q-Flash, Smart Backup
Bundled Software: Norton® Internet Security (OEM), LAN bandwidth management software
Operating System: Windows 11 64-bit, Windows 10 64-bit
Form Factor: Micro ATX, 24.4 x 21.5 cm

What's in the Box:

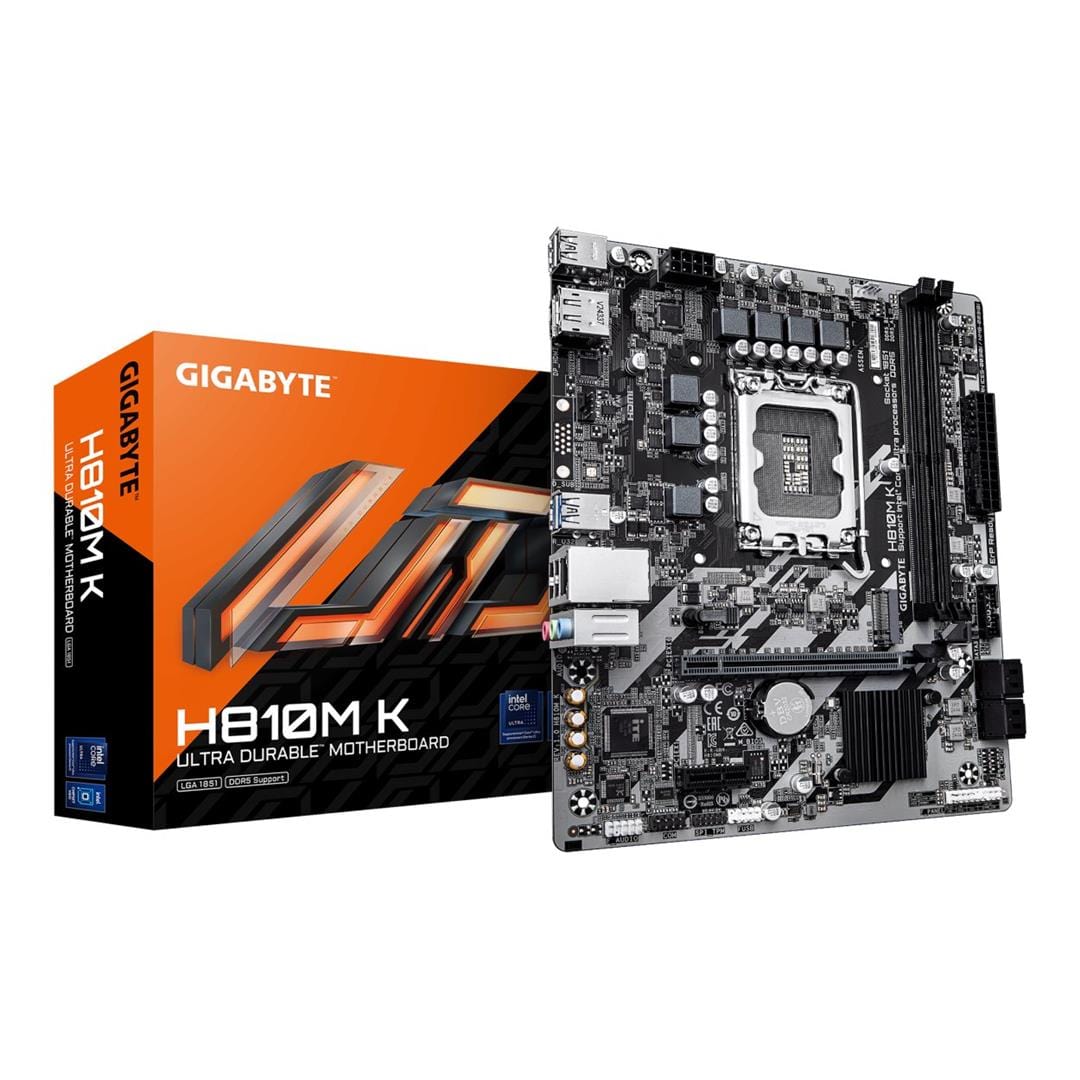

• 1 x H810M H Motherboard
• 1 x I/O Shield
• 1 x User Manual
