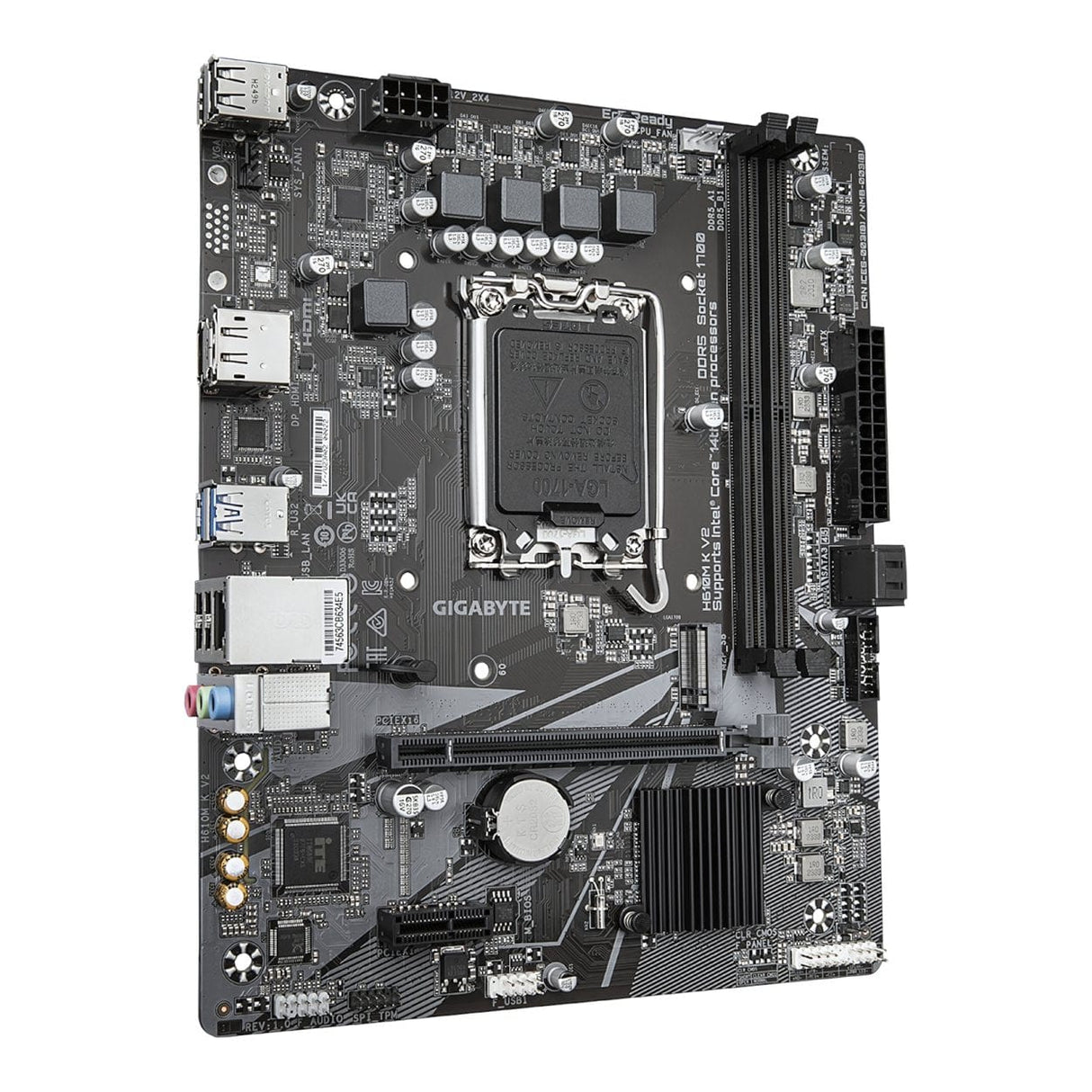

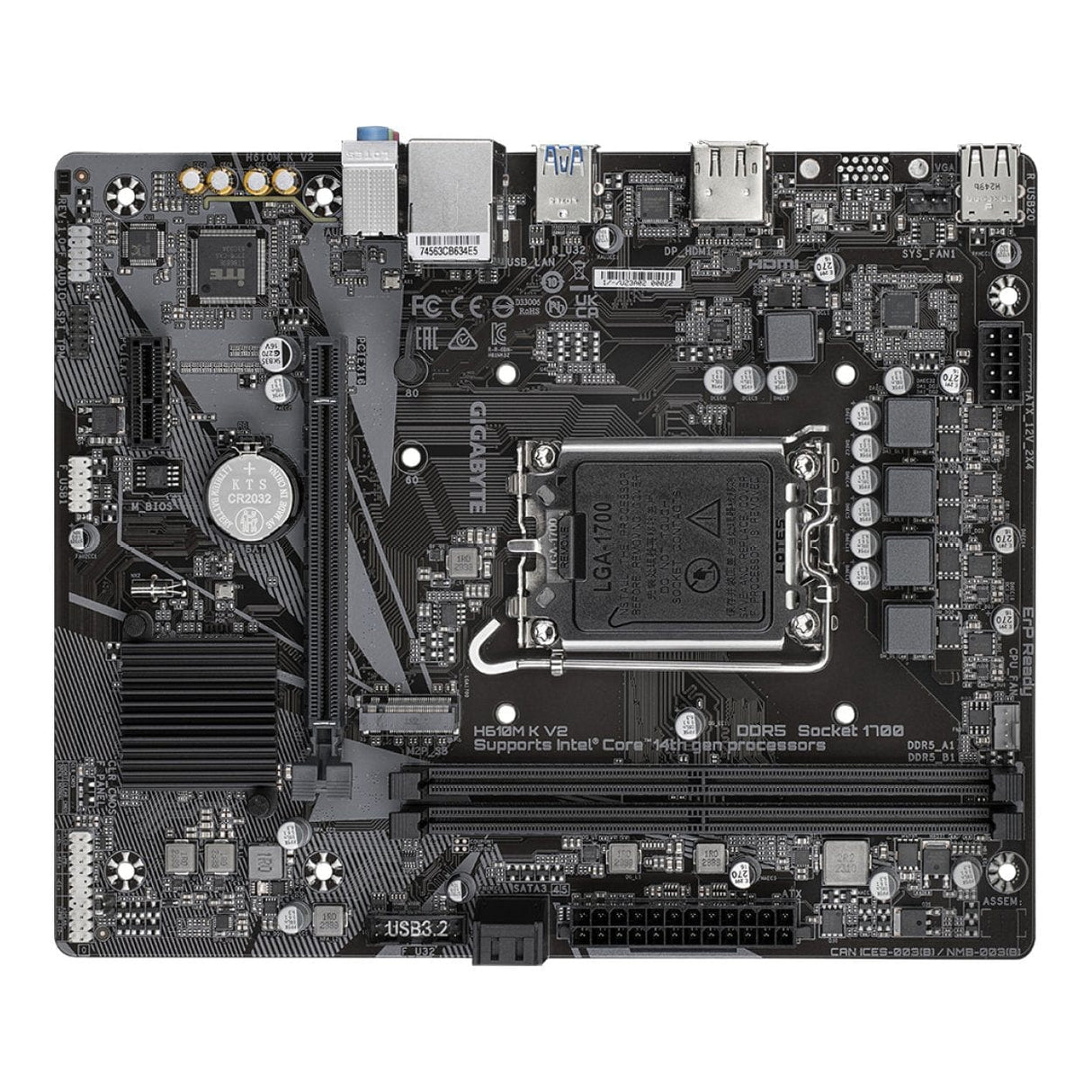

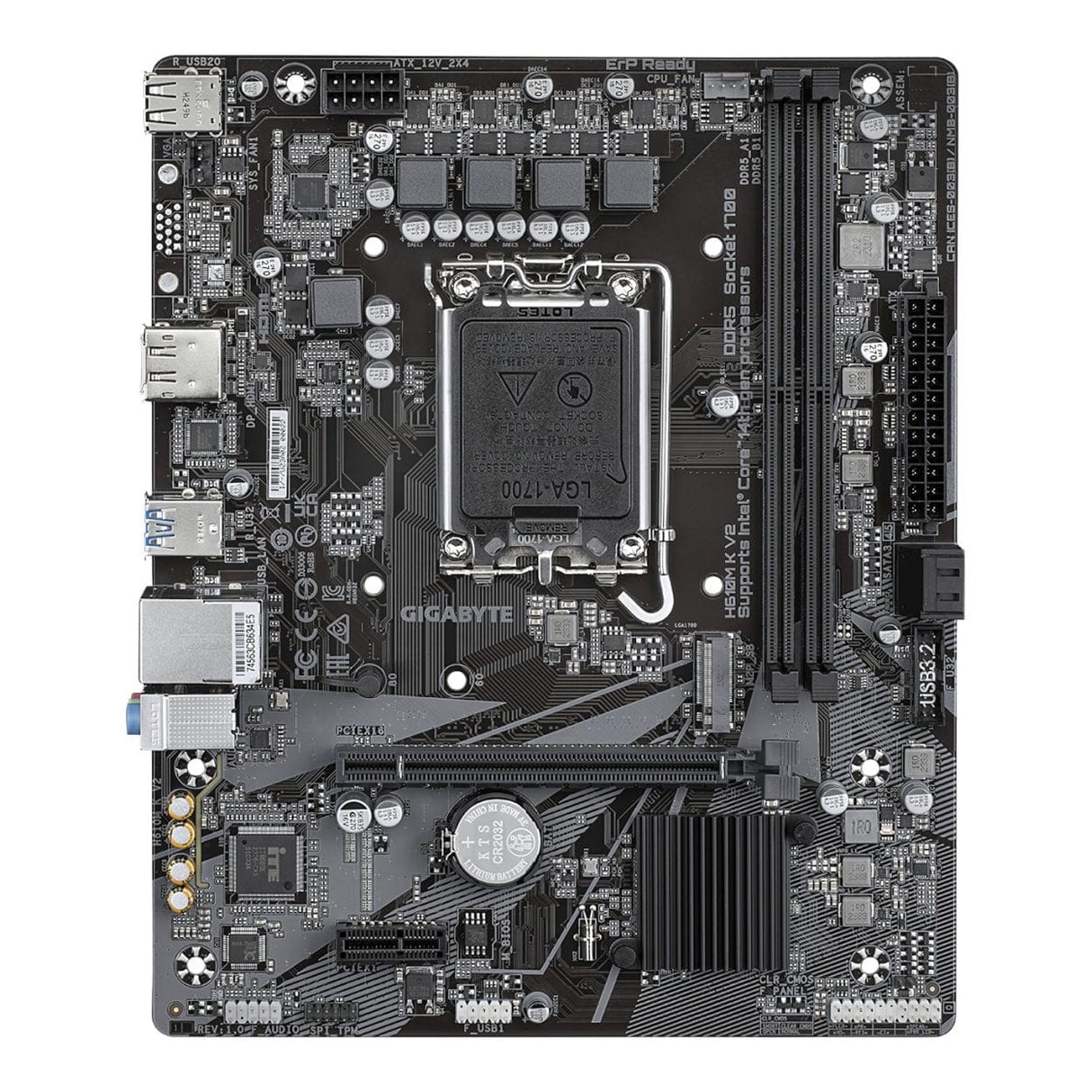

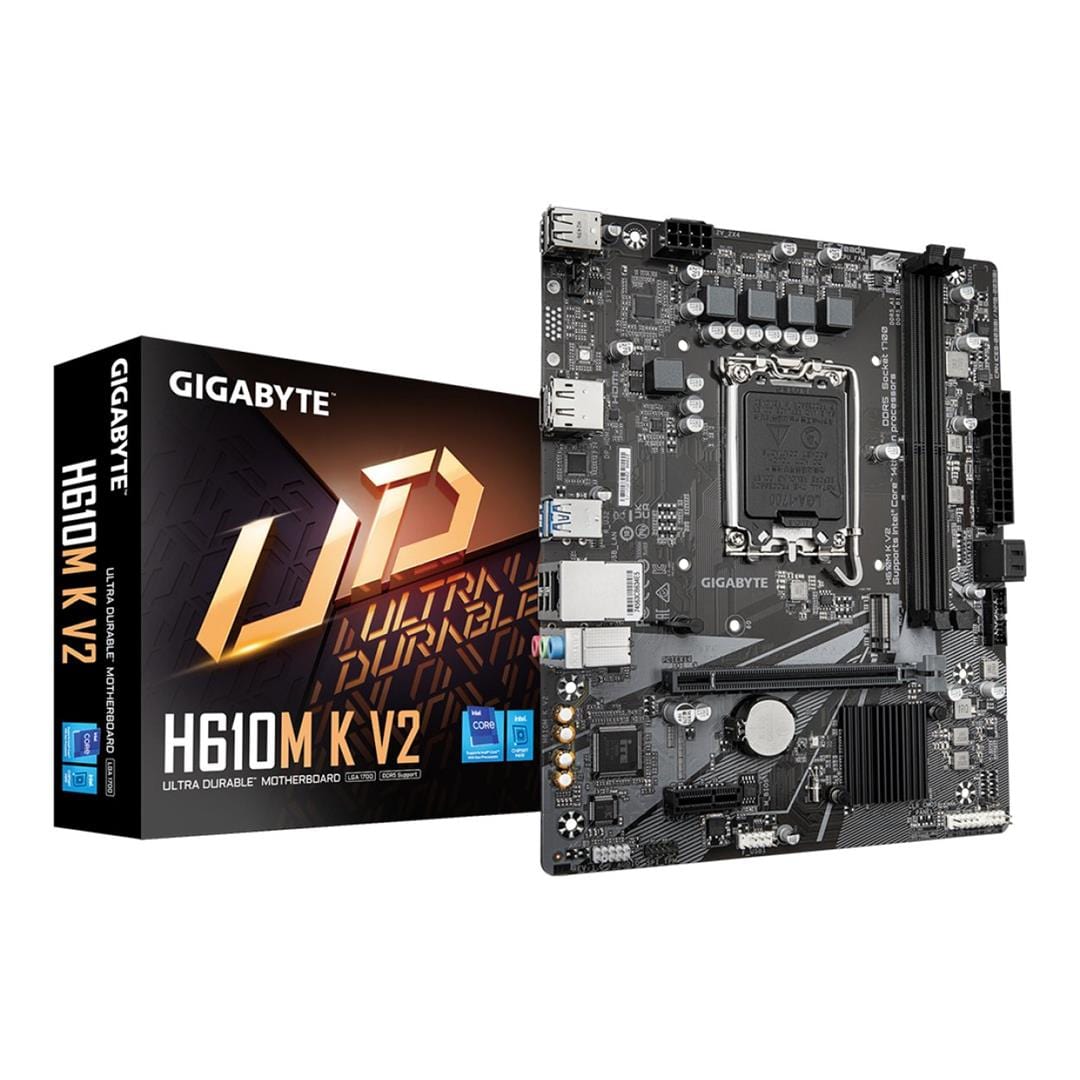

Gigabyte H610M K V2 Intel LGA 170 mATX Motherboard

Gigabyte H610M K V2 Intel LGA 170 mATX Motherboard

PCIe 4.0 Design, Gen3 x4 M.2 ,GbE LAN ,Anti-Sulfur Resistor, Smart Fan 6

Features:

• Supports Intel^® Core™ 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs​
• GbE LAN with Bandwidth Management​
• NVMe PCIe 3.0 x4 M.2​
• High Quality Audio Capacitors and Audio Noise Guard​
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​
• GIGABYTE APP Center, Simple and Easy Use​
• Anti-Sulfur Resistors Design​

DDR5

XTREME MEMORY

GIGABYTE H610 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.

CONNECTIVITY

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

ULTRA DURABLE

Solid Pin Power Connectors

H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

• Larger contact area for electricity
• More metal quantity to sustain higher power and generated heat
• Ultra durable and longer lifespan

SOFTWARE

BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Technical Specifications:

CPU: LGA1700 socket; supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors; L3 cache varies by CPU; refer to CPU Support List for details.
Chipset: Intel® H610 Express Chipset
Memory: 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB per DIMM), dual-channel, ECC (non-ECC mode) and non-ECC support, XMP compatible; 14th/13th Gen i9/i7: DDR5 5600/5200/4800/4400 MT/s; 13th Gen i5/i3 & 12th Gen Core™, Pentium® Gold, Celeron®: DDR5 4800/4400 MT/s; refer to Memory Support List for details
Onboard Graphics: Intel® HD Graphics; specifications depend on CPU support

• 1 x HDMI 2.1 port, up to 4096×2160 @ 60 Hz, HDCP 2.3
• 1 x DisplayPort 1.2, up to 4096×2304 @ 60 Hz, HDCP 2.3
• Audio: Realtek® Audio CODEC; High Definition Audio, configurable 2/4/5.1/7.1-channel via software
• LAN: Realtek® GbE LAN (10 Mbps/100 Mbps/1 Gbps)

Expansion Slots:

• 1 x PCIe 4.0 x16
• 1 x PCIe 3.0 x1

Storage:

• 1 x M.2 Socket 3 (2280/2260, PCIe 3.0 x4/x2)
• 2 x SATA 6 Gb/s

USB:

• 4 x USB 3.2 Gen 1 (2 rear, 2 internal)
• 6 x USB 2.0/1.1 (4 rear, 2 internal)

Internal I/O Connectors:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x M.2 Socket 3 connector
• 2 x SATA 6 Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (GC-TPM2.0 SPI V2 module only)
• 1 x Clear CMOS jumper

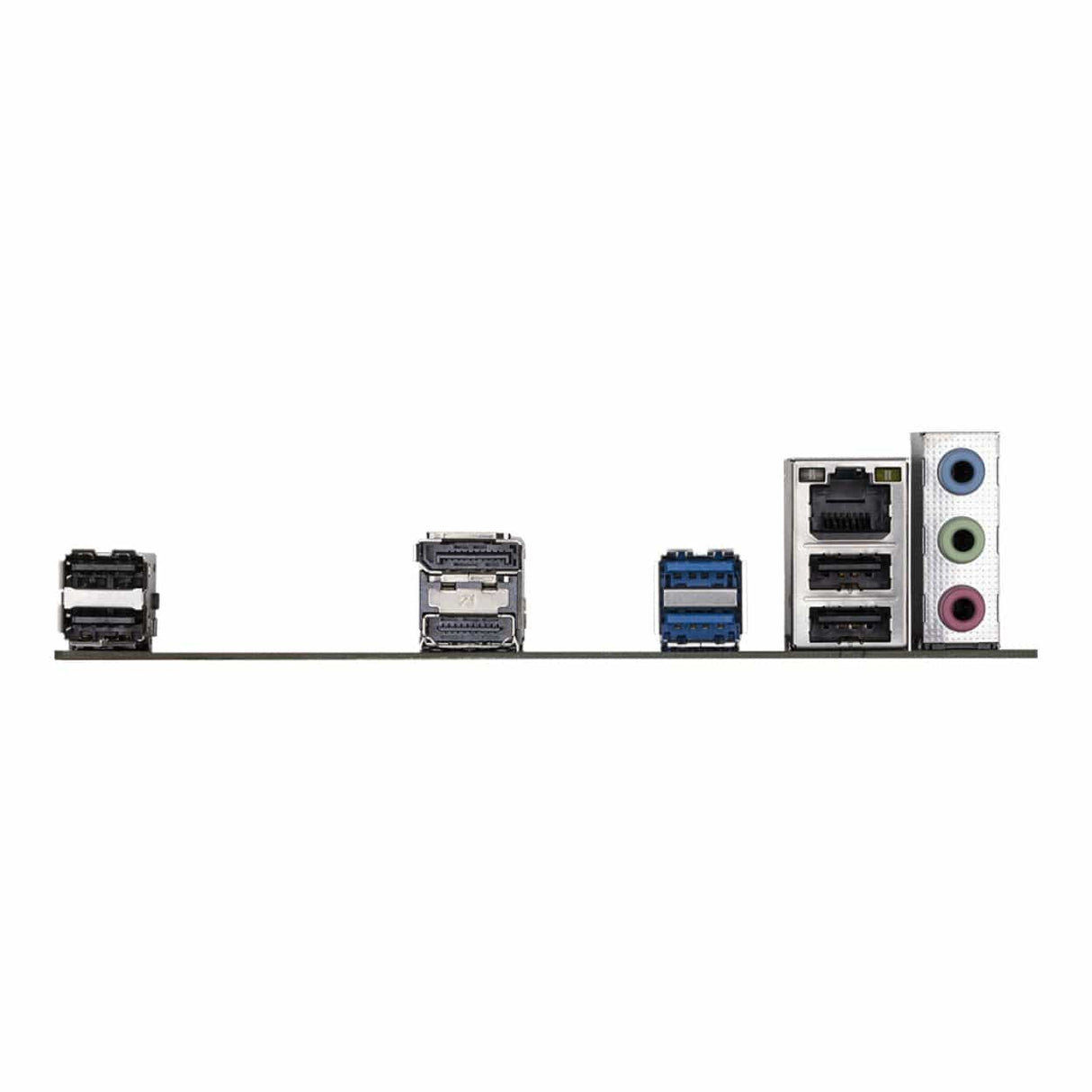

Back Panel Connectors:

• 1 x HDMI port
• 1 x DisplayPort
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

I/O Controller: iTE® I/O Controller Chip
Hardware Monitoring: Voltage, temperature, fan speed, water cooling flow rate, fan fail warning, fan speed control (fan-dependent)
BIOS: 128 Mbit AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features: APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash
Bundled Software: Norton® Internet Security (OEM), LAN bandwidth management software (service discontinued)
Operating System: Windows 11 64-bit, Windows 10 64-bit
Form Factor: Micro ATX, 22.6 cm x 18.5 cm
