A WORKSTATION WONDERLAND

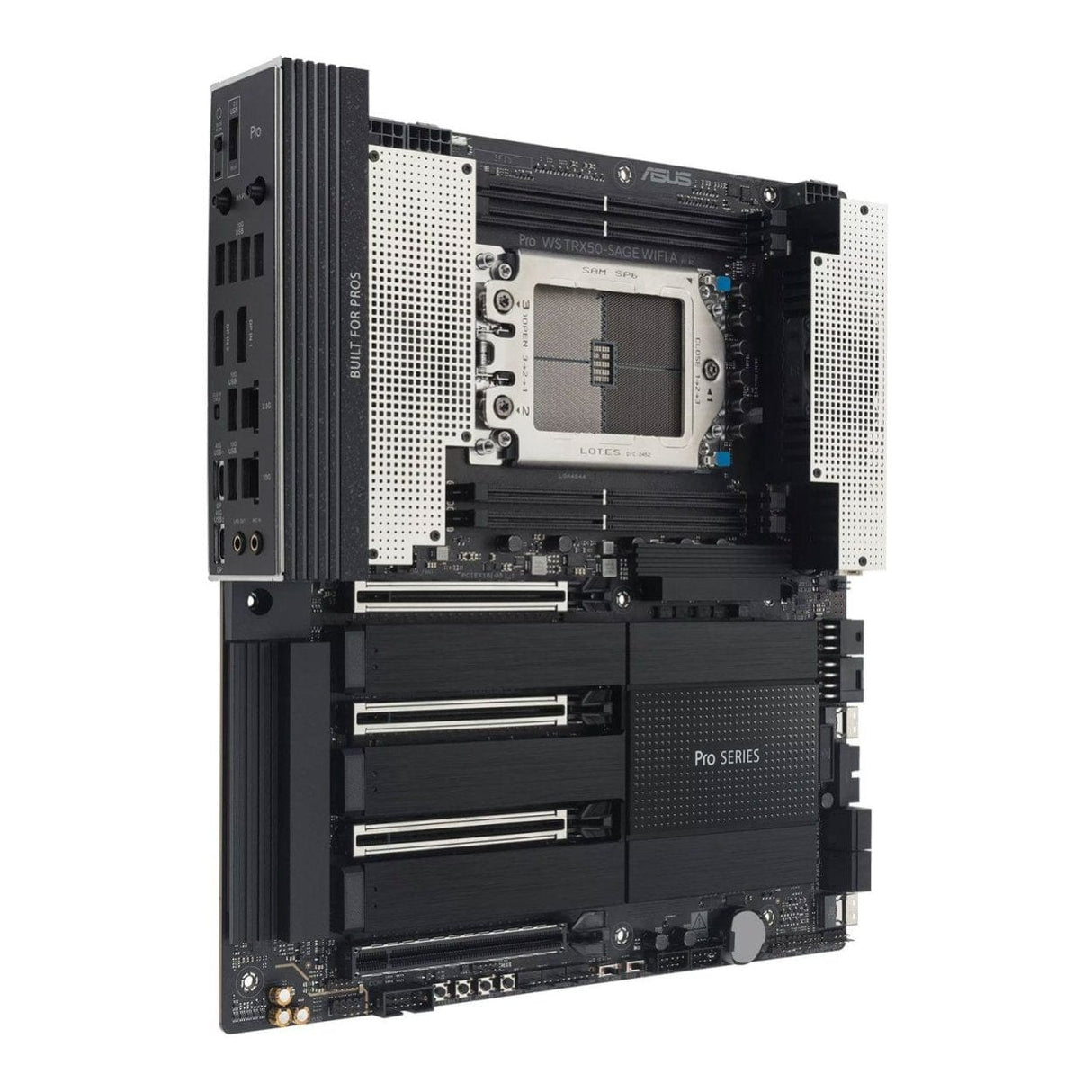

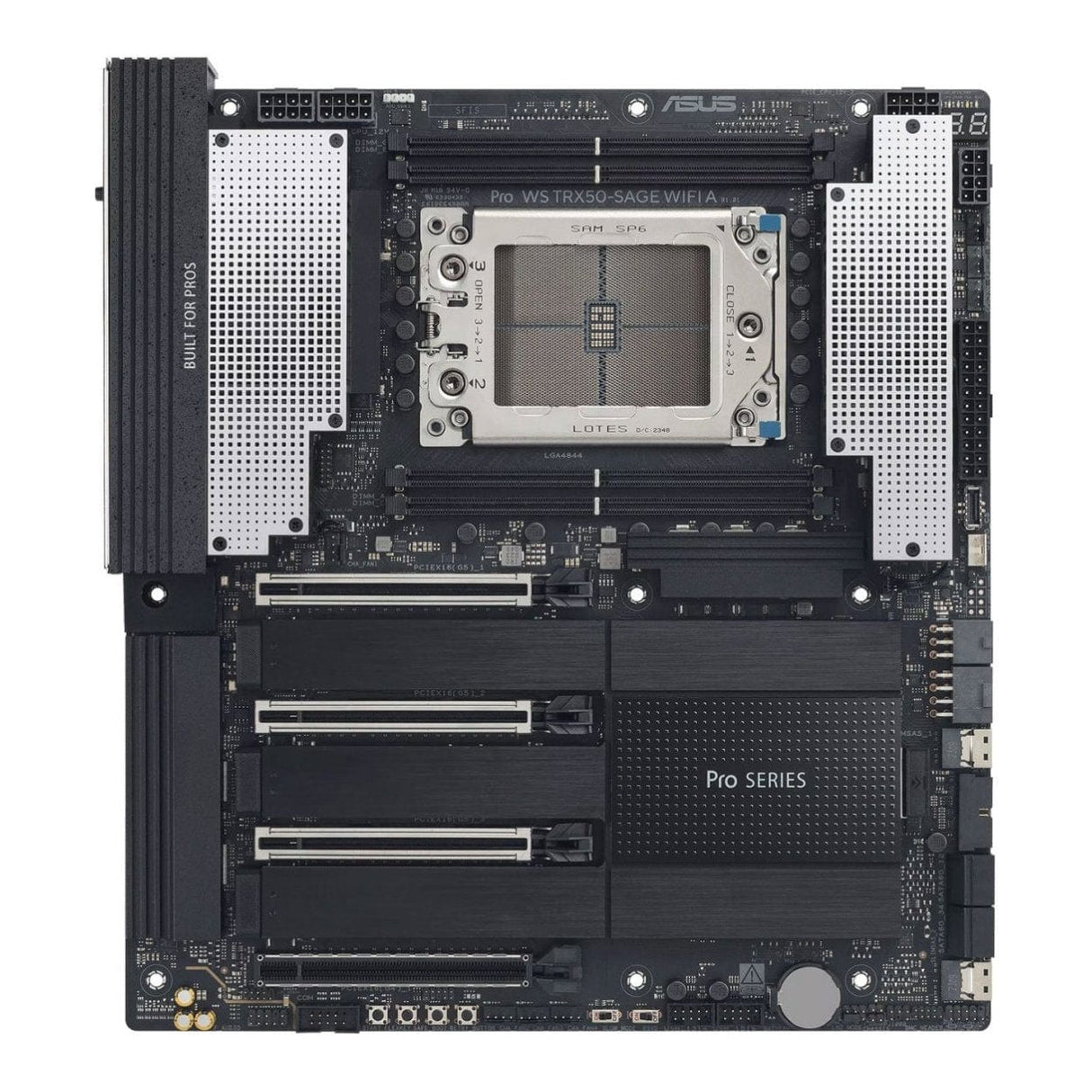

The Pro WS TRX50-SAGE WIFI A motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and AI era applications. Twenty power stages fuel AMD Ryzen^™ Threadripper^™ processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.

With onboard PCIe^® power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, WiFi 7, USB4^® (40 Gbps), SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI A comes prepared for a wide array of scenarios and industries.

Features:

• Quad-Channel DDR4 Memory Support
• Comprehensive PCIe 4.0 Expansion
• High-Speed Storage Options
• Robust Networking with Dual LAN & Wi-Fi 6E
• Advanced Power Delivery & Cooling
• AI-Powered Fan & Thermal Control
• Aura Sync RGB Lighting
• 5X Protection III Hardware Safeguards
• Remote Management Capabilities

CPU AND MEMORY OVERCLOCKING READY

For AMD Threadripper 9000 & 7000 series workstations and high-end desktop (HEDT) models, AMD offers CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS TRX50-SAGE WIFI A motherboard. Along with robust power delivery and advanced cooling modules, this board exhibits remarkable stability during overclocking. Hardware switches and optimized BIOS options on the motherboard provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation and high-end desktop computing.

INNOVATIVE COOLING AND ROBUST PERFORMANCE

Power Stages in VRM Area

The Pro WS TRX50-SAGE WIFI A voltage regulator module setup is comprised of 20+3+3+3 power stages, delivering the power and efficiency that the latest AMD Ryzen^™ processors demand, and stability for extreme overclocking.

Active VRM Cooling Solutions

The extruded aluminum heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency, while fins also significantly improve heat dissipation.

ProCool II Connectors

ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.

Onboard PCIe Power Connectors

An 8-pin and 6-pin PCIe cable connector built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.

ECC R-DIMM Memory Support

The Pro WS TRX50-SAGE WIFI A motherboard boasts a robust design featuring four R-DIMM DDR5 memory module slots with ECC support, a feature that improves the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.

ULTRAFAST CONNECTIVITY​
Ultrafast Networking

WiFi 7

Next-gen WiFi 7 include the 6 GHz band and 4096 QAM, delivering up to 2.8X ultra-fast WiFi speeds. The revolutionary Multi-Link Operation (MLO)2 provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput to improve signal quality and cover greater distances. With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

Multi-GPU Support

The Pro WS TRX50-SAGE WIFI A motherboard features three PCIe^® 5.0 x16 slots and one PCIe^®4.0 x16 that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and AI era applications.

Marvell^® AQtion 10 Gbps Ethernet

With up to 10 times the bandwidth of standard gigabit Ethernet, streaming uncompressed 4K UHD videos, performing system backups and transferring large files is now faster than ever before.

Intel^® 2.5 Gb Ethernet

Provides up to 2.5 faster transfers versus standard 1 Gb Ethernet connections for faster downloads and smoother high-res video streaming.

ULTRAFAST CONNECTIVITY - Plenty of High Speed USB Ports

USB 20 Gbps with PD

Front panel connector offers a transfer rate of up to 20 Gbps. Supports Power Delivery up to 30 watts, to charge devices faster than previous types of USB ports.

Dual USB4^® Connectivity

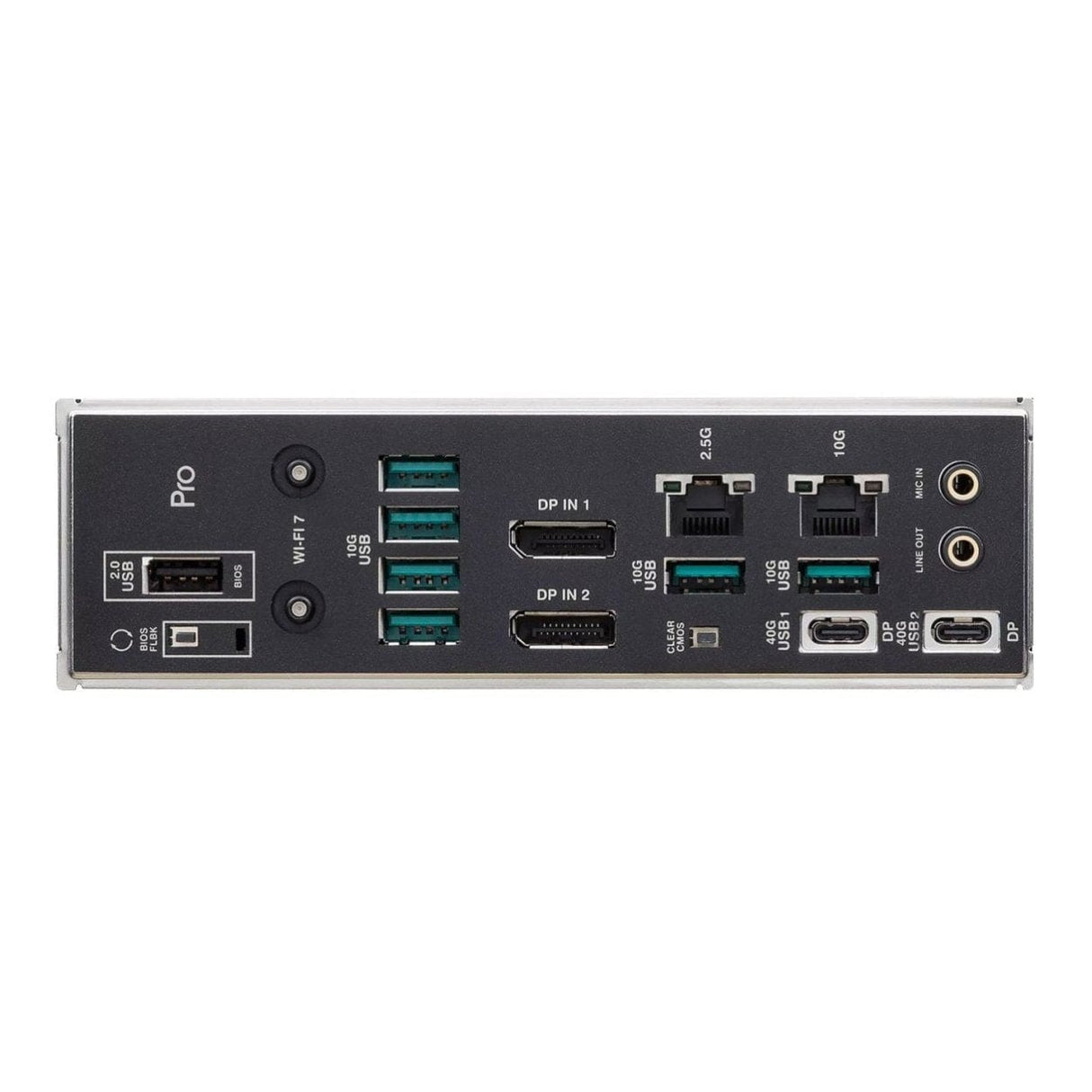

Get immersed in your creations with two USB4^® ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort^™ In port on the rear I/O panel and direct the video output via the USB4^® port.

M.2 PCIe 5.0/4.0 slots

The Pro WS TRX50-SAGE WIFI A includes four onboard M.2 slots. Users working with massive files can use RAID to group multiple NVMe devices together for massive I/O bandwidth and speedy data reading and writing. This configuration is ideal for creators who work with massive video files, as it supports RAID configurations across multiple NVMe devices to achieve massive I/O bandwidth and to ensure seamless playback in editing bays.

SlimSAS Ports​

The Pro WS TRX50-SAGE WIFI A motherboard also features a SlimSAS port for connecting industrial SSD drives, servers and networking equipment.

REMOTE CONTROL SOLUTIONS

Server-grade Remote Management

ASUS IPMI Expansion Card

The Pro WS TRX50-SAGE WIFI A is compatible with ASUS IPMI Expansion card featuring a dedicated Ethernet-to-BMC chip that provides the intelligence for its IPMI architecture. Administrators can remotely communicate with the BMC to take some corrective actions — such as resetting or power cycling a system.

Technical Specifications:

CPU Support: AMD Ryzen™ Threadripper™ Processors (Socket sTRX4)
Chipset: AMD TRX50
Memory: 8 x DIMM, DDR4
Memory Capacity: Up to 256GB
Memory Speed: 3200(O.C.) / 2933 / 2666 / 2400 / 2133 MHz
Memory Type: Non-ECC, Un-buffered
Memory Channel: Quad Channel
Expansion Slots:
 4 x PCIe 4.0 x16 (CPU)
 1 x PCIe 4.0 x16 (Chipset, max at x4)
 1 x PCIe 4.0 x4 (Chipset)
Storage:
 8 x SATA 6Gb/s
 4 x M.2 Key M
  M.2_1 (CPU, PCIe 4.0 x4)
  M.2_2 (CPU, PCIe 4.0 x4)
  M.2_3 (Chipset, PCIe 4.0 x4 & SATA)
  M.2_4 (Chipset, PCIe 4.0 x4 & SATA)
RAID Support: 0,1,10 (CPU SATA) / 0,1,10 (Chipset SATA)
Ethernet:
 1 x Intel® 2.5Gb Ethernet
 1 x Marvell® AQtion 10Gb Ethernet
Wi-Fi & Bluetooth: Wi-Fi 6E (802.11ax) + Bluetooth® 5.2
USB Ports:
 Rear:
  2 x USB4® 40Gbps Type-C®
  6 x USB 10Gbps Type-A
  1 x USB 2.0 Type-A
 Front:
  1 x USB 20Gbps Type-C®
  1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports)
  2 x USB 2.0 headers (supports 2 additional USB 2.0 ports)
Audio: Realtek ALC 4080 7.1 Surround Sound High Definition Audio CODEC
Internal Headers:
 1 x 24-pin Main Power connector
 2 x 8-pin +12V CPU Power connector
 1 x 4-pin CPU Fan header
 1 x 4-pin CPU OPT Fan header
 1 x 4-pin AIO Pump header
 5 x 4-pin Chassis Fan headers
 3 x Addressable Gen2 headers
 1 x Thermal Sensor header
 1 x Front Panel Audio header (F_AUDIO)
 1 x SPI TPM header (14-1 pin)
 1 x COM Port header
 1 x CPU Over voltage jumper
 1 x Chassis Intrusion header
 1 x 10-1 pin Front System Panel header
Special Features: ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, Aura Sync, Remote Management Support
Form Factor: EEB (30.5 cm x 26.4 cm)

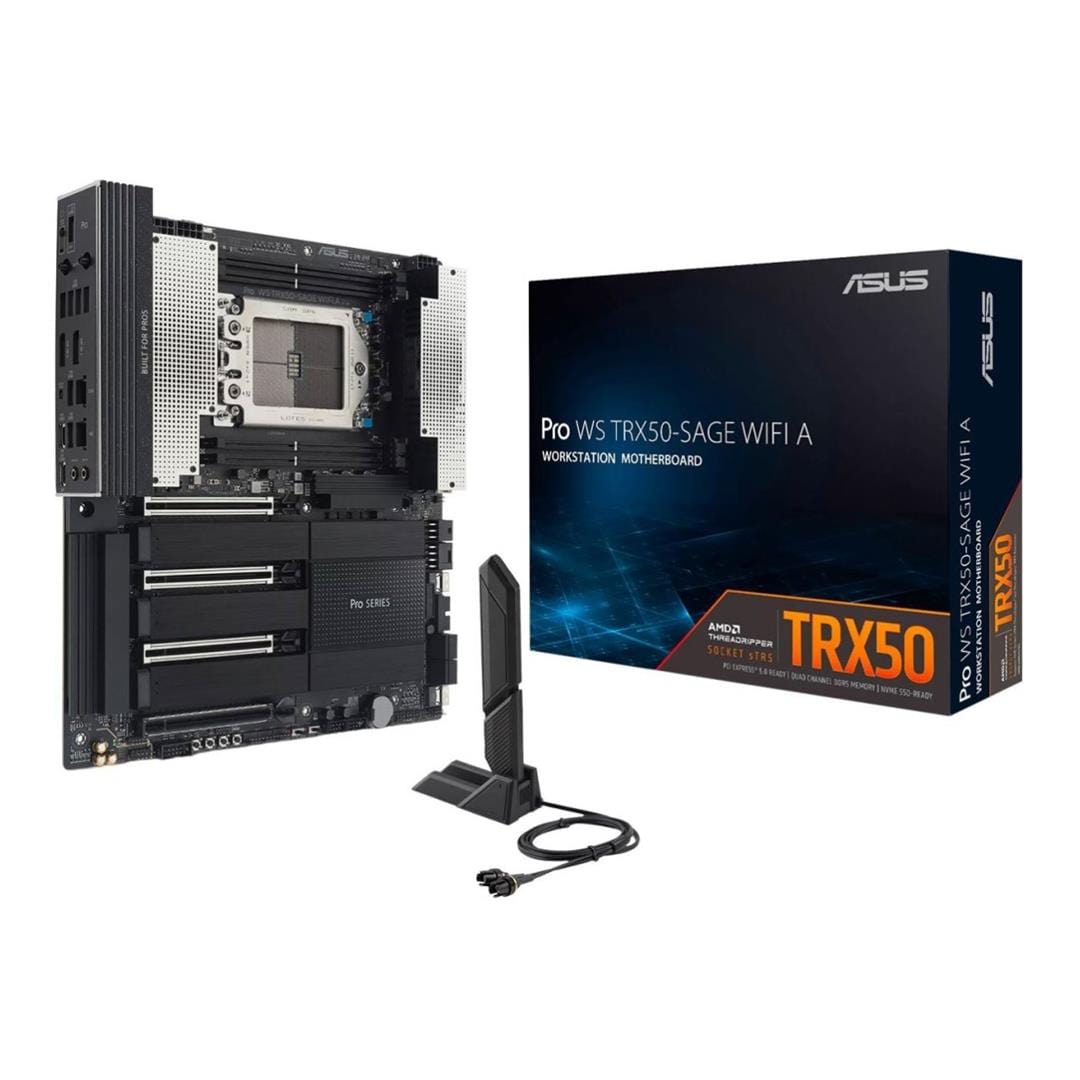

What's in the Box:

• 1 x ASUS Pro WS TRX50-SAGE WIFI-A Workstation Motherboard
• 1 x Wi-Fi Antenna
• 1 x I/O Shield
• 1 x User Manual
• 1 x Driver & Utility DVD
• 1 x SATA Cable (Qty: 4)
• 1 x M.2 Screw Package
