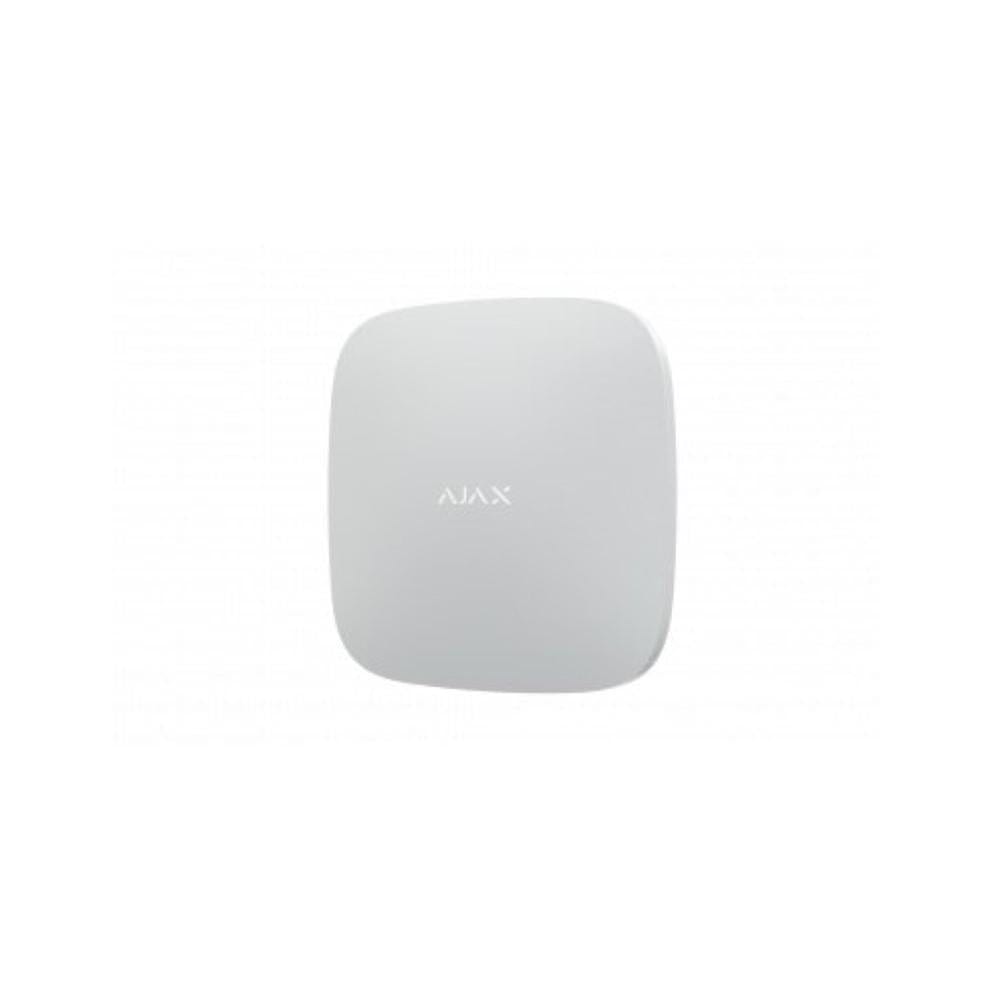

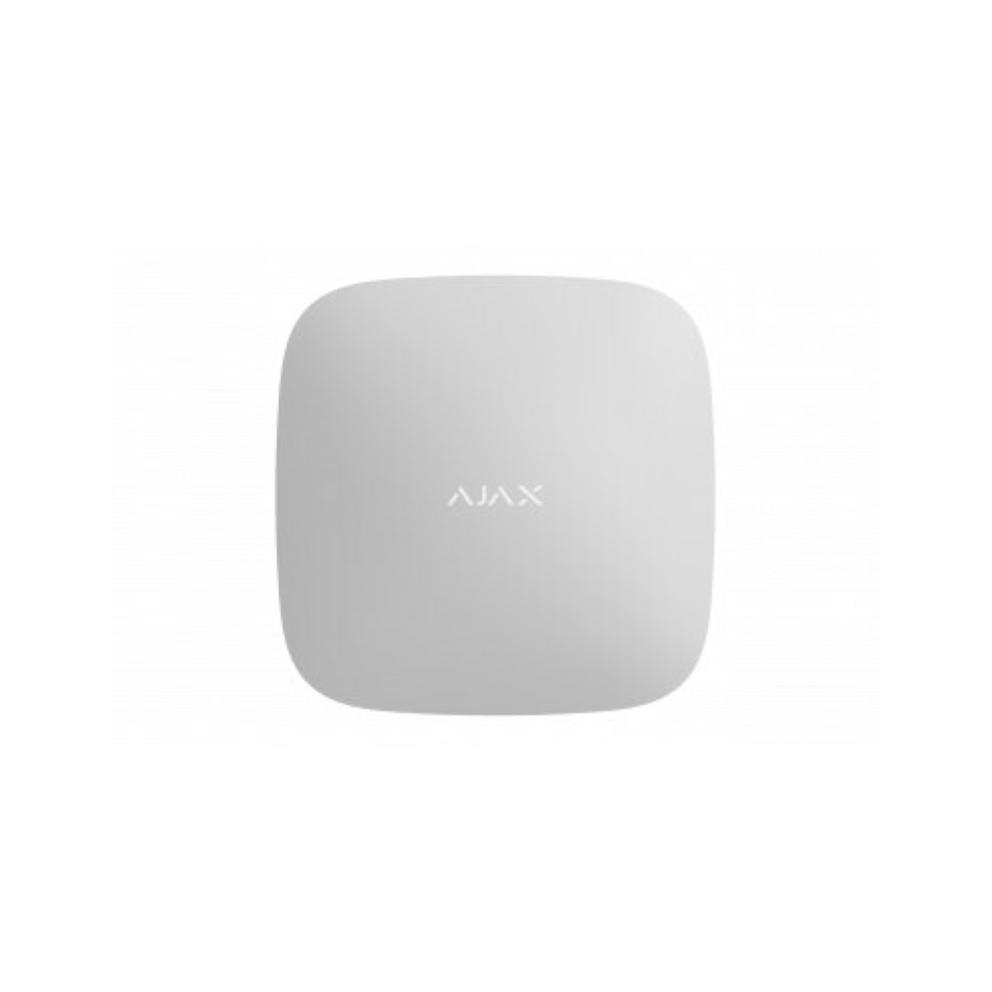

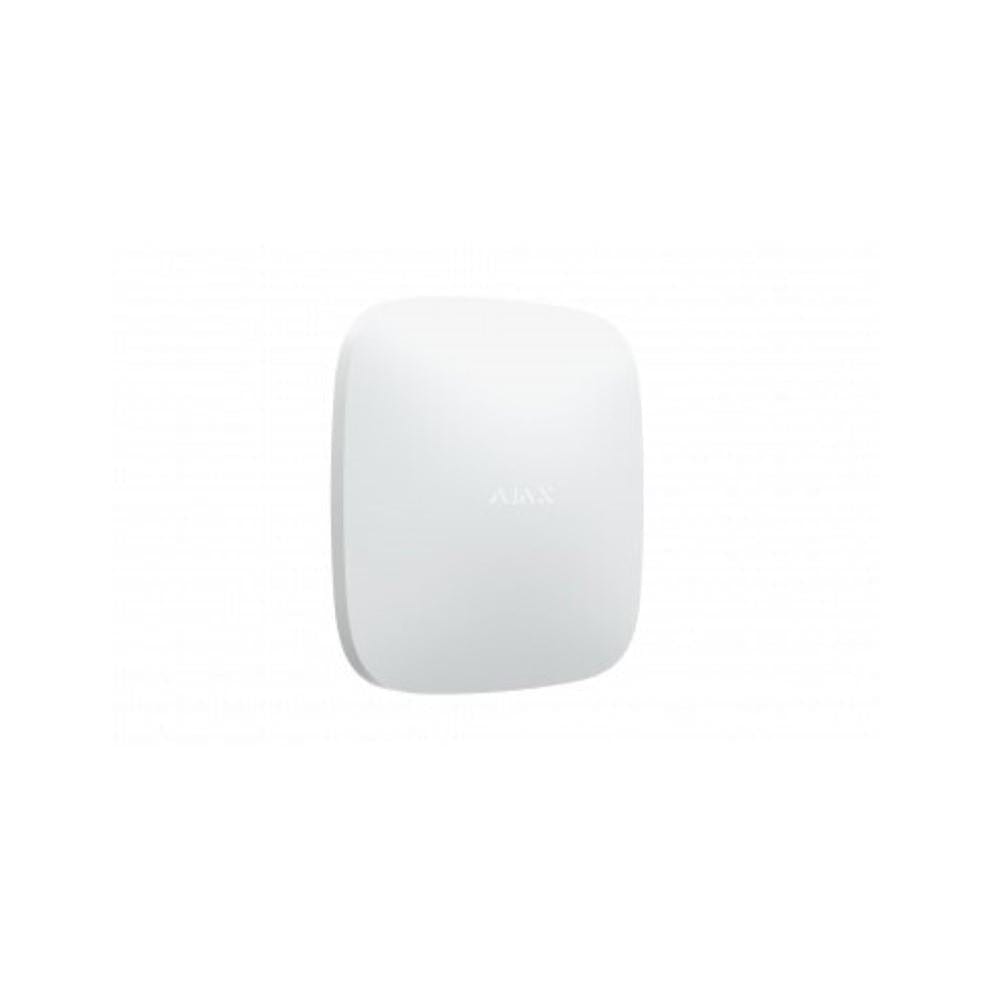

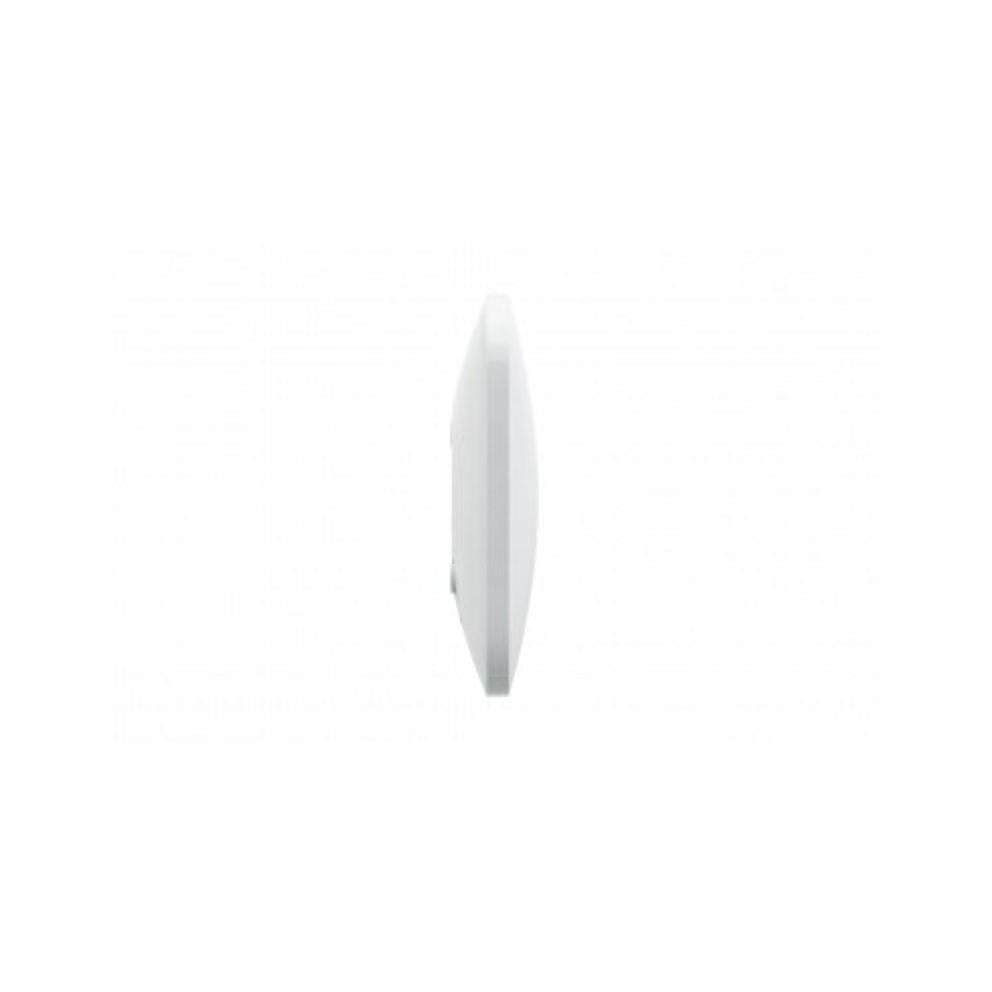

Ajax ReX 2 Wi-Fi Jeweller White 38207.106.WH1

Ajax ReX 2 Wi-Fi Jeweller White

Radio signal range extender with photo verification support

More applications of a security system

Range extenders expand the boundaries of the protected area and give even more freedom to place security system devices. By connecting all or part of the devices to ReX 2, you will ensure the security and automation of a business centre, big estate, warehouse complex, or a large production facility.

5 range extenders can operate within the Ajax system to expand the radio network coverage up to 35 km. Events and alarms are transmitted instantly, and the first photo verification snapshot is delivered to a monitoring station and users in just 10 seconds.

Verification of alarms with snapshots

ReX 2 works with MotionCam and MotionCam Outdoor motion detectors. When triggered, they take a series of animated pictures, helping to assess the situation at the facility. This reduces unnecessary patrol dispatches and saves the clients' nerves.

Guaranteed delivery of alarms and photo verifications

To ensure reliable communications, we have equipped ReX 2 with four antennas and support for two proprietary radio protocols: Jeweller and Wings. Jeweller provides the transmission of commands, events, and alarms, while Wings ensures the transmission of visual data packages. Ajax two-way radio communication uses frames to synchronize device communication sessions, authentication to prevent spoofing, and encryption to protect against data theft.

Radio communication through steel and concrete

With the OS Malevich 2.13 operating system update, the ReX 2 range extender will connect to the hub not only via radio but also via Ethernet using the wire as the only or prioritized communication channel. A single Ajax system can cover the facility like an office centre with underground parking, or a sectional metal hangar, or a warehouse complex of several large buildings.

Enhanced security system

ReX 2 works as an extra intelligent control panel: it connects devices into an autonomous group and takes over control at the right time. Thanks to automatic adjustment of signal power and frame synchronization, any number of system devices can be connected to ReX 2 the reliability of communication will not be affected by this. If, for some reason, radio communication with the hub is interrupted, ReX 2 will continue to operate via Ethernet. If a connection via Ethernet is lost, ReX 2 receives an alarm from a detector and activates a siren to draw attention to the incident and deter the burglar.

Ready to resist intruder attacks

ReX 2 is protected from attacks at the software and hardware levels. It runs on the OS Malevich operating system, which is immune to viruses. All data transmitted by the range extender is encrypted. Thanks to the built-in backup battery, a sudden blackout at a facility will not be a problem.

Evolving, not outdated

ReX 2 runs on OS Malevich, a real-time operating system developed by Ajax Systems. The OS Malevich modular architecture allows its regular updates. The operating system updates over the air. The process does not need the installer or user involvement and takes minutes when the security system is disarmed.

Hassle-free installation

ReX 2 connection and configuration process greatly saves the installer time. To add a range extender to a system, simply scan a QR code with the Ajax app and assign it a name and a room. The device is also configured in real time in the app. If necessary, ReX 2 can be disabled or reconfigured without site visits.

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Specifications:

Connection possibilities

Number of ReX 2 Jeweller connected to the hub: 5

Number of devices connected to ReX 2 Jeweller: up to 199

Maximum effective radiated power (ERP): up to 20 mW

Radio signal modulation: GFSK

Radio communication range: up to 1,700 m

Frequency hopping: To prevent radio interference and jamming.

Ethernet: 1 8P8C socket (up to 100 Mbps)

Alarm delivery time to the hub: 0.3 s

Photo delivery time to the hub: 18 s, 10 s

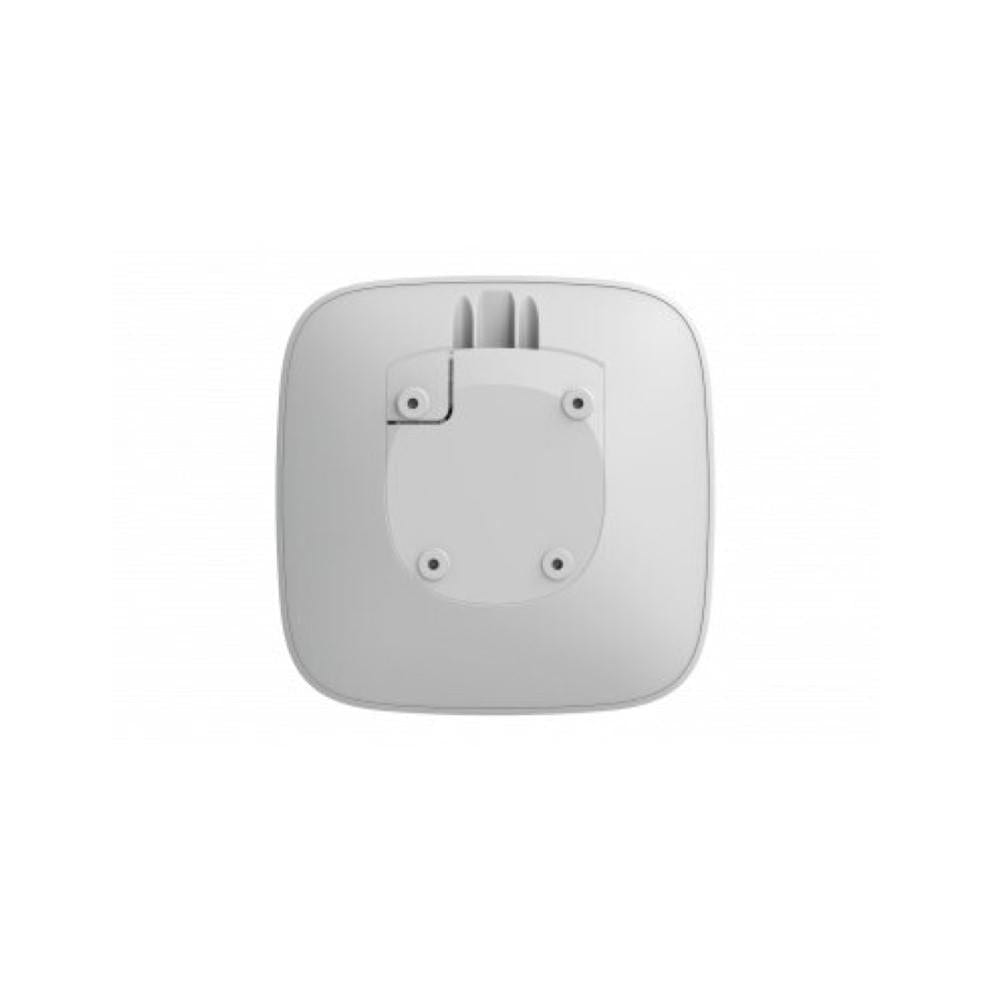

Tamper alarm: Notifications on attempts to detach the device from the surface or remove it from the mounting panel.

Power supply

Main: 110–240 V, 50/60 Hz

Enclosure

Dimensions: 163 × 163 × 36 mm

Weight: 410 g

Operating temperature range: from −10 °C to +40 °C

Operating humidity: up to 75%

Protection class: IP20
