Ajax HomeSiren Wi-Fi Jeweller Black 38110.11.BL1

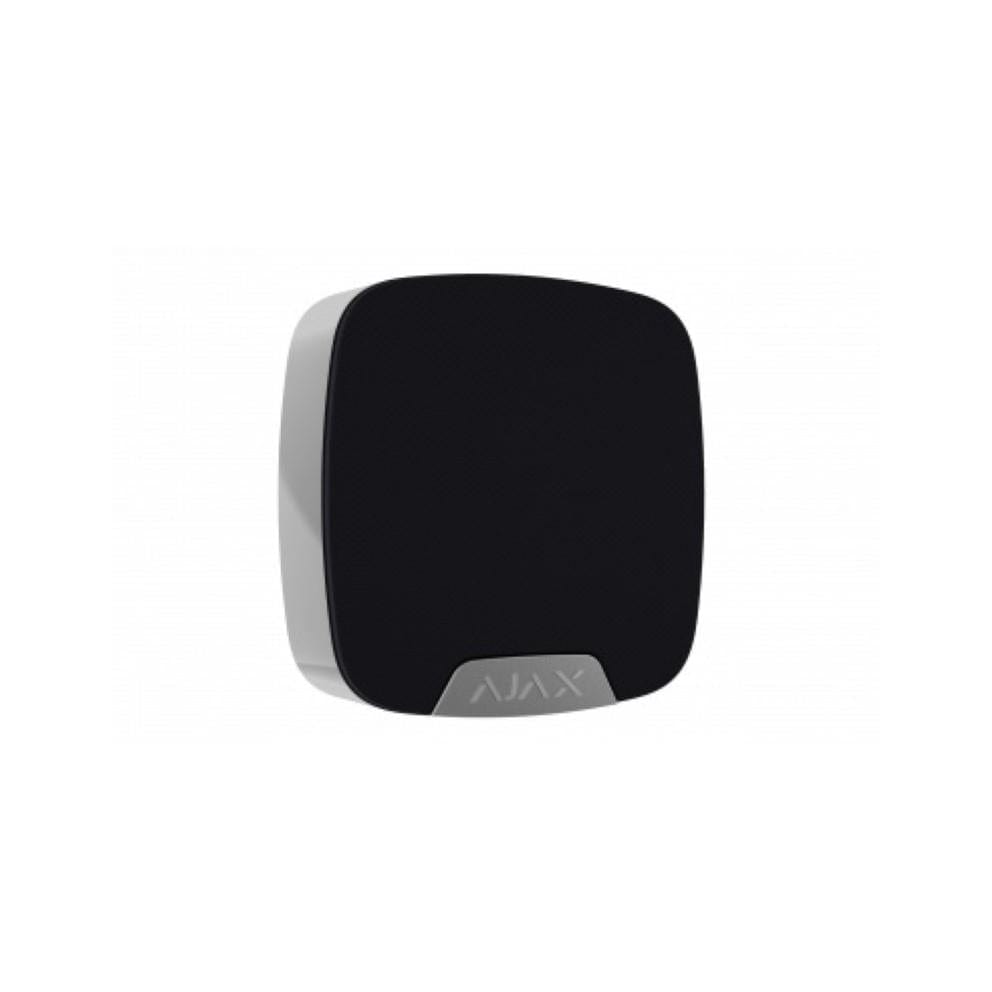

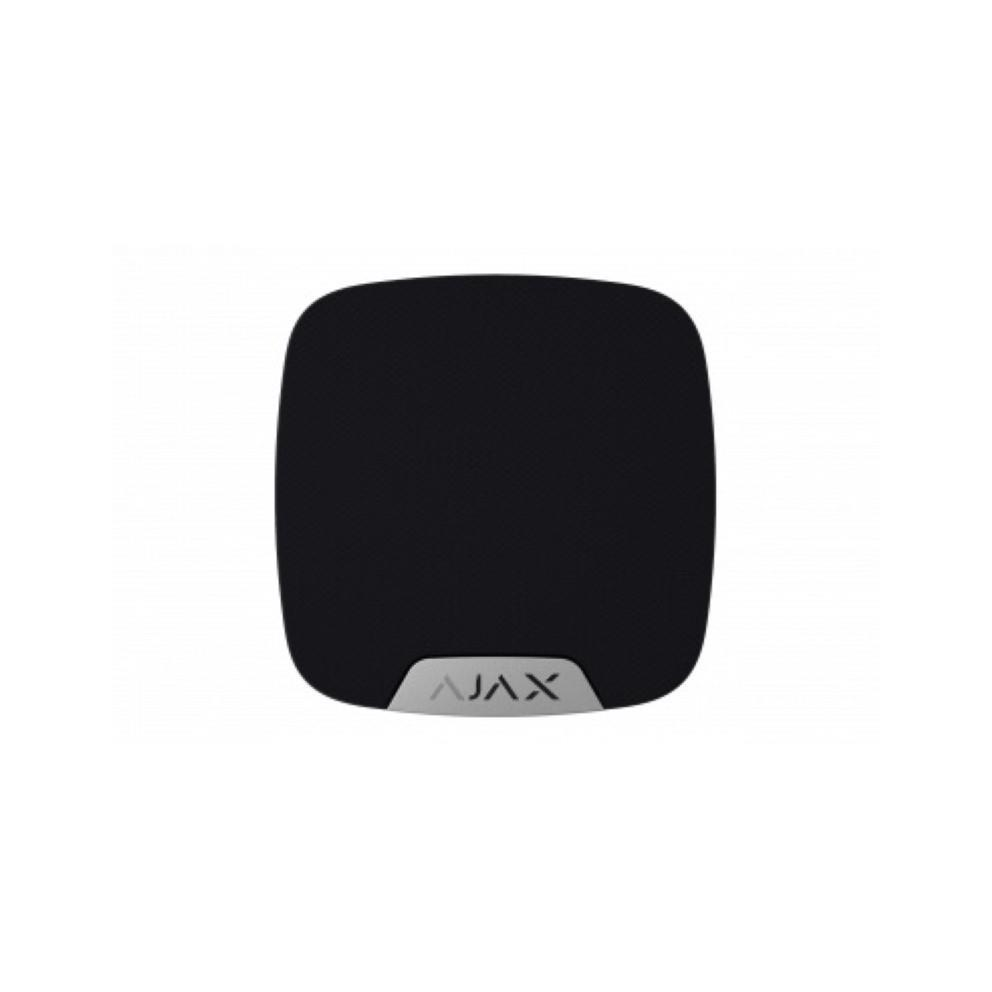

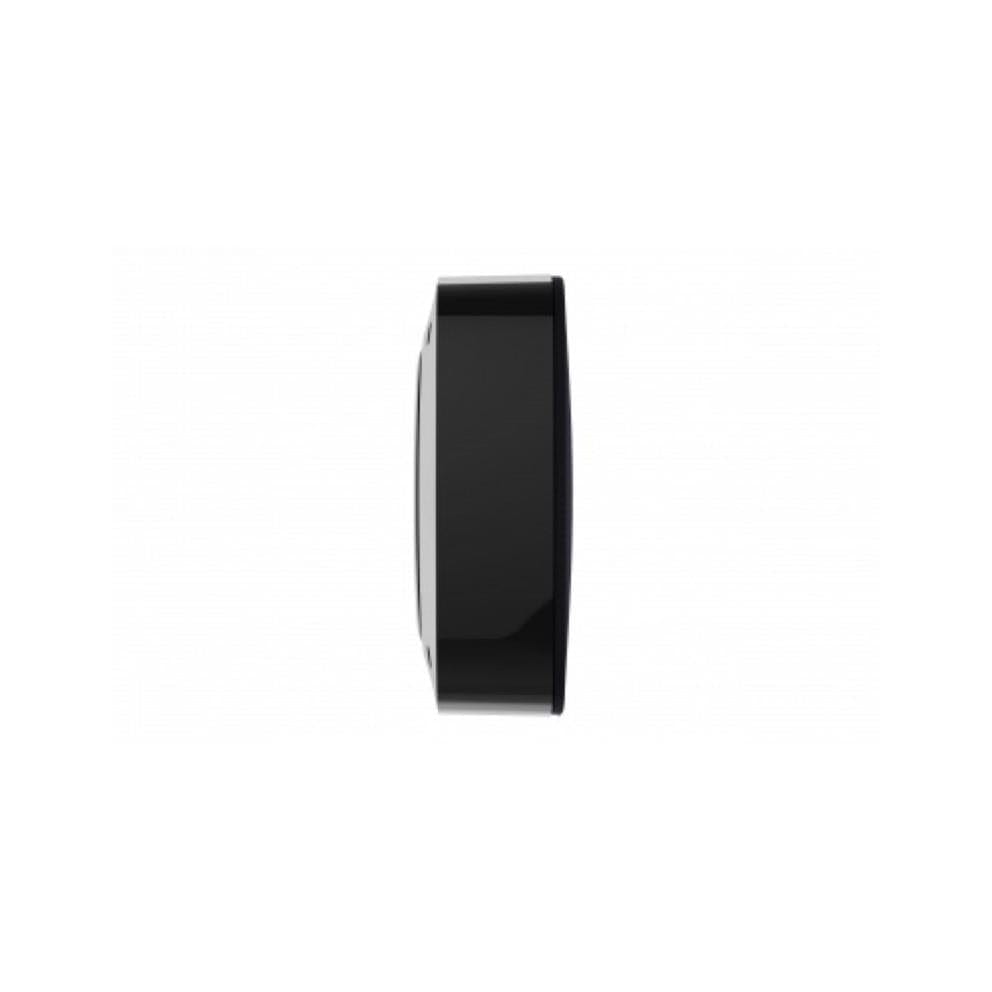

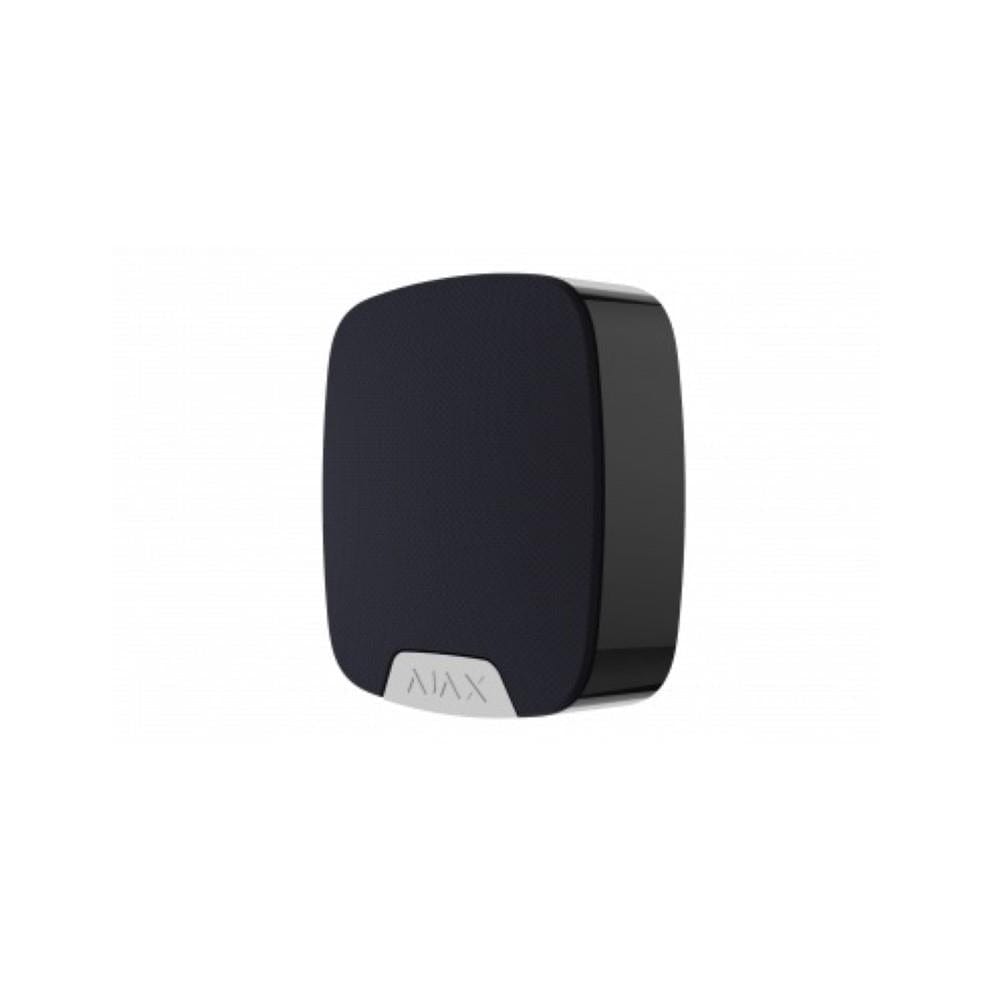

Ajax HomeSiren Wi-Fi Jeweller Black

Wireless indoor siren that loudly notifies of an alarm during detector activation. It is installed indoors to warn of danger or deter intruders.

Principle of operation

The device notifies of detector activation with an audible alarm. Sound level and alarm length are set in the mobile application.

Features

Connector for external LED is available. It can be mounted outside your apartment or office to monitor the security system status.

Installation and set up

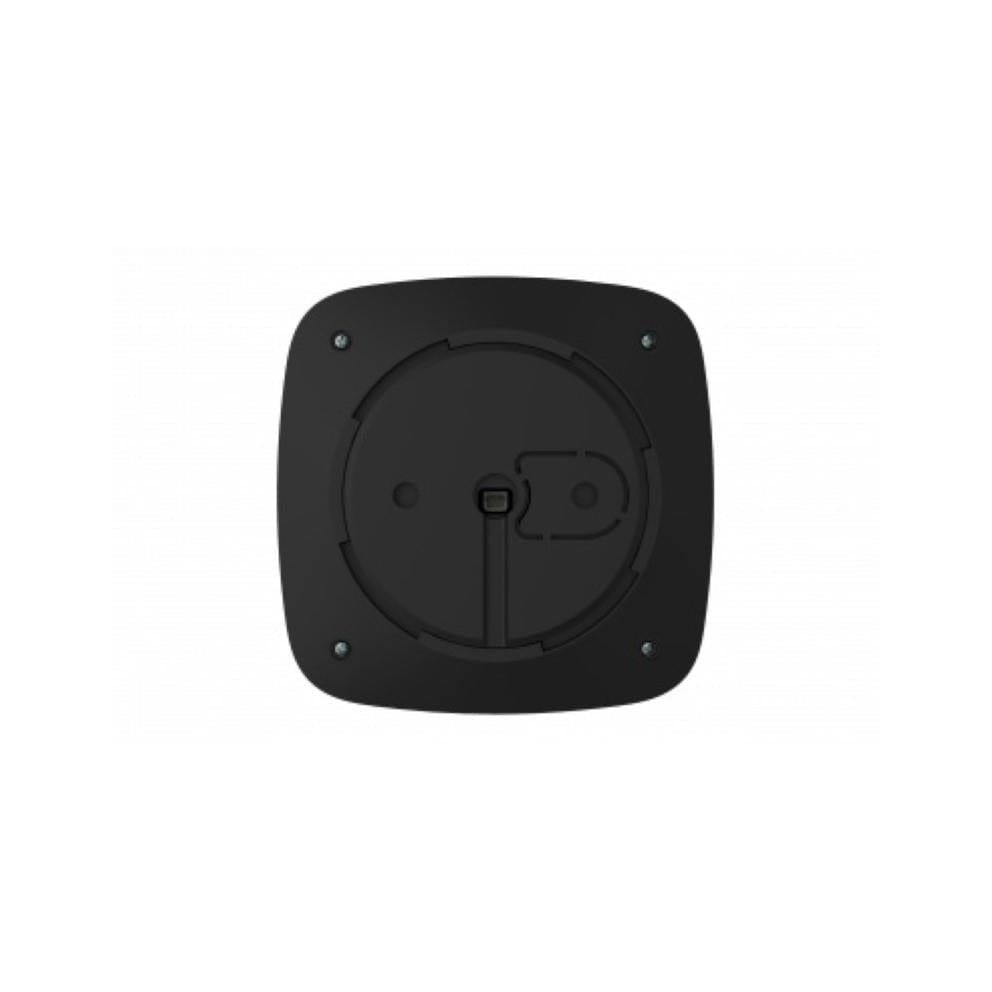

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the siren. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Specifications:

Maximum effective radiated power (ERP): up to 25 mW

Radio signal modulation: GFSK

Radio communication range: up to 2,000 m

Frequency hopping: To prevent radio interference and jamming.

Key features

Alarm type: acoustic and LED indication, Buzzer and LED.

Warning device type: type W, Internal and self-powered.

Alarm volume: from 80 to 100 dB at a distance of 1 m, Adjusted by a PRO or a user with admin rights in the Ajax app., 93 dB at a distance of 1 m

Alarm duration: from 3 s to 3 min, Alarm duration up to 15 minutes is available only for sirens with firmware version NA 5.60.4.14 or higher. Adjusted by a PRO or a user with admin rights in the Ajax app.

Siren sound frequency: 3.4 ± 0.5 kHz

Events indication

• Alarms.
• Delays when entering/leaving.
• Security mode.
• Security mode changing.
• After-alarm indication.

Sabotage protection

Tamper alarm: Notifications on attempts to detach the device from the surface or remove it from the mounting panel.

Power supply

Battery: 2 × CR123A

Calculated battery life: up to 5 years

Dimensions: 75 × 76 × 27 mm

Weight: 97 g

Protection class: IP50
