Maglock ZL Bracket for 280Kg Monitored Door Lock CX-280ZL

Maglock ZL Bracket for 280Kg Monitored Door Lock CX-280ZL

The CX-280ZL Maglock ZL Bracket is a specialised mounting accessory designed to support the installation of 280kg electromagnetic door locks (such as the CX-280S) on inward-opening doors. It provides a secure and stable mounting solution where direct installation of the maglock is not possible due to door orientation or frame limitations.

Constructed from high-strength metal (typically aluminium alloy or steel), the ZL bracket ensures proper alignment between the magnetic lock and armature plate, maintaining optimal holding force and long-term reliability.

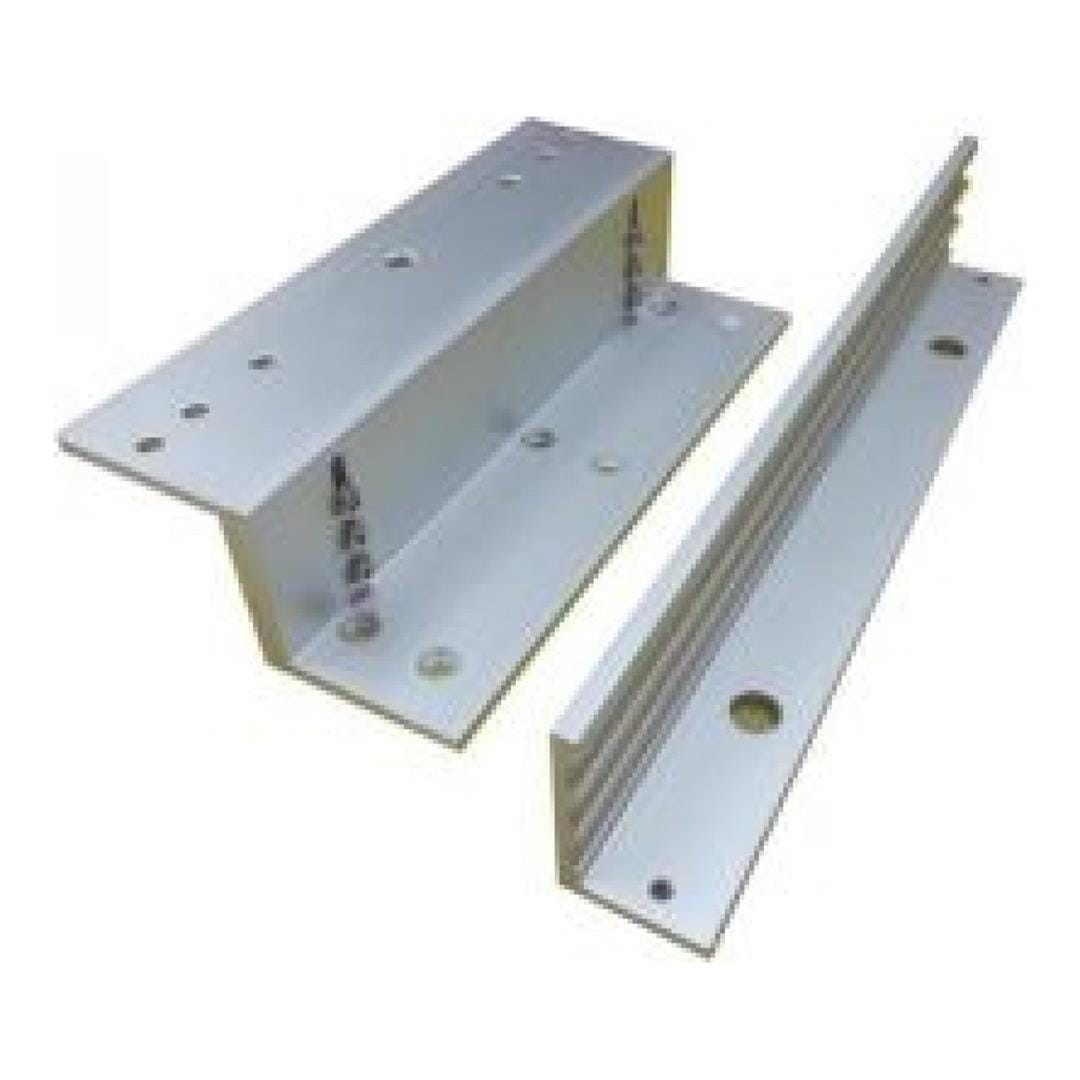

The CX-280ZL bracket is used when installing a maglock on doors that open inward, where a standard straight mounting position is not feasible. The bracket consists of two components:

• Z-bracket: mounts to the door and holds the armature plate
• L-bracket: mounts to the door frame and supports the magnetic lock

This configuration ensures that the magnet and armature align correctly when the door is closed, maintaining the full 280kg holding force required for secure locking.

ZL brackets are widely used in access control systems integrated with RFID readers, biometric scanners, or keypads. They are particularly important in installations where door geometry or frame design would otherwise prevent proper maglock operation.

The bracket is suitable for commercial, industrial, and residential security applications, including offices, retail stores, server rooms, and restricted access areas.

• Designed for 280kg (600 lbs) electromagnetic locks
• ZL bracket configuration for inward-opening doors
• Enables correct alignment between magnet and armature plate
• Durable metal construction for long-term use
• Supports surface-mounted installation
• Compatible with monitored and non-monitored maglocks
• Typically supplied with mounting hardware

Specifications:

Product Type: Maglock Mounting Bracket (ZL Type)

Model: CX-280ZL

Compatibility: 280kg electromagnetic locks (e.g. CX-280S)

Configuration: Z + L bracket set

Application: Inward-opening doors

Mounting Type: Surface mount
