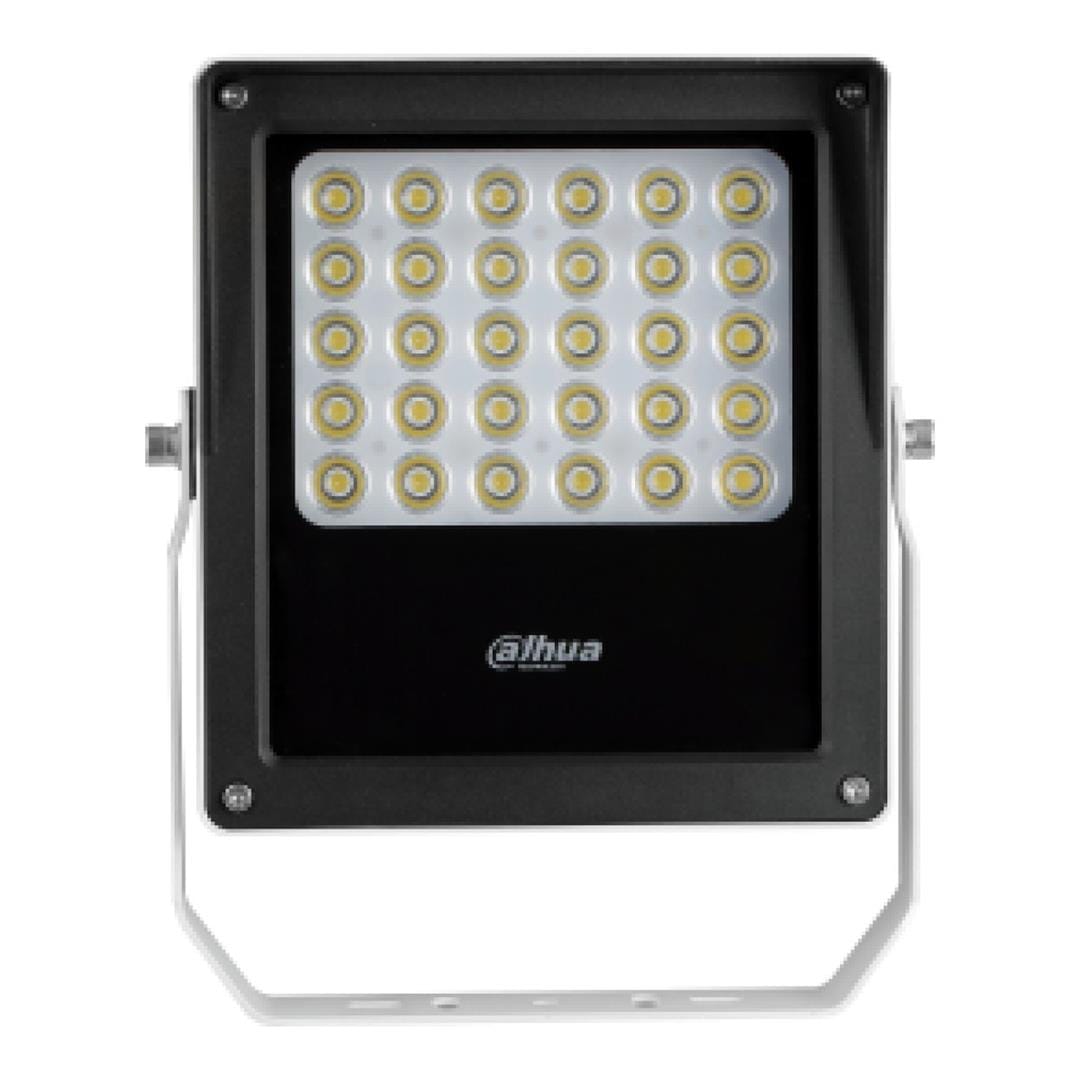

Dahua PFM512 White LED Illuminator

Dahua PFM512 White LED Illuminator

White LED Illuminator

• IP66 rated
• Built of die cast aluminum cover, it is strong and durable
• Sleek and elegant, the device uses a one-piece lens to make light more symmetrical
• Adjustable LED brightness
• Adjustable photosensitivity value
• Supports 220 VAC power supplies
• Supports pole mount, plane mount, and wall mount installation
• Supports many control modes, such as RS-485 control mode, switch control mode and manual control mode

Specifications:

Protection: IP66

Surge Protection Grade: common mode: ±6 kV; differential mode: ±4 kV

Light Source: LED

LED Quantity: 30

View distance: 30 m (98.43 ft)

Light Spot Diameter: 15 m (49.22 ft)

Luminous Flux: 2850 lm

Colour Temperature: 5500K–6500K

Wavelength: 400 nm–780 nm

Colour Rendering Index (CRI): Day > 70

Brightness: Value can be adjusted between 10% and 100%

Enable Threshold: Value can be adjusted between 30 lux and 70 lux

Rated Power: 30 W

Power Supply: 220 VAC, 50 Hz

RS-485: 1

Alarm Input Port: 1

Product Material: Aluminum Alloy

Product Dimensions: 236.5 mm × 194 mm × 72 mm (L × W × H)

Colour: White

Certifications:

• THIS
• EMC: EN 55032;EN 61000-3-3;EN IEC 61000-3-2;EN 50130-4;EN 55035:2017
• LVD:EN 62368-1
