Nikon ZR 6K 24.5MP Cinema Camera NICINZR

Nikon ZR 6K 24.5MP Cinema Camera NICINZR

The Nikon ZR 6K Cinema Camera is a tiny Z-mount cinema camera that combines RED colour science with Nikon engineering to create this first-of-its-kind powerhouse that produces stunning cinematic images in one compact body.

With Nikon's Z lens mount, you can use a wide variety of lenses, with integrated image stabilisation of up to 7.5 stops, providing a smooth and steady image with up to 15+ stops of dynamic range.

In partnership with RED, Nikon provides a range of compatibility with production workflows, including REDCODE, Z-RAW, and ProRes RAW, with resolutions up to 6K60. The Nikon Z R 6K Cinema Camera uses dynamic 32-bit float and 24-bit recording.

The Nikon ZR 6K Cinema Camera employs advanced autofocus features powered by deep learning that provide up to 9-subject detection autofocus, with automatic tracking of people, animals and vehicles.

The Nikon Z R Camera records to a CFexpress Type B card, while a microSD card slot is available for proxy recording. A built-in 4" vari-angle touchscreen features DCI-P3 colour gamut, 1000 cd/m² brightness, and a 3.07 million dot resolution for easy and bright viewing. A single EN-EL15c battery powers the Nikon ZR, or power can be supplied via USB-C with an external power source.

Nikon + RED Colour Science

In partnership with RED, Nikon provides a range of compatibility with production workflows in the Nikon ZR 6K Cinema Camera. These include REDCODE RAW R3D recording format along with Nikon's N-RAW, ProRes RAW HQ/422 HQ, and the high-quality compressed H.264 and H.265 codecs. REDCODE RAW (R3D NE) unlocks the same colour space (REDWideGamutRGB) and Log curve (Log3G10) as RED cameras.
The Nikon Z R 6 K is capable of capturing resolution up to 6K60, 4K120, and even 1080p240 for high frame rate, slow-motion recording.

Audio Capture

The Nikon ZR Camera uses dynamic 32-bit float and 24-bit recording, and standard 48 kHz linear PCM for full video compatibility is supported.
On the body itself, you will find built-in configurable microphones and a line input that provides the ability to record with an external microphone. Additionally, a headphone jack allows for monitoring audio.

Recording and Output

The Nikon Z R Camera records to a single CFexpress Type B card found in the battery door to keep the body as compact as possible, while a microSD card slot is available for proxy recording.
You will also find a micro-HDMI output allowing for output to a display or recording device.

Advanced Autofocus

The Nikon ZR 6K Cinema Camera employs advanced autofocus features powered by deep learning that provide up to 9-subject detection autofocus, with automatic tracking of people, animals and vehicles.

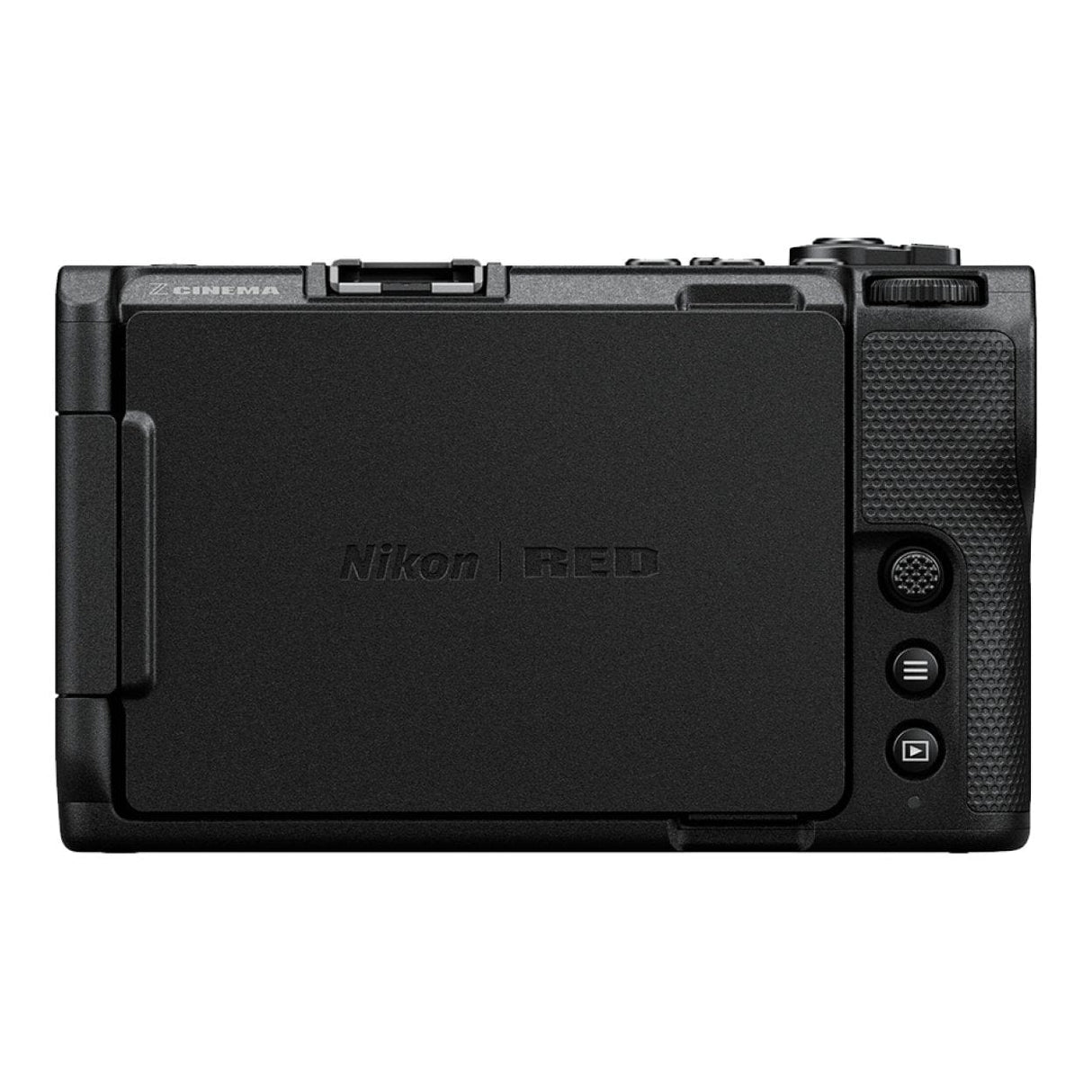

Large, Bright Display

A built-in 4" vari-angle touchscreen features DCI-P3 colour gamut, 1000 cd/m² brightness, and a 3.07 million dot resolution for easy and bright viewing.
When flipping the ZR from a horizontal to a vertical orientation, the screen can automatically make changes for ease of use.

Custom LUTs

The camera provides the ability for the operator to load up to 10 LUTs into the camera for real-time preview on its display.

Lenses and Image Stabilisation

With Nikon's Z lens mount, you can use a wide variety of lenses, with integrated image stabilisation of up to 7.5 stops, providing a smooth and steady image.

Dual-Base ISO

The Nikon ZR provides extended ISO sensitivity to the base ISO with its dual-base ISO, providing 800/6400 for both Log3G10 and N-Log profiles.

Frame.io Integration

The companion app to the phone allows for streamlining of your workflow by connecting your phone to the camera and utilising the optional Frame.io cloud service that makes asset control, post production, and live streaming easy.

Power Options

A single EN-EL15c battery powers the Nikon ZR, or power can be supplied via USB-C with an external power source.

Ultracompact Design

The Nikon ZR 6K Cinema Camera is the size of a small mirrorless camera but is packed with cinema camera technologies.Due to the compact form factor, it can be mounted to a vehicle, stabilised on a gimbal, or perform steadycam, drone, or POV shots.

Specifications:

Lens Mount: Nikon Z

Lens Communication: Yes: with Autofocus Support

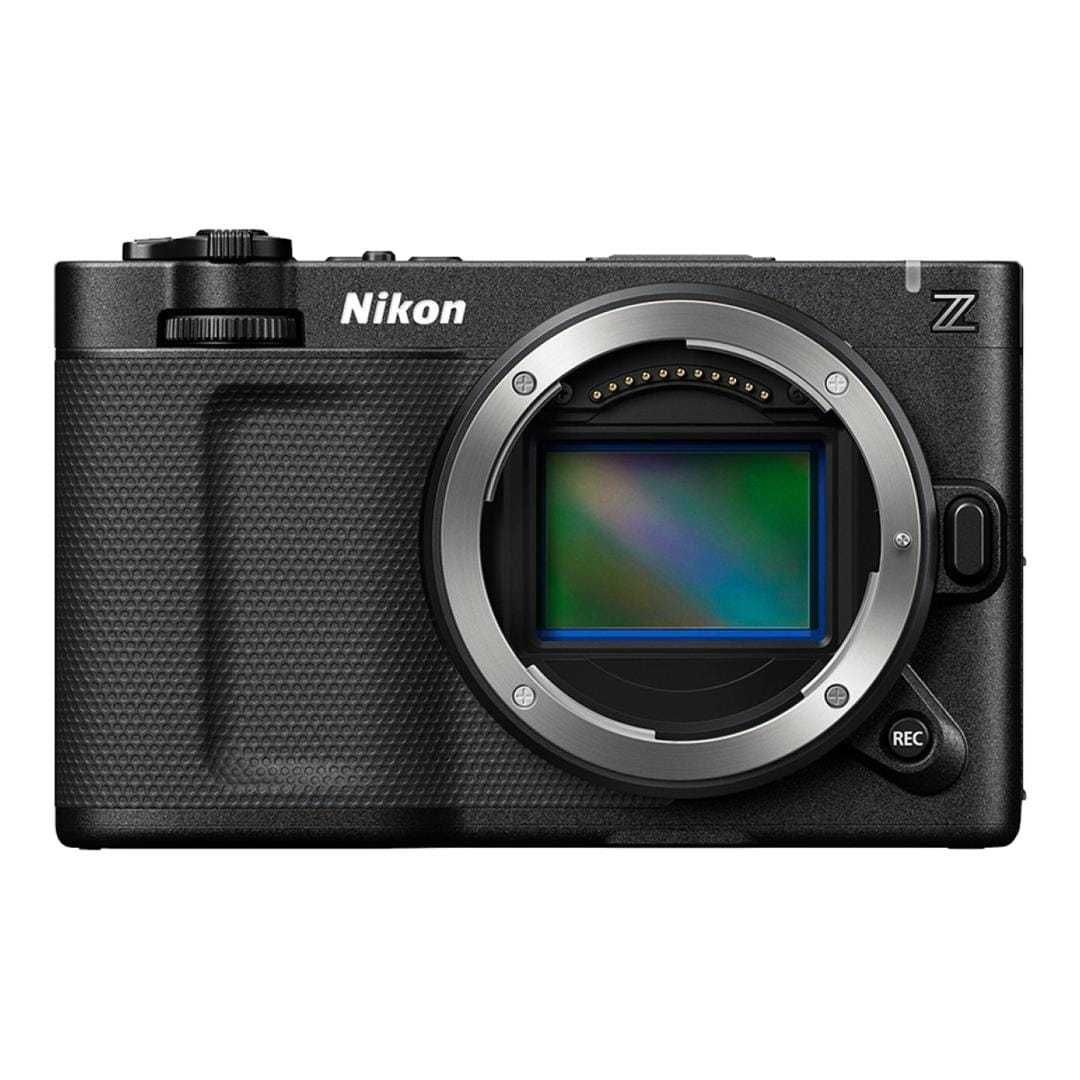

Image Sensor: 35.9 x 23.9 mm (Full-Frame) CMOS

Sensor Resolution: Effective: 24.5 Megapixel

Image Stabilization: Sensor-Shift, 5-Axis

Built-In ND Filter: No

Built-In CC Filter: No

Internal Filter Holder: No

Shutter Type: Electronic Rolling Shutter

Shutter Speed: Electronic Shutter, 1/16000 to 900 Seconds

Shutter Angle: 5.6 to 360°

ISO/Gain Sensitivity: Native: 800, Native: 6400

Advertised Dynamic Range: 15 Stops

Focus Modes: Automatic

Video Capture: Internal Recording

ProRes RAW HQ/Raw/REDCODE RAW

• UHD 6K (6000 x 3000) up to 60.00 fps
• DCI 4K (4096 x 2160) up to 120 fps
• UHD 4K (3840 x 2160) up to 120 fps
• 1920 x 1080p up to 240 fps

Video Output

Micro-HDMI: 3840 x 2160

Fast-/Slow-Motion Support: Yes

Gamma Curve: Nikon N-Log, REDWideGamutRGB

Built-In Microphone: Stereo

Media/Memory Card Slot: Slot 1: CFexpress Type B, Slot 2: microSD/microSDHC/microSDXC (UHS-I)

Internal Storage: No

Video I/O: 1x Micro-HDMI Output

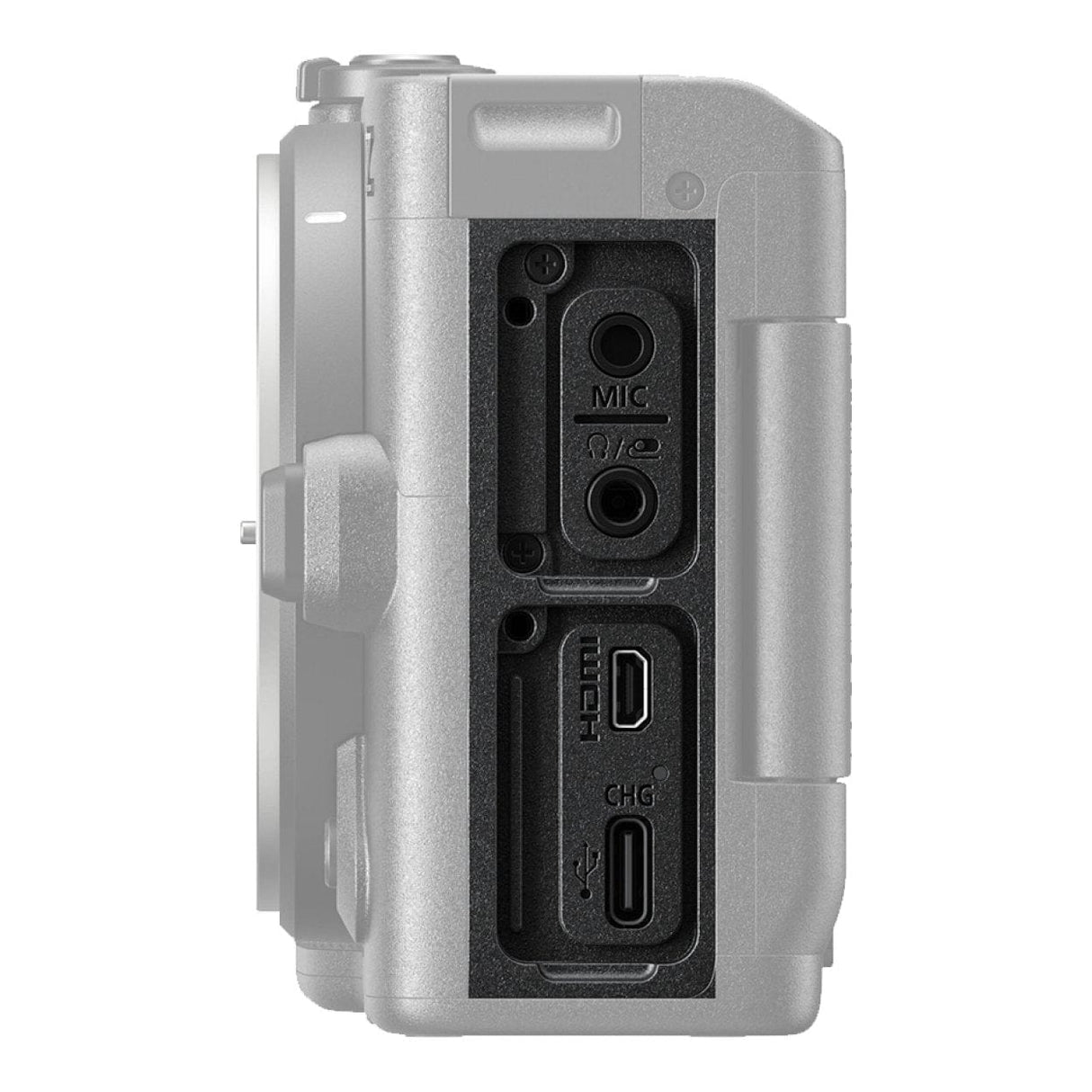

Audio I/O: 1x 3.5 mm TRS Stereo Mic/Line Input , 1x 3.5 mm TRS Stereo Headphone Output

Power I/O: 1x USB-C Input

Other I/O: 1x USB-C Data Output (Shared with Power Input)

Wireless: Wi-Fi / Bluetooth

Mobile App Compatible: Yes: Android & iOS

Global Positioning (GPS, GLONASS, etc.): No

Display Type: Primary Monitor: Articulating 4" Touchscreen LCD

Battery Type: Nikon EN-EL15c

Shoe Mount: 1x Intelligent Hot Shoe

Tripod Mount: 1x 1/4"-20 Female (Bottom)

Dimensions (W x H x D): 133 x 8;0.5 x 48.7 mm

Weight: 540 g (Body Only)
