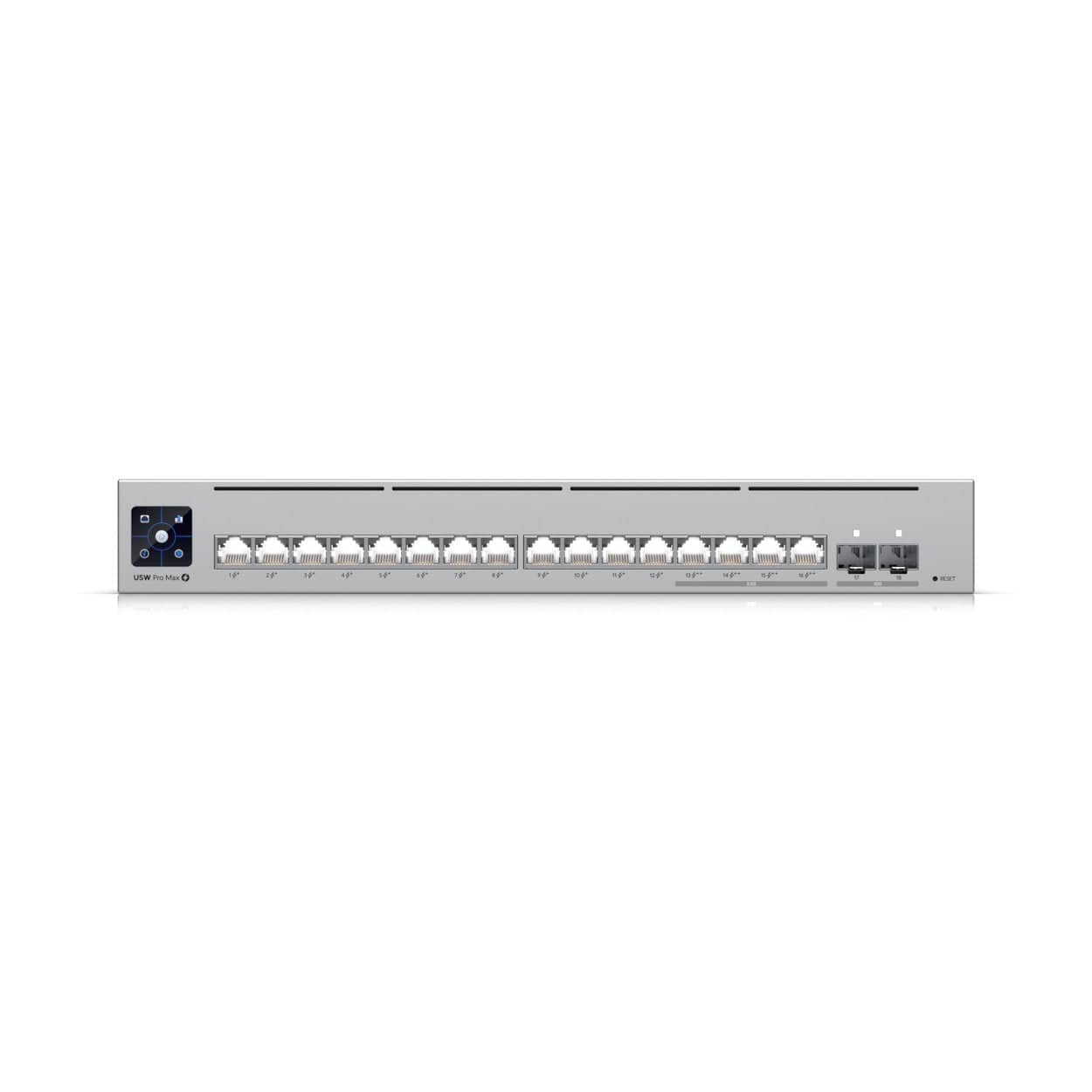

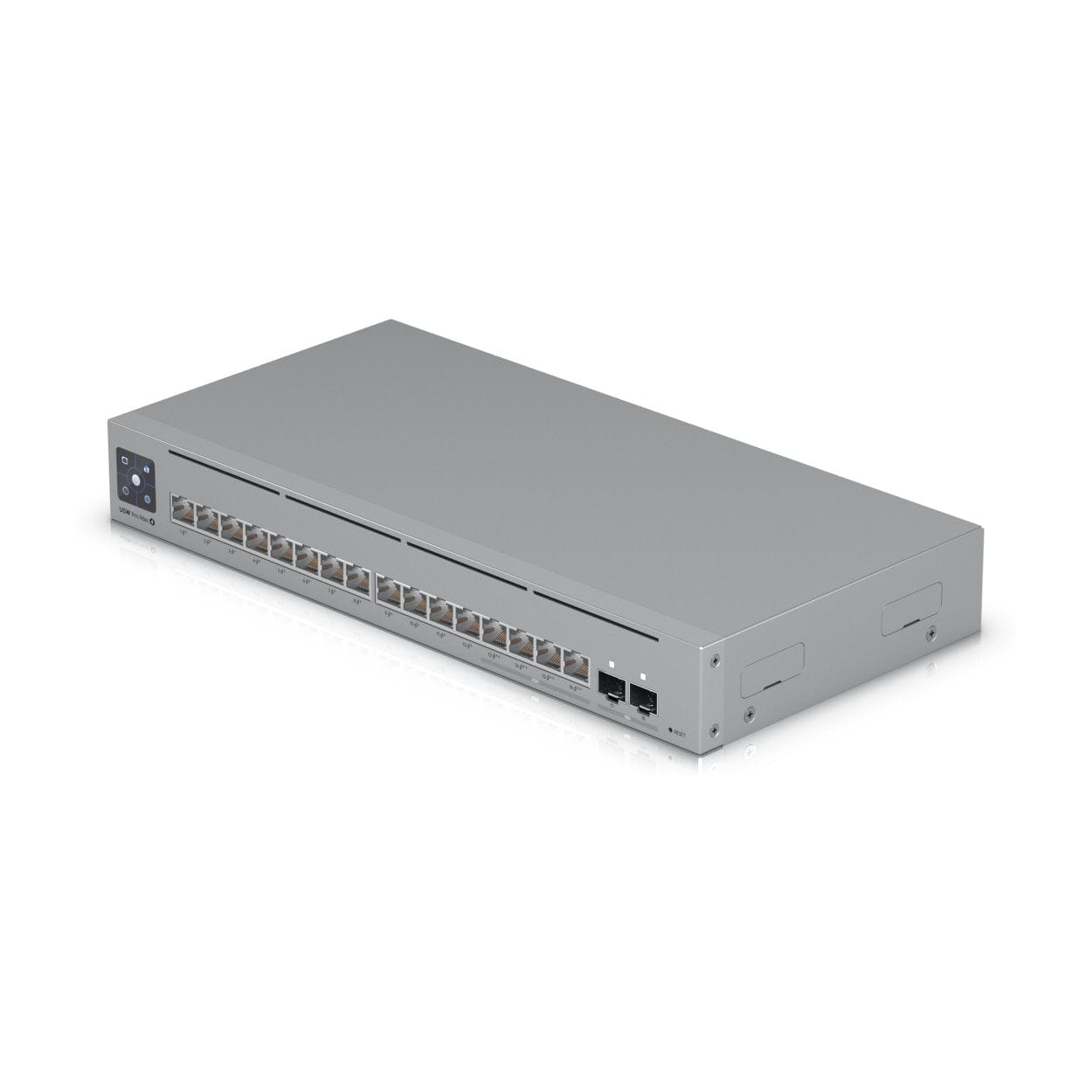

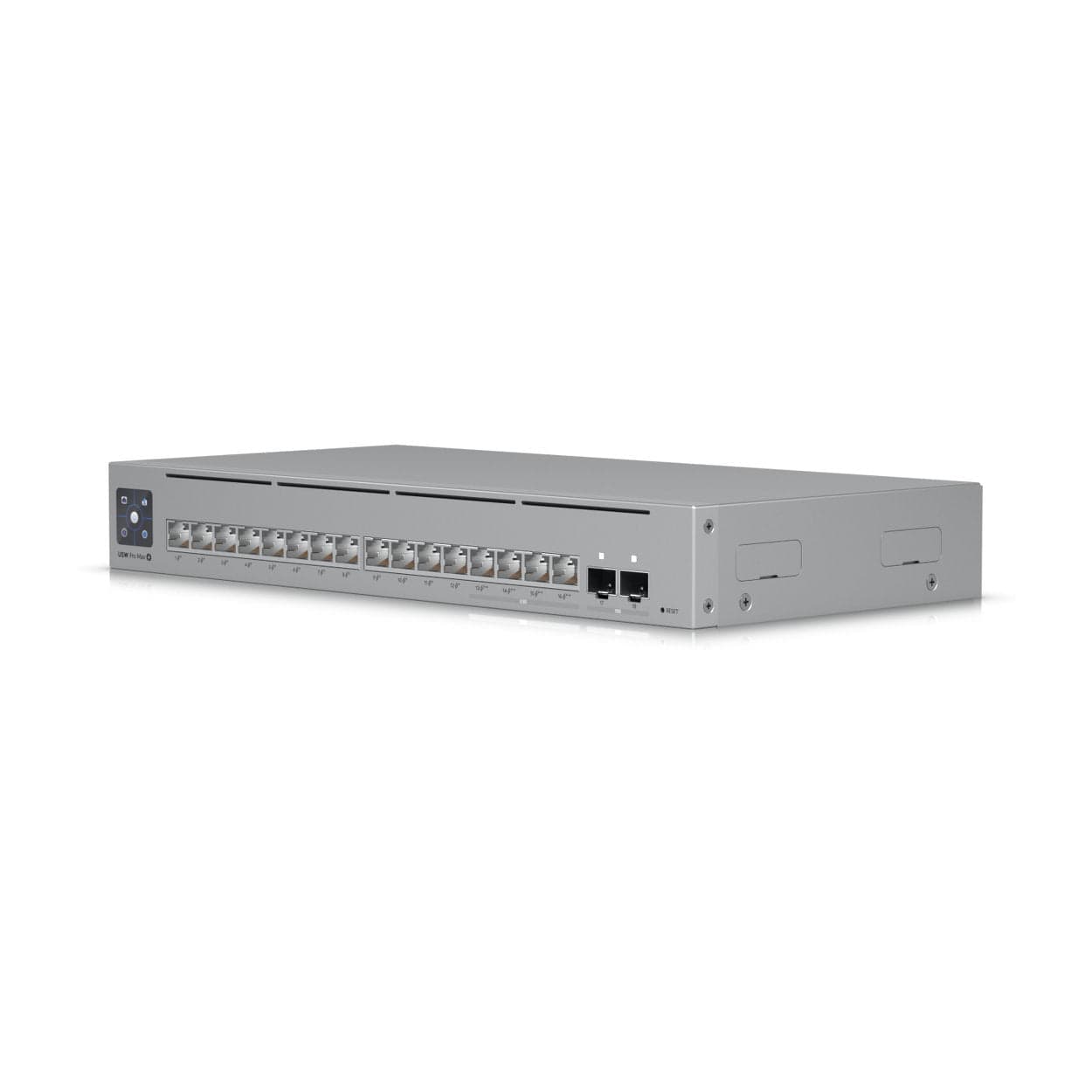

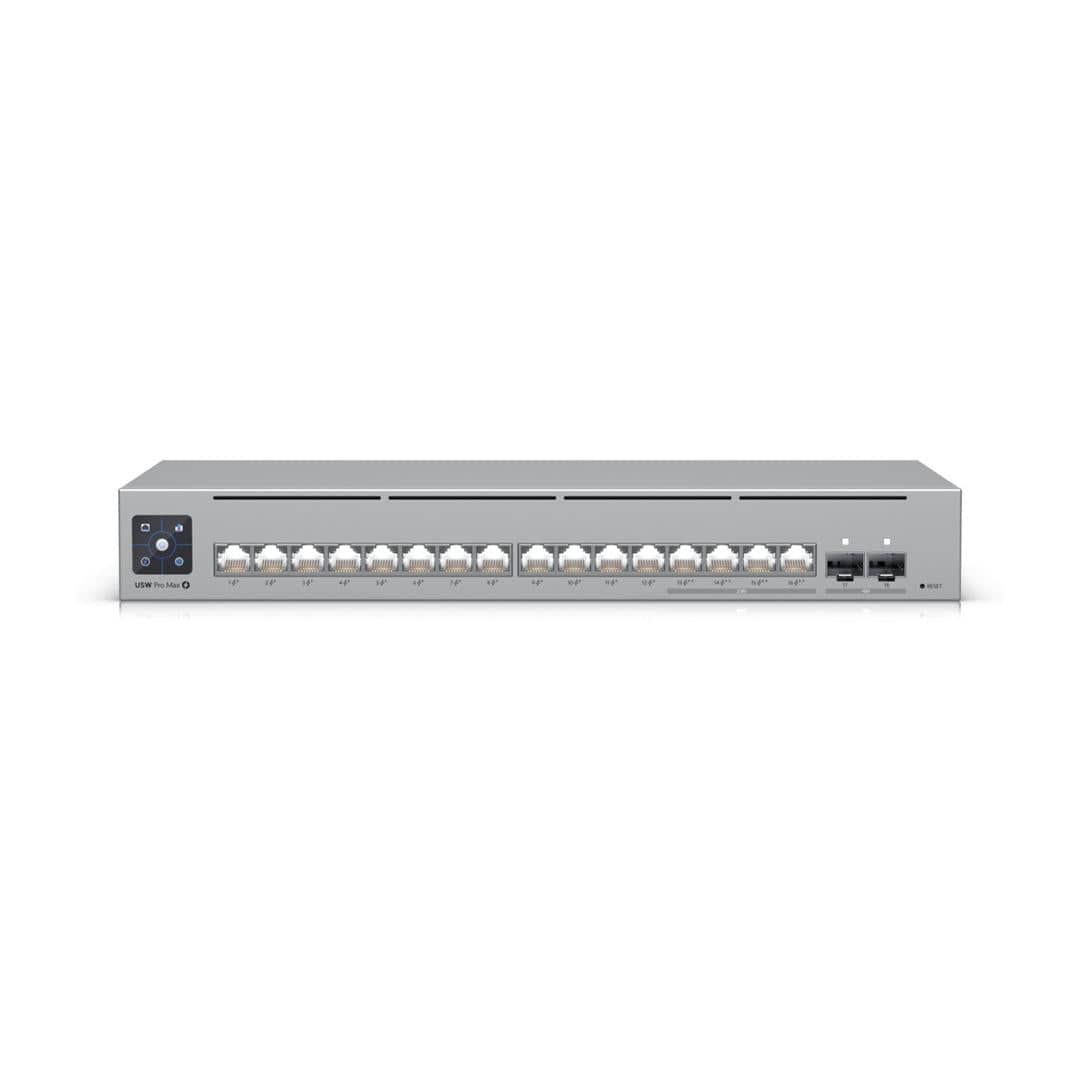

Ubiquiti UniFi Pro Max 16-port GbE PoE Managed Switch with 2x SFP+ Ports USW-PRO-MAX-16-POE

Ubiquiti UniFi Pro Max 16-port GbE PoE Managed Switch with 2x SFP+ Ports USW-PRO-MAX-16-POE

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

Features

• 12x GbE PoE+ ports
• 4x 2.5 GbE PoE++ ports
• 2x 10G SFP+ ports
• 180W total PoE availability
• Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
• Versatile desktop, wall, and rack** mounting
• Silent, fanless cooling system
• Please note: *Pair with UniFi Etherlighting Patch Cables for optimal brightness.
• Please note: **Requires add-on Rack Mount accessory.

Technical Specification

Management interface: Ethernet In-Band

Networking interface

• 12x GbE RJ45 ports
• 4x 1/2.5 GbE RJ45 ports
• 2x 10G SFP+ ports

PoE interface

• 12x PoE/PoE+ (Pins 1, 2+; 3, 6-)
• 4x 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput: 42 Gbps

Switching capacity: 84 Gbps

Forwarding rate: 62.496 Mpps

Power method: DC adapter

Power supply: 54V, 210W

Max. power consumption: 30W (Excluding PoE output)

Total available PoE: 180W

Max. PoE wattage per port by PSE

• PoE: 15.4W
• PoE+: 30W
• PoE++: 60W

Voltage range PoE mode

• PoE: 44—57V
• PoE+/PoE++: 50—57V

LCM display: 1x 1.3" touchscreen

Button: Factory reset

UniFi Network: Version 8.1.127 and later
