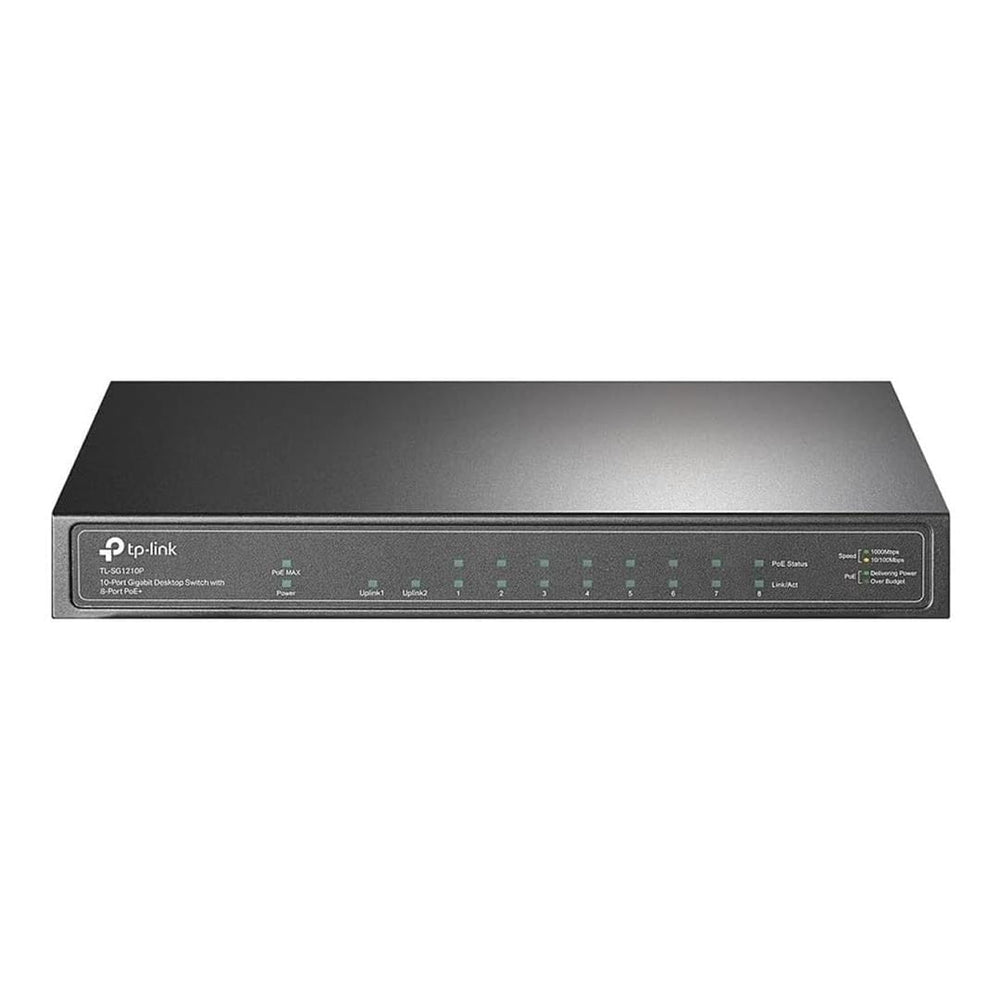

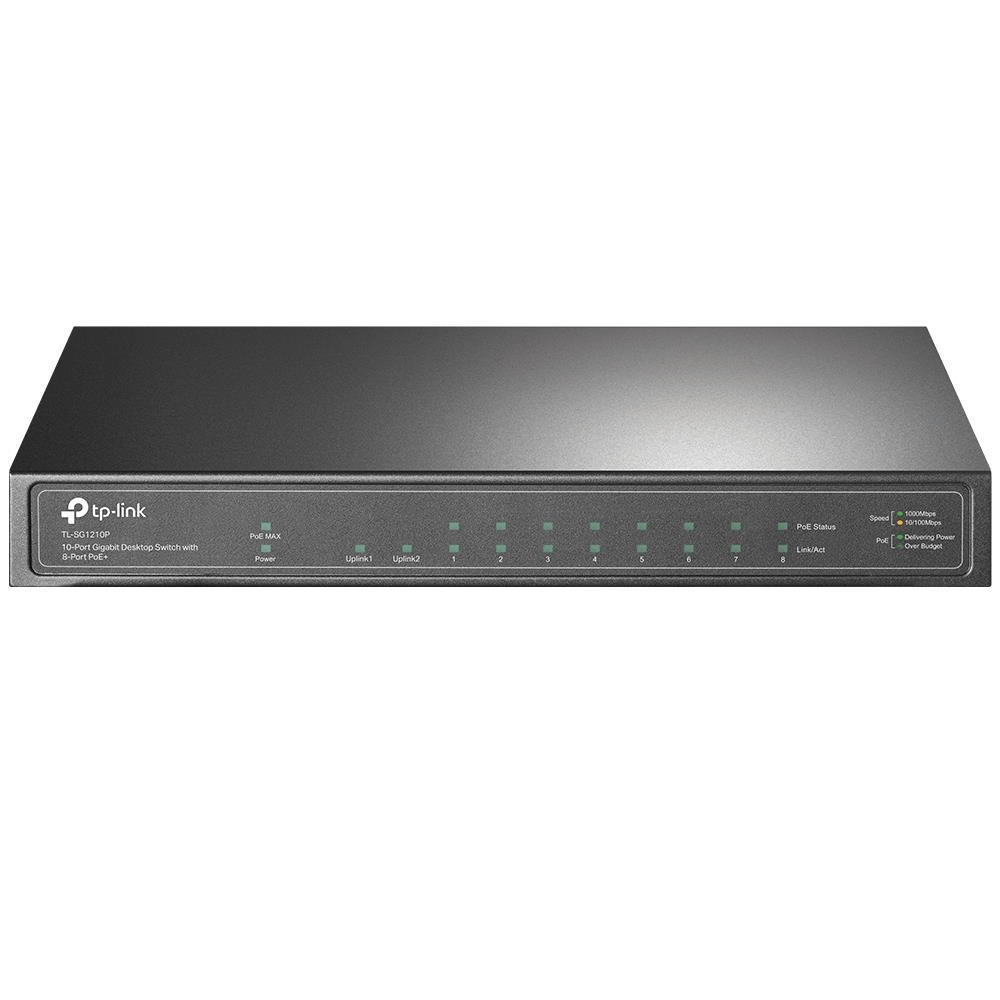

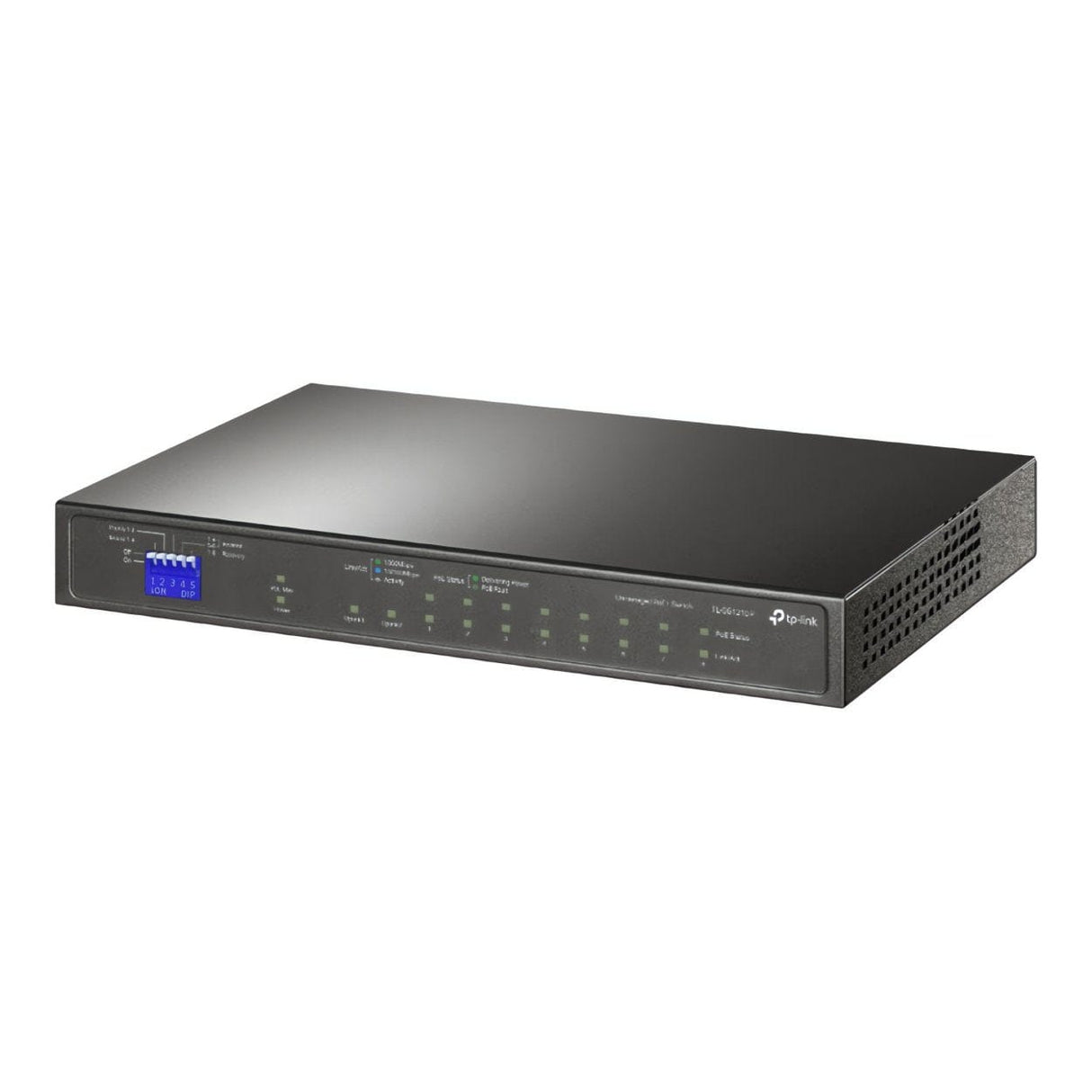

TP-Link TL-SG1210P 10-port Gigabit Desktop Switch with 8-port PoE+
TP-Link TL-SG1210P 10-port Gigabit Desktop Switch with 8-port PoE+ is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
* Next Business Day Shipping Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description
TP-Link TL-SG1210P 10-port Gigabit Desktop Switch with 8-port PoE+
Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Features:
- 9x 10/100/1000Mbps RJ45 ports, 1x Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Working with IEEE 802.3af/at compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Easy to use, with no configuration and installation needed
Intelligent Power Management
When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
QOS For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Sturdy Metal Casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Technical Specification:
Hardware Features

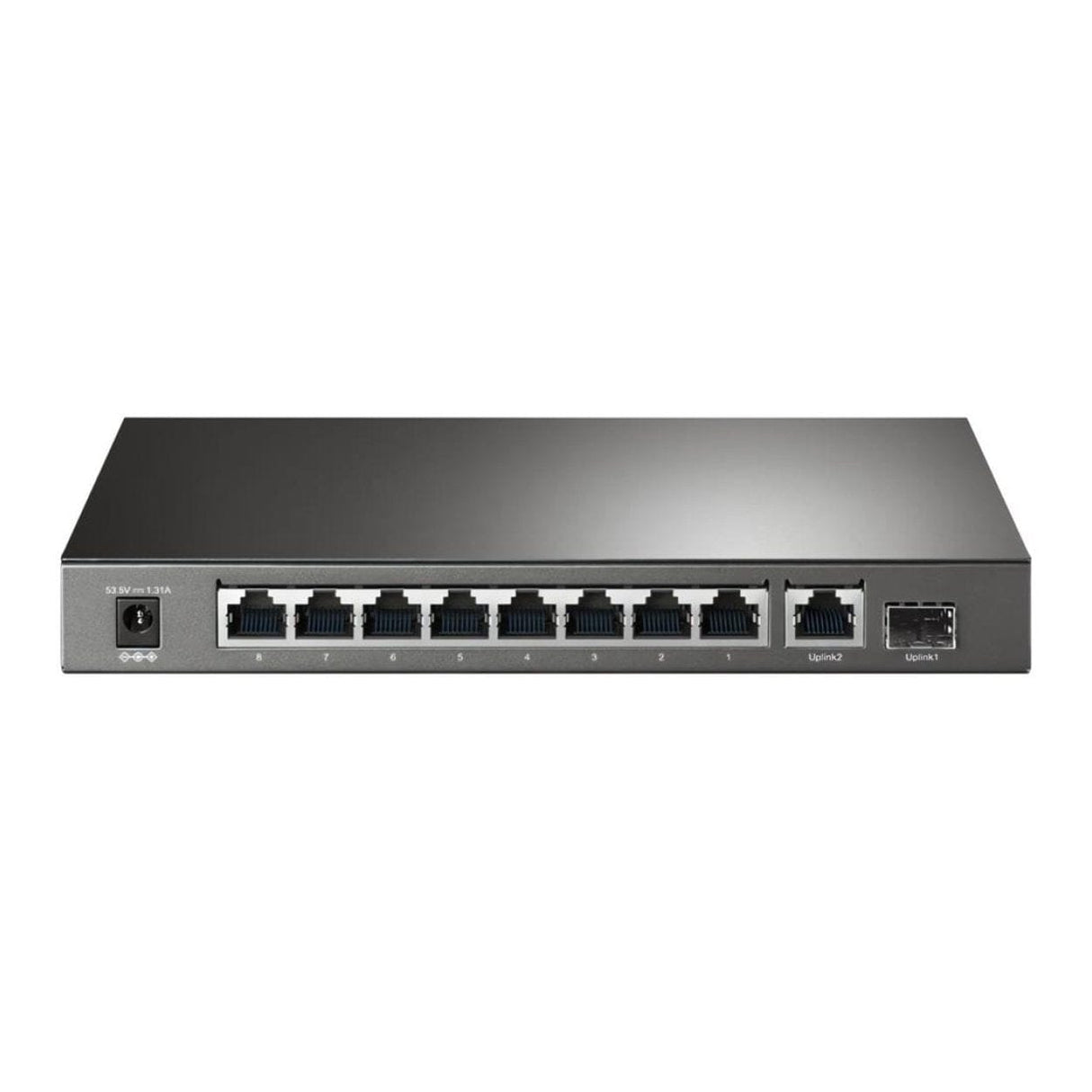

Interface
8 PoE+ 10/100/1000 Mbps RJ45 Ports
1 10/100/1000 Mbps RJ45 Port
1 Gigabit SFP Slot
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m), EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m), EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100 m), EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-X MMF, SMF
Fan Quantity
Fanless
Physical Security Lock
Yes
Power Supply
External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate
14.88 Mpps
PoE Ports (RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Port 1–8
PoE Power Budget: 63 W
MAC Address Table
4K
Jumbo Frame
16 KB
Switching Capacity
20 Gbps
Dimensions (W x D x H)
209 × 126 × 26 mm
Max Power Consumption
7.11 W (220 V / 50 Hz, no PD connected)
78.13 W (220 V / 50 Hz, with 63 W PD connected)
Max Heat Dissipation
24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63 W PD connected)
Software Features
Advanced Features
Compatible with IEEE 802.3af/at compliant PDs
EEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transmission Method
Store-and-Forward
Others
Certification
CE, FCC, RoHS
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What's in the Box:
- TL-SG1210P
- Power Adapter
- Installation Guide
