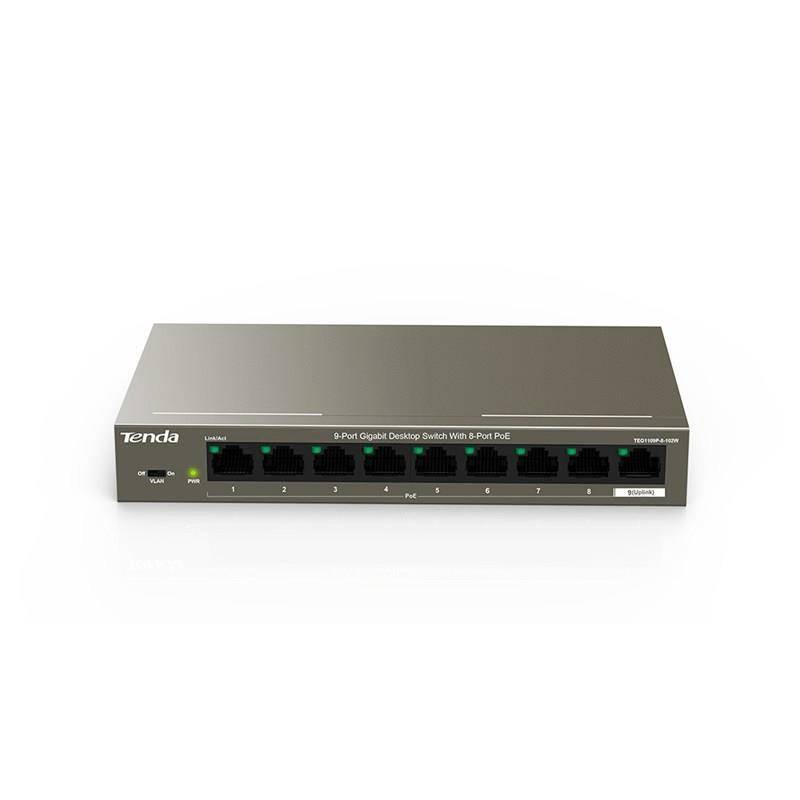

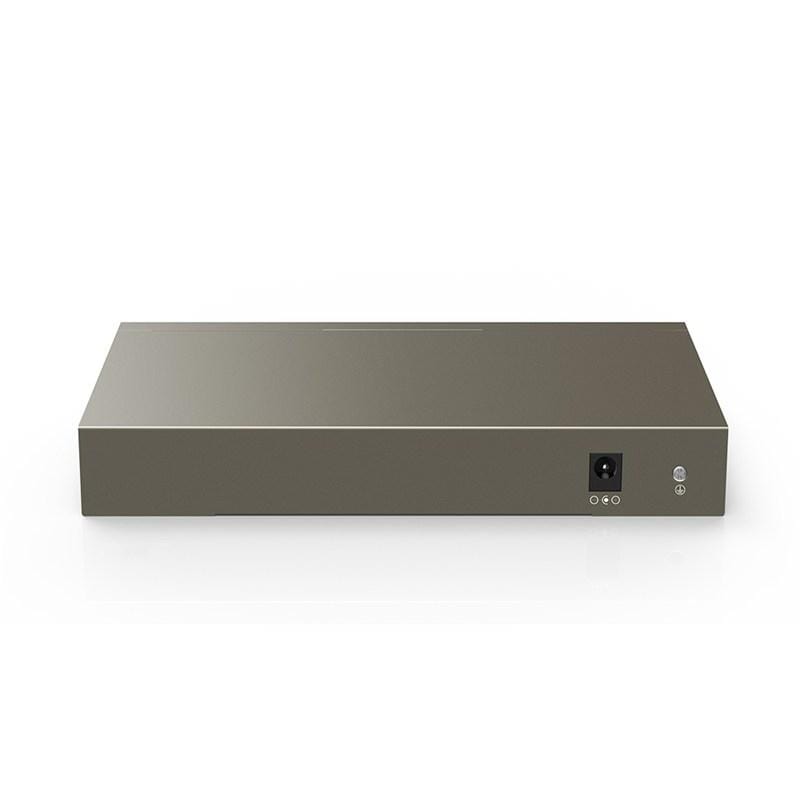

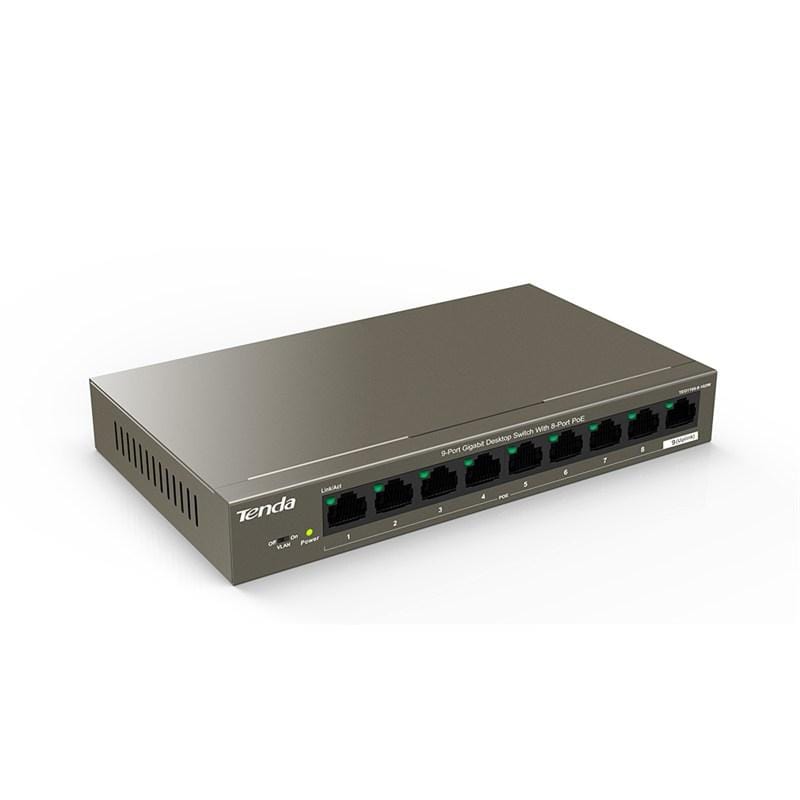

Tenda TEG1109P-8-102W Unmanaged Switch Gigabit Ethernet PoE Grey

TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for uplink port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easier configure, flexible extend network without being limited by the power line layout, plug and play, helping SMB,hotel, shopping mall,school to build high-security and reliability network of wireless cover and HD monitor. Excellent Lightning Protection The switch supports 6 kV lightning protection for uplink port, protecting the switch from thunderstorms and making it more stable. Outstanding PoE Power Supply Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device. What's Special for TEG1109P-8-102W : Enjoy Super HD Video Screen 2Mb built-in packet buffer outstand in comparison, ensuring smooth transmission of large files and HD videos even when HD IP cameras of 500W are working simultaneously. Integrated with Smart Power Management Chip Makes the Switch Get Rid of Overload It includes chips with smart power management function and integrated professional chip control algorithm,which can accurately calculate the output power. When the power of the receiving equipment exceeds the rated power (92W) of the PoE switch, the low priority port will automatically power off to avoid the over-run of the equipment and prolong the service life of the equipment. What's Special for TEG1109P-8-102W : Simple Port VLAN Setup Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.

Specification

Network standards

IEEE 802.3、 IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、 IEEE 802.3af、IEEE 802.3at

LED Indicator

9* Link/Ack LED indicators
1 * Power LED indicator

Interfaces

8*10/100/1000 Base-T Ethernet Ports(Data/Power)
1*10/100/1000 Base-T Ethernet Ports(Data)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

177.5mmx104.0mmx26.0mm

Level of protection

Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

18 Gbps

Packet forwarding rate

13.4Mpps

Buffer

2M

MAC address table

16K

Jombo frame

N/A

PoE budget

Single port: AF: 15.4W, AT: 30W
Whole device: 92W

Input voltage

100-240V AC 50/60Hz
51V /2.0A DC（Power Adapter Output ）

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Environment

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS

Software

Funtions

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
