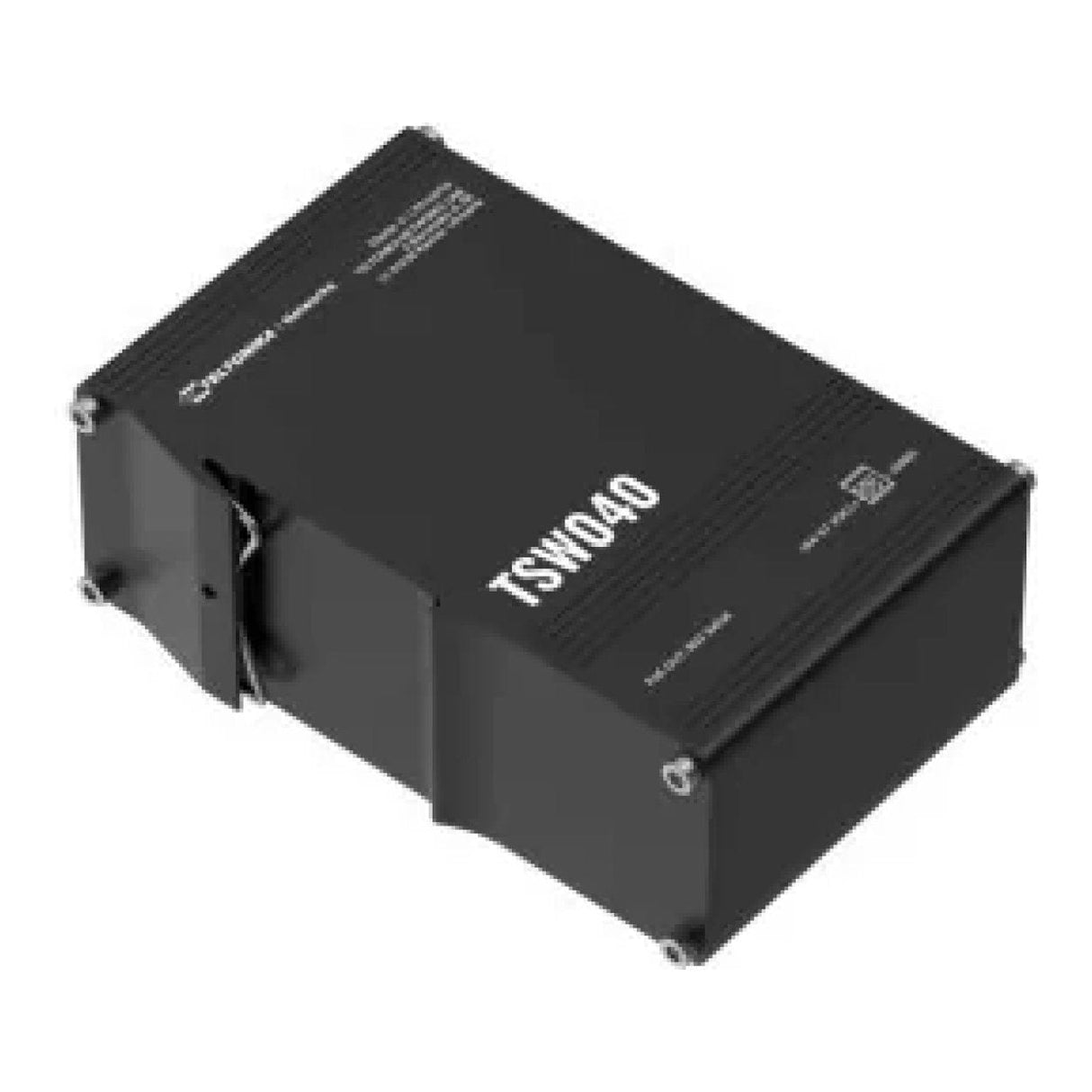

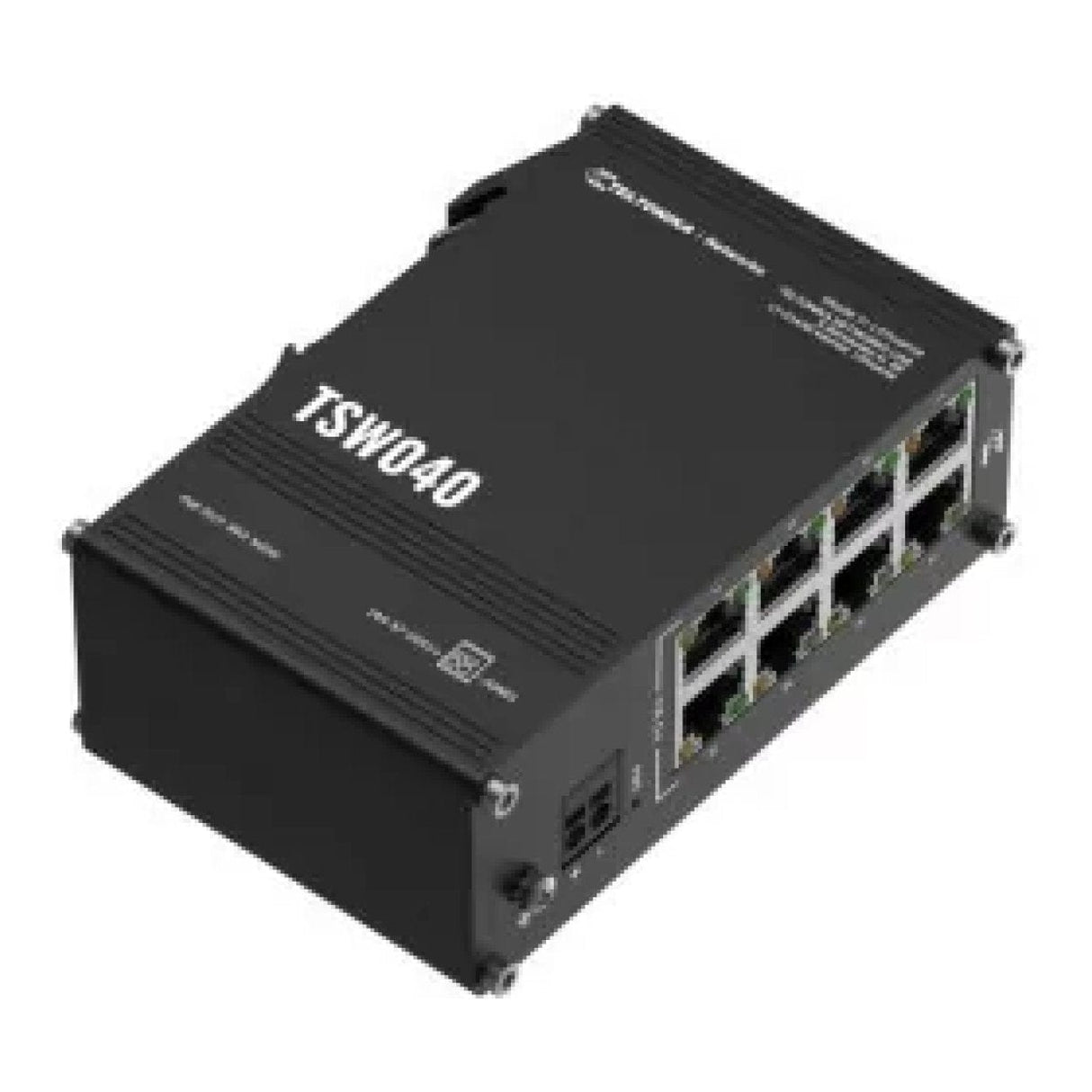

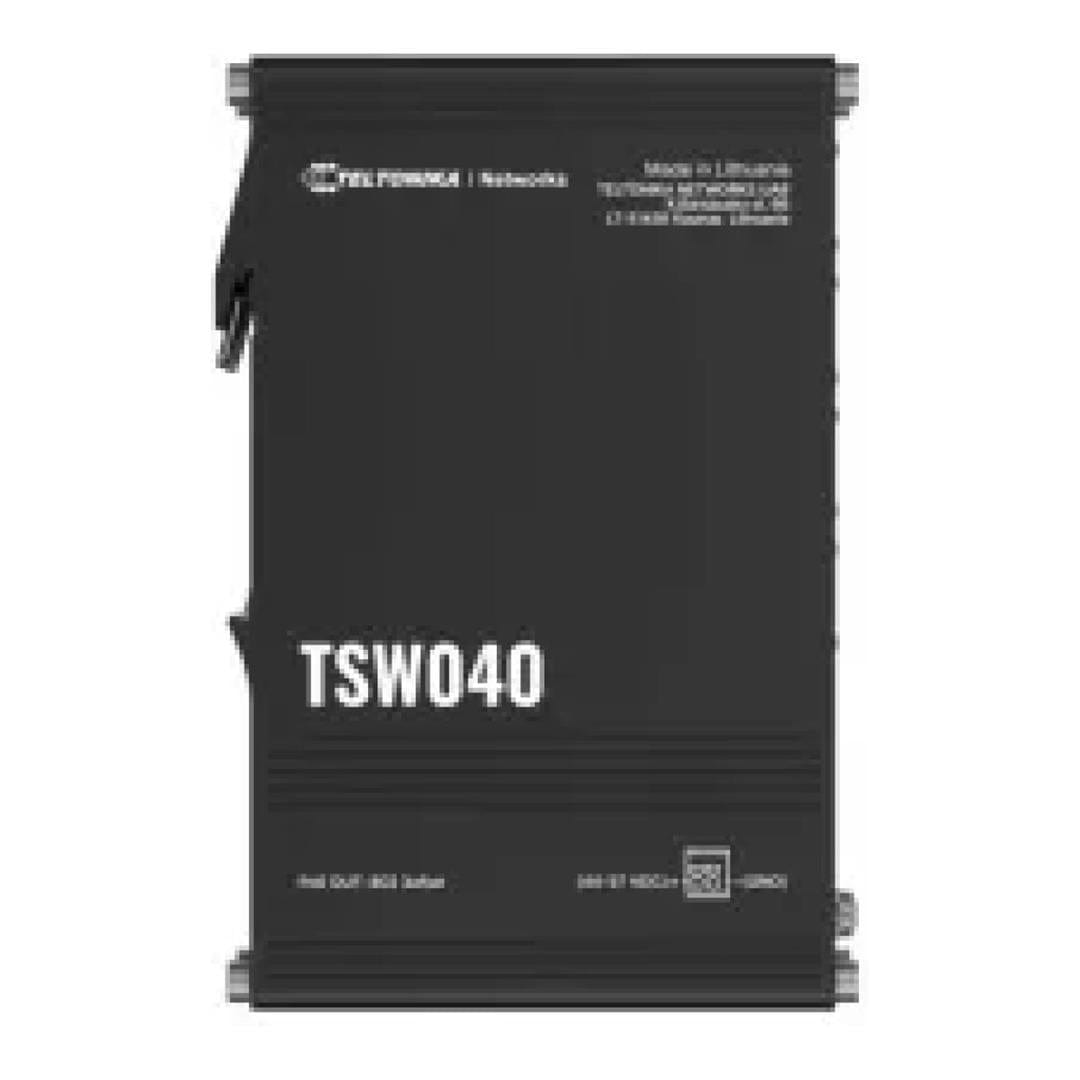

Teltonika Industrial 8-port PoE+ Switch TSW040

Teltonika Industrial 8-port PoE+ Switch TSW040

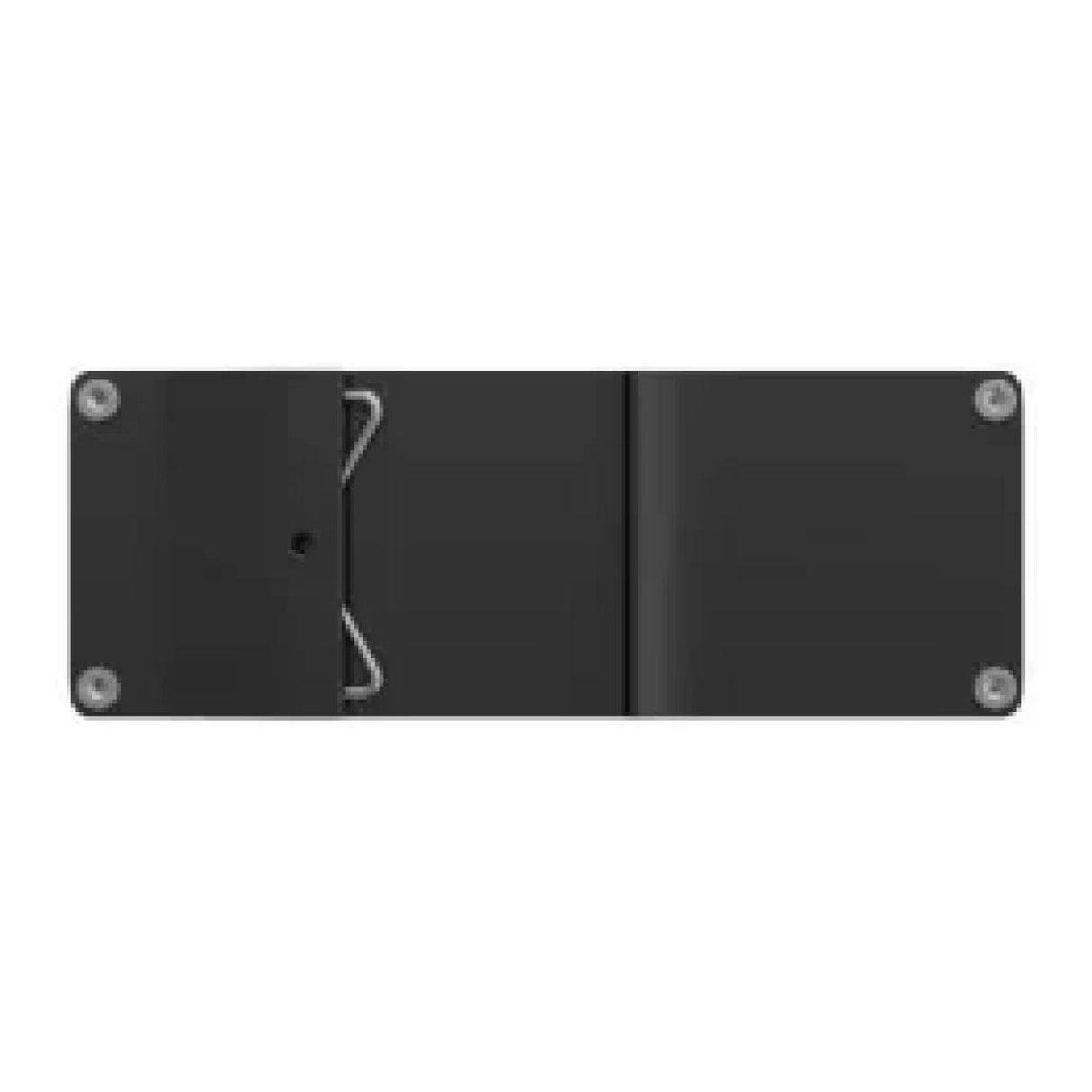

Teltonika's TSW040 is an unmanaged 8-port PoE+ industrial switch, featuring eight RJ45 ports with a total power budget of 240W, or up to 30W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.

Specifications

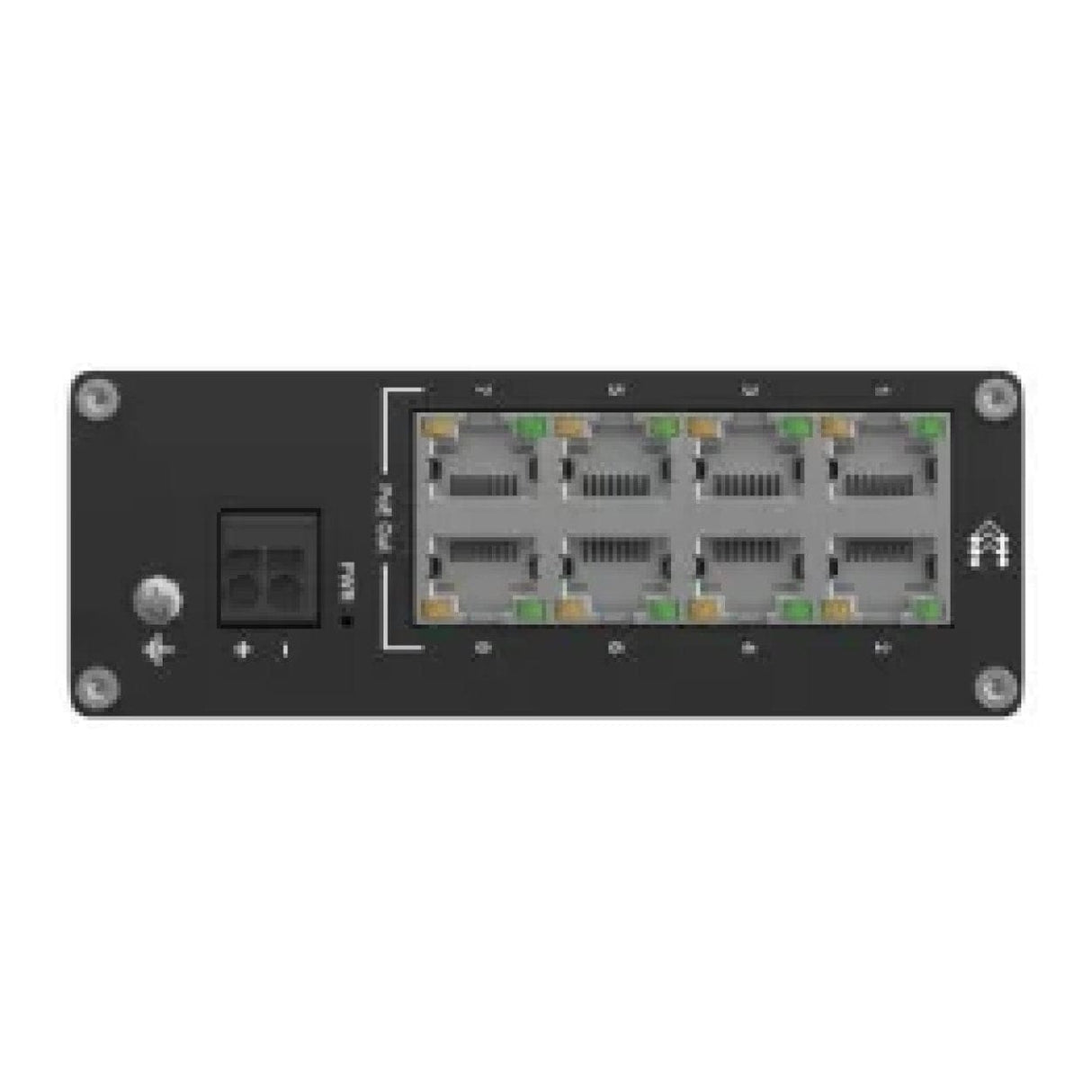

Ethernet: 8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

PoE ports: Port 1 - 8

Total PoE Power Budget (at PSE): 240 W

PoE Max Power per Port (at PSE): 30 W POE OUT

PoE standards: 802.3af and 802.3at compliant PSE ports, over spare pairs - Mode B
