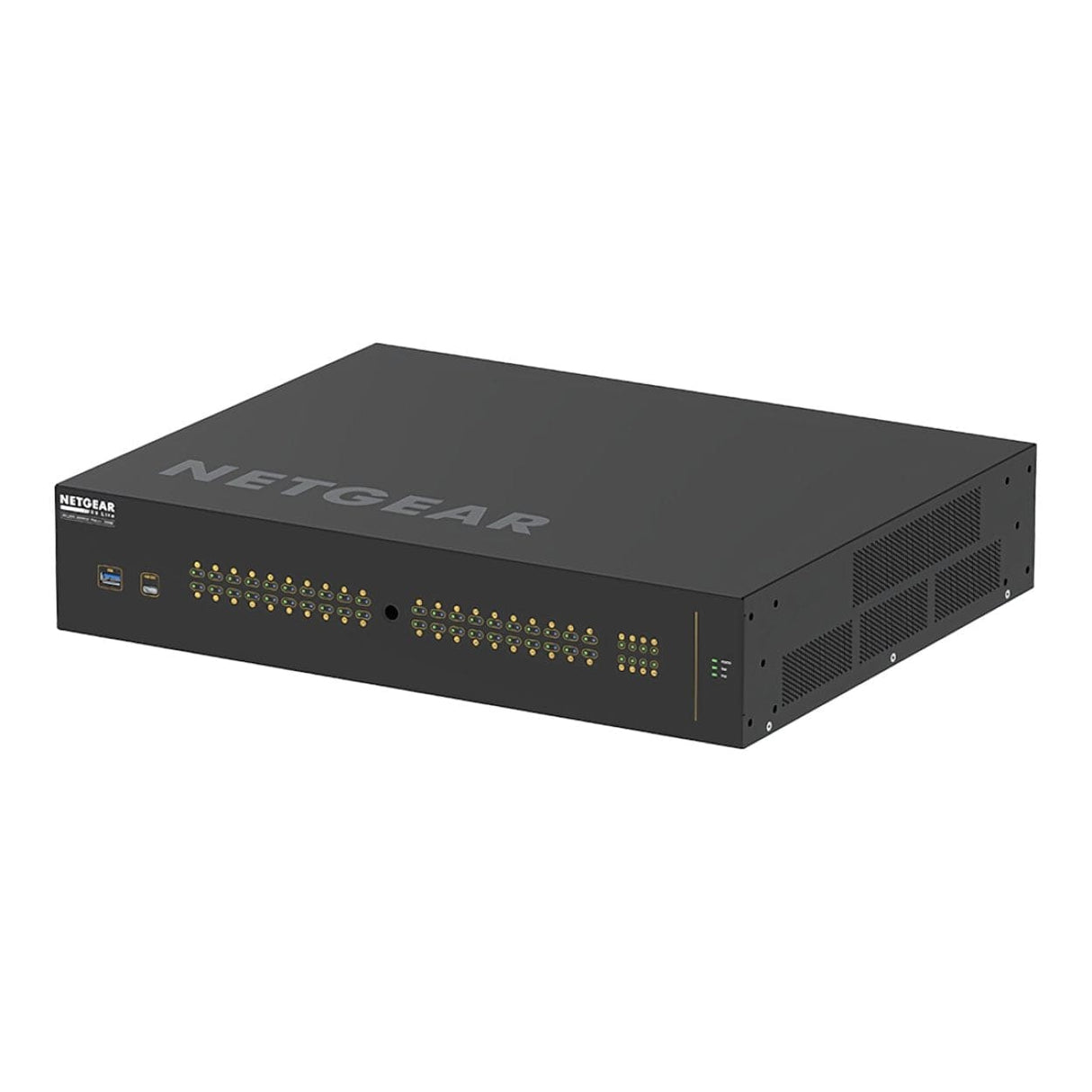

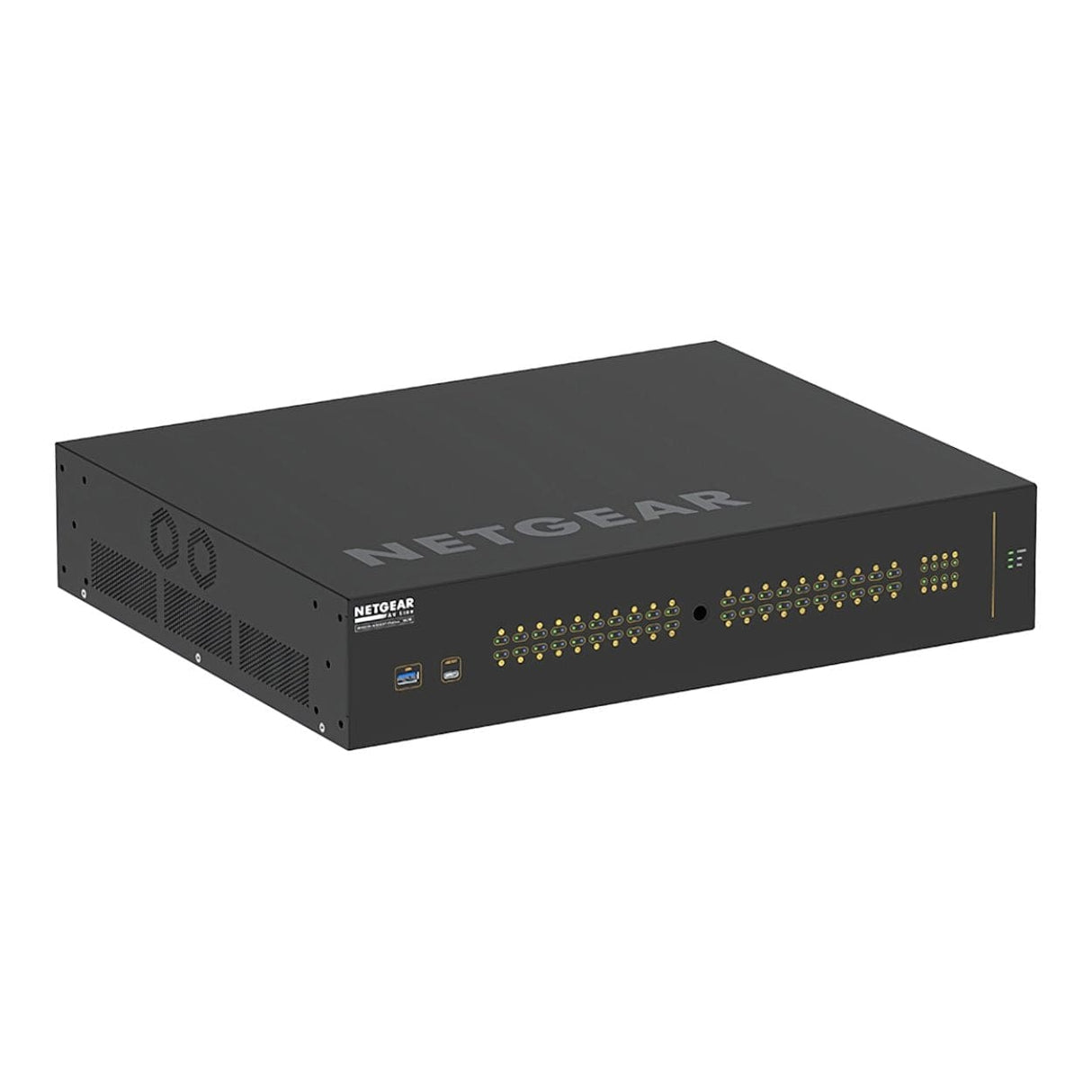

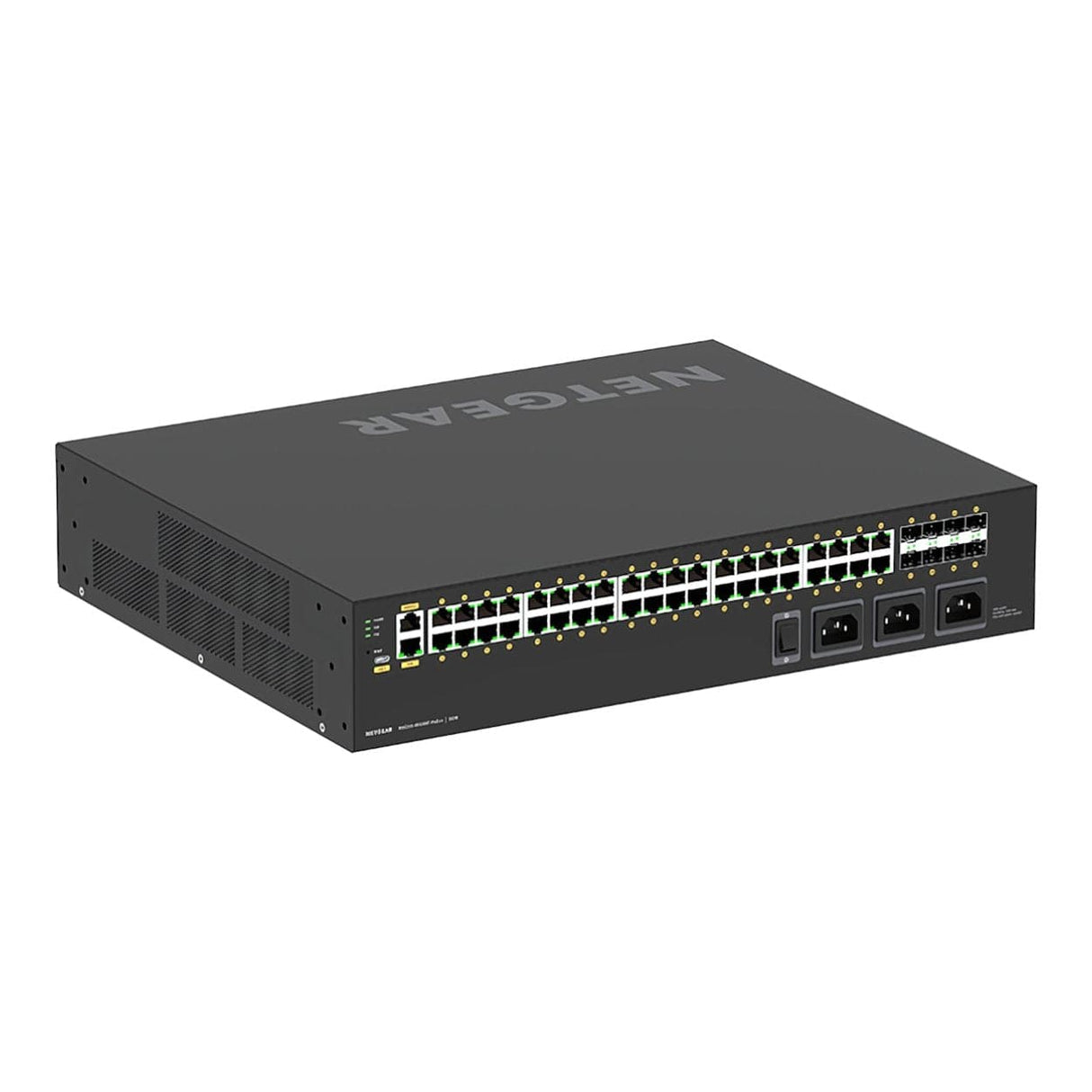

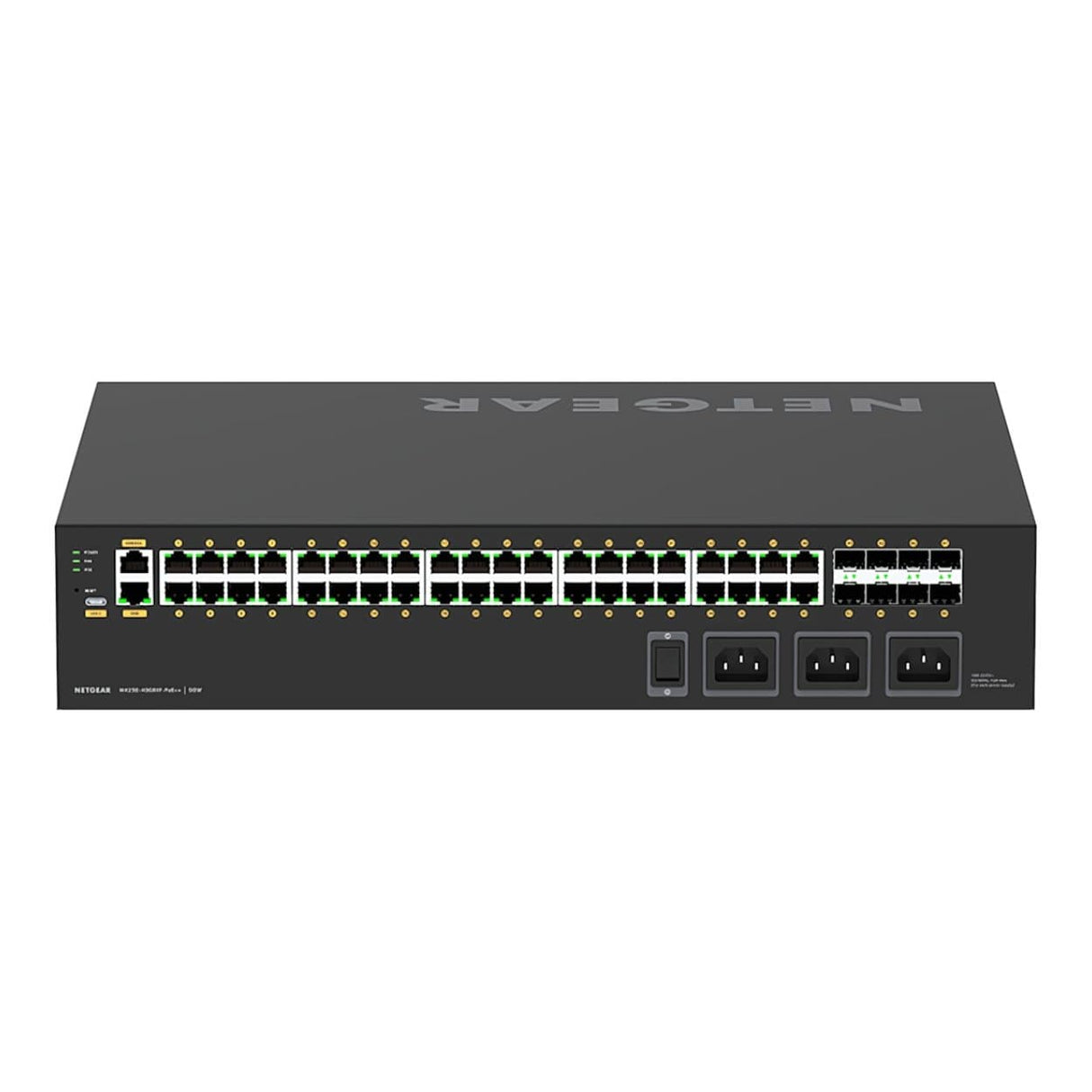

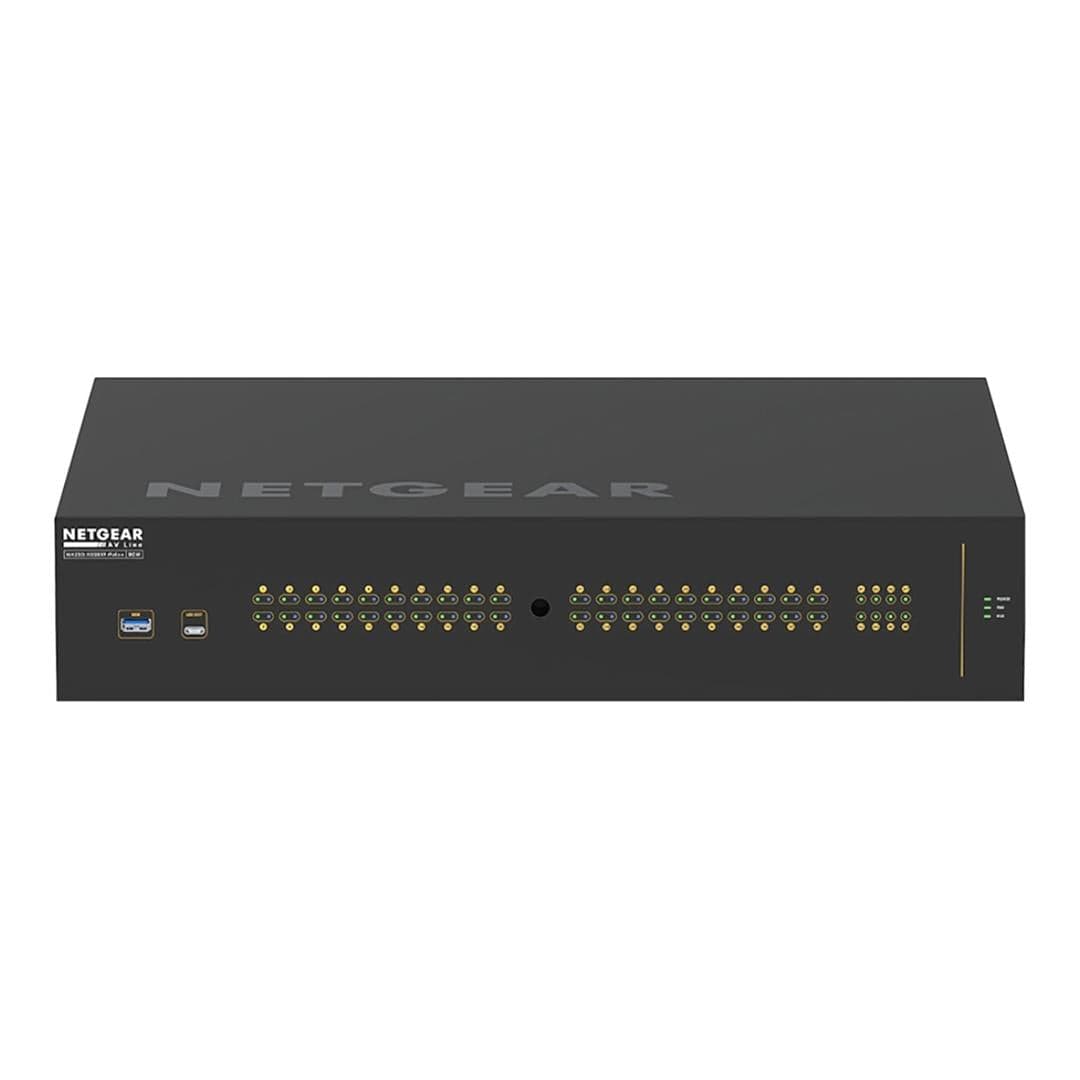

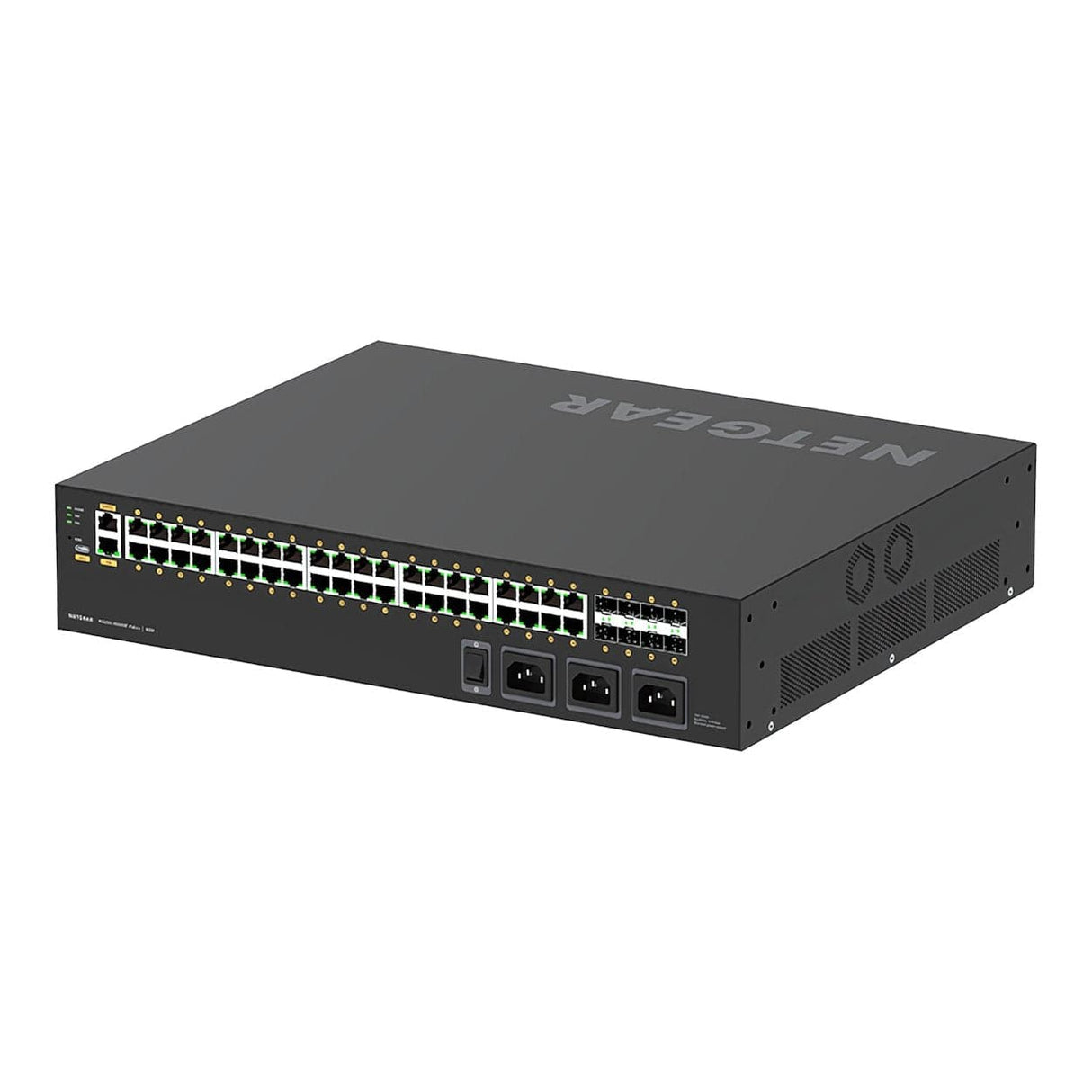

Netgear M4250-40G8XF-PoE++ 48-port L2/L3 Gigabit Ethernet PoE 2U Managed Switch GSM4248UX-100EUS

Netgear M4250-40G8XF-PoE++ 48-port L2/L3 Gigabit Ethernet PoE 2U Managed Switch GSM4248UX-100EUS

Pre-configured for out-of-the-box use

NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations

Dedicated AV web-based GUI interface

Unique interface designed for the AV professional with color-coded, port-based profiles

Profiles for common audio protocols

Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license

Video profiles built-in

Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed

Unique Automatic Configuration

Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

Easier configuration with new AV GUI

The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.

Use in noise-sensitive environments

Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.

Get up and running fast with little engineering time required

Our NETGEAR IGMP PlusTM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations

Multiple mounting options provide ultimate flexibility

Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.

M4250 AV Line Switches

An entirely new series of switches developed and engineered for the growing AV over IP market.

Technical Specifications:

Switch type: Managed

Switch layer: L2/L3

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 40

USB 2.0 ports quantity: 1

MAC address table: 16000 entries

Switching capacity: 240 Gbit/s

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Power over Ethernet (PoE)

Rack mounting

Form factor: 2U
