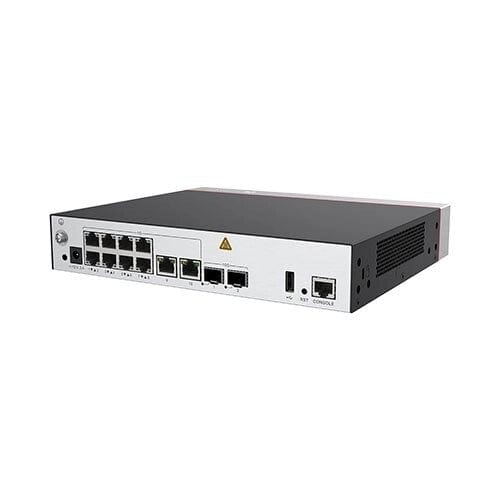

Huawei AC650-128AP 10-port GbE Wireless Access Controller with 2x 10GE SFP+ Ports

Huawei AC650-128AP 10-port GbE Wireless Access Controller with 2x 10GE SFP+ Ports

The AC650-128AP is a small-capacity box wireless access controller (WAC) for small office home office (SOHO) enterprises. It can manage up to 128 access points (APs) and integrates the GE Ethernet switch function, achieving integrated access for wired and wireless users. Also, the AC650-128AP features high scalability and offers users considerable flexibility in configuring the number of managed APs. With these strengths, this WAC can be used to construct small and medium campus networks, enterprise office networks, wireless metropolitan area networks (MANs), and hotspot coverage networks

Features:

• Large-capacity and high-performance design
• SmartRadio for AP air interface optimization
• Various roles
• Flexible networking
• Built-in application identification server
• Comprehensive reliability design
• Built-in visualized network management platform
• Health-centric one-page monitoring, visualized KPIs
• Profile-based configuration by AP group simplifies configuration and improves efficiency
• One-click diagnosis solves 80% of common network problems

Ethernet

Operating modes of full duplex, half duplex, and auto-negotiation Rates of an Ethernet interface: 10 Mbps, 100 Mbps, 1000 Mbps, and auto-negotiation

• Flow control on interfaces
• Jumbo frames
• Link aggregation
• Load balancing among links of a trunk
• Interface isolation and forwarding restriction
• Broadcast storm suppression

VLAN

• Access modes of access, trunk, and hybrid Default VLAN
• VLAN pool

MAC

• Automatic learning and aging of MAC addresses
• Static, dynamic, and blackhole MAC address entries
• Packet filtering based on source MAC addresses
• Interface-based MAC learning limiting

ARP

• Static and dynamic
• ARP entries ARP in a VLAN
• Aging of ARP entries

Specifications:

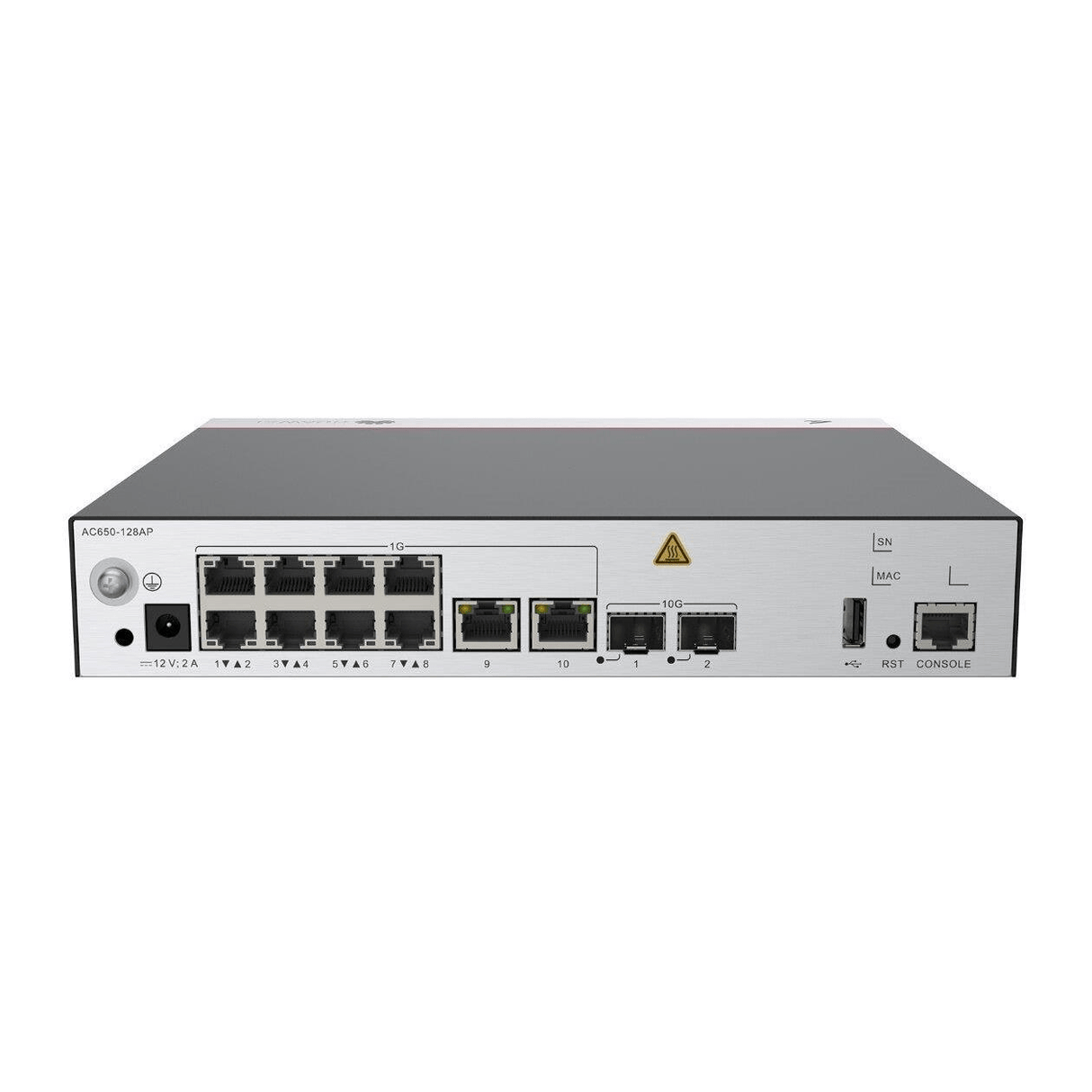

Interface type: 2 x 10GE optical ports +10 x GE electrical ports 1 x Console (RJ45), 1 x USB

Maximum power consumption: 21 W

Operating temperature and altitude: -60 m to +1800 m: 0°C to 45°C 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 220 m.

Relative humidity: 5% RH to 95% RH, noncondensing

Power modules: AC/DC adapter

Number of managed APs: 128

Number of access users: 1024 NOTE The maximum number of access users varies depending on the authentication mode.

Number of MAC address entries: 8192

Forwarding capability: 10 Gbps

Number of VLANs: 4096

Number of routing entries: IPv4: 4096; IPv4: 2048

Number of ARP entries: 4096

Number of multicast forwarding entries: 2048

Number of DHCP IP address pools: 64 IP address pools, each of which contains a maximum of 8192 IP addresses

Number of local accounts: 1024

Weight: 1.47 kg

Dimensions (H x W x D): 43.6 mm x 210 mm x 250 mm
