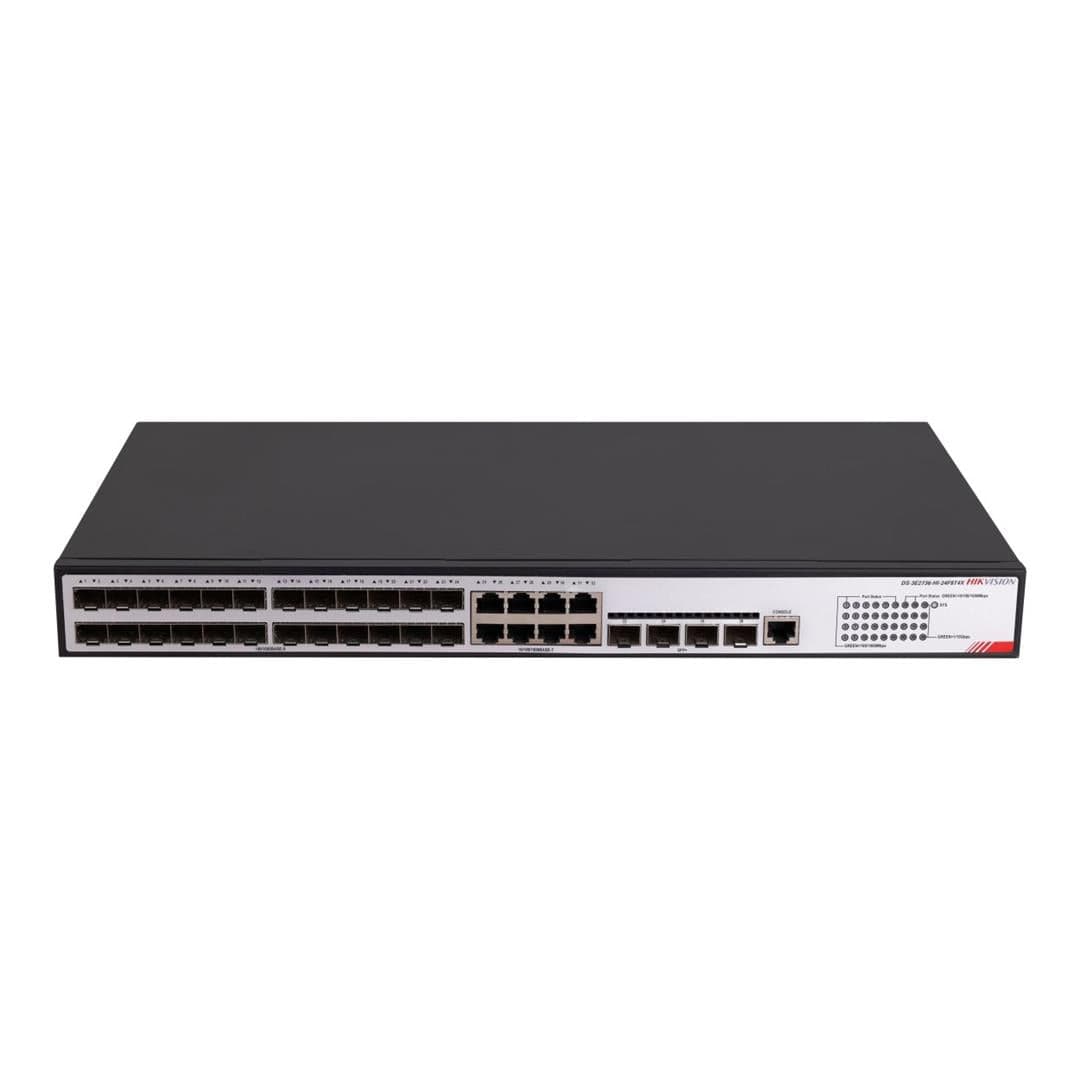

Hikvision 24-port Gigabit SFP Smart L2+ Managed Switch with 8x GbE and 4x SFP+ ports DS-3E2736-HI-24F8T4X

Hikvision 24-port Gigabit SFP Smart L2+ Managed Switch with 8x GbE and 4x SFP+ ports DS-3E2736-HI-24F8T4X

Features

• The virtualization technology allows each slave device in the stack to serve as the backup of the master, creating control and data link redundancy, as well as uninterrupted layer-3 forwarding. This improves the reliability, avoids unplanned business downtime and serves to improve overall performance. When the master device fails, traffic remains uninterrupted
• The switch offers a large number of inbound and outbound ACLs and VLAN-based ACL assignment.
• The switch supports Unicast Reverse Path Forwarding (uRPF), which protects a network against source spoofing attacks, preventing DoS and DDoS attacks
• DS-3E2700-HI switch series features multiple redundancy measures at the device and link levels, support current and voltage surge control, overheat protection, CPU protection, power and fan troubleshooting and alert, as well as fan speed adjustment when the temperature changes.
• Apart from device level redundancy, DS-3E2700-HI series switch also provides diverse link redundancy support such as LACP/STP/RSTP/MSTP/Smart Link protocols. It supports redundancy backup as well as cross-device link aggregation which substantially increases network reliability.
• Support speed limit on port and traffic to prevent malicious invasion of network bandwidth and provide multiple granular management tools. Support SP (Strict Priority), WRR (Weighted Round Robin), and SP+WRR queue scheduling algorithms, and support multi-priority data transmission. Support rich IPv6 services and multiple IPv6 management tools.
• Support CLI command line, Web network management, and Telnet, making device management more convenient. And support SSH2.0 and other encryption methods, making management more secure. Support remote upgrade of devices through FTP and TFTP, SNMP v1/v2c/v3
• Energy-saving design greatly reduces device power consumption and trouble spots. Radiation is reduced to reach the standard for household electrical appliances and is harmless to humans.

Technical Specification

Ports

• 24x Gigabit fiber optical port
• 8x Gigabit RJ45 port
• 4x 10G fiber optical port

MAC Address Table: 32 K

Internal Cache: 2.0 Mbits

Switching Capacity

• Whole-Device Performance: 216 Gbps
• Port Performance: 144 Gbps

Packet Forwarding Rate

• Whole-Device Performance: 160.71 Mpps
• Port Performance: 107.13 Mpps

Installation Mode: Rack (equipped with mounting ears)

Surge Protection: 6 kV

Dimensions (W × H × D): 440 x 260 x 43.60 mm

Weight: 3.20 kg
