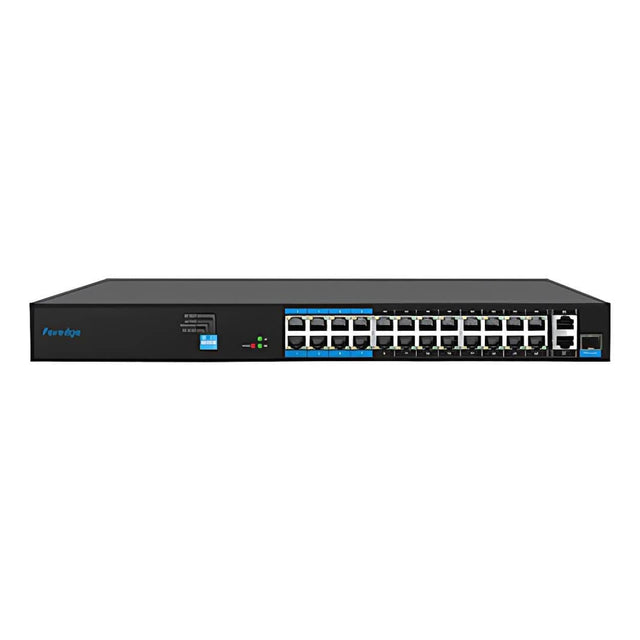

Foredge AI8024M 24-port AI PoE Switch

Foredge AI8024M 24-port AI PoE Switch

The product has 24 100Mbps PoE ports, 2 Gigabit RJ45 ports, and 1 Gigabit SFP port (25 ports are Gigabit combos) suitable for network access and edge aggregation.

Features:

• 24 100Mbps PoE ports and 2 Gigabit RJ45 ports,1 Gigabit SFP port
• In AI VLAN mode, isolating ports 1-24 from each other can effectively suppress network bursts and improve network performance
• The effective transmission distance of AI Extend mode 1-8 ports can reach 250 meters, suitable for long-distance monitoring and power supply.
• AI PoE mode, the switch automatically detects the PD device end situation, and abnormal devices automatically restart
• AI QoS mode: In case of device congestion, video data will be prioritized to make the video smoother.
• Supports IEEE 802 af/at protocol, capable of automatically PD devices and supplying power

Technical Specifications:

Network Interface
24 × 10/100 Mbps PoE RJ45 ports (port 1–24)
2 × 10/100/1000 Mbps non-PoE RJ45 ports (port 25–26)
1 × Gigabit SFP optical fiber port (reused)

Network Protocol Standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at

Performance Specifications
Backplane Bandwidth: 8.8 Gbps (non-blocking)
Forwarding Rate: 6.55 Mpps
MAC Address Table: 8K
Forwarding Mode: Store-and-forward

LED Indicators
Power Indicator: 1
LINK/ACT Indicators: 26
PoE Indicators: 24

PoE Pin Assignment
1/2 (+), 3/6 (–)

Power Support
Max Output Power per Port: 30 W
Total Power Budget: 250 W

Physical Specifications
Dimensions: 440 × 180 × 44 mm

Environmental Specifications
Operating Temperature: 0°C ~ 40°C
Storage Temperature: –40°C ~ 70°C
Operating Humidity: 10% ~ 90% RH (non-condensing)
Storage Humidity: 5% ~ 90% RH (non-condensing)

Certification
CE, RoHS, FCC, CCC
