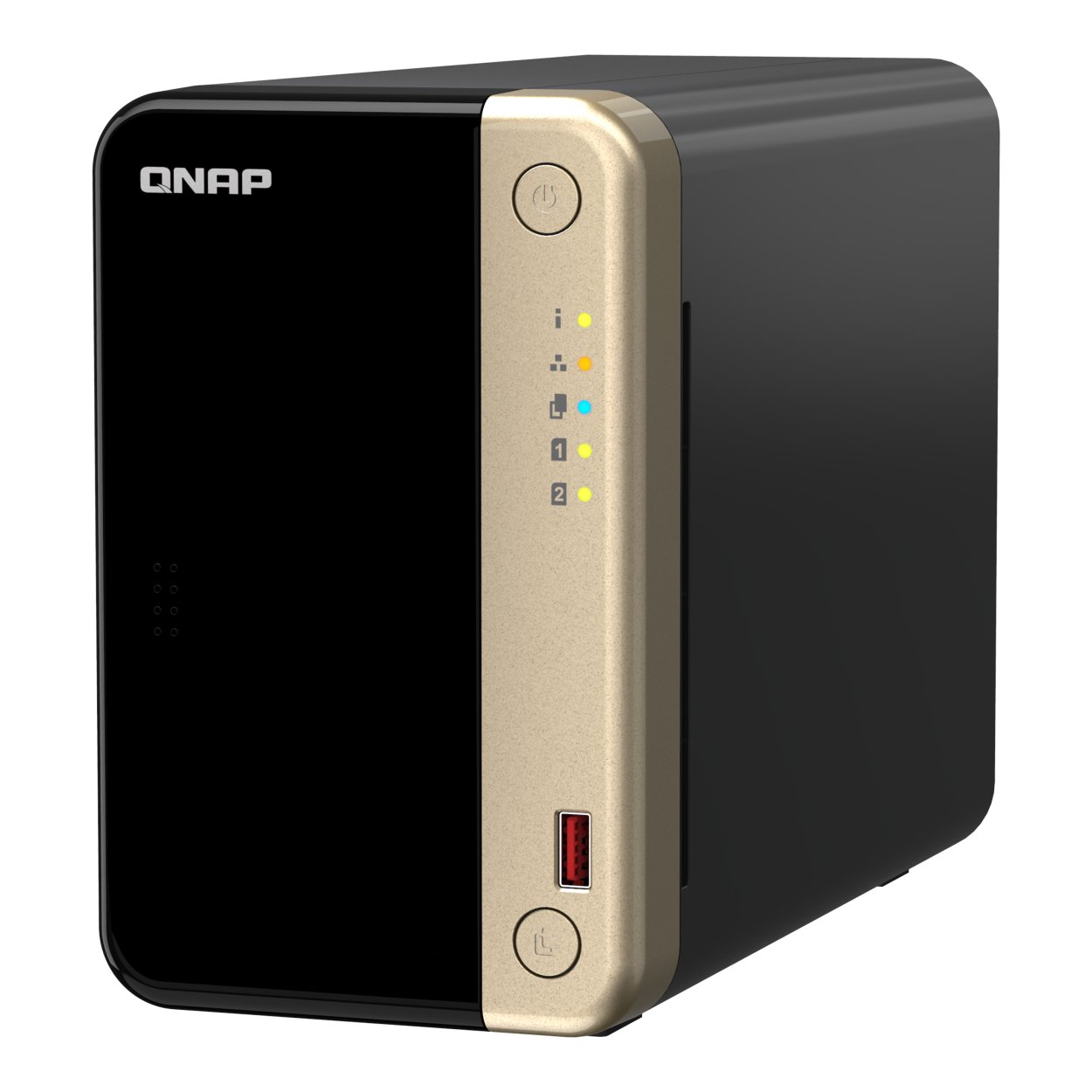

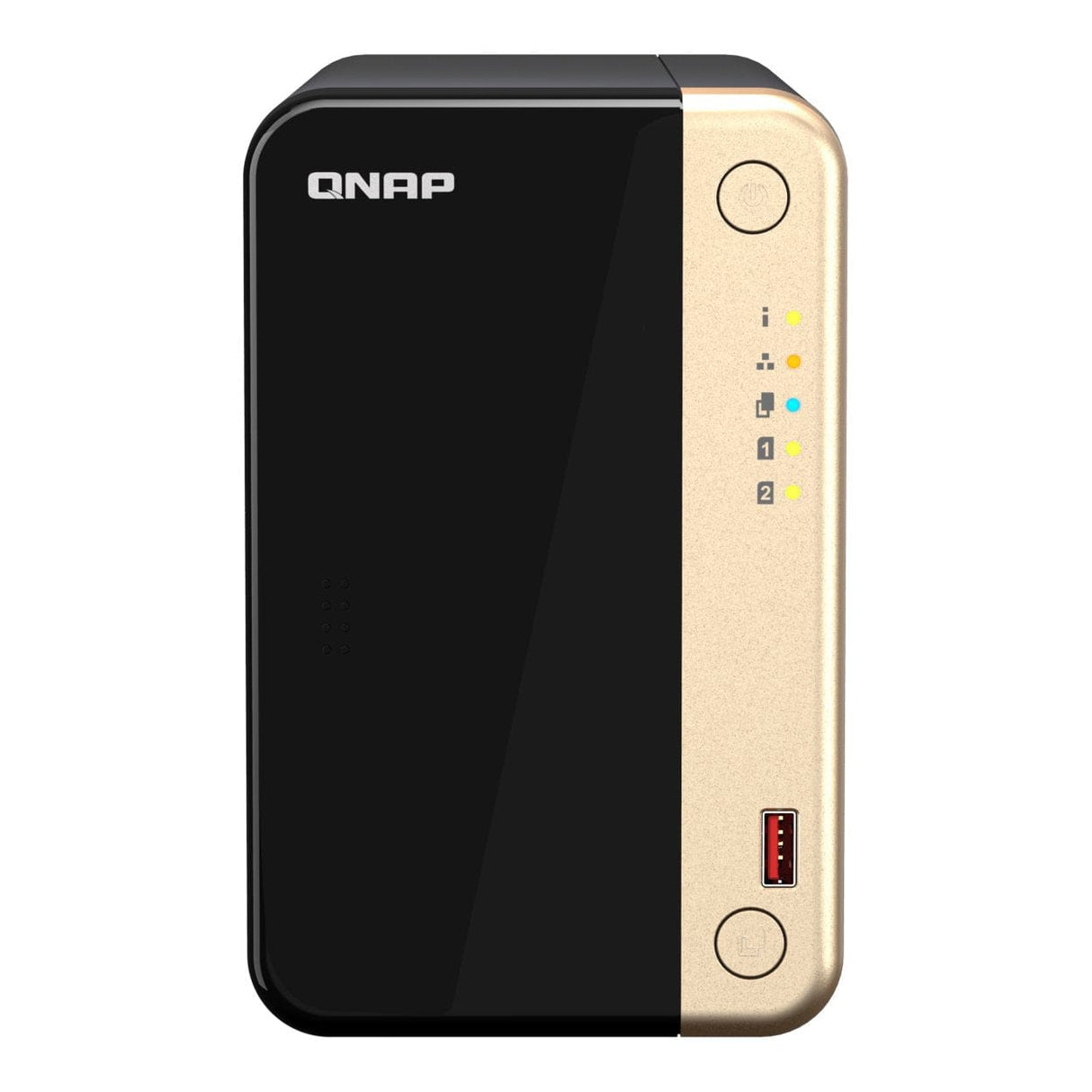

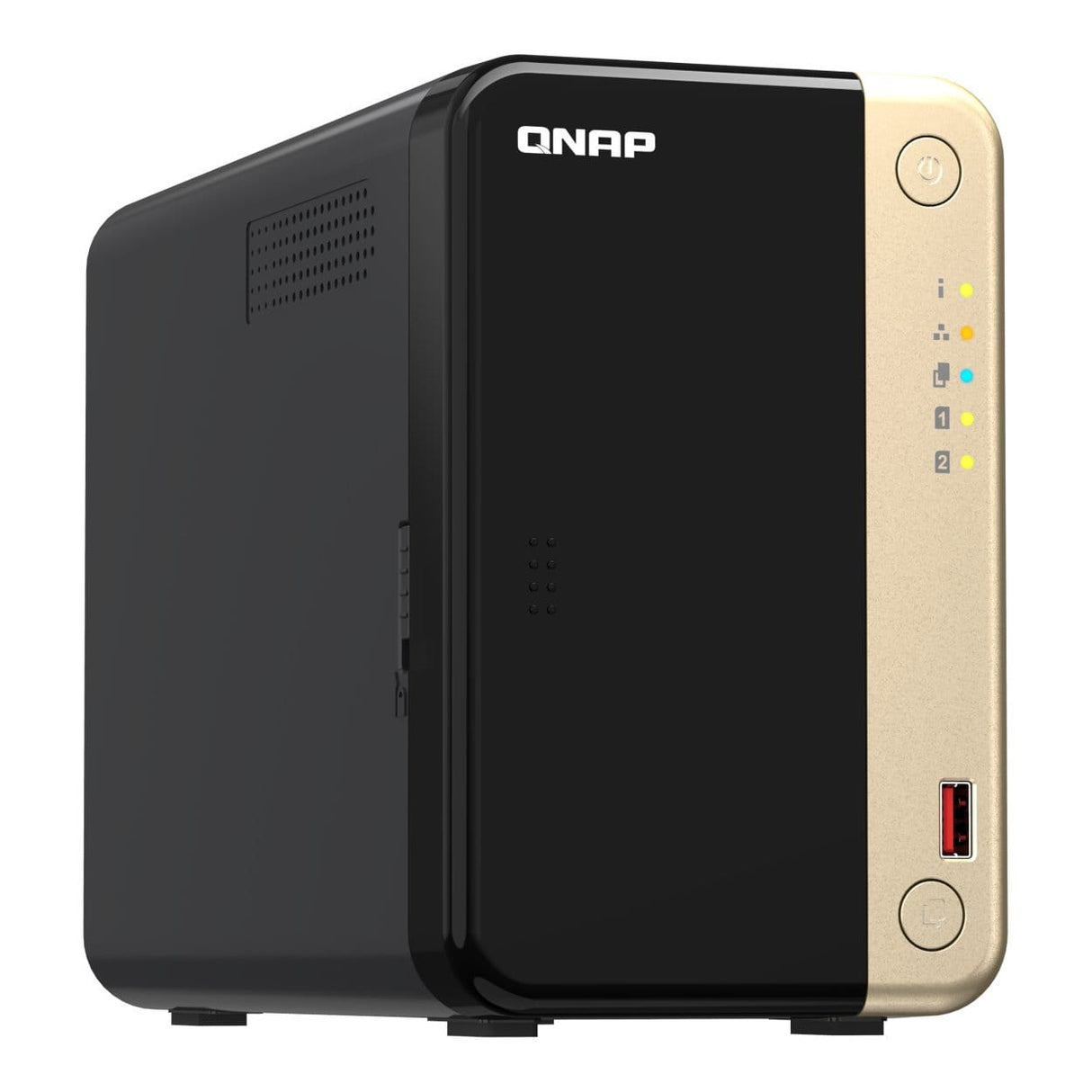

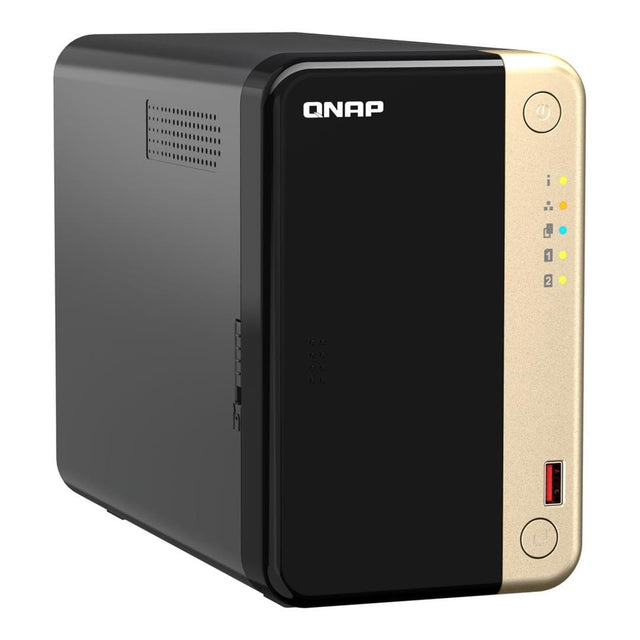

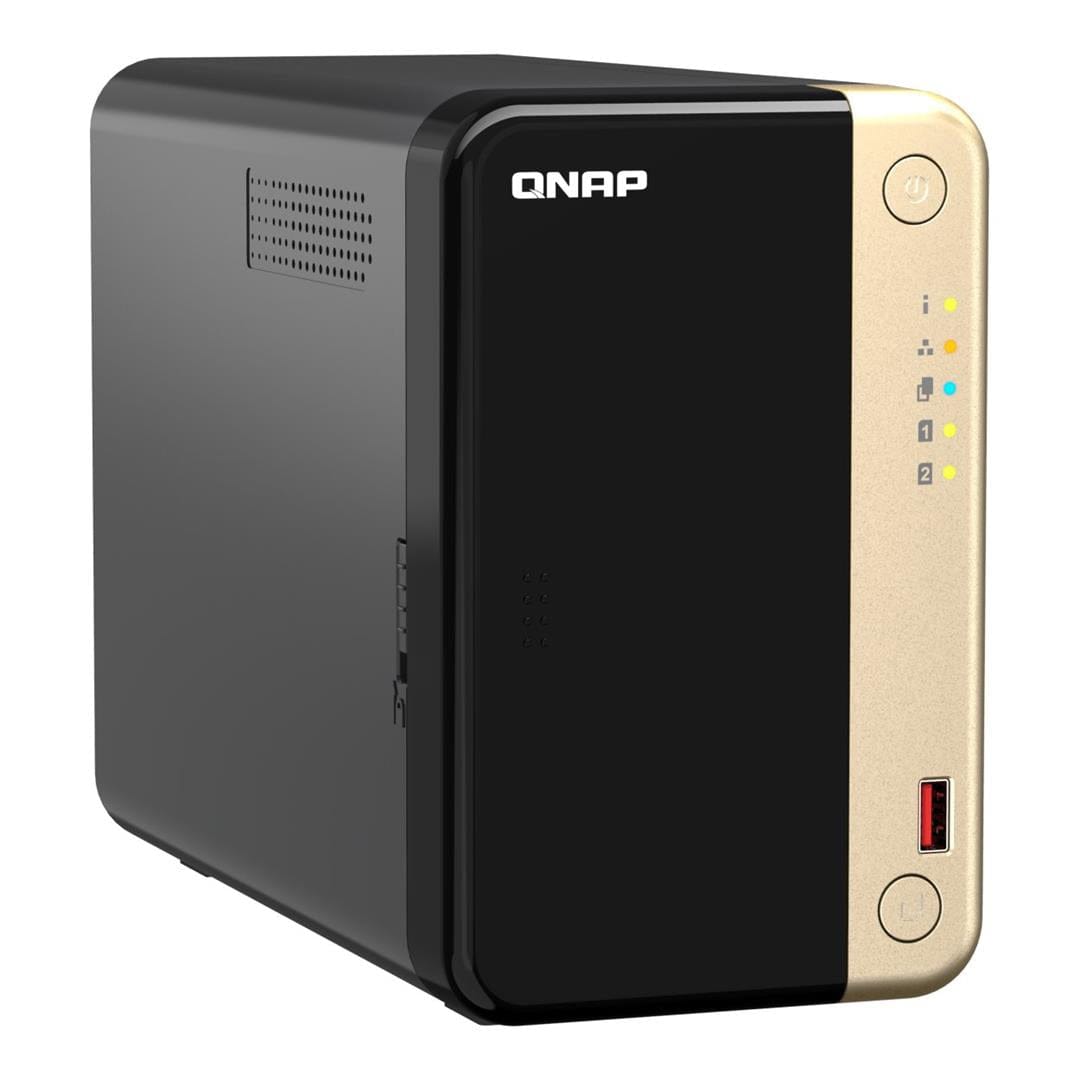

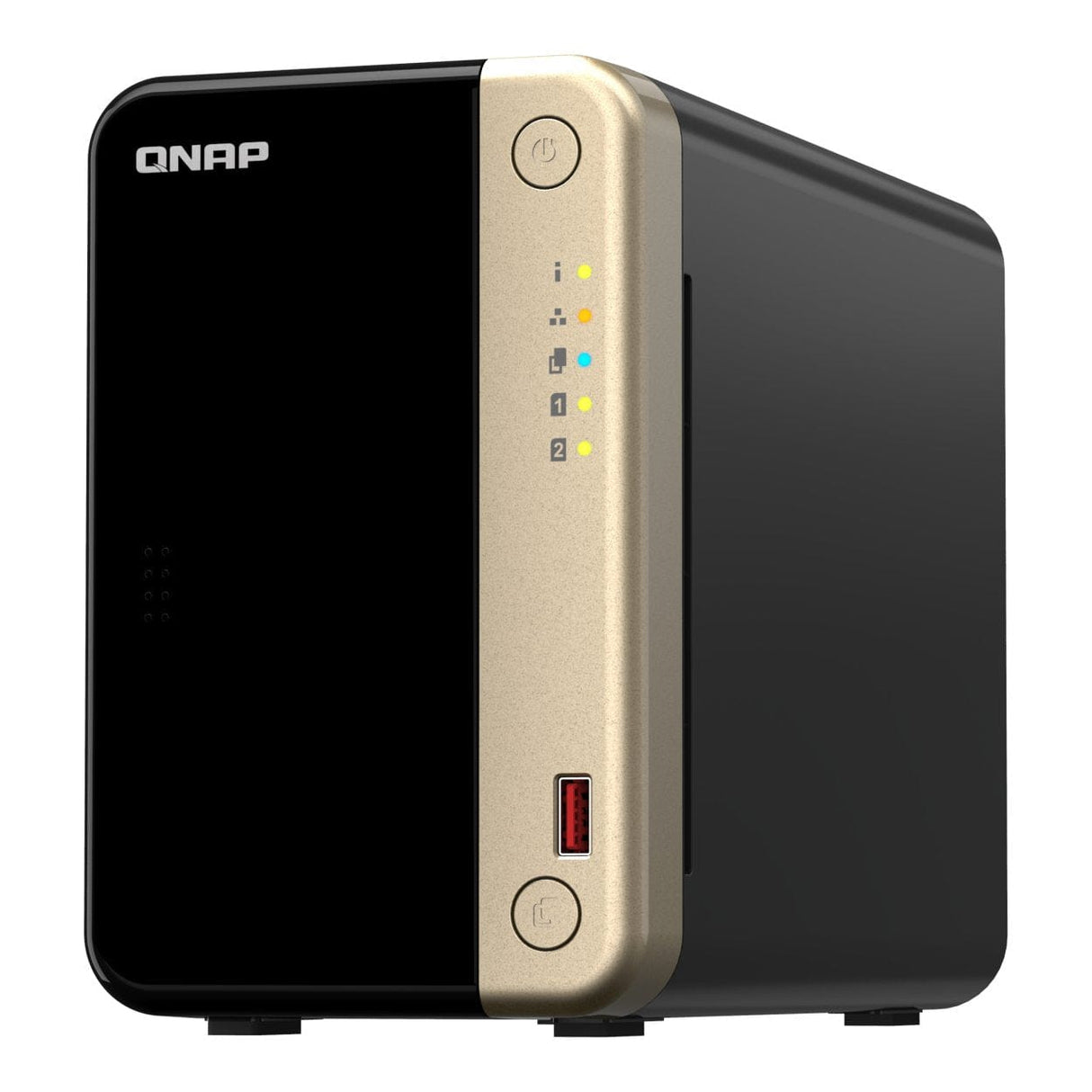

QNAP TS-264 2-Bay NAS Enclosure

QNAP TS-264 2-Bay NAS Enclosure

TS-264 is a compact 2-bay NAS with superior performance. Supporting up to 24 TB storage and 4 TB M.2 SSD caching* at an affordable price, the TS-264 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.

The TS-264 uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.1.)

2.5GbE is a must!

TS-264 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

Quad-core for multitasking

Perform additional tasks, stream more media, and have more services running with an Intel® quad-core processor optimized for multitasking.

Smooth video conversion

Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices.

Upgrade to dual-port 10GbE

Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,644 MB/s transfer speed.

Faster USB transfer

Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices.

More M.2 NVMe SSDs

If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots.

2.5GbE NAS is a must in 2024

With increasing availability on switches, motherboards, and laptops, 2023 is the year of 2.5GbE. By setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports to unleash network potential and increase fault tolerance, the TS-264 delivers up to 589 MB/s transfer speeds for fast data access workflow.

Technical Specifications:

CPU: Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture: 64-bit x86
Graphic Processors: Intel® UHD Graphics
Encryption Engine: AES-NI
System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory: 16 GB (2 x 8 GB)
Memory Slot: 2 x SODIMM DDR4
Flash Memory: 4 GB (Dual boot OS protection)
Drive Bay: 2 x 3.5-inch SATA 6Gb/s (shipped without HDD)
Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA SSDs
Hot-swappable: Not supported (M.2 SSD)
M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x1 (max heatsink: 68 x 20 x 10 mm)
SSD Cache Acceleration Support: Yes

Networking:

• 2.5 Gigabit Ethernet Port: 2 (2.5G/1G/100M/10M)
• 5 Gigabit Ethernet Port: Optional via PCIe expansion
• 10 Gigabit Ethernet Port: Optional via PCIe expansion
• Wake on LAN (WOL): Supported
• Jumbo Frame: Supported

PCIe Slot: 1 x PCIe Gen 3 x2 (Card dimensions: 190 × 68.9 × 18.76 mm)

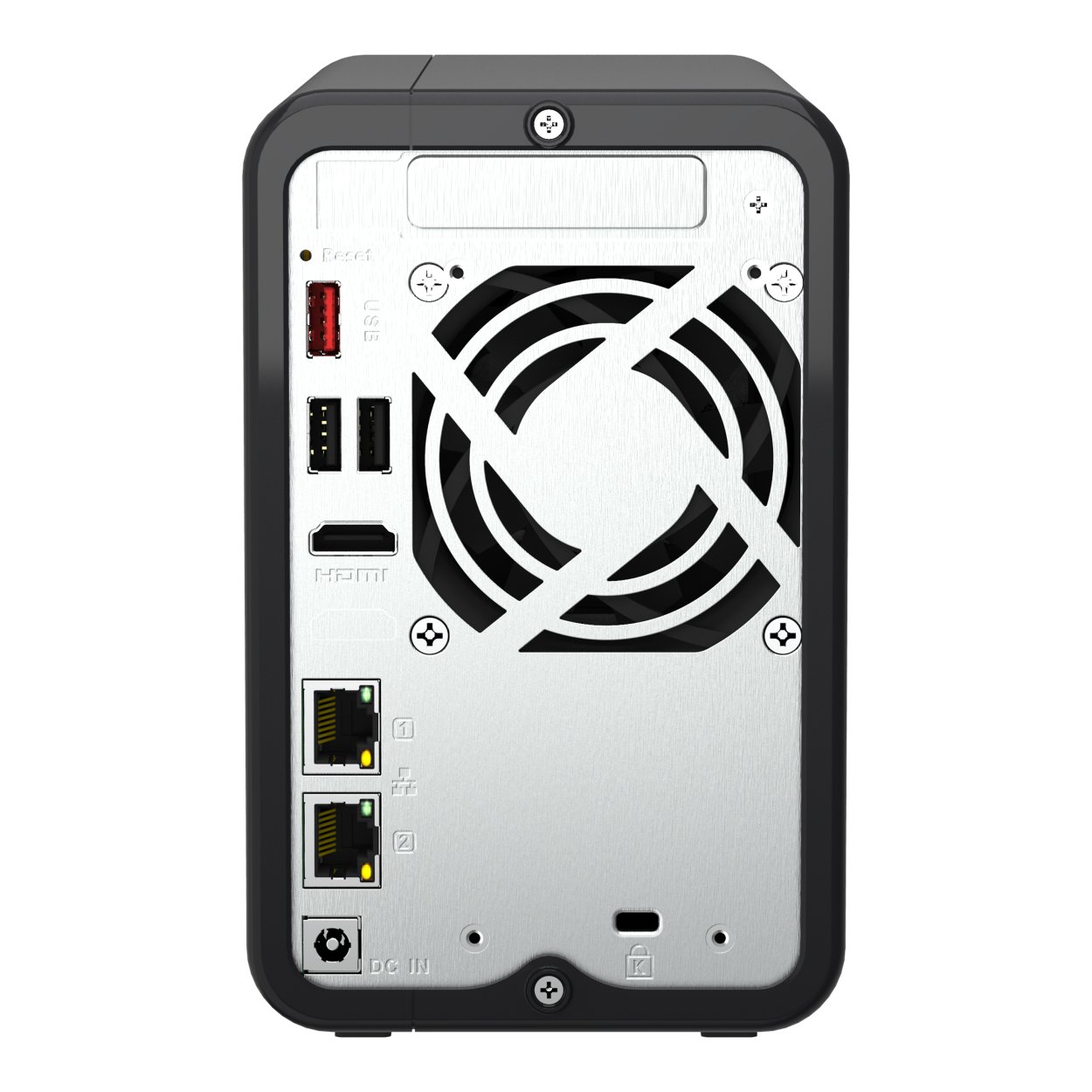

USB:

• USB 2.0: 2 ports
• USB 3.2 Gen 2 (10Gbps): 2 x Type-A

IR Sensor: Optional (QNAP RM-IR004 remote control)
HDMI™ Output: 1 × HDMI™ 2.1 (up to 4096 × 2160 @ 60Hz)

Form Factor: Tower
LED Indicators: Power/Status, LAN, USB, HDD1-2
Buttons: Power, USB copy, Reset

Dimensions (HxWxD): 165 × 105 × 226.5 mm (excluding foot pad)
Weight (Net): 1.55 kg
Weight (Gross): 2.61 kg

Operating Conditions:

• Operating Temperature: 0 - 40 °C (32°F - 104°F)
• Storage Temperature: -20 - 70 °C (-4°F - 158°F)
• Relative Humidity: 5-95% RH non-condensing, wet bulb: 27 °C (80.6 °F)

Power Supply Unit: 60W adapter, 100-240V
Power Consumption:

• Disk Standby Mode: 18.288 W
• Operating Mode, Typical: 29.086 W

Fan: 1 × 70 mm, 12VDC
System Warning: Buzzer
Kensington Security Slot: Yes
Standard Warranty: 3 years
Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 1500

What's in the Box:

• QNAP Tower NAS Unit
• 60W Power Adapter
• Power Cable
• Quick Installation Guide
