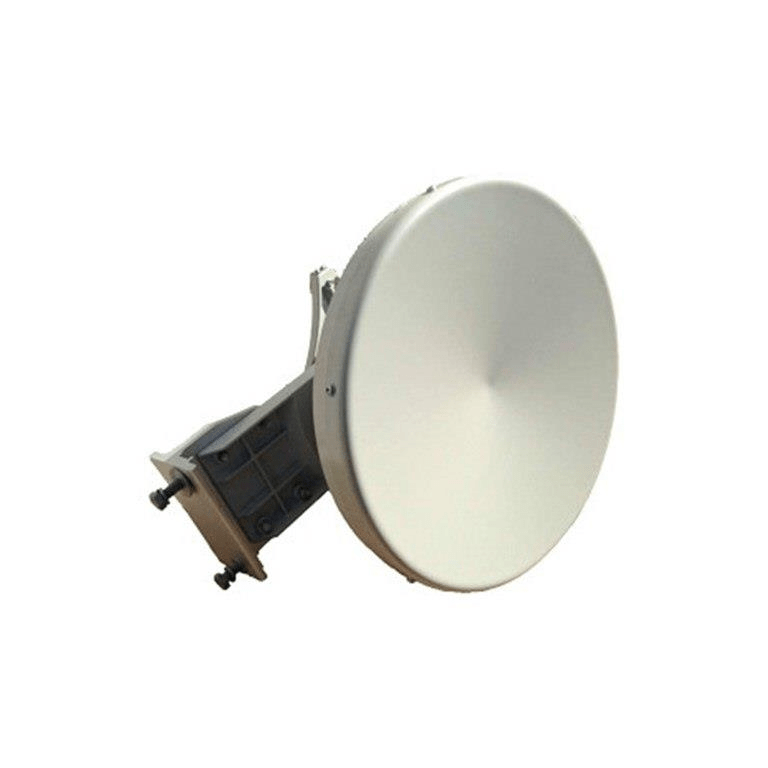

SIAE ANTSP09 17GHz 40dBi 90cm Outdoor Parabolic Dish SI-1740-DISH

R 15,19900
Available Now

    Delivery and Shipping

    * Fast Delivery Available - Learn more

    Easy Returns

    Buy With Confidence. 14 Day Returns. Online. Learn More

    Price Match Guarantee

    Found a Better Price? We'll Match It - Guaranteed - Learn More

    Description

    SIAE ANTSP09 17GHz 40dBi 90cm Outdoor Parabolic Dish SI-1740-DISH

    0.8m Ultra High Performance Low Profile Antenna, single-polarized, 17.7÷19.7 GHz

    Technical Specification

    General

    Antenna Type: Ultra High Performance Low Profile Antenna, Single-Polarized Antenna
    Diameter, nominal: 0.8m
    Polarization: Single
    Reflector Construction: One-piece reflector
    Antenna Color: White
    Radome Color: White
    Radome Material Description: ABS

    Electrical

    Frequency: 17.7÷19.7 GHz
    Gain, Top: 42.8 dBi
    Gain, Mid: 42.3 dBi
    Gain, Low: 41.8 dBi
    Front-to-Back Ratio: 70 dB
    Cross Polar Discrimination (XPD): 30 dB
    Beamwidth: 1.4 °
    VSWR: 1.30
    Return Loss: 17.69 dB

    Mechanical

    Wind Velocity Operational: 110km/h
    Wind Velocity Survival Rating: 240km/h
    Fine Azimuth Adjustment: Coarse 360° Fine ±15°
    Fine Elevation Adjustment: Fine ±10°
    Mounting Pipe Diameter: Φ114 mm
    Ice-load: 25.4 mm
    Operational Temperature: -45÷+75 ℃
    Side Struts, Included: 1
    Net Weight: 38.4 kg

    Wind Forces at Wind Velocity Survival Rating

    Axial Force(FA): 3926 N
    Side Force(FS): 1230 N
    Twisting Moment(MT): 1548 N·m
    Zcg without Ice: 168 mm
    Zcg with 1”(25.4mm) Ice: 247 mm
    Weight with 1”(25.4mm) Ice: 68.2 kg
