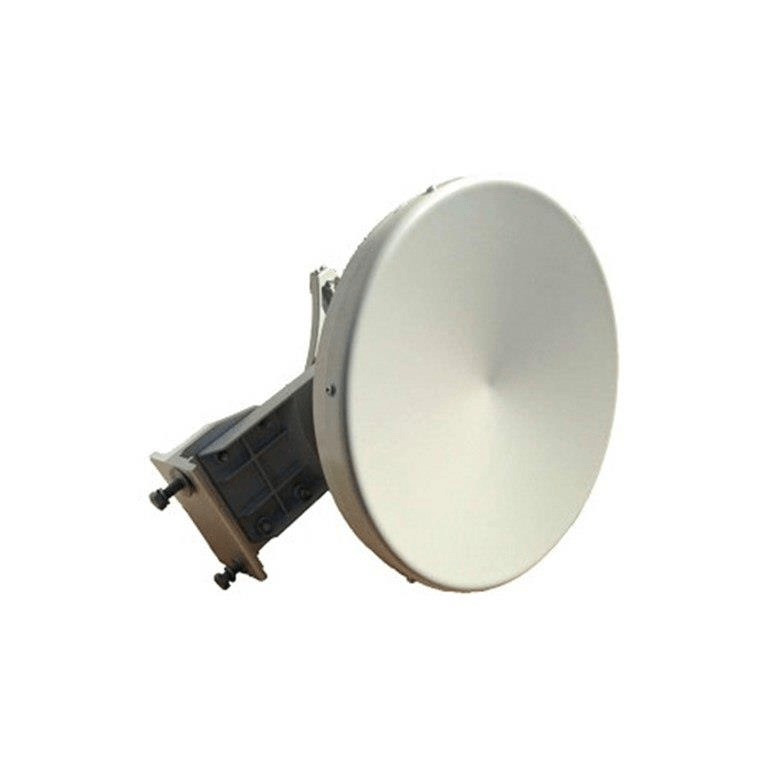

SIAE ANTSP06 17GHz 38dBi 60cm Outdoor Parabolic Dish SI-1738-DISH

SIAE ANTSP06 17GHz 38dBi 60cm Outdoor Parabolic Dish SI-1738-DISH

0.6m Ultra High Performance Low Profile Antenna, single-polarized, 17.7÷19.7 GHz

Technical Specification

General

Antenna Type: Ultra High Performance Low Profile Antenna, Single-Polarized Antenna
Diameter, nominal: 0.6m
Polarization: Single
Reflector Construction: One-piece reflector
Antenna Color: White
Radome Color: White
Radome Material Description: ABS

Electrical

Frequency: 17.7÷19.7 GHz
Gain, Top: 39.1 dBi
Gain, Mid: 38.9 dBi
Gain, Low: 38.4 dBi
Front-to-Back Ratio: 67 dB
Cross Polar Discrimination (XPD): 30 dB
Beamwidth: 2.1 °
VSWR: 1.30
Return Loss: 17.69 dB

Mechanical

Wind Velocity Operational: 162km/h
Wind Velocity Survival Rating: 250km/h
Fine Azimuth Adjustment: Coarse360° Fine ±15°
Fine Elevation Adjustment: Coarse ±25° Fine ±15°
Mounting Pipe Diameter: Φ51÷Φ114 mm
Ice-load: 25.4 mm
Operational Temperature: -45÷+75 ℃
Side Struts, Included: 0
Net Weight: 11.9kg

Wind Forces at Wind Velocity Survival Rating

Axial Force(FA): 1055 N
Side Force(FS): 679 N
Twisting Moment(MT): 443 N•m
Zcg without Ice: 67mm
Zcg with 1”(25.4mm) Ice: 99mm
Weight with 1”(25.4mm) Ice: 25.3 kg
