Description

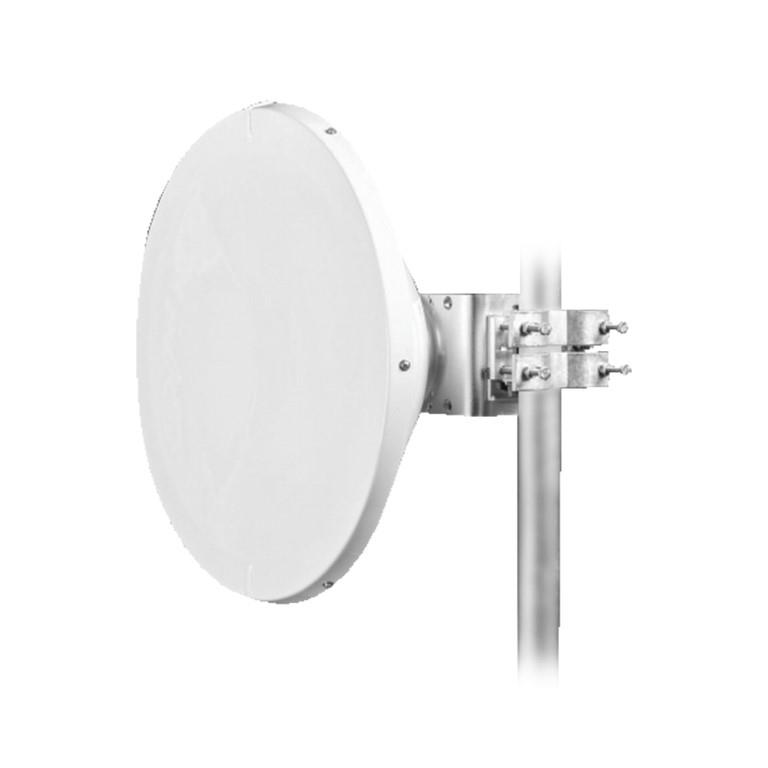

Jirous 680mm 34.1dBi 10-12GHz Parabolic Antenna JRME-680-11
Features
-
Deep parabola and added collar with extra hight resistance to interference and high mechanical strength
-
Extra high front to back ratio
-
High neighboring links isolation
-
Radom included
-
Massive bracket JDMW-900 with accurate elevation and azimuth setting
-
Right and left side mounting
-
Extreme wind stability
Design for MW units:
-
Mimosa
-
Racom
-
Alcoma
-
Summit
-
UBNT AF-11 - necessary to use JXAF-11 adapter
-
Other adaptors on request
Technical parameters
Frequency range: 10.0 - 12 GHz
Gain Low band: 34.1 ± 1 dBi
Gain High band: 36.0 ± 1 dBi
Beamwidth -3 dB: 3.0° ± 0.5°
Return loss: ≥ 18 dB(10.3 - 11.7 GHz)
Front to back ratio: ≥61 dB
FCC standard: US FCC Part 101A (10.0-10.7 GHz); US FCC part 101B (10.7 - 11.7 GHz)
ETSI EN 302-217-4-2: Class 3
ACMA-RALI FX3: Grade B
XPD: ≥32 dB
Polarization: depends on the Unit installation; linear - horizontal and vertical
Parabola: ø 680 mm - Aluminium alloy, powder coated
Cover: UV steady plastic ABS
Conection: waveguide ø 19 mm
Installation on mast: ø 40 - 120 mm
Operating wind load: max. 180 km/h
Survival wind load: max. 240 km/h
We recommend mounting on the mast with minimal ø 50 mm in the areas with the expected occurrence of the strong winds.
Package
Assembled antenna (1pcs)
Massive bracket JDMW-900 is supplied in a separate pack
