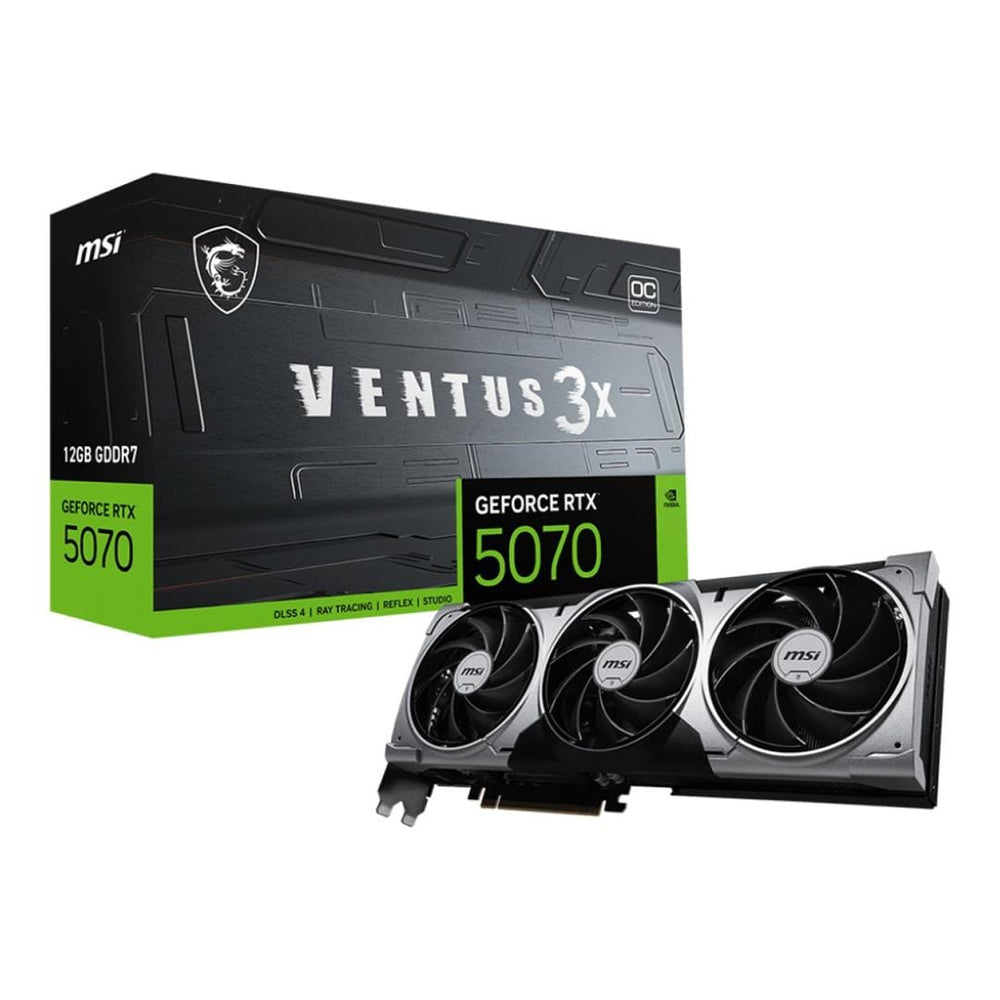

MSI GeForce RTX 5070 12G VENTUS 3X OC 12GB GDDR7 Graphics Card

MSI GeForce RTX 5070 12G VENTUS 3X OC 12GB GDDR7 Graphics Card

Take the Essentials

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card.
• Core Clock: Extreme Performance: 2557 MHz (MSI Center), Boost: 2542 MHz
• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
• Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

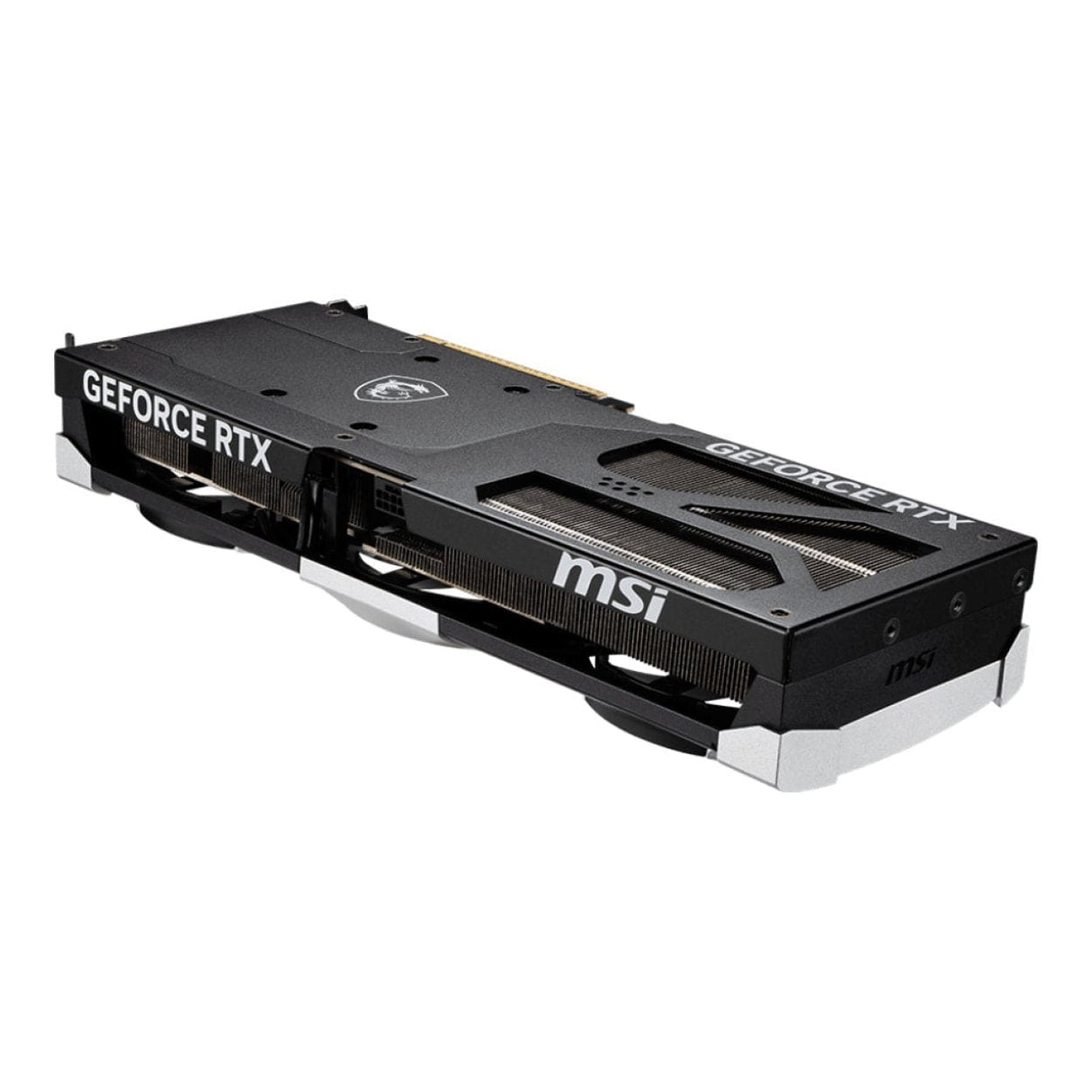

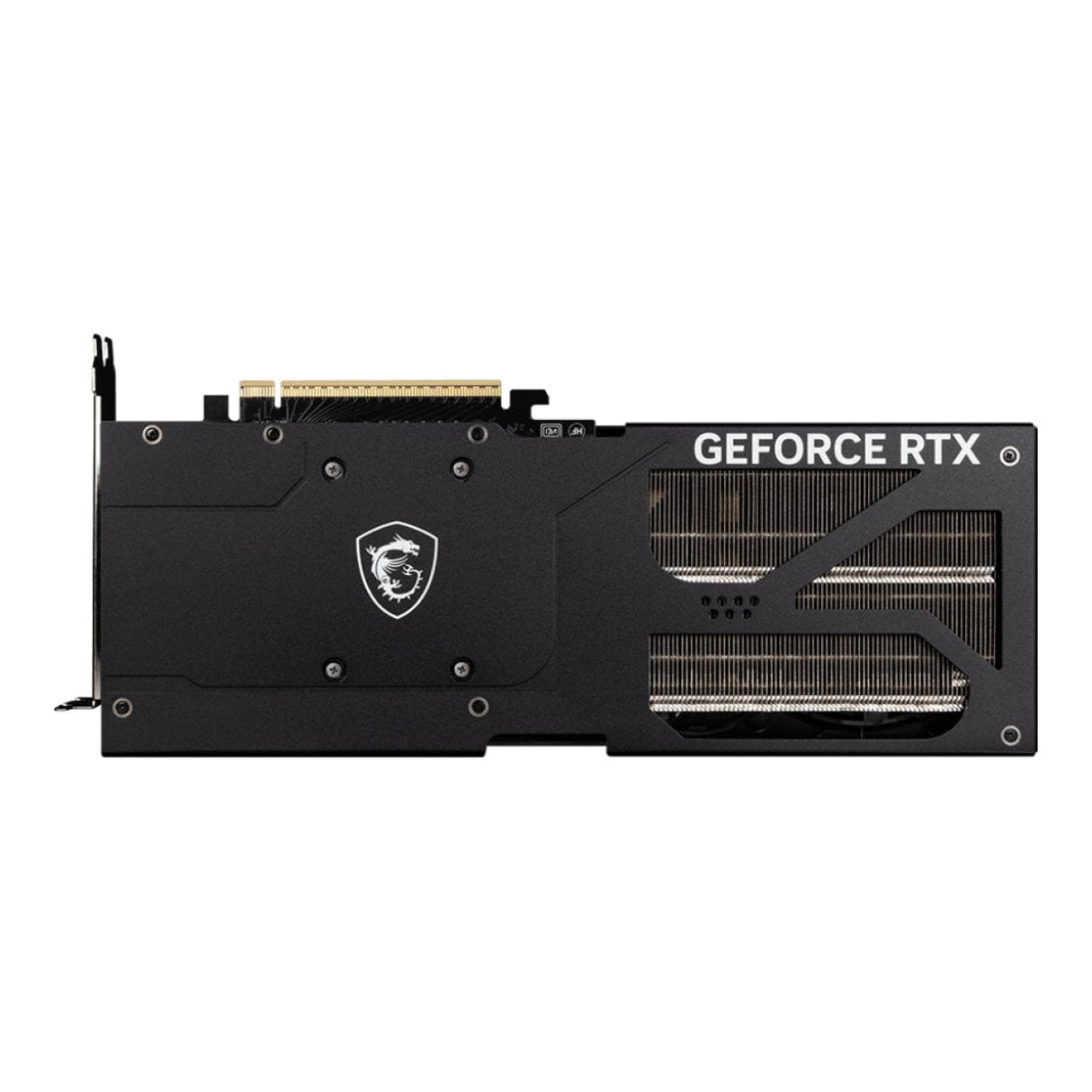

• Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

• Fifth-Gen Tensor Cores - Max AI performance with FP4 and DLSS 4
• New Streaming Multiprocessors - Optimized for neural shaders
• Fourth-Gen Ray Tracing Cores - Built for Mega Geometry

NVIDIA DLSS 4

Supreme Speed. Superior Visuals. Powered by AI.

DLSS is a revolutionary suite of neural rendering technologies that uses Al to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA Al supercomputer in the cloud constantly improving your PCs gaming capabilities.

Full Ray Tracing with Neural Rendering

Game-Changing Realism

The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.

NVIDIA Reflex 2

Compete at Warp Speed

Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game's latest mouse input.

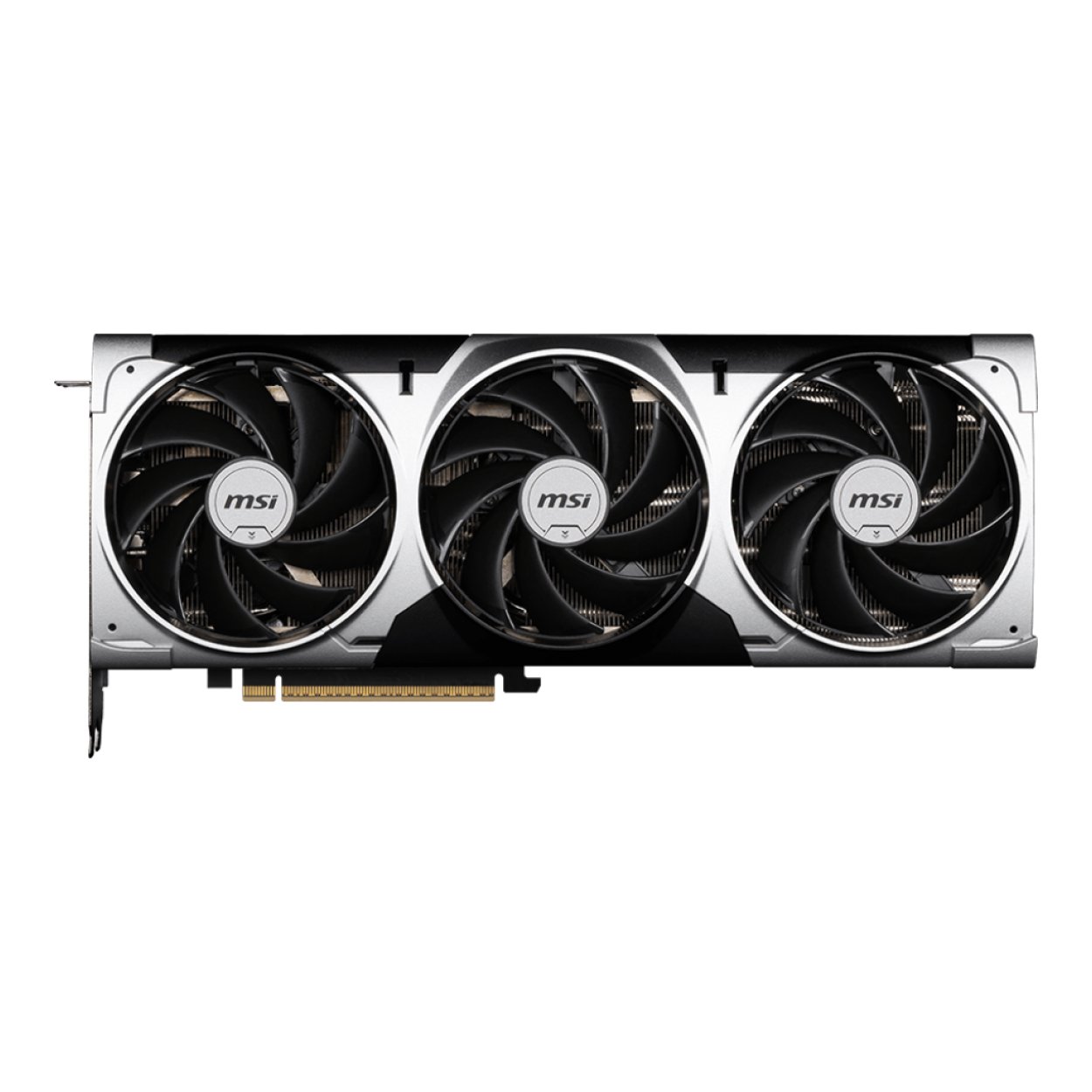

Triple-Fan Thermal Design

Three fans on a large heatsink deliver both superior and quieter cooling.

Build Small. Play Big.

You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Technical Specification

Product: MSI GeForce RTX 5070 12G VENTUS 3X OC 12GB GDDR7 Graphics Card

Model Name: G5070-12V3C

Graphics Processing Unit: NVIDIA GeForce RTX 5070

Interface: PCI Express Gen 5

Core Clocks: Extreme Performance: 2557 MHz (MSI Center), Boost: 2542 MHz

CUDA Cores: 6144 Units

Memory Speed: 28 Gbps

Memory: 12GB GDDR7

Memory Bus: 192-bit

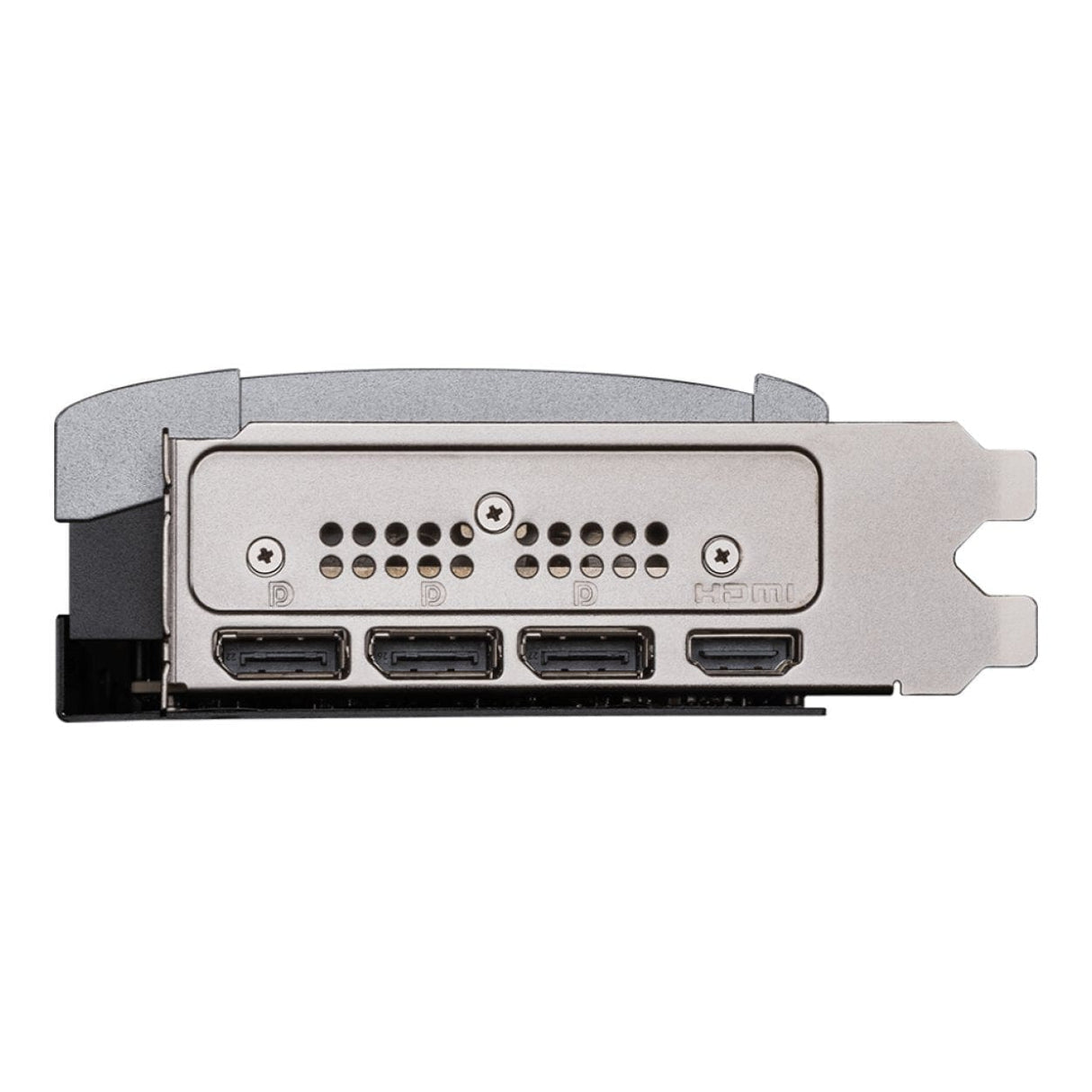

Output

• 3x DisplayPort (v2.1b)
• 1x HDMI (As specified in HDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support: Yes

Power consumption: 250 W

Power connectors: 1x 16-pin (ATX 3.1 PSU recommended)

Recommended PSU: 650W

Card Dimension (mm): 302 x 121 x 49 mm

Weight (Card / Package): 1002 g / 1440 g

DirectX Version Support: 12 Ultimate

OpenGL Version Support: 4.6

Maximum Displays: 4

G-SYNC technology: Yes

Digital Maximum Resolution: 7680 x 4320
