SolidRun HummingBoard Edge i2EX - ARM Cortex-A9 8GB eMMC 1GB RAM - Board Only

SolidRun HummingBoard Edge i2EX - ARM Cortex-A9 8GB eMMC 1GB RAM - Board Only

Get ready to fall in love with the HummingBoard family a small and powerful, low-cost ARM computers that ignite the imagination. Whatever your dream is, the HummingBoard family will help make it happen the possibilities for creating the next great IoT innovation are truly limitless.

The SolidRun HummingBoard Edge i2EX is a high-performance, industrial-grade SBC designed to bridge the gap between rapid prototyping and mass production. Powered by the NXP i.MX6 Dual processor, it delivers a robust balance of power and efficiency.

Unlike standard hobbyist boards, the Edge i2EX features a versatile System-on-Module (SoM) architecture, allowing for easy hardware upgrades without redesigning your entire setup. With integrated Wi-Fi, Bluetooth, and a rich array of I/O including mPCIE, M.2, and HDMI, it is an ideal engine for IoT gateways and automated systems. Durable and flexible, the i2EX is built to scale with your most ambitious professional projects.

The SolidRun HummingBoard Edge i2EX is specifically engineered for industrial IoT and high-end maker applications. It combines the power of the i.MX6 Dual-core processor with the expansive "Edge" carrier board to offer maximum connectivity and power flexibility.

• Processor: NXP i.MX6 Dual-core (ARM Cortex-A9) running up to 1.2 GHz
• Memory: 1 GB DDR3 RAM (64-bit @ 1066 Mbps)
• Graphics: Vivante GC2000 GPU with support for OpenGL ES 1.1/2.0 and OpenCL 1.1E
• USB Type: 4 x USB 2.0 host ports
• Video Output: HDMI 1.4 (1080p), MIPI-DSI, and LVDS for direct panel connection
• Audio: Analog audio out and mono speaker header
• Camera: 4-Lane MIPI-CSI and Parallel camera interfaces

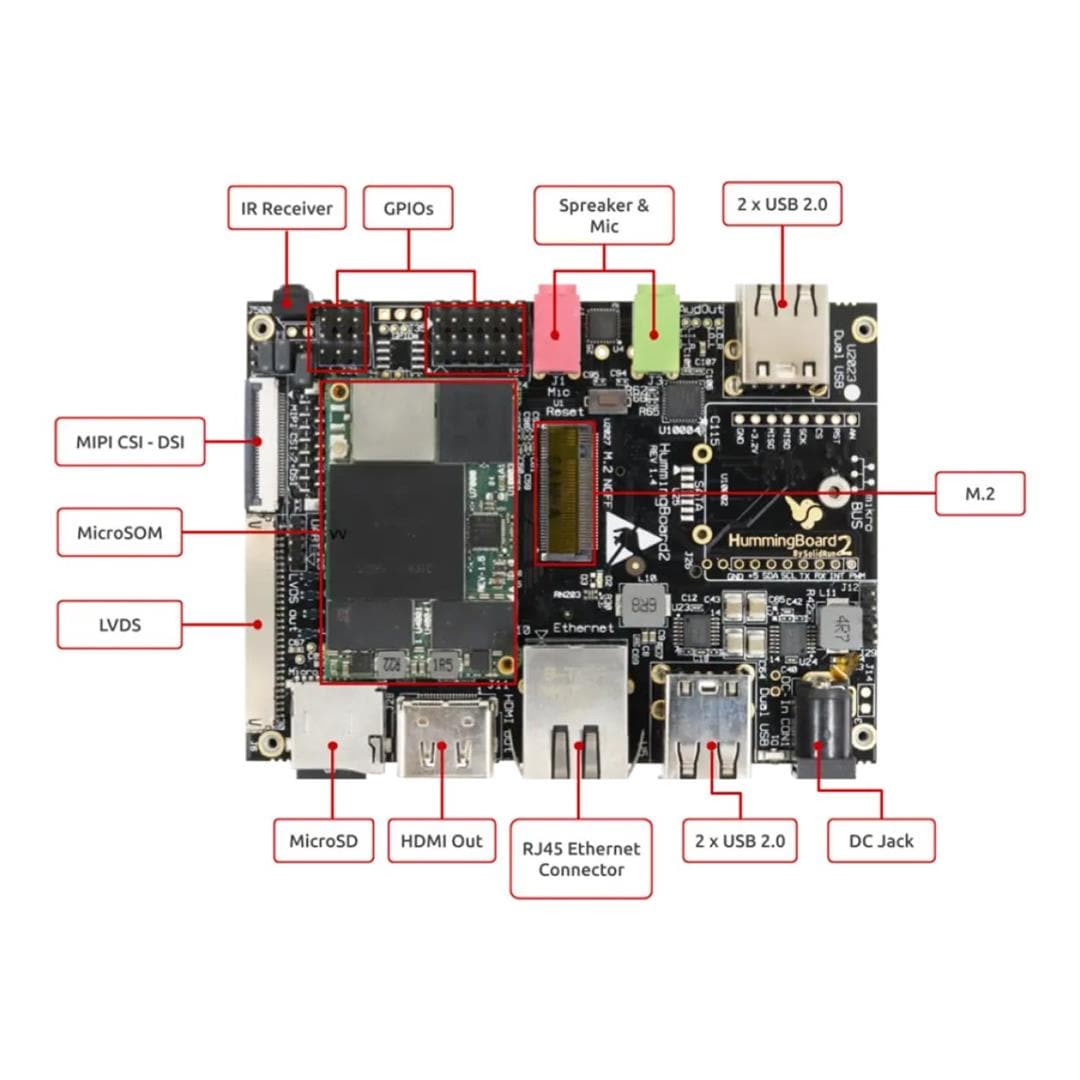

Expansion & Storage

M.2 Slot

Supports 2242-size SSDs for high-speed storage.

mPCIe Slot

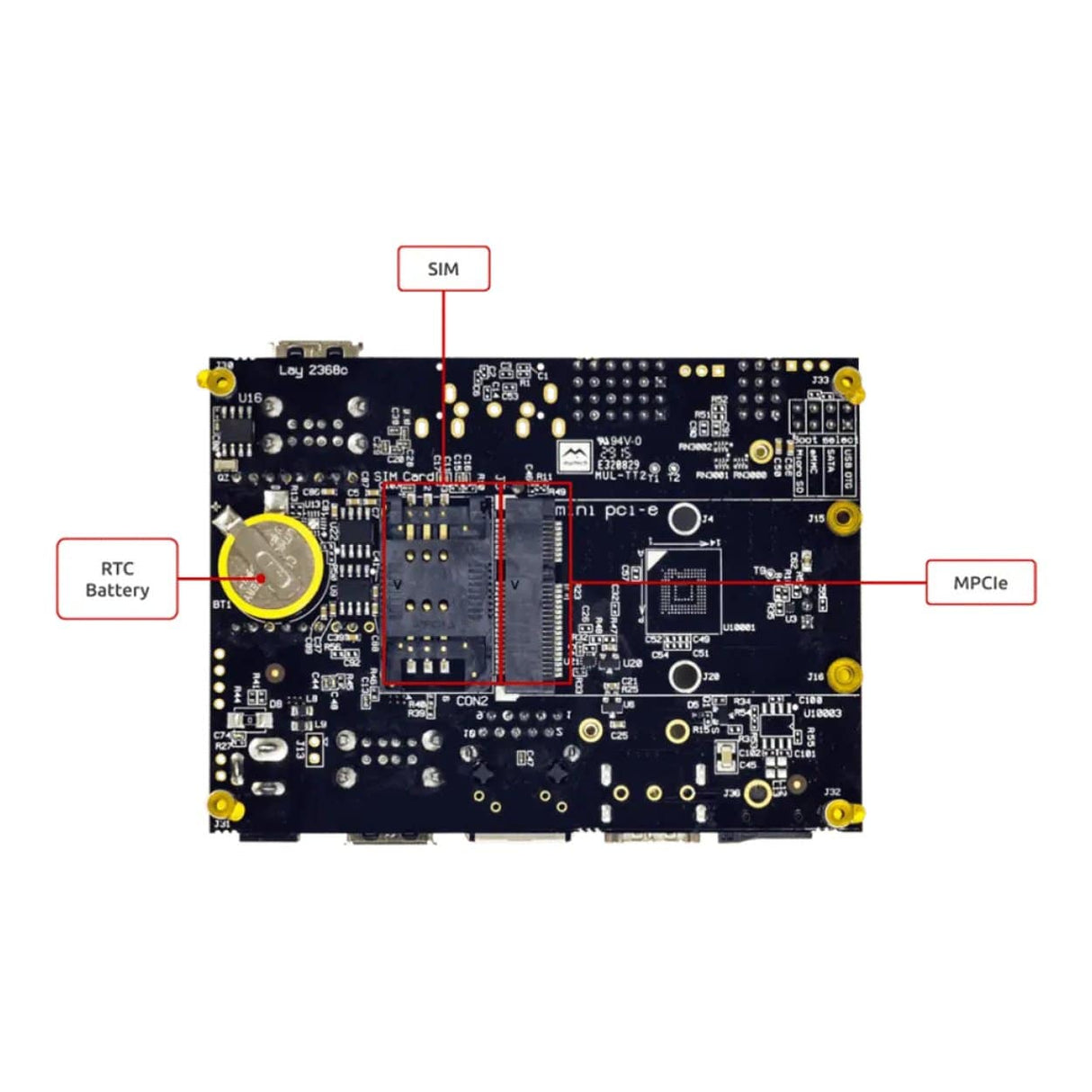

Full/Half-size Mini-PCIe slot with an integrated SIM card holder for cellular (3G/4G/LTE) connectivity.

Onboard Flash

8 GB eMMC storage (standard on i2EX models).

Removable Storage

High-speed MicroSD slot.

Networking

Gigabit Ethernet (limited to ≈470 Mbps due to internal bus limits) and onboard Wi-Fi & Bluetooth.

Wide Power Input

Supports a wide voltage range of 7V to 36V with a secure "Twist & Lock" power connector.

GPIO

36-pin expansion header for custom hardware integration.

Reliability

Real-time clock (RTC) with a battery backup and a dedicated Reset button.

Form Factor

Compact footprint (102 mm×69 mm) with an optional professional metal enclosure.

 Specifications:

Processor: NXP i.MX 6 Single to Quad core Arm Cortex A9 up to 1GHz

Memory: 1 GB DDR3 RAM (64-bit @ 1066 Mbps).

Storage: 8 GB eMMC

Display: HDMI, MIPI-DSI, LVDS

Misc: Reset Button, 36 pins GPIO Header, RTC with Battery, IR

Development and Debug interfaces: UART Header

Power: 7V - 36V

Temperature Commercial: 0°C to 70°C

Industrial: -40°C to 85°C

Dimensi ons PCBA: 100 x 70mm

I/Os:

• 4 x USB 2.0
• 1 x MIPI-CSI-2
• 1 x Speaker & Mic
• 1 x Parallel Camera

Networking:

• 1 x Ethernet RJ45 10/100/1000 (max 470 MB/s)
• 1 x 802.11 a/b/g/n WiFi and Bluetooth (2.4 GHz)
