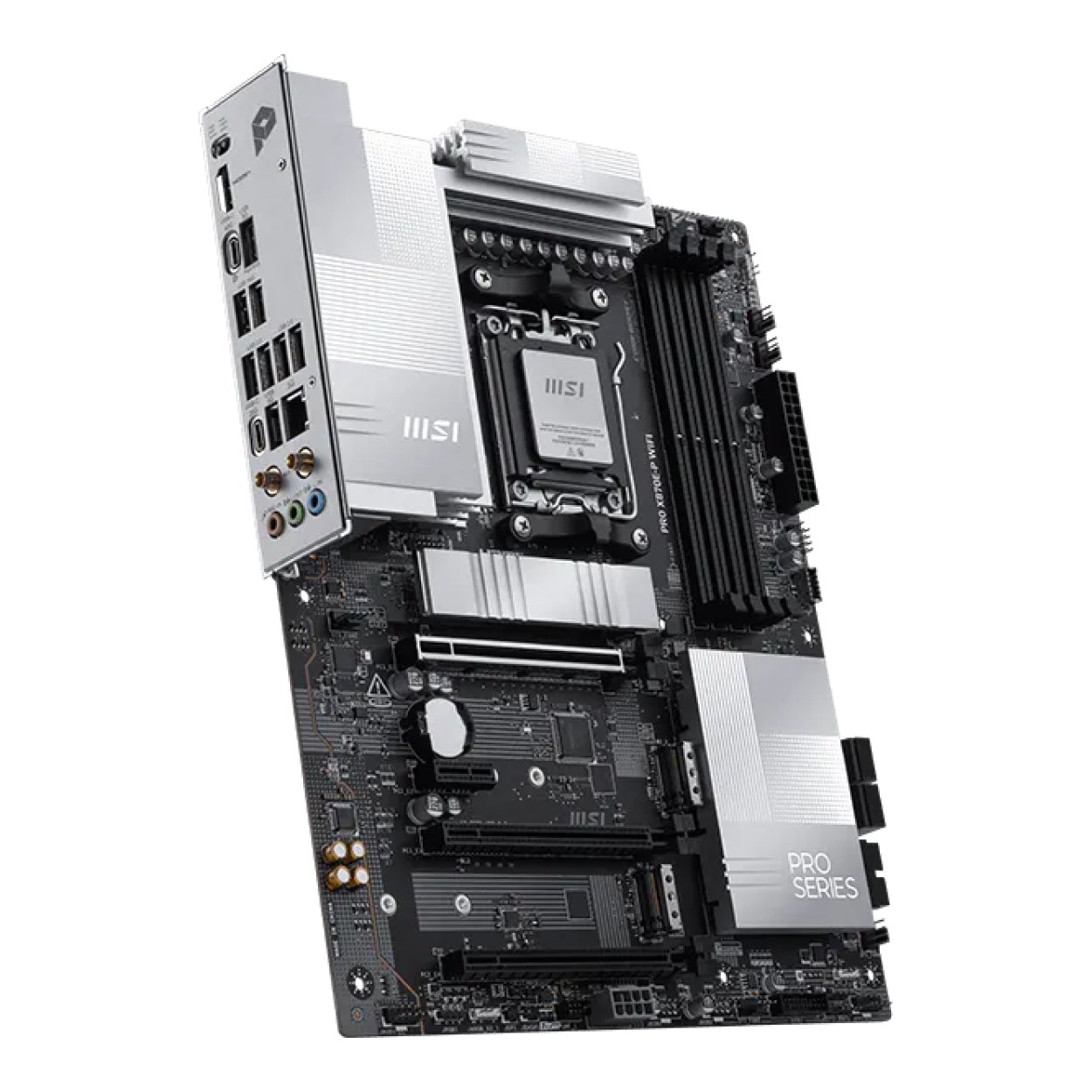

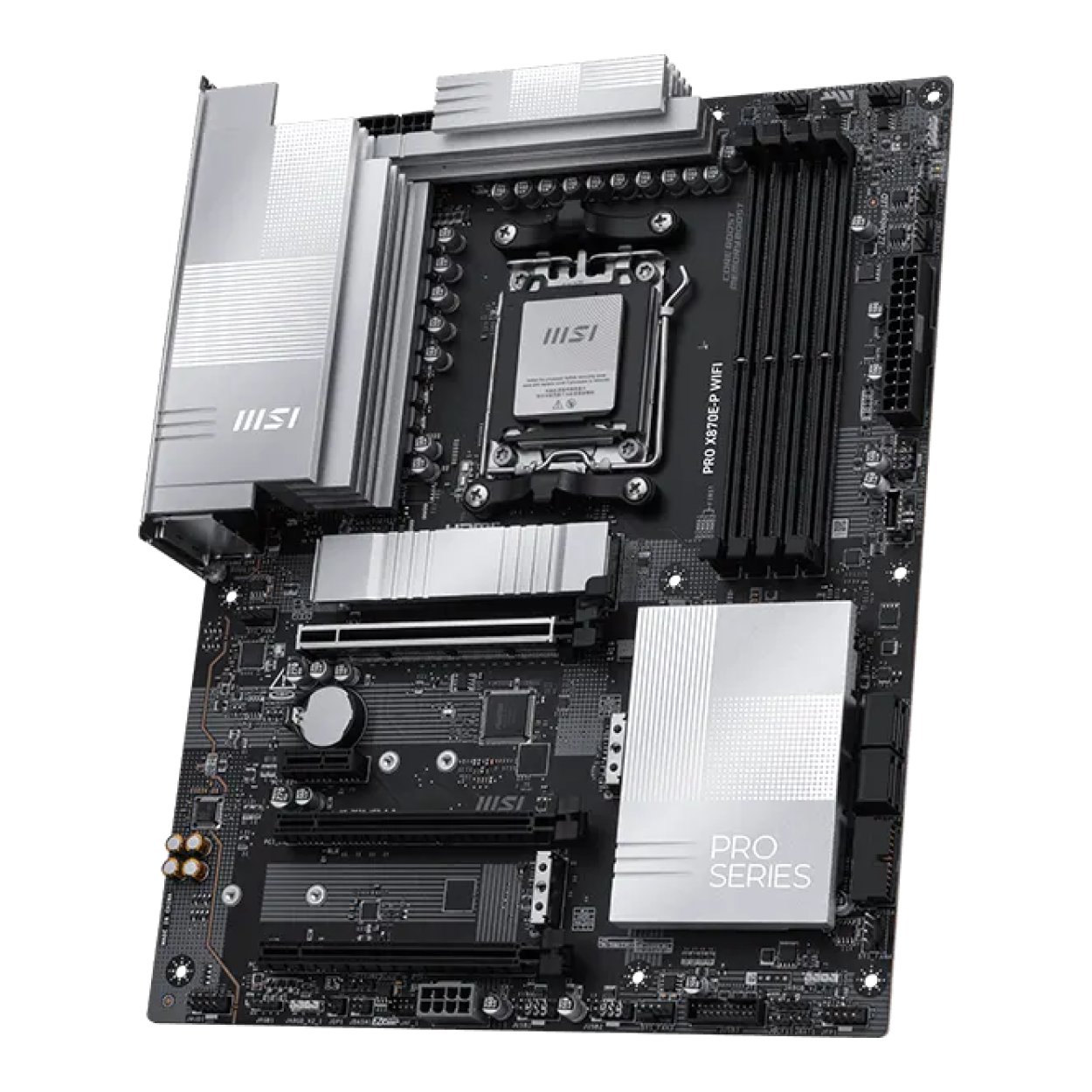

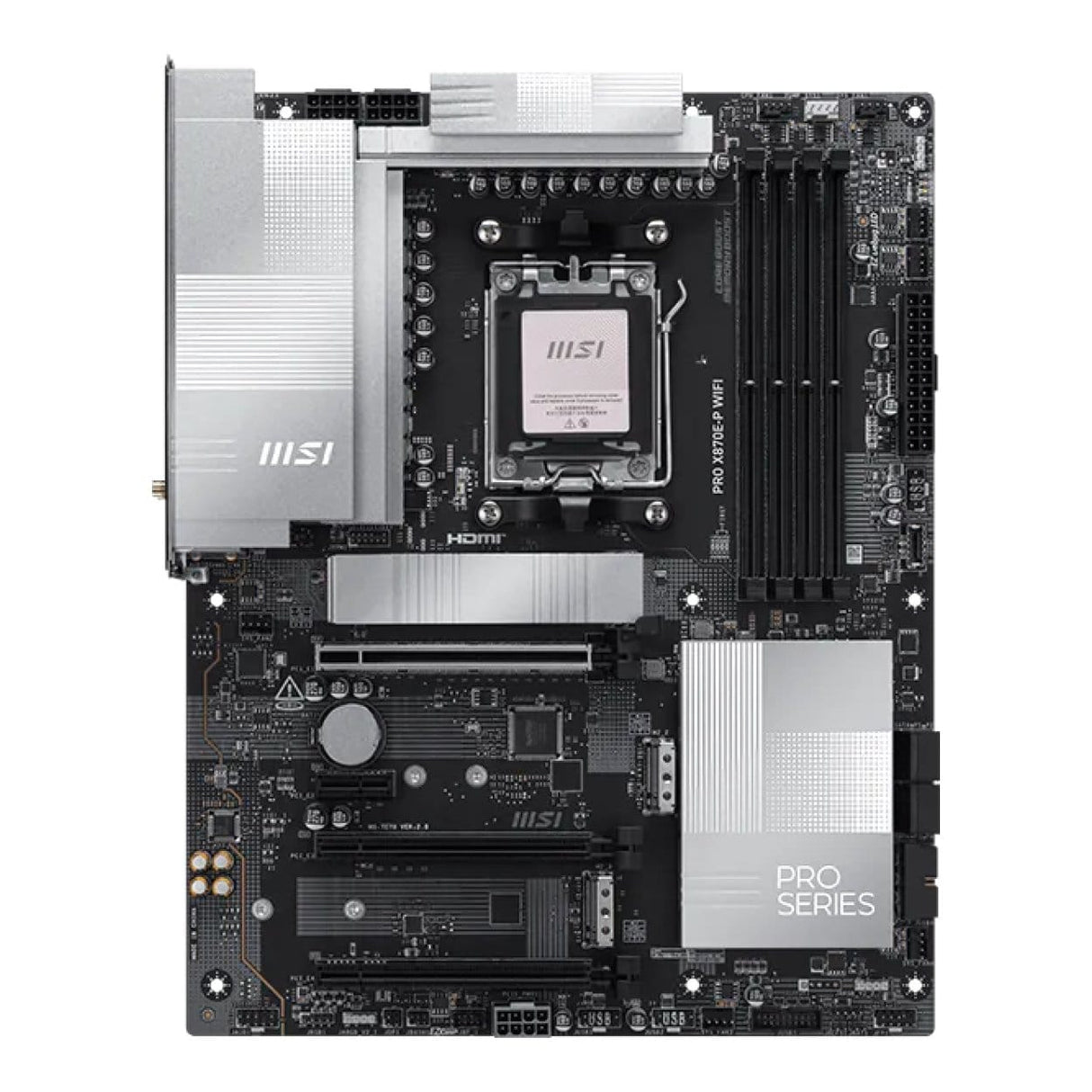

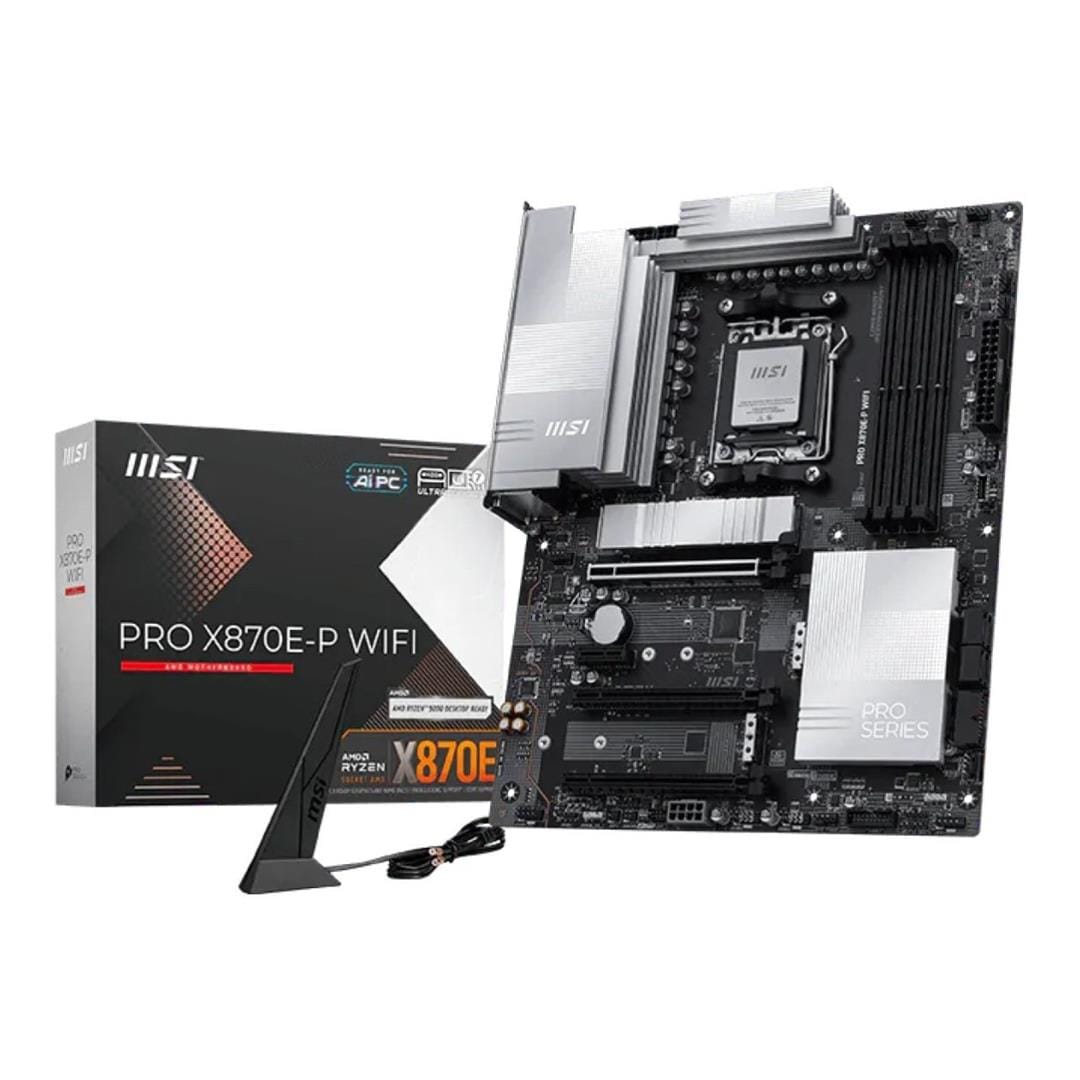

MSI Pro X870E-P Wi-Fi AMD Socket AM5 ATX Motherboard

MSI Pro X870E-P Wi-Fi AMD Socket AM5 ATX Motherboard

PRO X870E-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.

Features:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

14+2+1 DRPS POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, PRO X870E-P WIFI is ready for the challenge of high-end processors.

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO X870-P WIFI is ready to deliver the world-class memory performance.

Transient Voltage Suppressors (TVS)

Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING

When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Technical Specifications:

Processor & Chipset

Chipset
AMD X870E

CPU Support
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Socket
AM5

Memory

Memory Slots

• 4 × DDR5 UDIMM Slots

Maximum Memory Capacity
256 GB

Memory Support
DDR5 8200–5600 MT/s (OC)
DDR5 5600–4800 MT/s (JEDEC)

Overclocking Support (Ryzen™ 9000 Series)

• 1DPC 1R: Up To 8200+ MT/s
• 1DPC 2R: Up To 6400+ MT/s
• 2DPC 1R: Up To 6400+ MT/s
• 2DPC 2R: Up To 6000+ MT/s

Memory Features
Supports AMD POR Speed And JEDEC Speed
Supports Memory Overclocking And AMD EXPO™
Supports Dual-Channel Mode
Supports Non-ECC, Unbuffered Memory
Supports CUDIMM (Clock Driver Bypass Mode Only)
DIMM Slots Feature Double-Sided Latches

Graphics

Onboard Graphics Ports

• 1 × HDMI™ (Supports HDMI™ 2.1, Up To 4K 60 Hz)
• 1 × USB Type-C (USB4® With DisplayPort 1.4, Up To 4K 60 Hz)

Note: Available Only With Processors Featuring Integrated Graphics

Expansion Slots

PCI Express Slots

• 1 × PCIe 5.0 x16 Slot (From CPU)
• 1 × PCIe 3.0 x1 Slot (From Chipset)
• 1 × PCIe 4.0 x4 Slot (From Chipset)
• 1 × PCIe 3.0 x1 Slot (From Chipset)

PCI_E1 Support

• PCIe 5.0 x16 (Ryzen™ 9000 / 7000 Series)
• PCIe 4.0 x8 (Ryzen™ 8700 / 8600 / 8400 Series)
• PCIe 4.0 x4 (Ryzen™ 8500 / 8300 Series)

Audio

Audio Codec
Realtek® ALC897

Audio Channels
7.1-Channel High Definition Audio

Storage

M.2 Slots

• 3 × M.2 Slots
  • M.2_1 (From CPU): PCIe 5.0 x4, Supports 2280 / 2260
  • M.2_2 (From Chipset): PCIe 4.0 x4, Supports 2280 / 2260
  • M.2_3 (From Chipset): PCIe 4.0 x4, Supports 22110 / 2280

SATA Ports

• 4 × SATA 6 Gb/s

RAID Support

• RAID 0, 1, 10 (SATA Devices)
• RAID 0, 1, 5 (M.2 NVMe Devices; RAID 5 Requires Ryzen™ 9000 Series)

USB Ports

Rear USB Ports

• 4 × USB 2.0
• 2 × USB 5 Gbps Type-A
• 2 × USB 10 Gbps Type-A
• 1 × USB 20 Gbps Type-C
• 1 × USB 40 Gbps Type-C

Front USB Headers

• 6 × USB 2.0
• 4 × USB 5 Gbps Type-A
• 1 × USB 10 Gbps Type-C

Networking

LAN
Realtek® 8126VB 5G LAN

Wireless LAN & Bluetooth

Wi-Fi
Wi-Fi 7 (Pre-Installed M.2 Key-E Module)

Wireless Features
Supports MU-MIMO TX/RX
Supports 2.4 GHz / 5 GHz / 6 GHz (Up To 320 MHz)
Supports Data Rates Up To 5.8 Gbps
Supports 802.11 a / b / g / n / ac / ax / be

Bluetooth
Bluetooth® 5.4
Supports MLO And 4KQAM

Internal Connectors

Power Connectors

• 1 × ATX_PWR
• 2 × CPU_PWR
• 1 × PCIe_PWR (8-Pin)

Fan Headers

• 1 × CPU Fan
• 1 × Combo Fan (Pump_Sys Fan)
• 6 × System Fan

Other Internal Headers

• 1 × EZ Conn Header (JAF_1)
• 2 × Front Panel Headers (JFP)
• 1 × Chassis Intrusion (JCI)
• 1 × Front Audio (JAUD)
• 1 × Tuning Controller Connector (JDASH)
• 3 × Addressable V2 RGB LED Connectors (JARGB_V2)
• 1 × RGB LED Connector (JRGB)
• 1 × TPM Pin Header (Supports TPM 2.0)

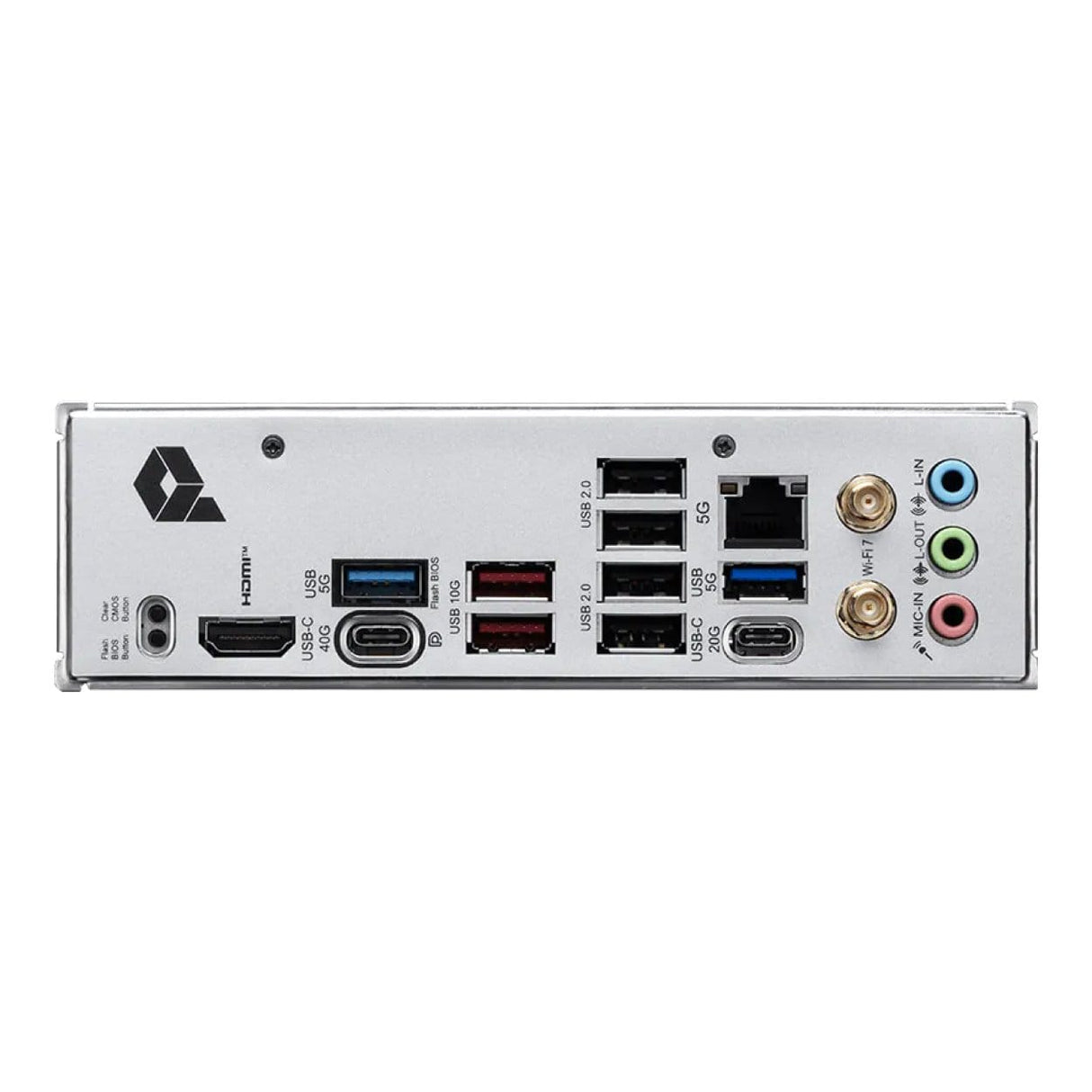

Back Panel Ports

Rear Panel Features

• Clear CMOS Button
• Flash BIOS Button
• USB 2.0 Ports
• USB 5 Gbps Type-A Ports
• USB 10 Gbps Type-A Ports
• USB 20 Gbps Type-C Port
• USB 40 Gbps Type-C Port
• HDMI™ Port
• 5G LAN Port
• Wi-Fi / Bluetooth Antenna Connectors
• Audio Connectors

LED Features

Debug & Status LEDs

• 4 × EZ Debug LEDs
• 1 × EZ Memory Detection LED

Operating System

Supported Operating Systems
Windows® 11 64-Bit

Physical Specifications

Form Factor
ATX

PCB Dimensions
243.84 × 304.8 mm
