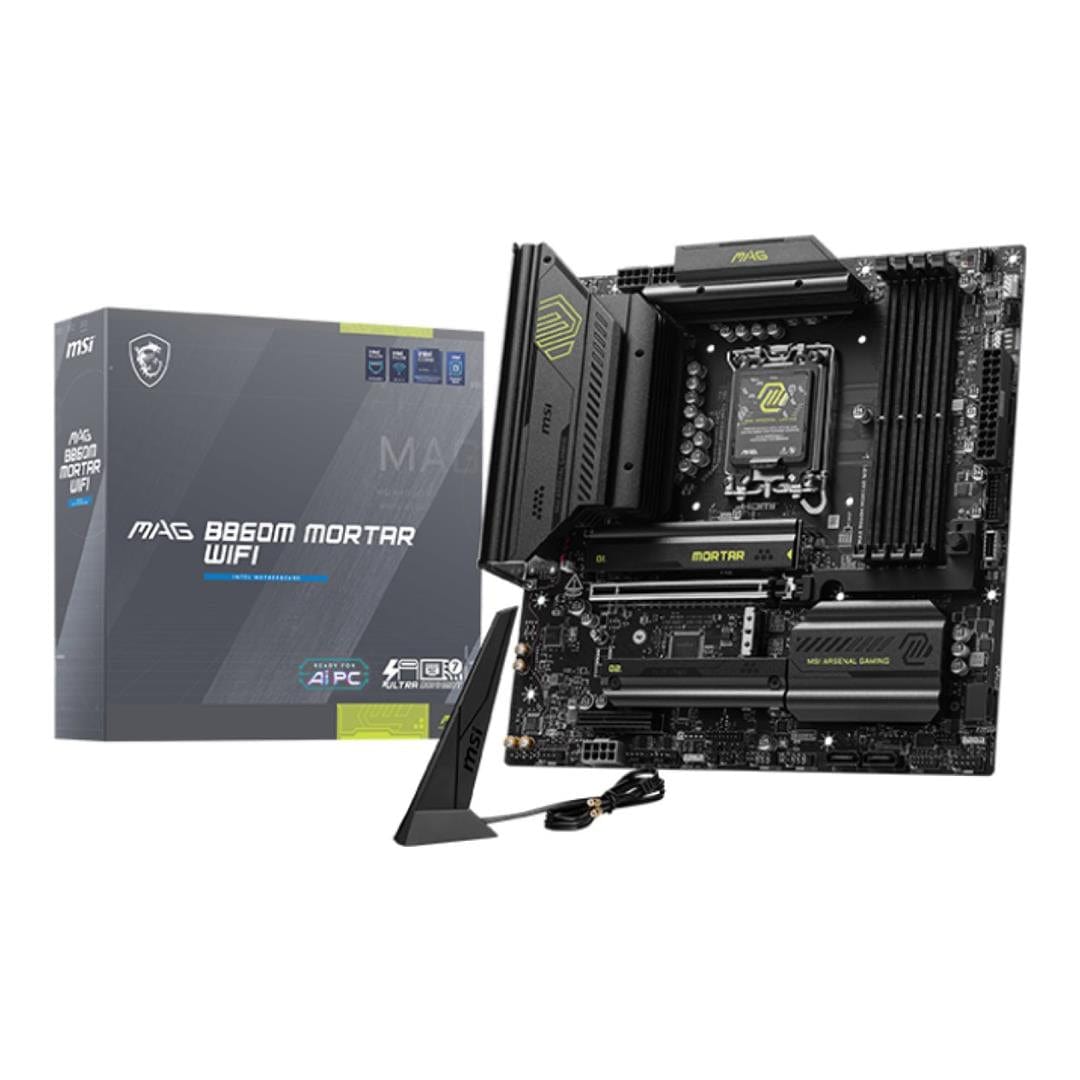

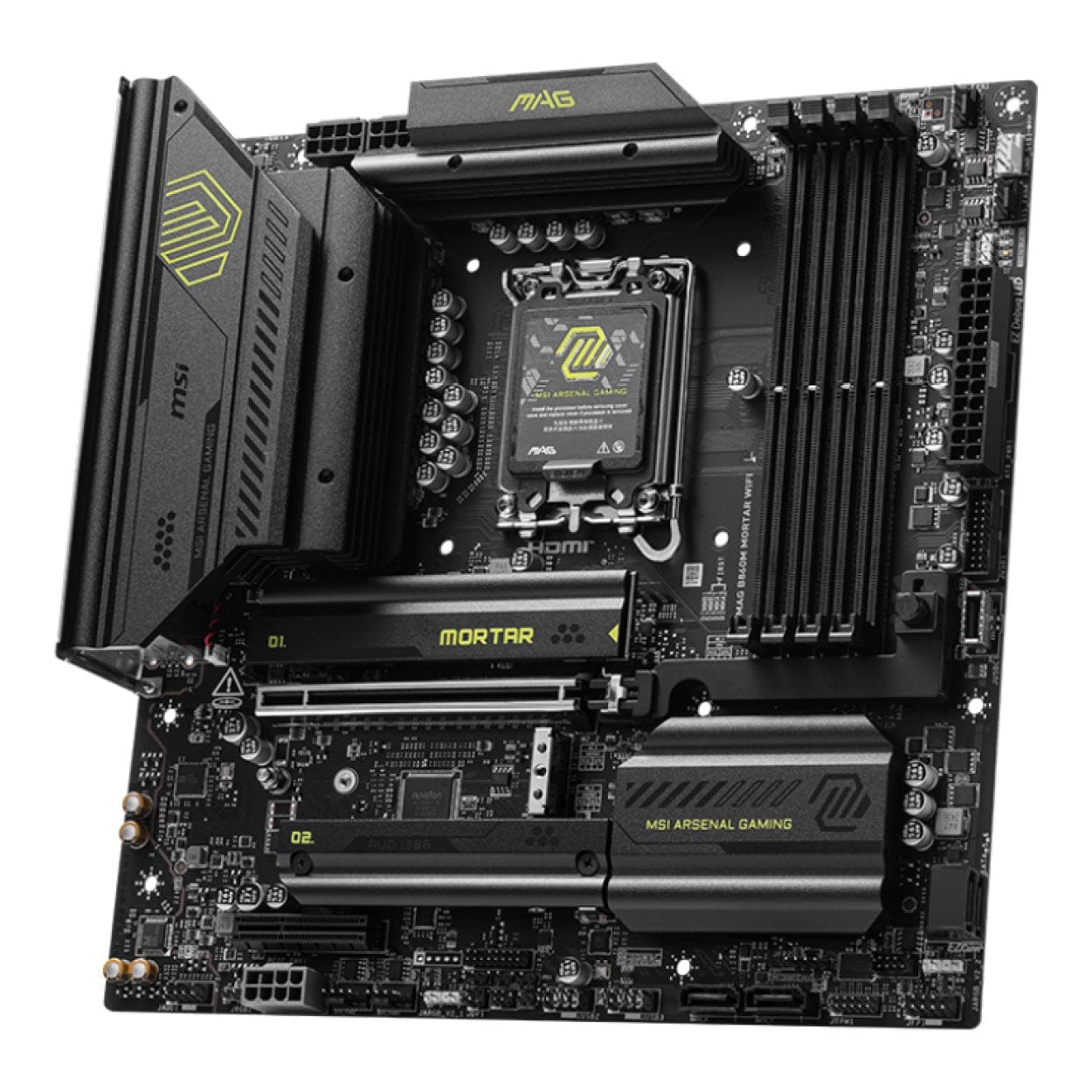

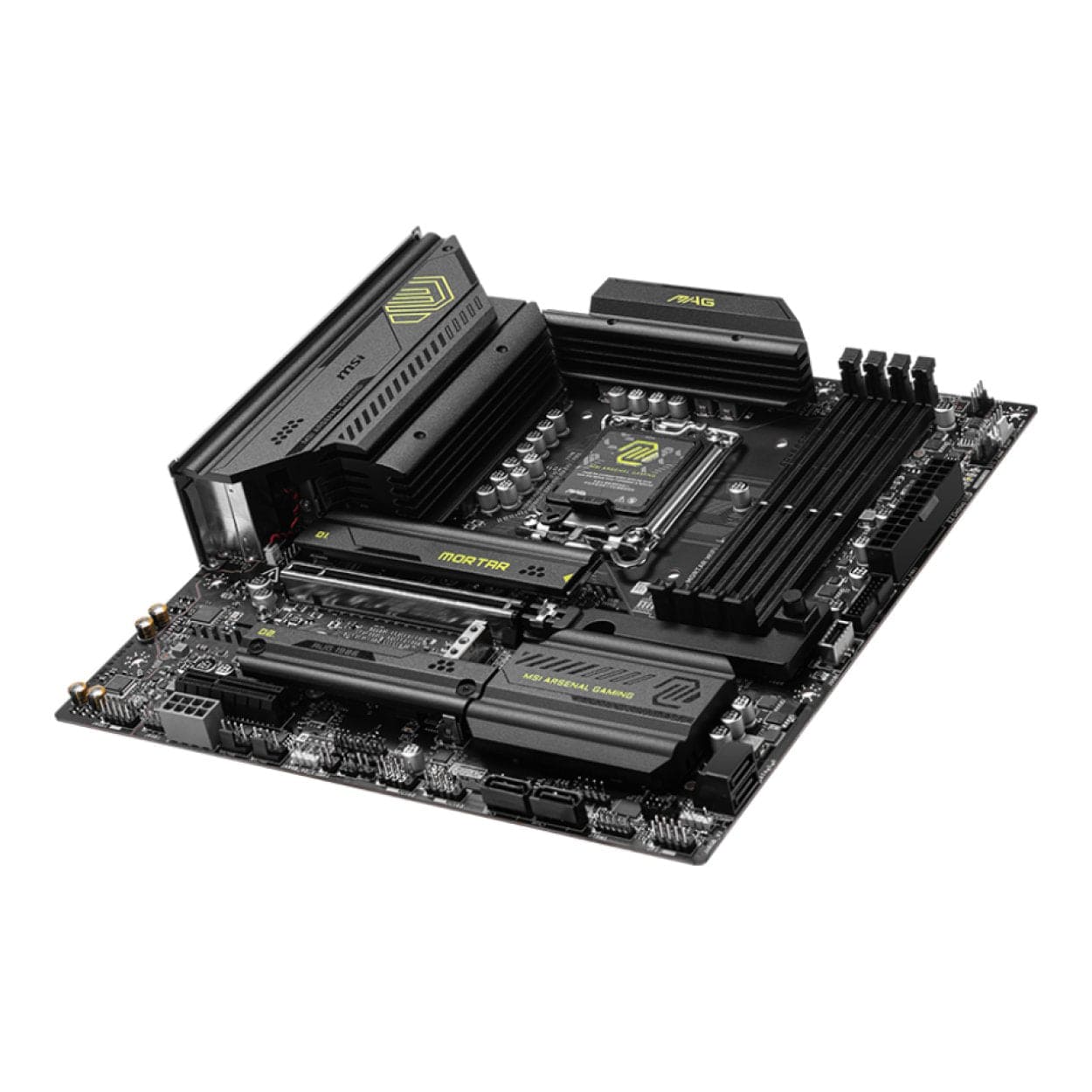

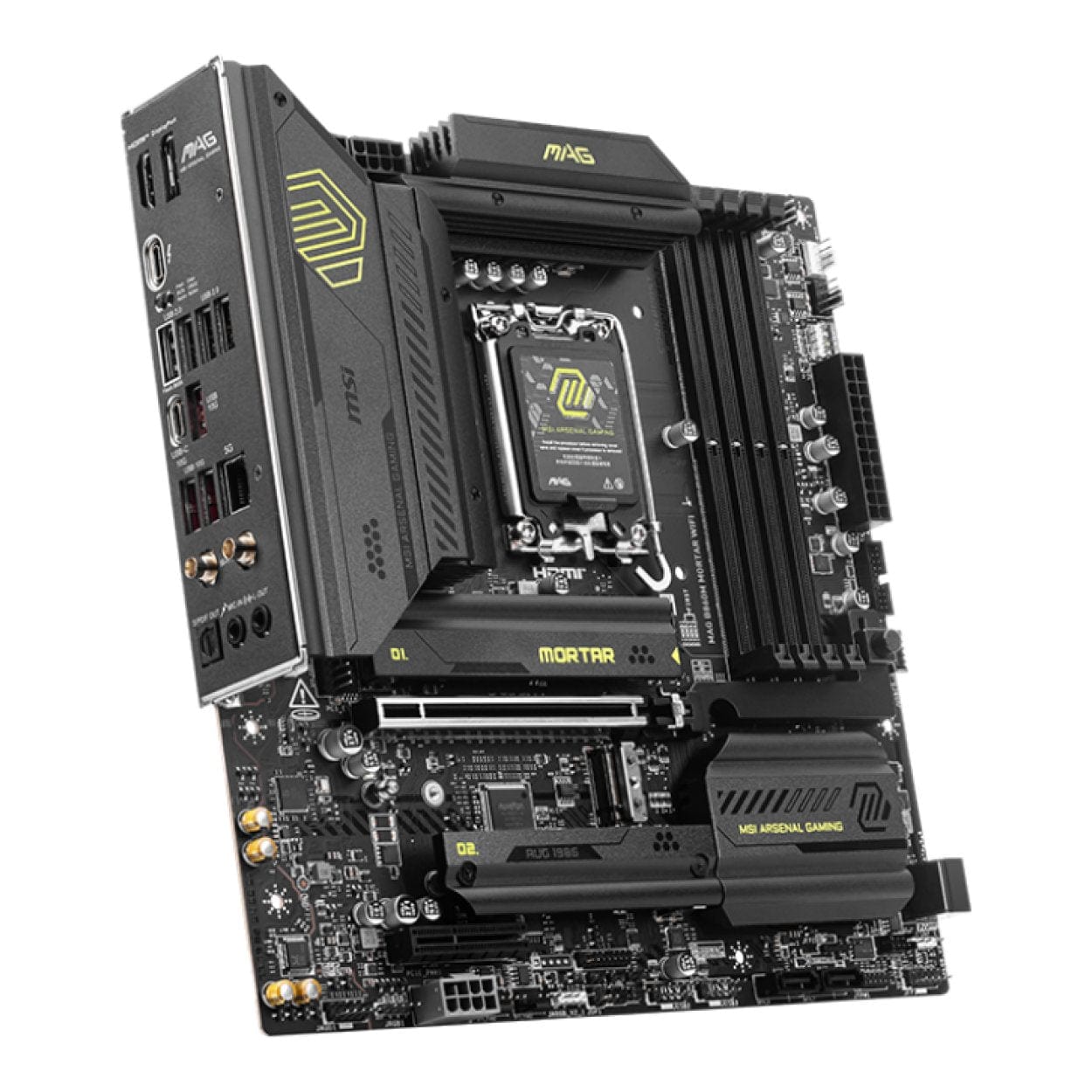

MSI MAG B860M MORTAR Wi-Fi Intel LGA 1851 AI-Ready mATX Motherboard

MSI MAG B860M MORTAR Wi-Fi Intel LGA 1851 AI-Ready mATX Motherboard

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

Features

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
• Ultra Performance: 12+1+1+1 Duet Rail Power System 60A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect: Thunderbolt 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost : Reward your ears with studio grade sound quality for the most immersive gaming experience

MAG B860M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefied of Intel Core Ultra processors.

Ready for AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine

Provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN Manager

Optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling

Automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

AI Boost

Is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.

Technical Specification

Product: MSI MAG B860M MORTAR WIFI

CPU Support: Support Intel Core Ultra Processors (Series 2)

CPU Socket: LGA 1851

Chipset: Intel B860 Chipset

Expansion Slots

• 1x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x4 slot

Display

• Thunderbolt 4 (Type-C)
• HDMI 2.1 FRL
• DisplayPort 1.4 HBR2 - Requires Processor Graphics

Memory Support: 4 DIMMs, Dual Channel DDR5 - 9200+ MT/s (OC)

Storage

• 1x M.2 Gen5 x4 128Gbps slot
• 2x M.2 Gen4 x4 64Gbps slots
• 4x SATA 6Gbps ports

USB ports

• 1x USB Type-C up to 40Gbps, Charging support up to 5V/3A, 15W
• 5x USB 10Gbps (3x Type-A + 2x Type-C)
• 2x USB 5Gbps (2x Type-A)
• 8x USB 2.0

LAN: Intel Killer E5000B 5G LAN

Wi-Fi / BT: Intel Killer Wi-Fi 7 BE1750x, Bluetooth 5.4

Audio: 8-Channel (7.1) HD Audio with Audio Boost

Motherboard Form factor: mATX

Dimensions: 243.84mm x 243.84mm

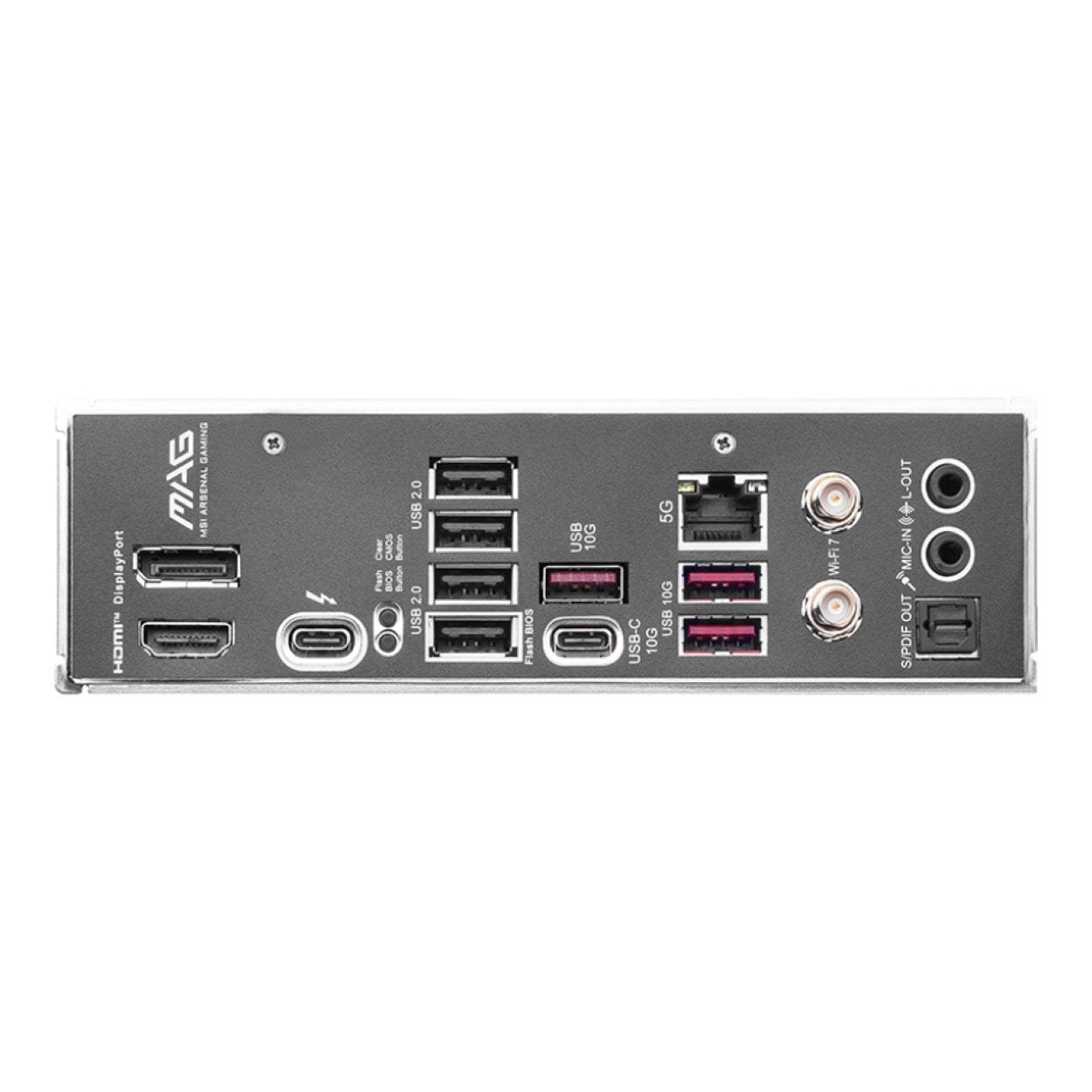

I/O Ports

1. DisplayPort
2. USB 2.0
3. USB 10Gbps Type-A
4. 5G LAN
5. Wi-Fi / Bluetooth
6. Audio Connectors
7. HDMI
8. Thunderbolt 4 40Gbps (Type-C)
9. Flash BIOS Button
10. Clear CMOS Button
11. USB 10Gbps Type-C
12. USB 10Gbps Type-A
13. S/PDIF-OUT
