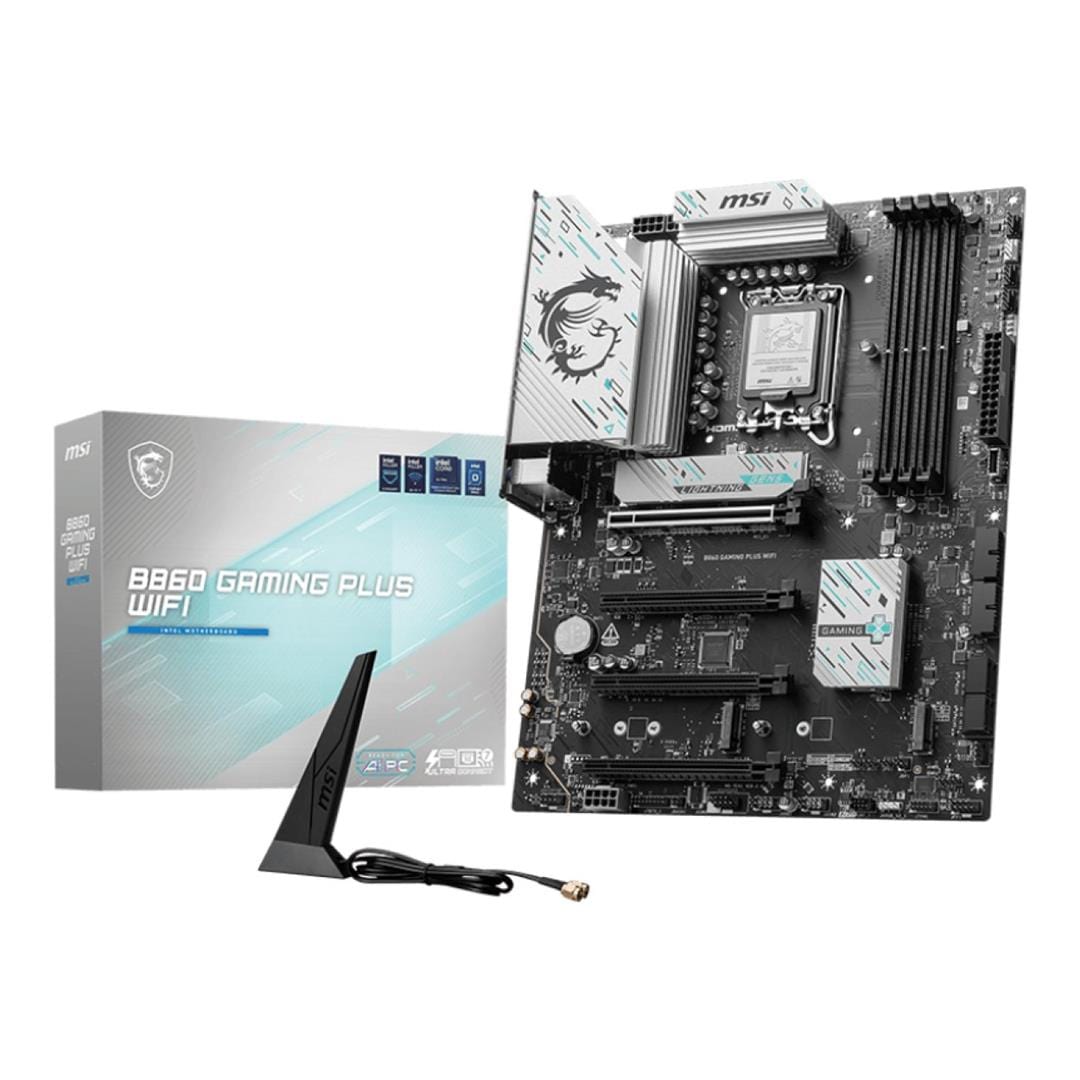

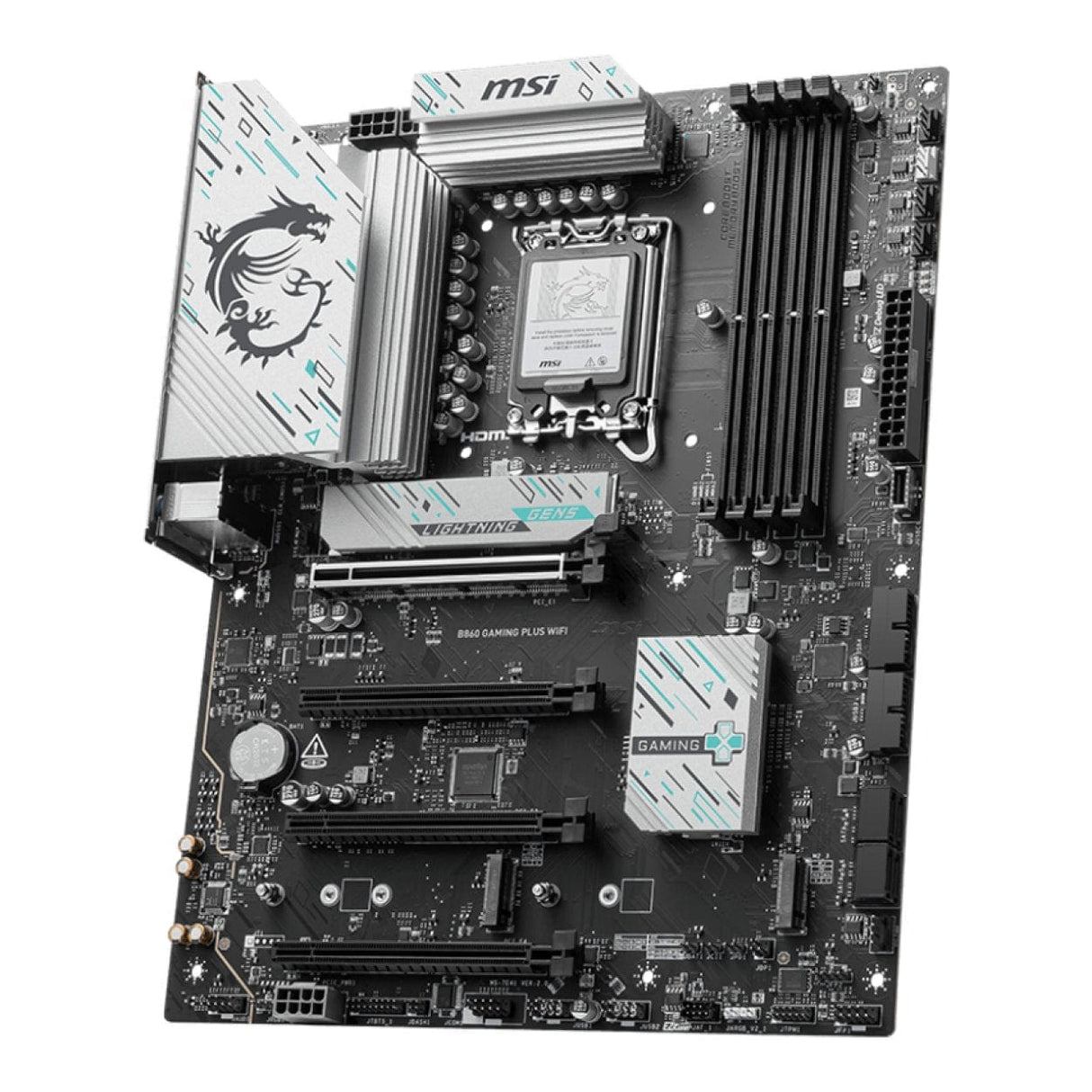

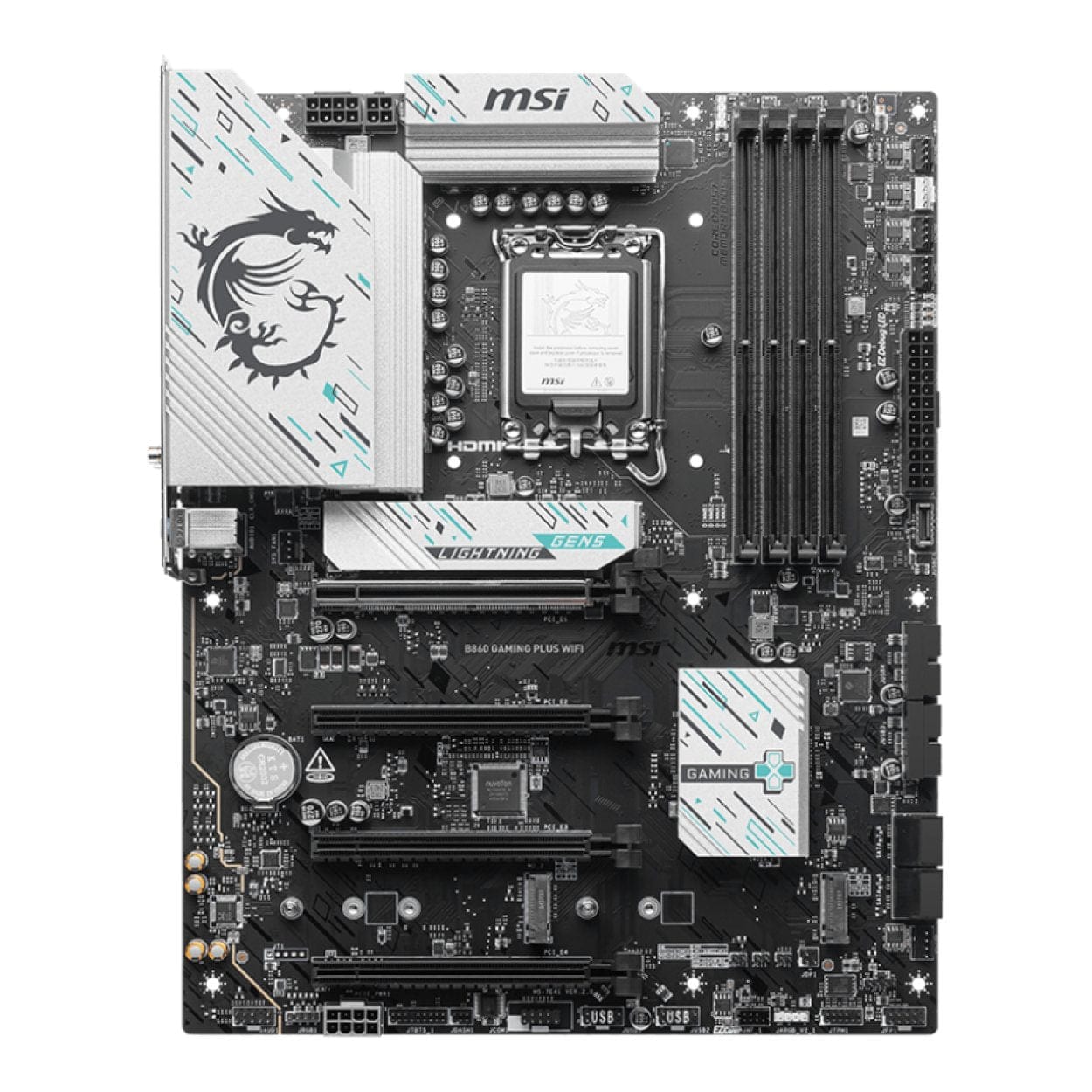

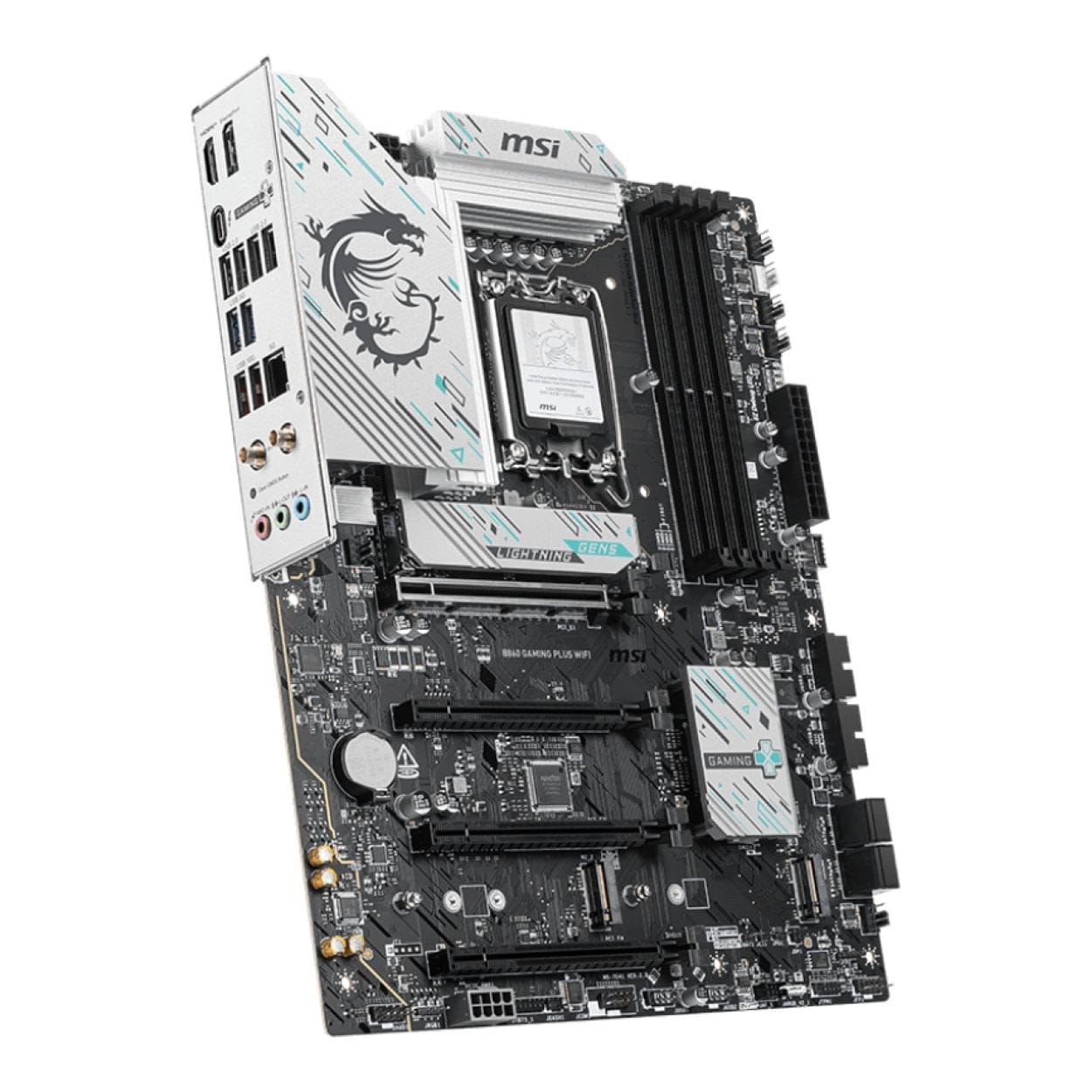

MSI B860 GAMING PLUS Wi-Fi Intel LGA 1851 AI-Ready ATX Motherboard

MSI B860 GAMING PLUS Wi-Fi Intel LGA 1851 AI-Ready ATX Motherboard

Features

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
• Ultra Connect: Thunderbolt 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

The B860 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Thunderbolt 4 port, full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors.

Ready for AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine

Provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN Manager

Optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling

Automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

AI Boost

Is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.

Technical Specification

Product: MSI B860 GAMING PLUS WIFI

CPU Support: Support Intel Core Ultra Processors (Series 2)

CPU Socket: LGA 1851

Chipset: Intel B860 Chipset

Expansion Slots

• 1x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x16 slot
• 2x PCIe 4.0 x1 slots

Display

• Thunderbolt 4 (Type-C)
• Support 4K@60Hz as specified in HDMI 2.1
• DisplayPort 1.4 HBR2 – Requires Processor Graphics

Memory Support: 4 DIMMs, Dual Channel DDR5 - 8800+ MT/s (OC)

Storage

• 1x M.2 Gen5 x4 128Gbps slot
• 1x M.2 Gen4 x4 64Gbps slot
• 1x M.2 Gen4 x2 32Gbps slot
• 4x SATA 6Gbps ports

Thunderbolt 4: 1x USB Type-C up to 40Gbps, Charging support up to 5V/3A, 15W

USB ports

• 3x USB 10Gbps (2x Type-A + 1x Type-C)
• 6x USB 5Gbps (6x Type-A)
• 8x USB 2.0

LAN: Intel Killer E5000B 5Gbps LAN

Wi-Fi / BT: Intel Killer BE1750x Wi-Fi 7, Bluetooth 5.4

Audio: 8-Channel (7.1) HD Audio with Audio Boost

Motherboard Form factor: ATX

Dimensions: 243.84mm x 304.8mm

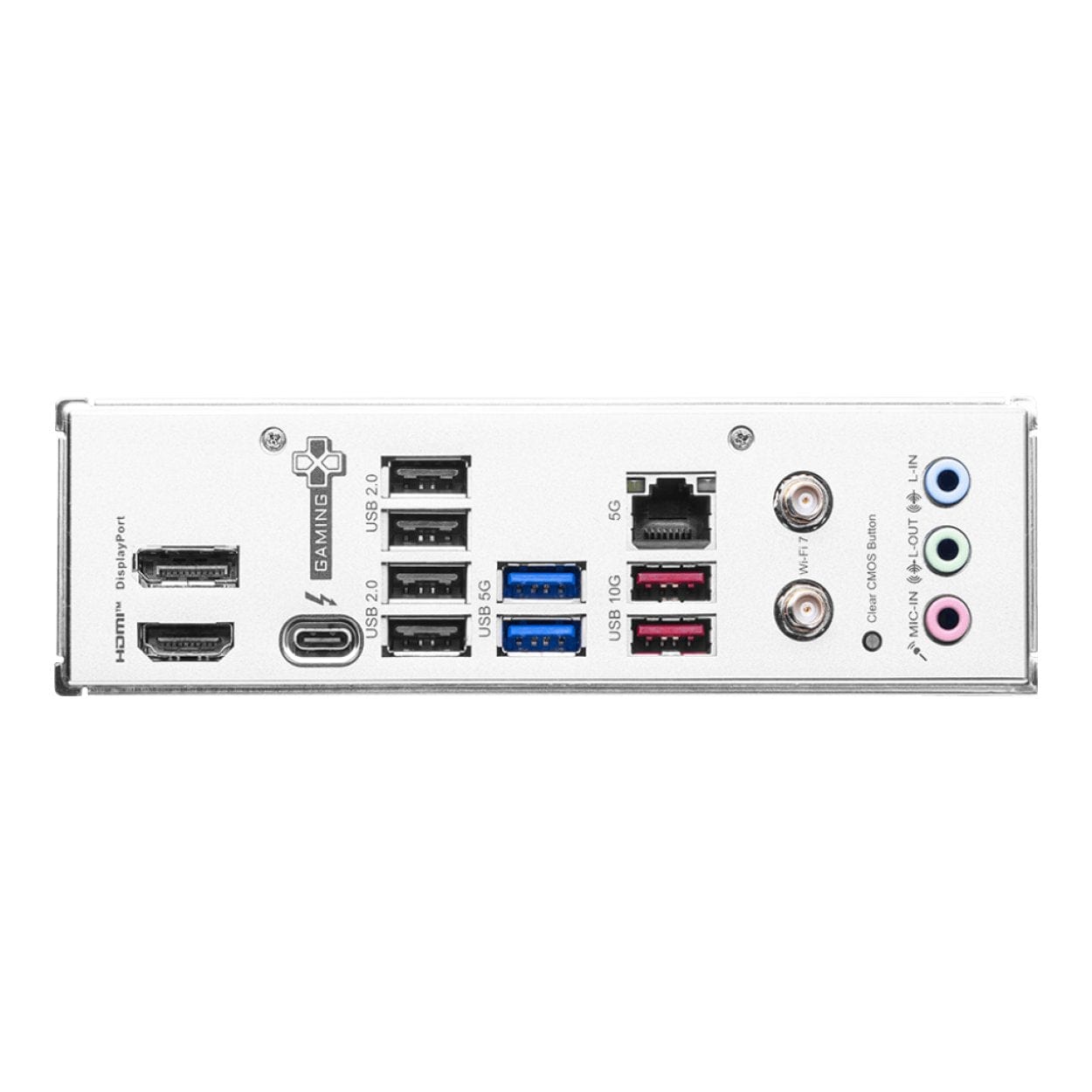

I/O Ports

1. Display Port
2. USB 2.0
3. 5G LAN
4. Wi-Fi / Bluetooth
5. Audio Connectors
6. HDMI
7. Thunderbolt 4 40Gbps (Type-C)
8. USB 5Gbps (Type-A)
9. USB 10Gbps (Type-A)
10. Clear CMOS Button
