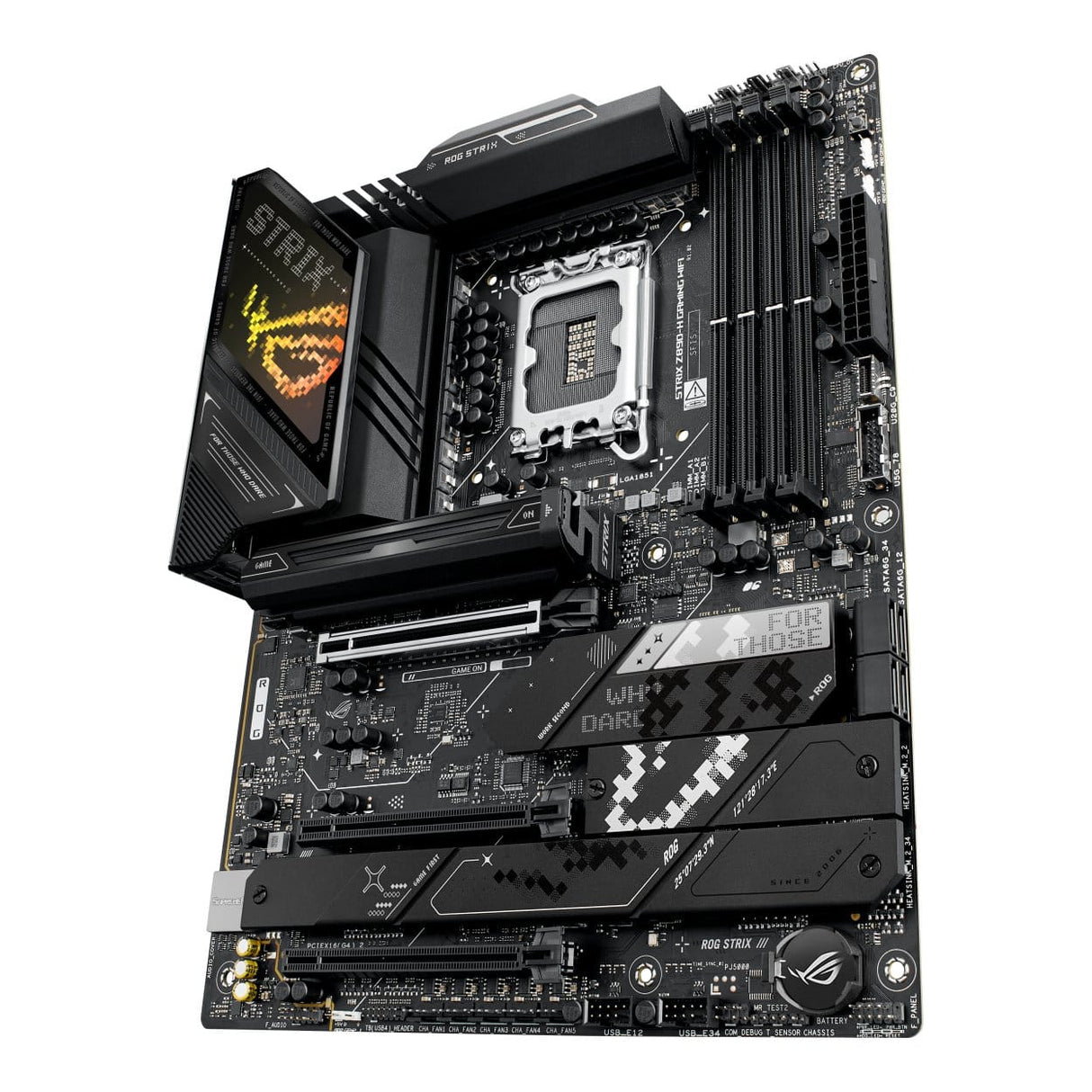

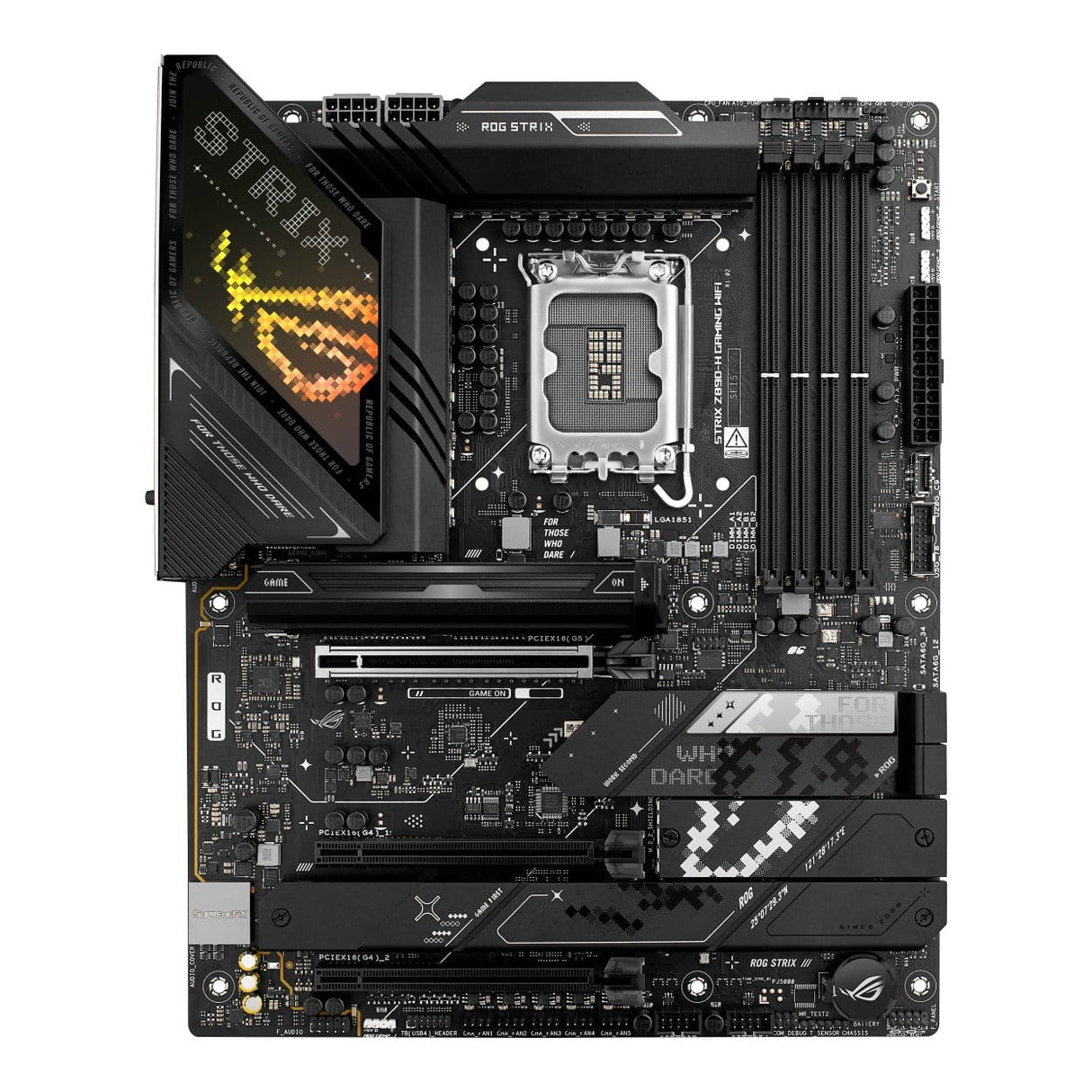

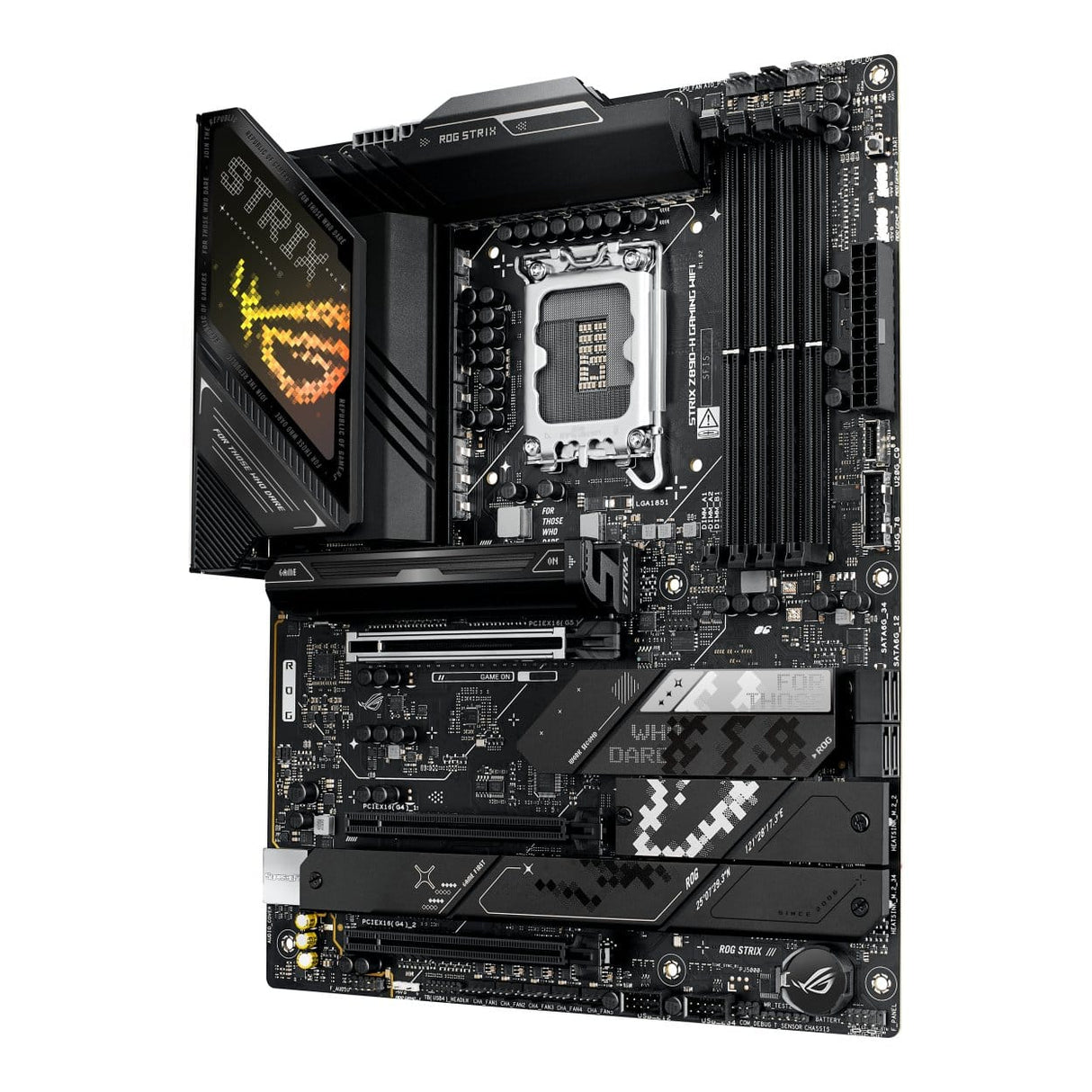

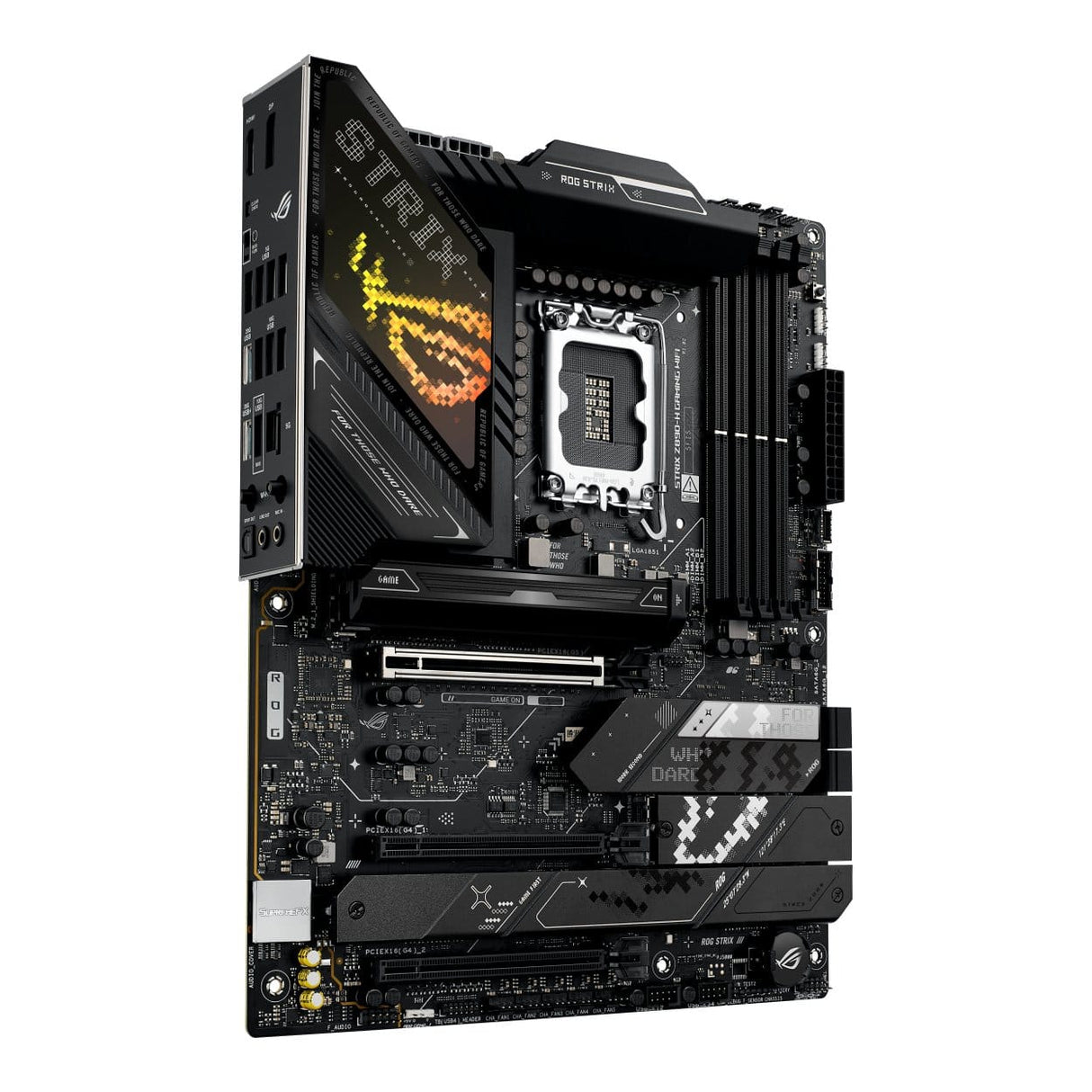

ASUS ROG STRIX Z890-H Gaming Wi-Fi Intel LGA 1851 ATX Motherboard 90MB1K20-M0EAY0

ASUS ROG STRIX Z890-H Gaming Wi-Fi Intel LGA 1851 ATX Motherboard 90MB1K20-M0EAY0

Powered advanced AI technologies and compatible with Intel processors featuring a Neural Processing Unit, the ROG STRIX Z890-H Gaming WiFi enables advanced AI PC applications. It features a USB 20Gbps Type-C® rear I/O port with up to 30-watt Power Delivery for fast charging, PCIe® 5.0 support, and Aura lighting. These capabilities provide ultra-fast data transfers, exceptional connectivity and customizable lighting that can be understated or striking.

ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

ai OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

ai cOOLING II

Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Performance

OVERCLOCKING

NPU BOOST

The integrated NPU in Intel^® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

MEMORY

DDR5 DOMINATION

Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix Z890-H.

DIMM FIT

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

DIMM FLEX

DIMM Flex provides enthusiasts with a powerful new way to overclock their DDR5 memory modules.

UNDENIABLY ROG STRIX

The ROG Strix Z890-H features a sleek black finish, metallic heatsinks and customizable Aura lighting for a bold and versatile look.

OUTSHINE THE COMPETITION

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

Technical Specifications:

CPU
CPU Socket: Intel® LGA1851
Processor Support: Intel® Core™ Ultra Processors (Series 2)
Supported Technologies:

• Intel® Turbo Boost Technology 2.0
• Intel® Turbo Boost Max Technology 3.0

Chipset
Chipset: Intel® Z890

Memory
Memory Slots: 4 X DIMM
Maximum Memory Capacity: 256 GB
Memory Type: DDR5
Memory Speed Support: Up To 9066+ MT/s (OC)
Memory Architecture: Dual-Channel
Memory Support:

• Non-ECC
• Un-Buffered
• Clocked Unbuffered DIMM (CUDIMM)
  Supported Technologies:
• Intel® Extreme Memory Profile (XMP)
• DIMM Flex
• DIMM Fit
• ASUS Enhanced Memory Profile III (AEMP III)

Graphics
DisplayPort: 1 X DisplayPort 1.4 (Up To 8K @ 60 Hz)
HDMI: 1 X HDMI 2.1 (Up To 4K @ 60 Hz)

Expansion Slots
CPU PCIe Support:

• 1 X PCIe 5.0 X16 Slot (Supports X16 Or X8/X4/X4 Modes)

Chipset PCIe Support:

• 2 X PCIe 4.0 X16 Slots (Supports X4 Mode)

Storage
M.2 Slots: 4
SATA Ports: 4 X SATA 6 Gb/s

M.2 Configuration:

• M.2_1: PCIe 5.0 X4, 2242/2260/2280/22110
• M.2_2: PCIe 4.0 X4, 2280
• M.2_3: PCIe 4.0 X4, 2280/22110
• M.2_4: PCIe 4.0 X4 & SATA, 2242/2260/2280

RAID Support:

• PCIe RAID 0/1/5
• SATA RAID 0/1/5/10

Networking
Ethernet: 1 X Realtek 5G Ethernet
LAN Protection: ASUS LANGuard

Wireless & Bluetooth
Wi-Fi Standard: Wi-Fi 7 (802.11be)
Wi-Fi Configuration: 2x2
Supported Bands: 2.4 GHz / 5 GHz / 6 GHz
Maximum Transfer Rate: Up To 2.9 Gbps
Bluetooth Version: Bluetooth® 5.4

USB Connectivity
Rear USB Ports:

• 2 X USB 20 Gbps (1 X USB Type-C®, 1 X USB Type-C® With Up To 30 W PD Fast Charging)
• 4 X USB 10 Gbps Type-A
• 4 X USB 5 Gbps Type-A

Front USB Support:

• 1 X USB 20 Gbps Type-C®
• 1 X USB 5 Gbps Header (Supports 2 Additional USB Ports)
• 2 X USB 2.0 Headers (Supports 4 Additional USB Ports)

Audio
Audio Codec: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Audio Features:

• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Gold-Plated Audio Jacks
• Rear Optical S/PDIF Out Port
• Premium Audio Capacitors
• Audio Cover

Audio Support:

• Jack Detection
• Multi-Streaming
• Front Panel Jack Retasking
• Up To 32-Bit / 192 KHz Playback
• 120 DB SNR Stereo Playback
• 113 DB SNR Recording Input

Back Panel I/O Ports

• 2 X USB 20 Gbps Ports
• 4 X USB 10 Gbps Type-A Ports
• 4 X USB 5 Gbps Type-A Ports
• 1 X DisplayPort
• 1 X HDMI™ Port
• 1 X Wi-Fi Module
• 1 X Realtek 5 Gb Ethernet Port
• 2 X Gold-Plated Audio Jacks
• 1 X Optical S/PDIF Out Port
• 1 X BIOS FlashBack™ Button
• 1 X Clear CMOS Button

Internal I/O Connectors

Fan & Cooling Headers:

• 1 X 4-Pin CPU Fan Header
• 1 X 4-Pin CPU OPT Fan Header
• 1 X 4-Pin AIO Pump Header
• 5 X 4-Pin Chassis Fan Headers

Power Connectors:

• 1 X 24-Pin Main Power Connector
• 2 X 8-Pin +12 V CPU Power Connectors

Storage Connectors:

• 4 X M.2 Slots
• 4 X SATA 6 Gb/s Ports

USB Headers:

• 1 X USB 20 Gbps Type-C® Connector
• 1 X USB 5 Gbps Header
• 2 X USB 2.0 Headers

Additional Connectors:

• 3 X Addressable Gen 2 Headers
• 1 X Chassis Intrusion Header
• 1 X CPU Overvoltage Jumper
• 1 X Front Panel Audio Header
• 1 X Start Button
• 1 X Front System Panel Header
• 1 X Thermal Sensor Header
• 1 X Thunderbolt™ (USB4®) Header

Special Features
ASUS Q-Design Features:

• M.2 Q-Latch
• M.2 Q-Release
• M.2 Q-Slide
• PCIe Slot Q-Release Slim
• Q-Antenna
• Q-Dashboard
• Q-LED
• Q-Slot

Thermal Features:

• M.2 Heatsink Backplate
• M.2 Heatsink
• VRM Heatsink Design

EZ DIY Features:

• BIOS FlashBack™
• Clear CMOS Button
• CPU Socket Lever Protector
• ProCool II
• Pre-Mounted I/O Shield
• SafeSlot
• SafeDIMM

Lighting Features:

• Aura Sync
• Addressable Gen 2 Headers

USB PD Fast Charging:

• Up To 30 W Fast Charging
• USB PD 3.0 Compatible

Software Features
ROG Software:

• ROG CPU-Z
• Dolby Atmos

ASUS Software:

• Armoury Crate
• AIDA64 Extreme (60-Day Trial)
• Aura Creator
• Aura Sync
• Fan Xpert 4
• GameFirst
• HWiNFO
• ASUS AI Advisor
• ASUS Driver Hub
• ASUS GlideX
• TurboV Core
• Adobe Creative Cloud Trial
• Norton 360 For Gamers Trial
• WinRAR Trial

BIOS Utilities:

• ASUS CrashFree BIOS 3
• ASUS EZ Flash
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey
• FlexKey

BIOS
BIOS Type: 256 Mb Flash ROM, UEFI AMI BIOS

Manageability
Manageability Features:

• WOL By PME
• PXE

Operating System Support
Supported Operating System: Windows® 11 (22H2 And Later)

Form Factor
Form Factor: ATX
Dimensions: 30.5 X 24.4 Cm

Warranty
Warranty: Not Specified

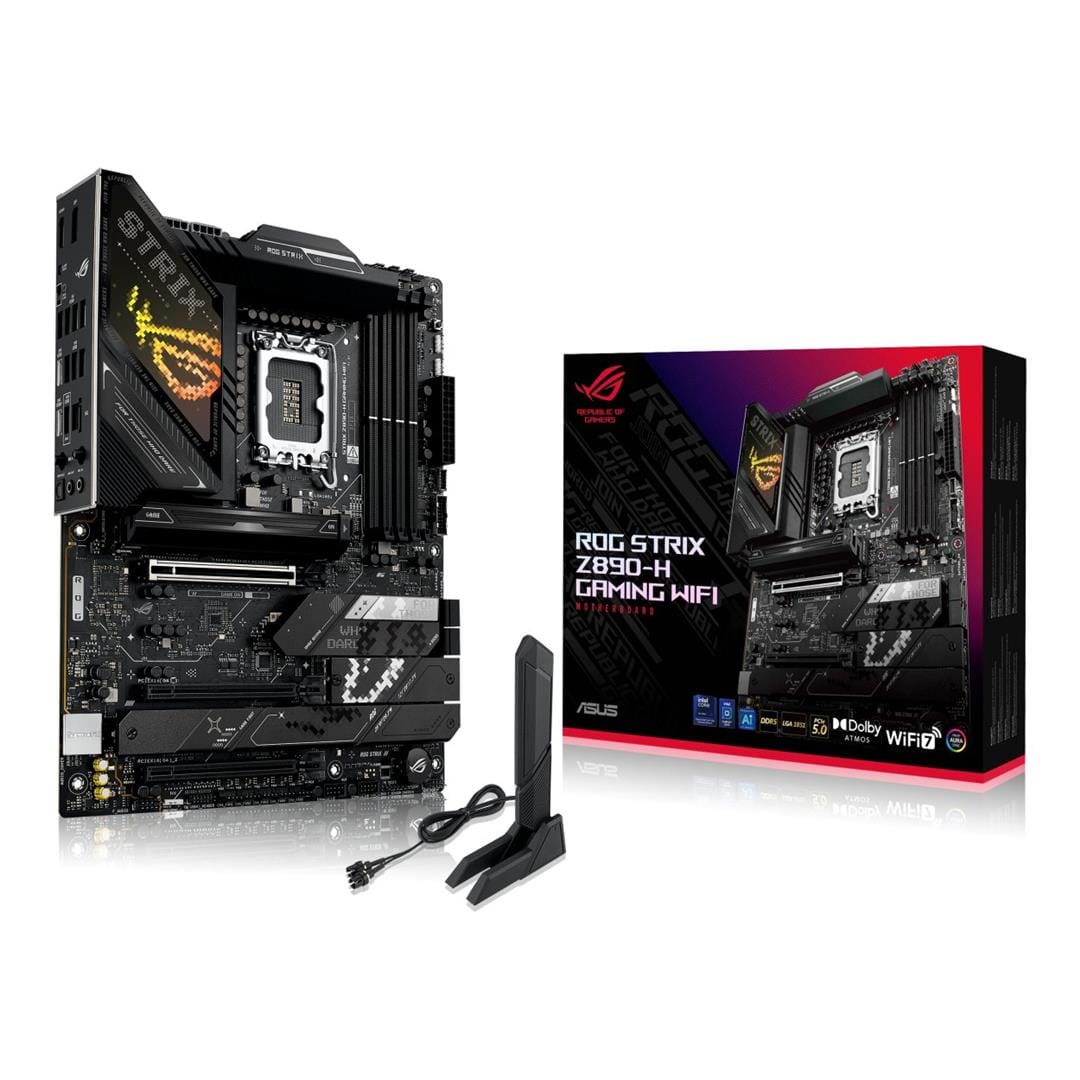

What's in the Box:

• 2 X SATA 6 Gb/s Cables
• Thermal Pad For M.2 22110
• ASUS WiFi Q-Antenna
• Cable Ties Package
• M.2 Q-Latch Package
• ROG Key Chain
• ROG Strix Stickers
• 4 X M.2 Rubbers
• Quick Start Guide
