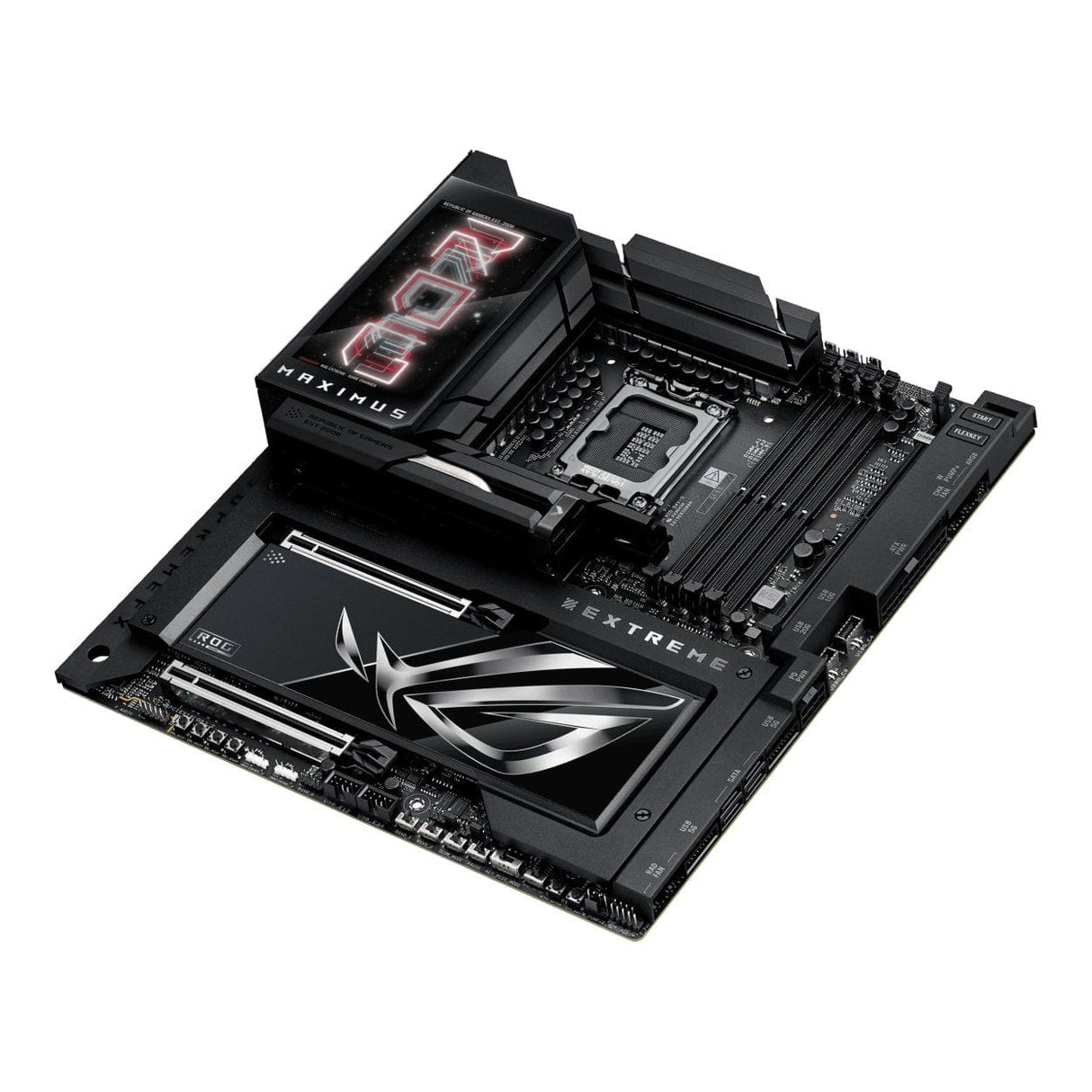

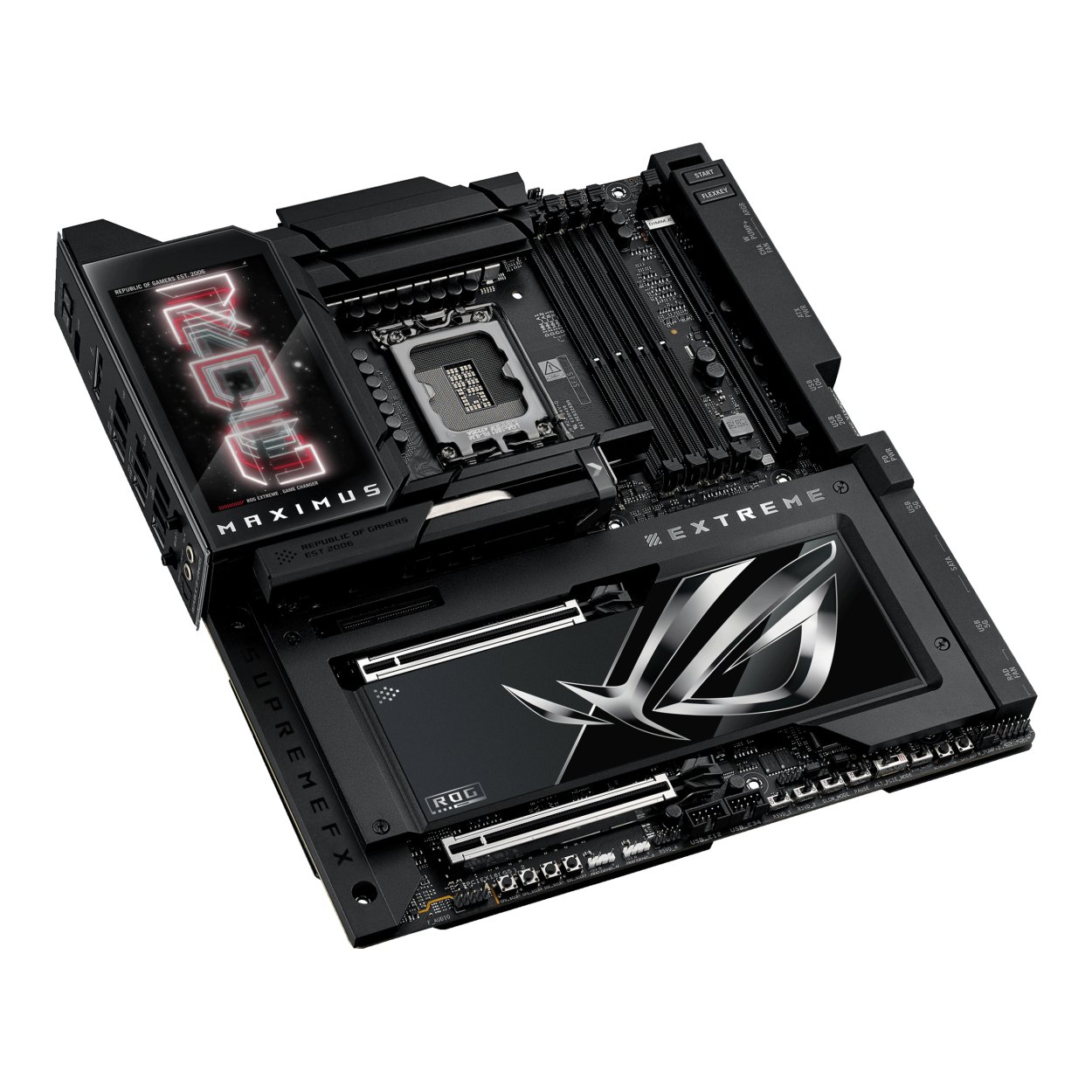

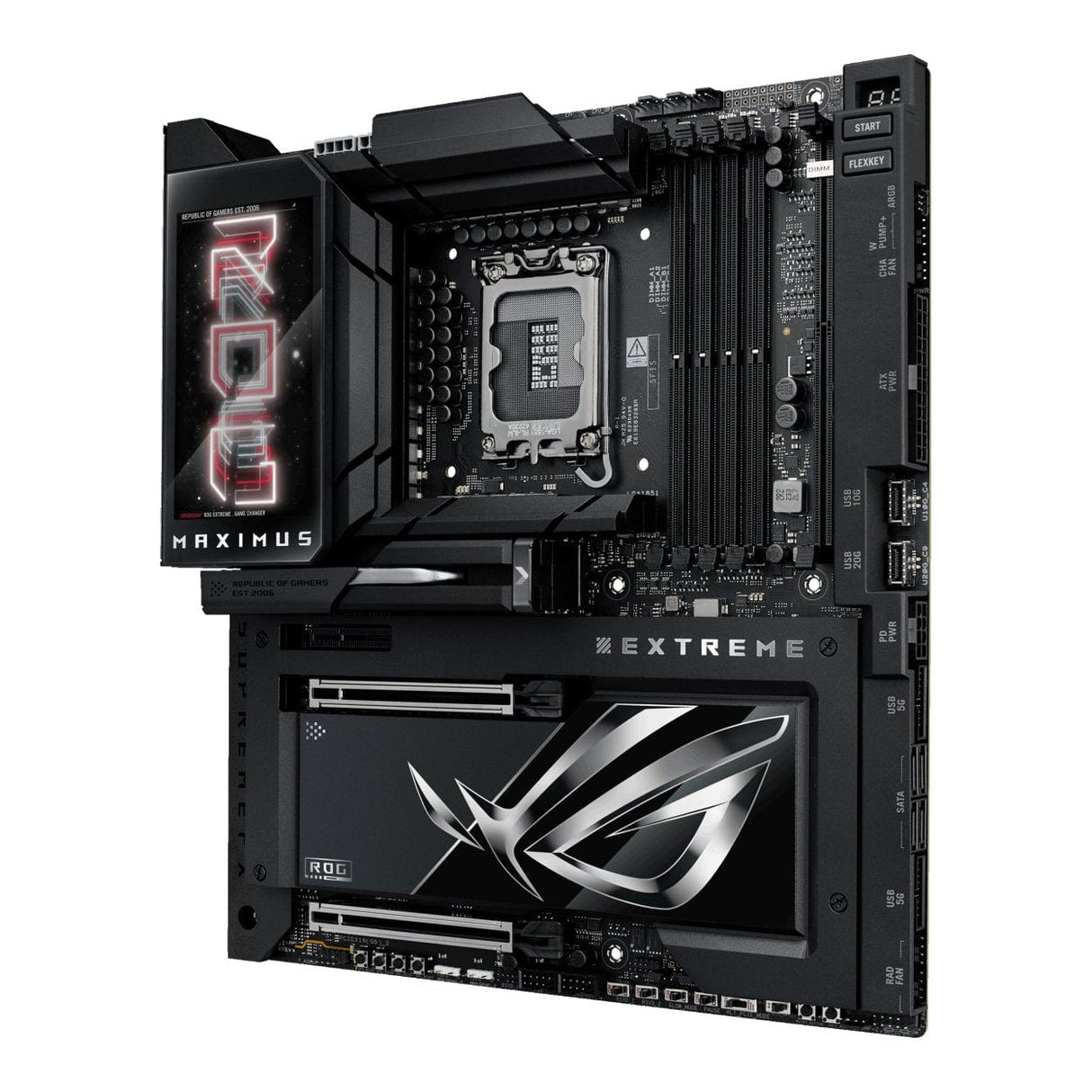

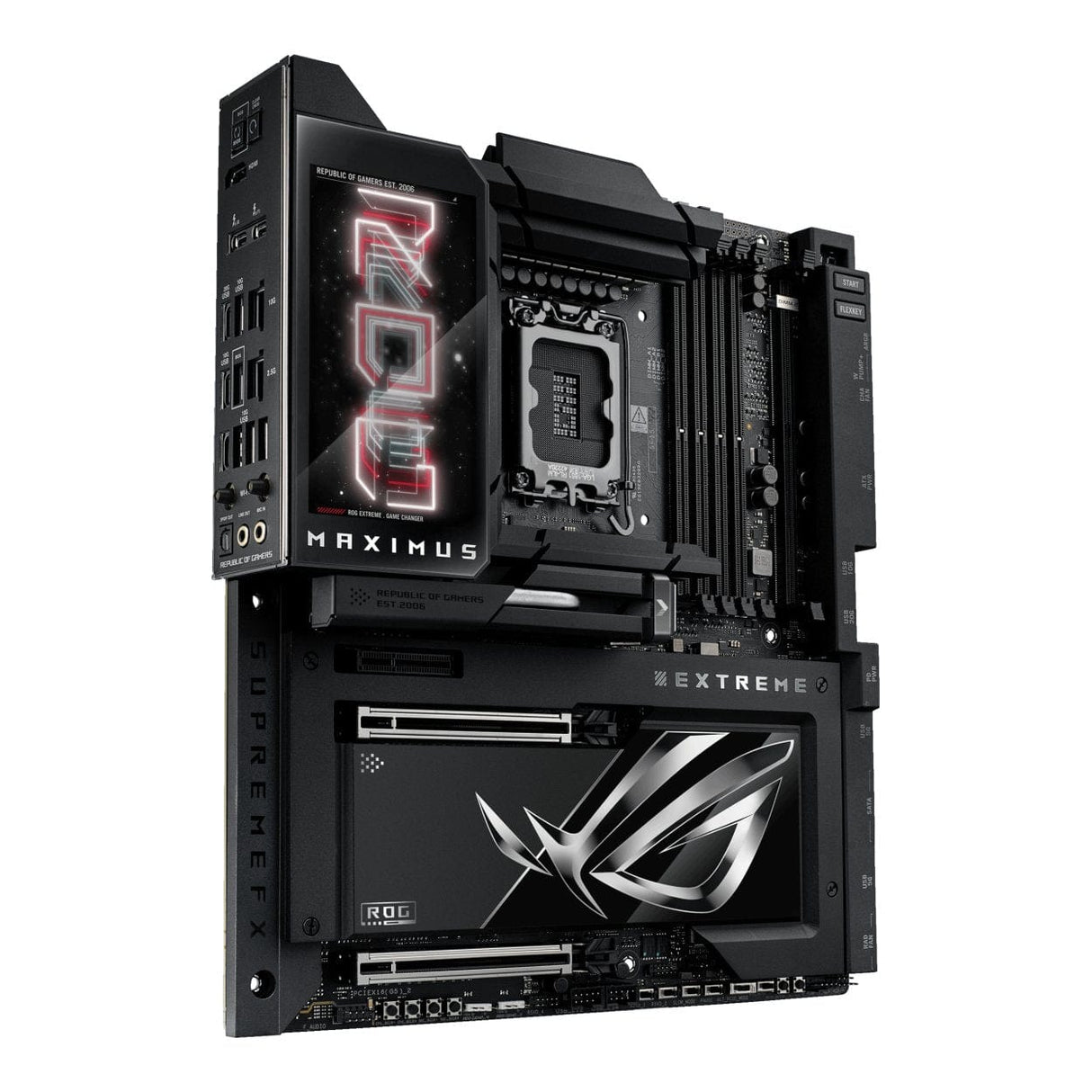

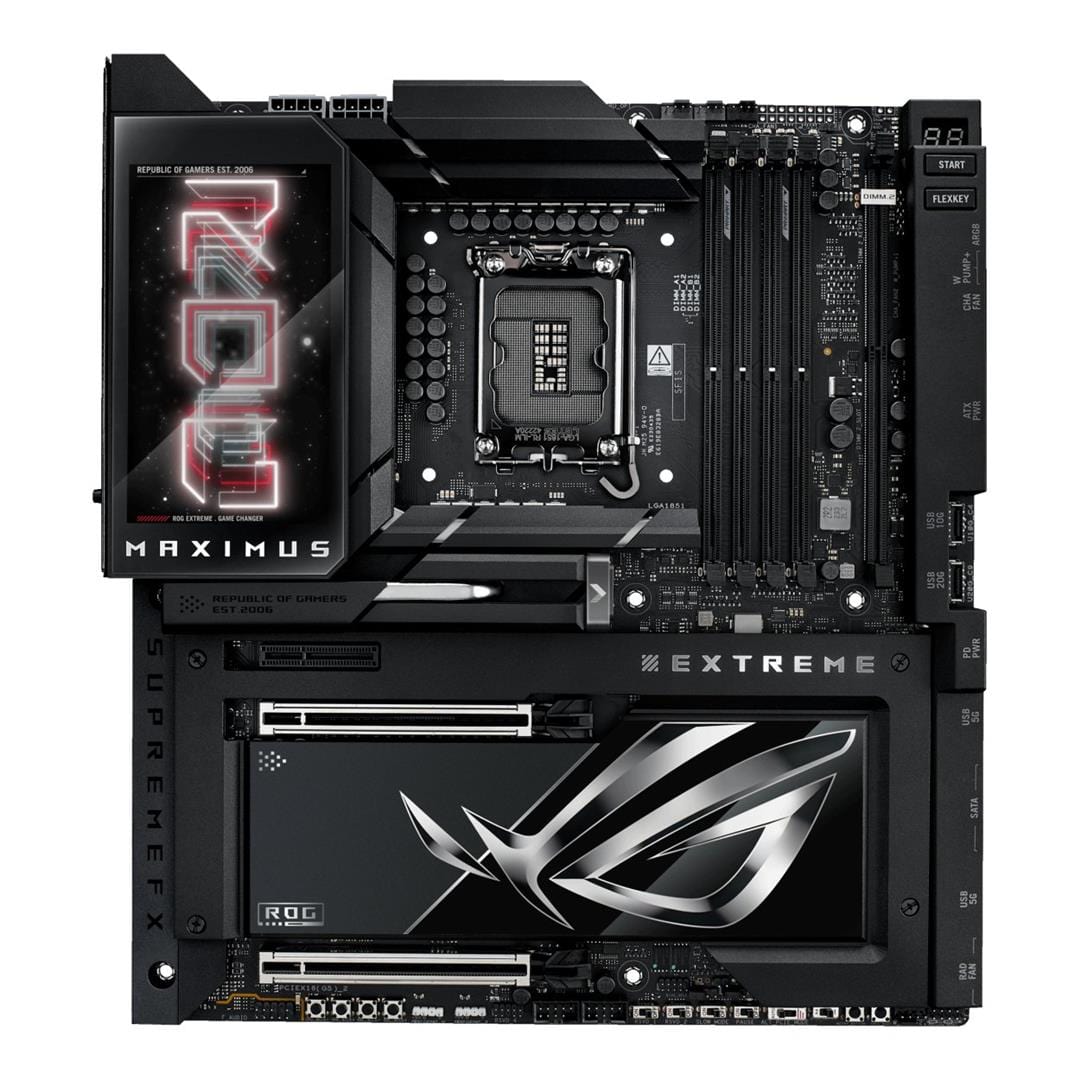

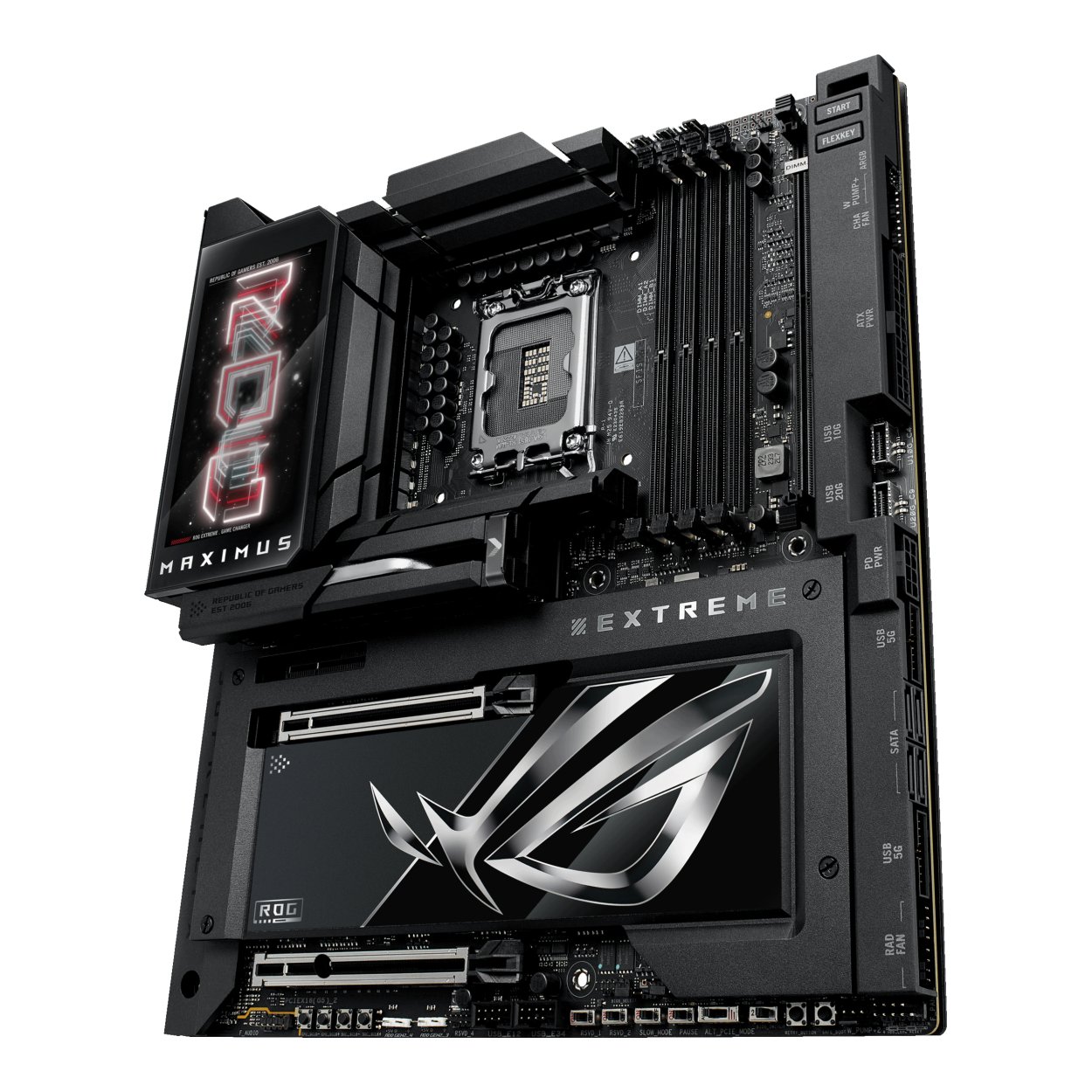

ASUS ROG Maximus Z890 Extreme Intel LGA 1851 EATX Motherboard 90MB1IA0-M0EAY0

ASUS ROG Maximus Z890 Extreme Intel LGA 1851 EATX Motherboard 90MB1IA0-M0EAY0

The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes

Features:

• Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
• PC Extended ATX Intel Z890 Realtek ALC4082 7.1 channels
• DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
• HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 10
• BIOS type: UEFI AMI 512 Mbit Clear CMOS button
• 2.5 Gigabit Ethernet, 10 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

Performance

OVERCLOCKING

NPU BOOST

The integrated NPU in Intel^® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

DIFFERENTIAL SENSING

Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z890 Extreme features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.

MEMORY

DDR5 DOMINATION

Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Maximus Z890 Extreme*.

NitroPath DRAM Technology

Frequency up to 400 MT/s higher

Slot retention force enhanced by 57%

DIMM Fit / DIMM Fit Pro

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.

DIMM FLEX

DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

BIOS Q-DASHBOARD

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

When you’re ready for a deeper dive, delve into the UEFI’s Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.

Advanced mode

My Favorites

• Quickly locate tuning options and add preferred tools to your favorites list.

EZ Flash

• Flash the latest BIOS via the internet from within the BIOS.

S.M.A.R.T.

• Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.

GPU POST

• Automatically detect selected ASUS graphics cards to view detailed information.

Secure Erase

• Restore your SSDs and NVMe storage to factory settings.

Last Modified Log

• Track the last change and save preferred profiles to a USB drive.

SATA Port Renaming

• Rename SATA ports for easy identification.

ASUS User Profile

• Port configuration settings between different BIOS versions or share them with friends.

Q-Fan Control

• Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.

Aura On/Off mode (Stealth)

• Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.

Technical Specifications:

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Compatible processor series: Intel Core Ultra (Series 2)

Supported memory types: DDR5-SDRAM

Maximum internal memory: 192 GB

Memory slots type: DIMM

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 0, 1, 5

Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Component for: PC

Motherboard form factor: Extended ATX

Motherboard chipset family: Intel
