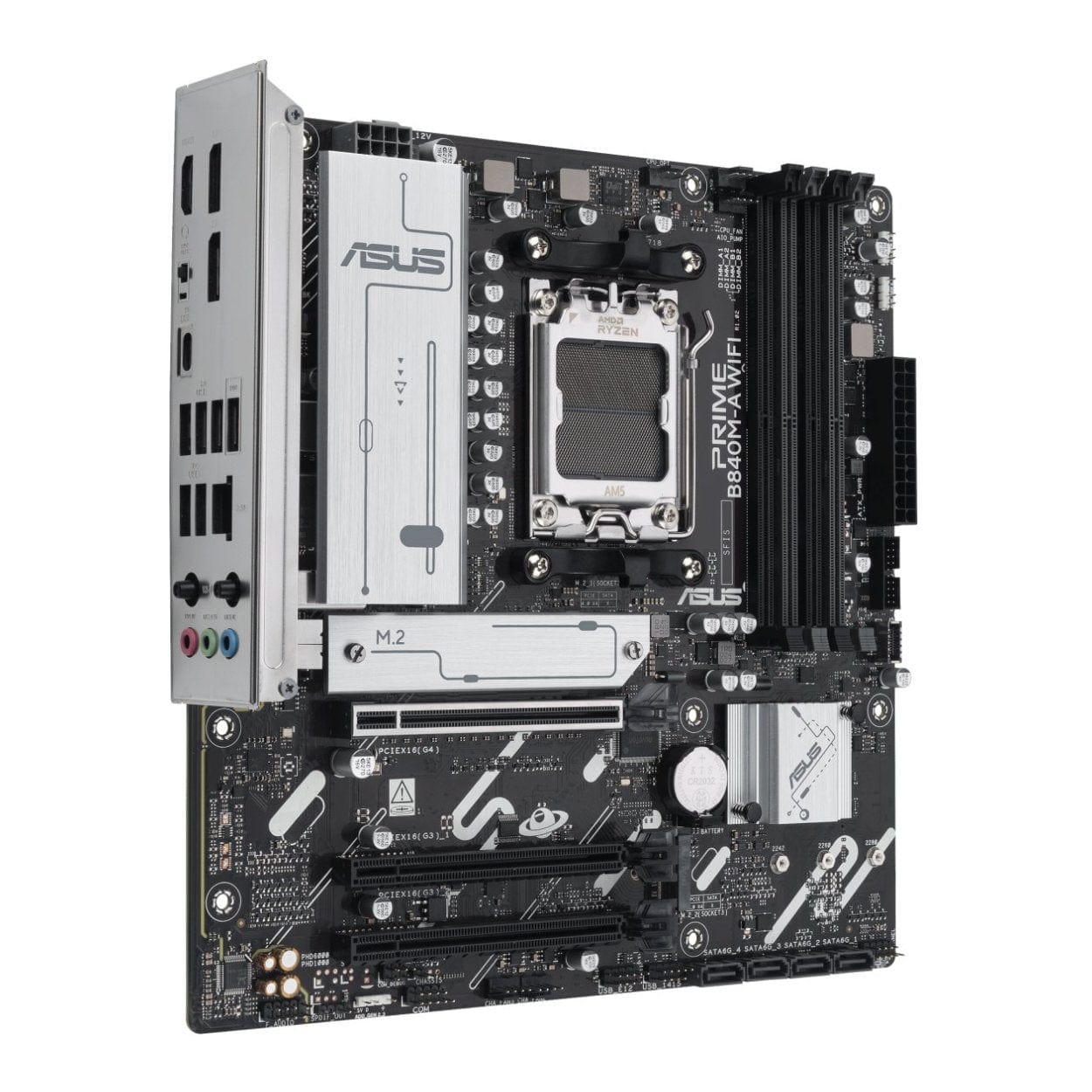

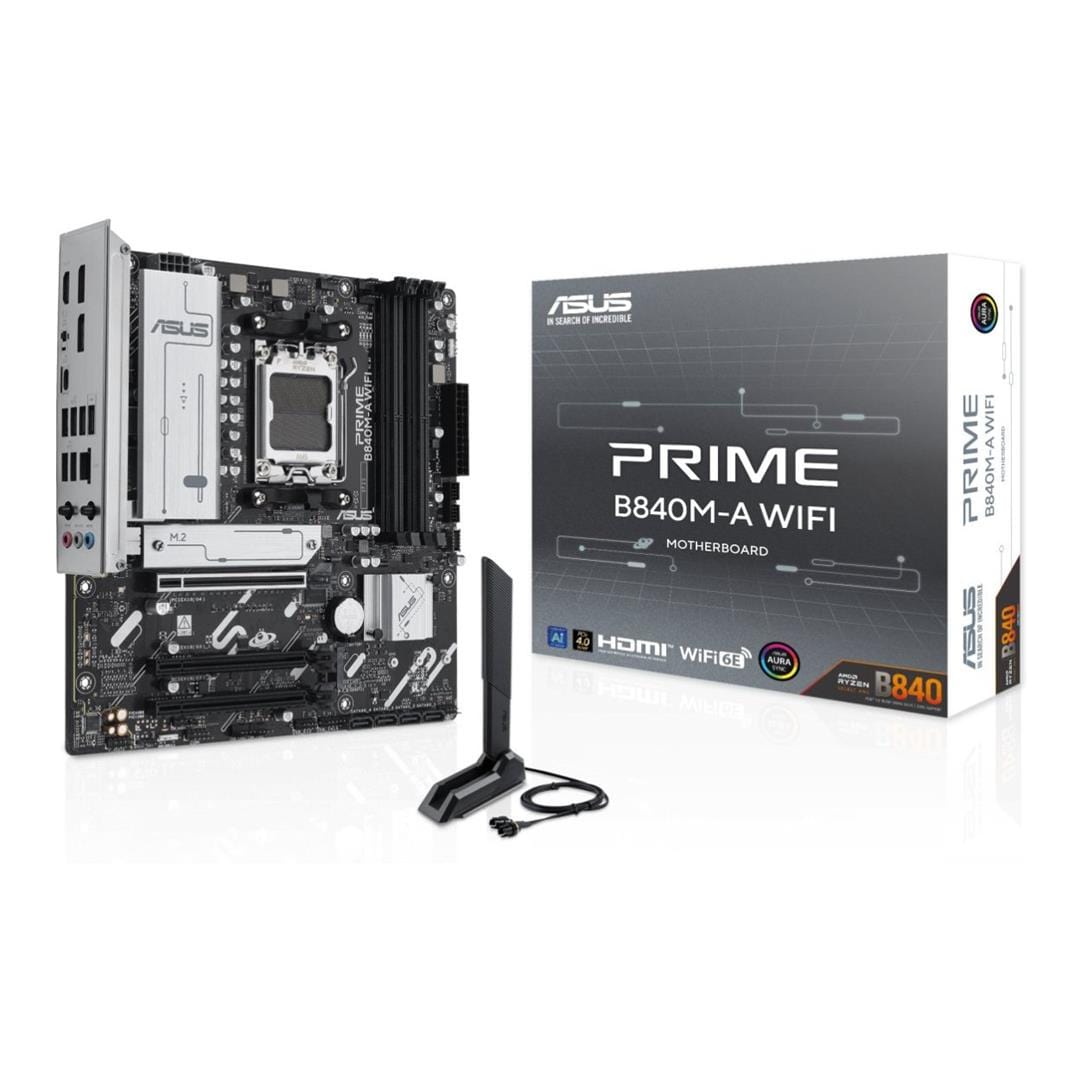

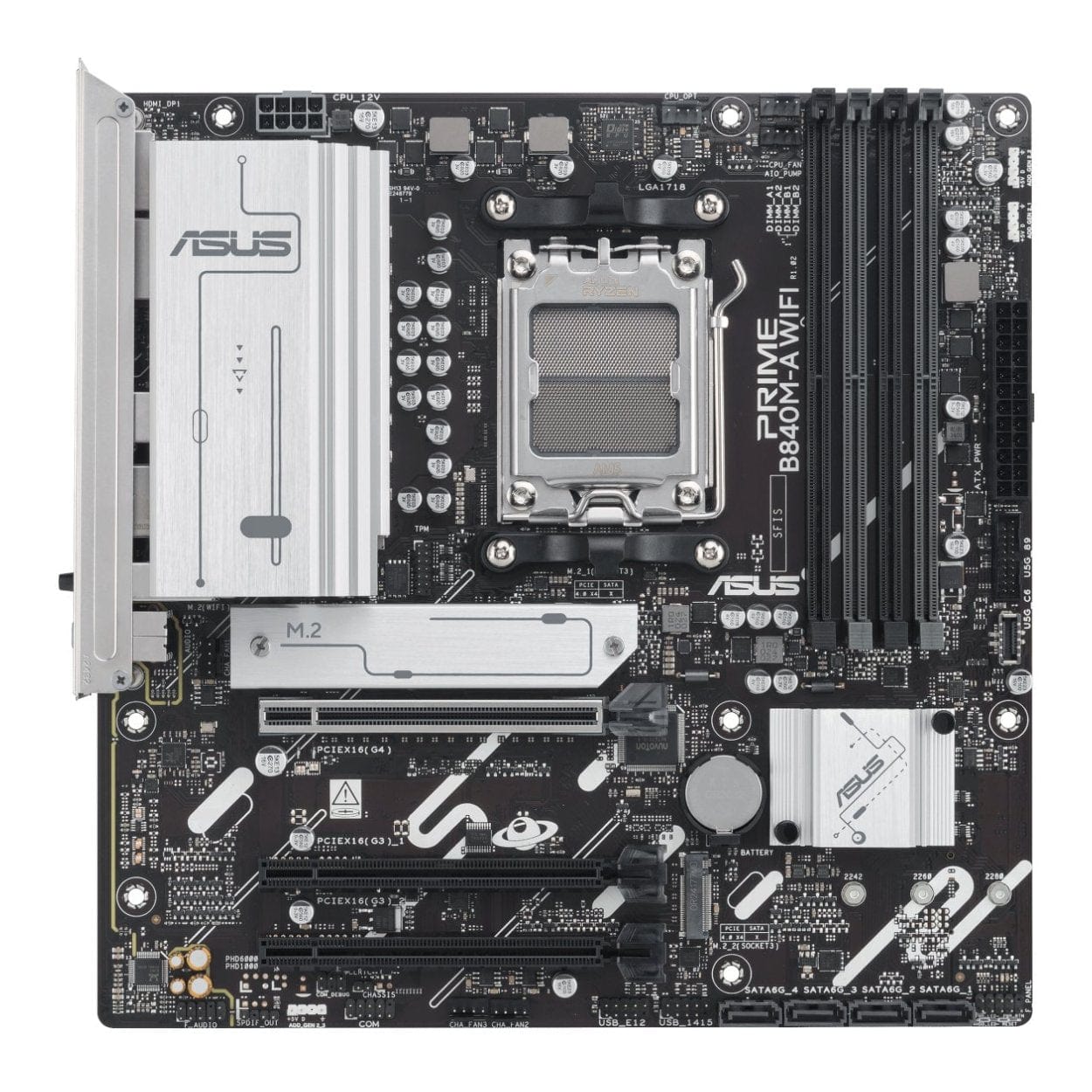

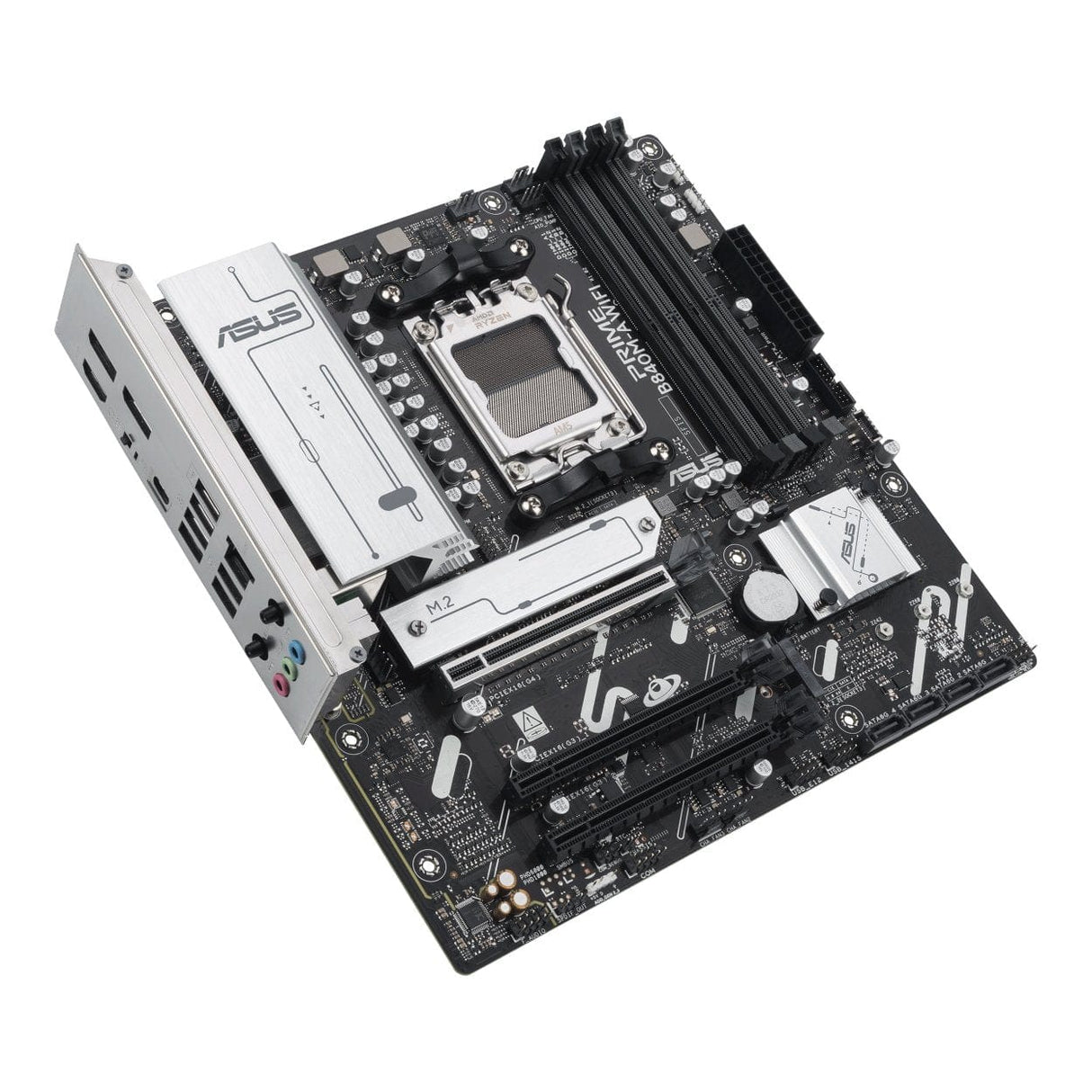

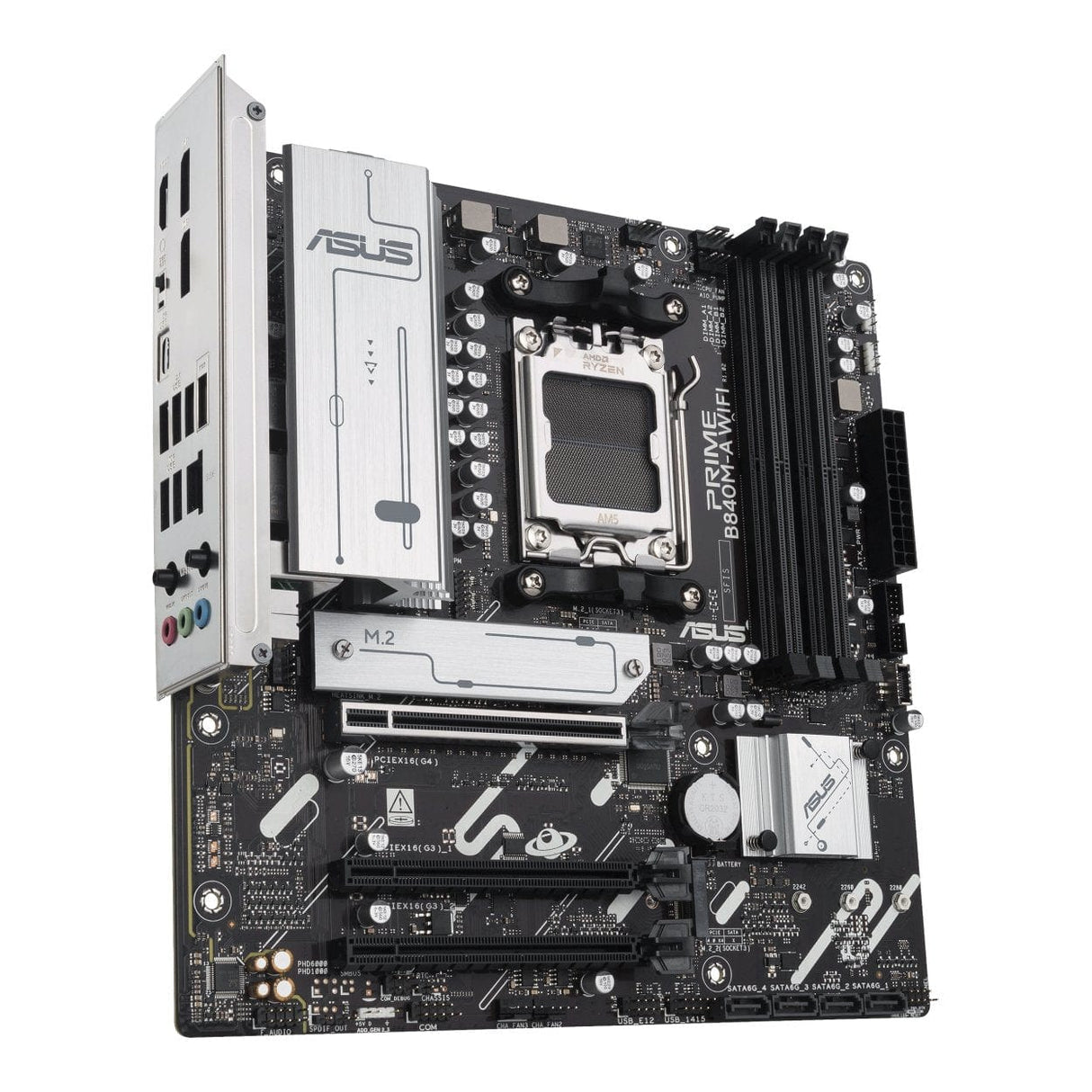

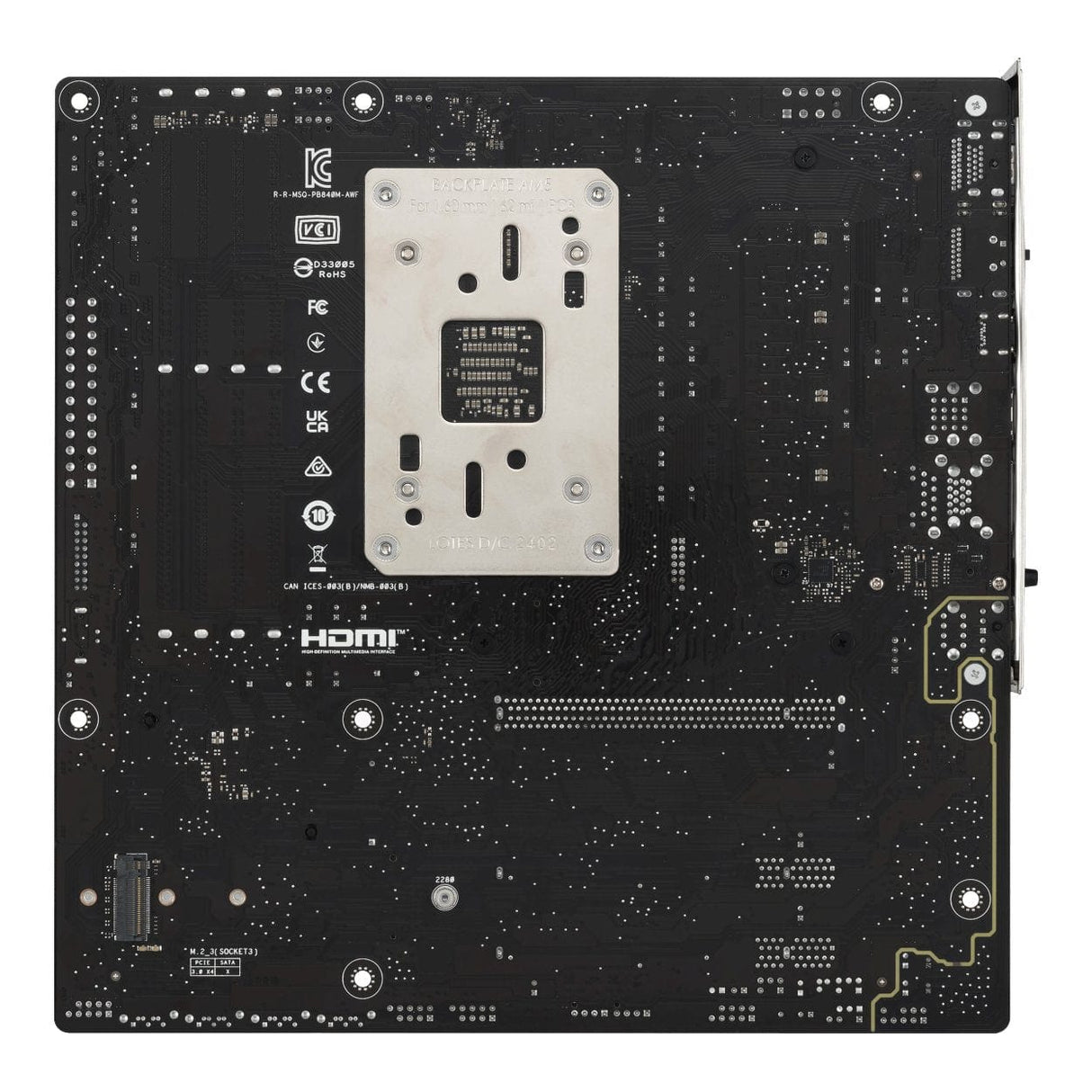

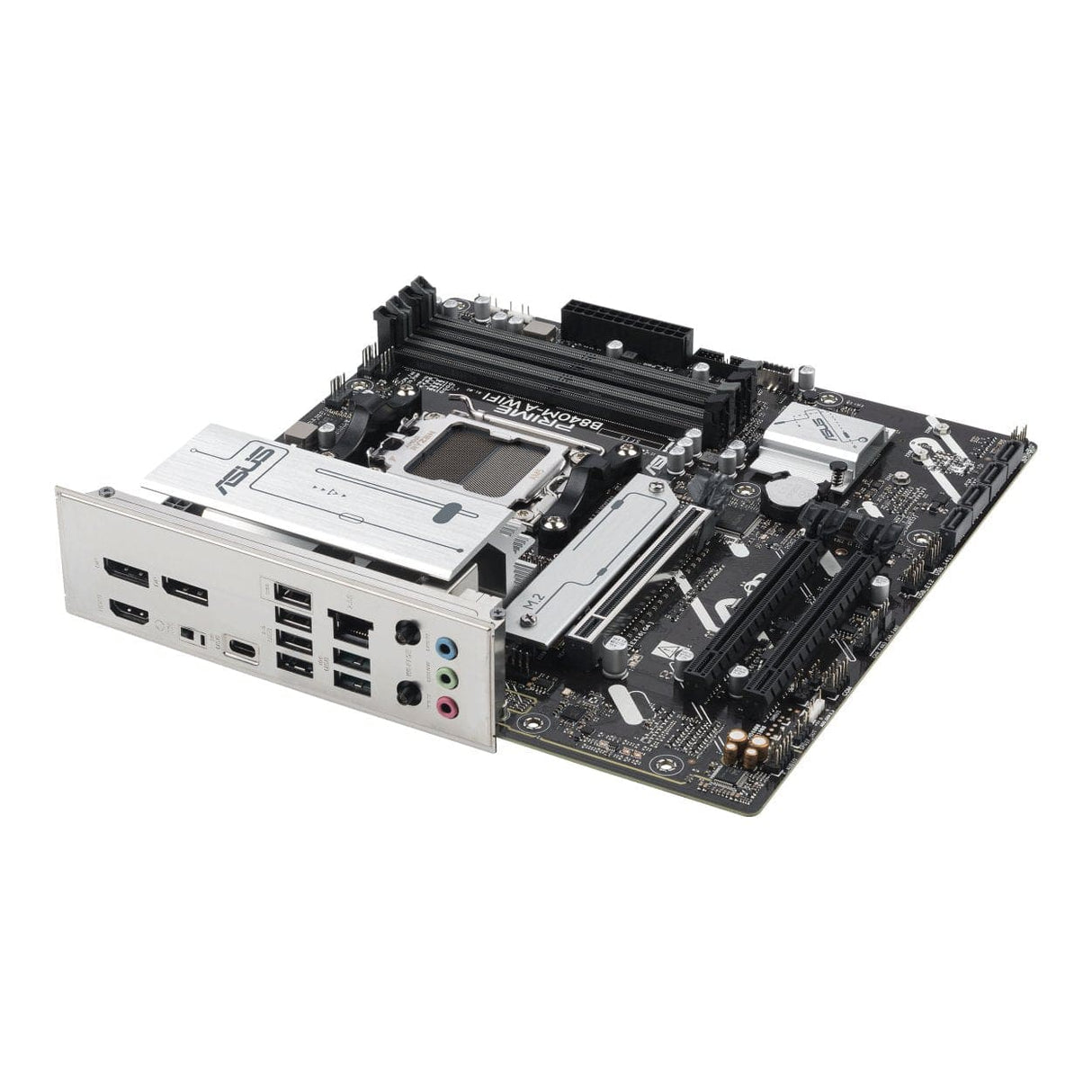

ASUS Prime B840M-A Wi-Fi AMD Socket AM5 micro ATX Motherboard 90MB1J20-M0EAY0

ASUS Prime B840M-A Wi-Fi AMD Socket AM5 micro ATX Motherboard 90MB1J20-M0EAY0

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Features:

• PRIME B840M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimisations via intuitive software and firmware features.
• Designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
• ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
• The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage drop, automatically switching frequency and power-efficiency settings.
• Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
• Built-in WiFi 6E Technology takes advantage of the newly available radio spectrum in the 6 GHz band.
• Aura Sync Complete RGB lighting control for enthusiast systems, ensuring seamless synchronisation with compatible hardware.
• Smart Protection A dedicated integrated circuit protects each fan header from overheating and excess current.
• Front USB 5Gbps Type-C This motherboard features a USB 5Gbps Type-C front panel connector for speedy data transfers of up to 5Gbps.

Performance

Digital Power Design

PRIME B840M-A WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.

Enhanced DDR5 performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B840M-A WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.

For entry-level modules without EXPO^™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the PRIME B840M-A WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO^™) support and a wide array of UEFI settings for further performance tweaks.

Cooler by design

The PRIME B840M-A WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Empowering connections

This motherboard offers a versatile range of connectivity, including support for WiFi 6E, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C^® connections.

Technical Specifications:

Processor manufacturer: AMD

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported memory types: DDR5-SDRAM

Maximum internal memory: 192 GB

Memory slots type: DIMM

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 0, 1, 5, 10

Ethernet interface type: 2.5 Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Component for: PC

Motherboard form factor: micro ATX

Motherboard chipset family: AMD
