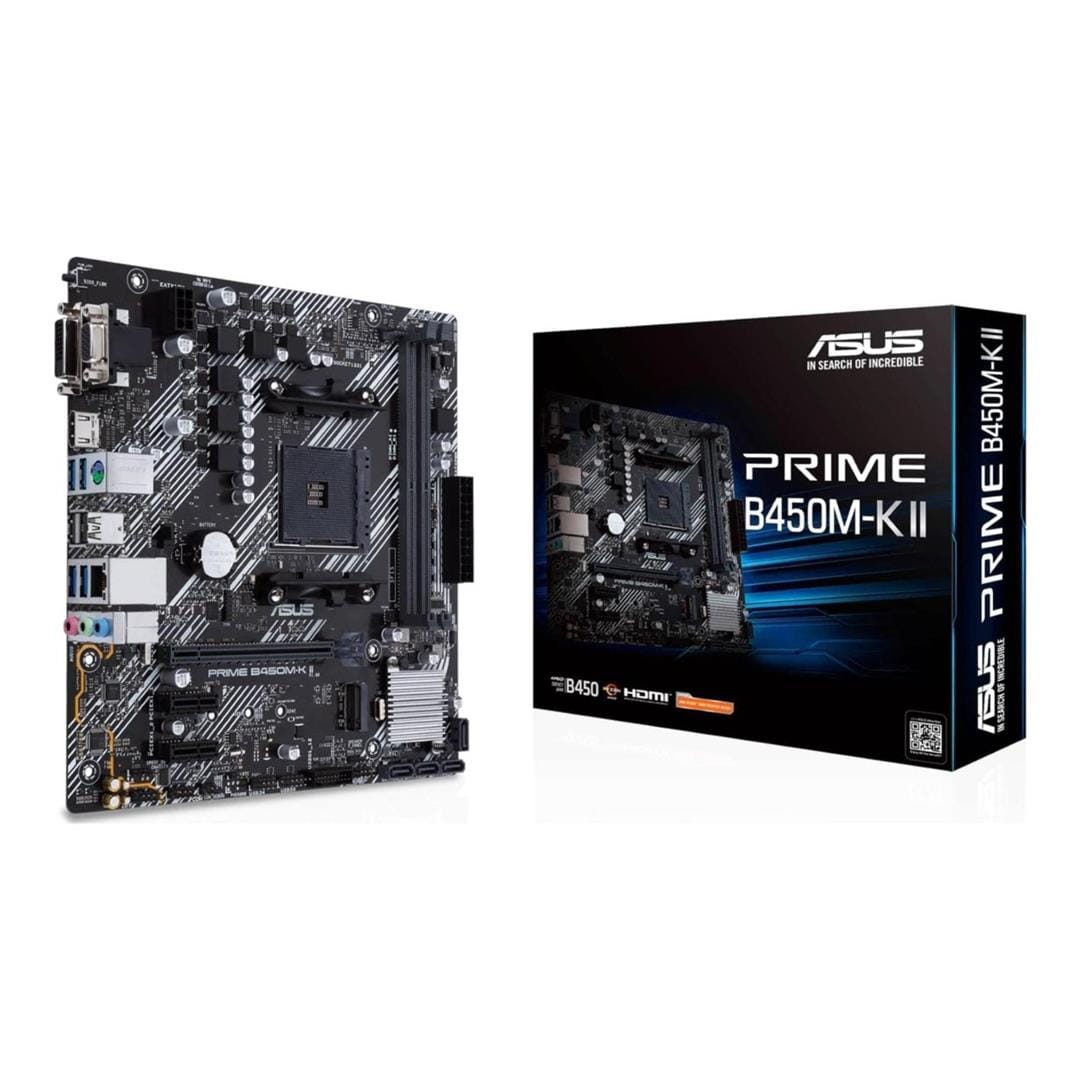

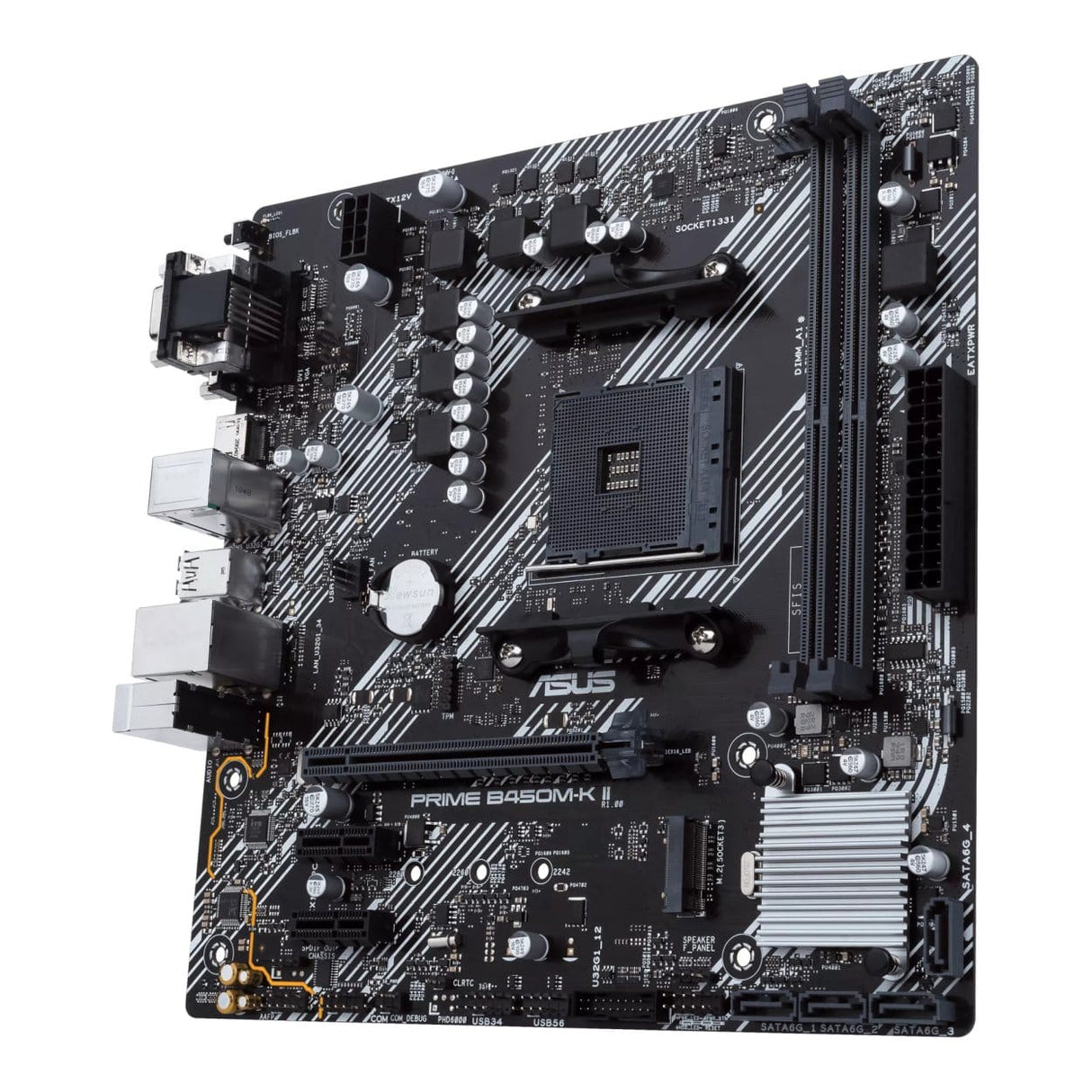

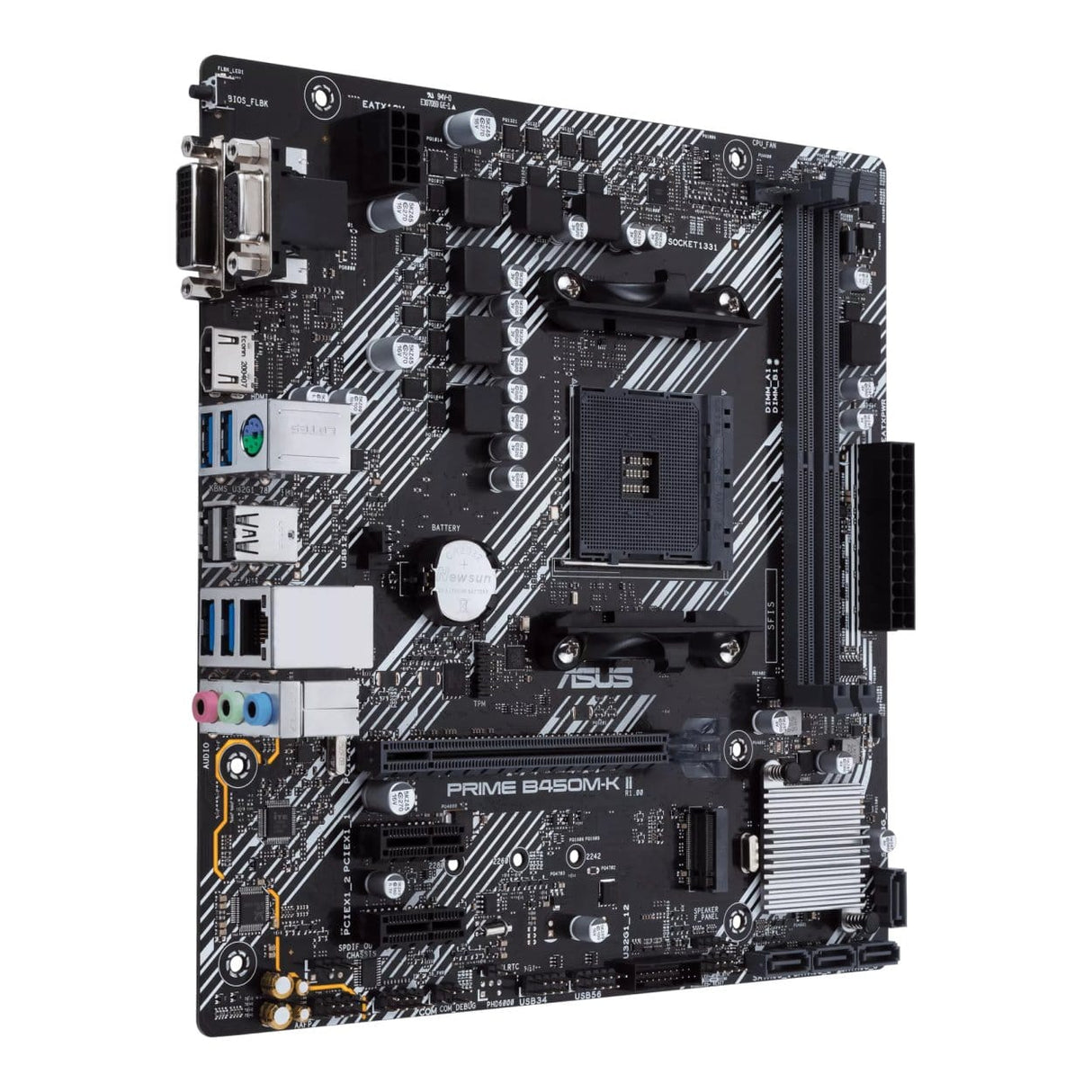

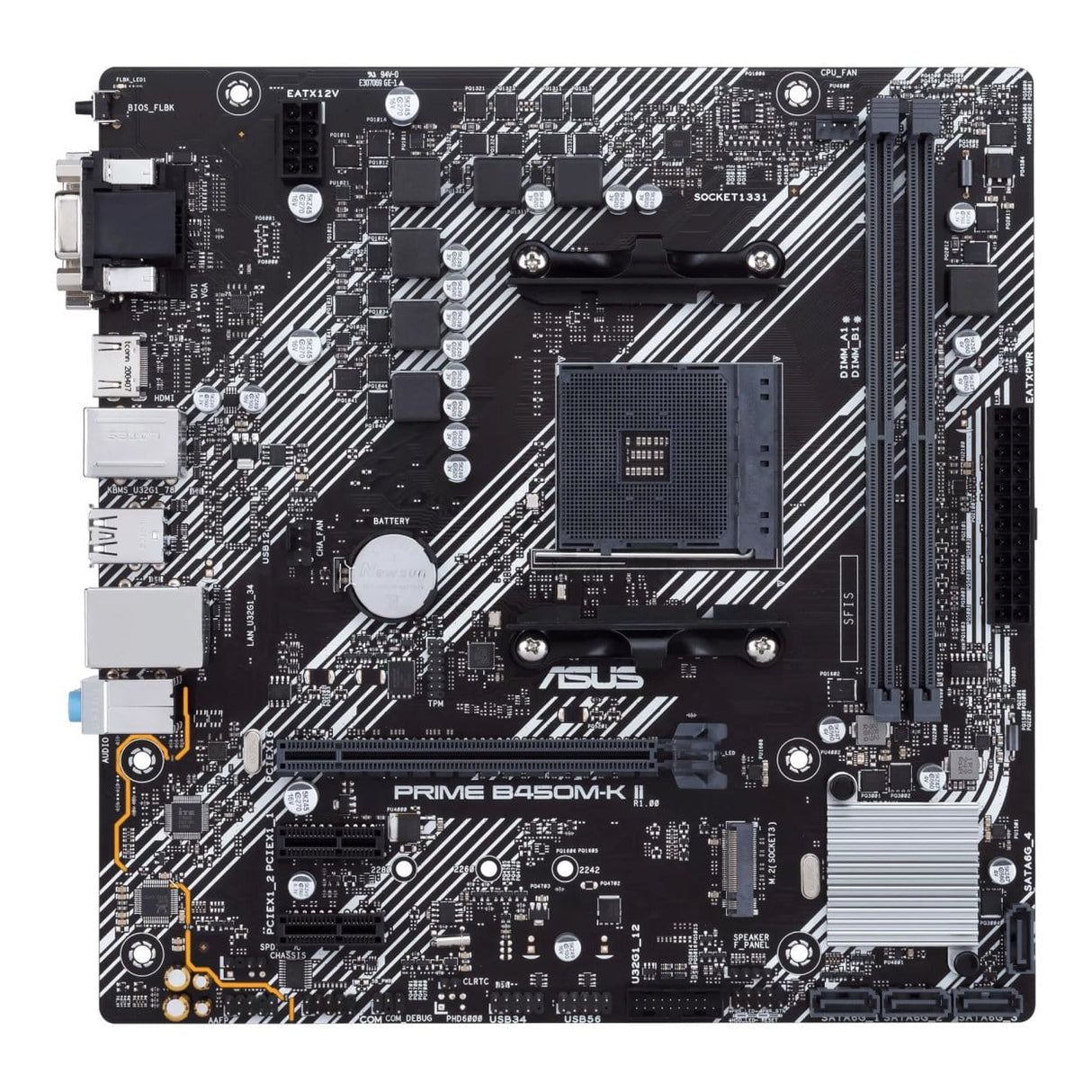

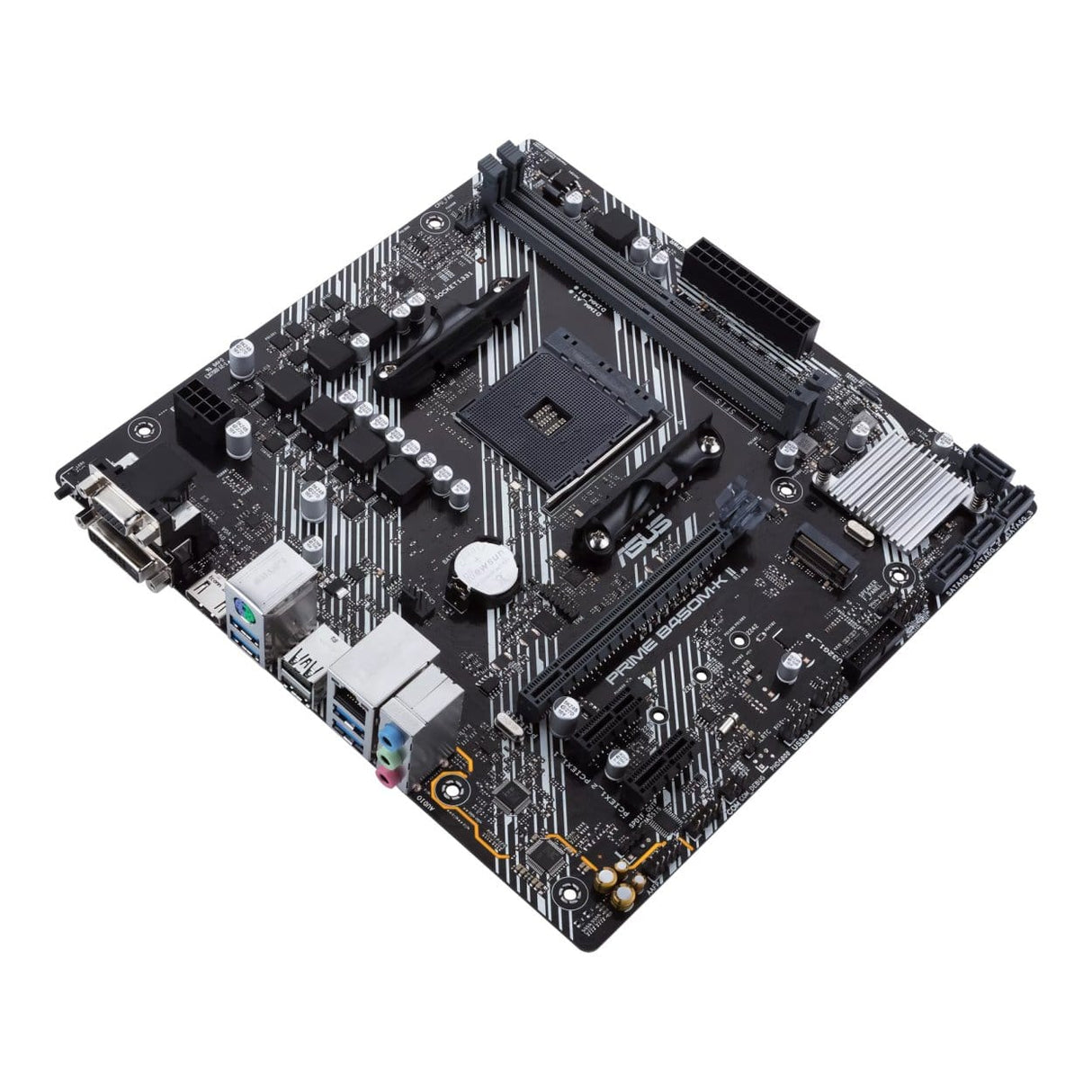

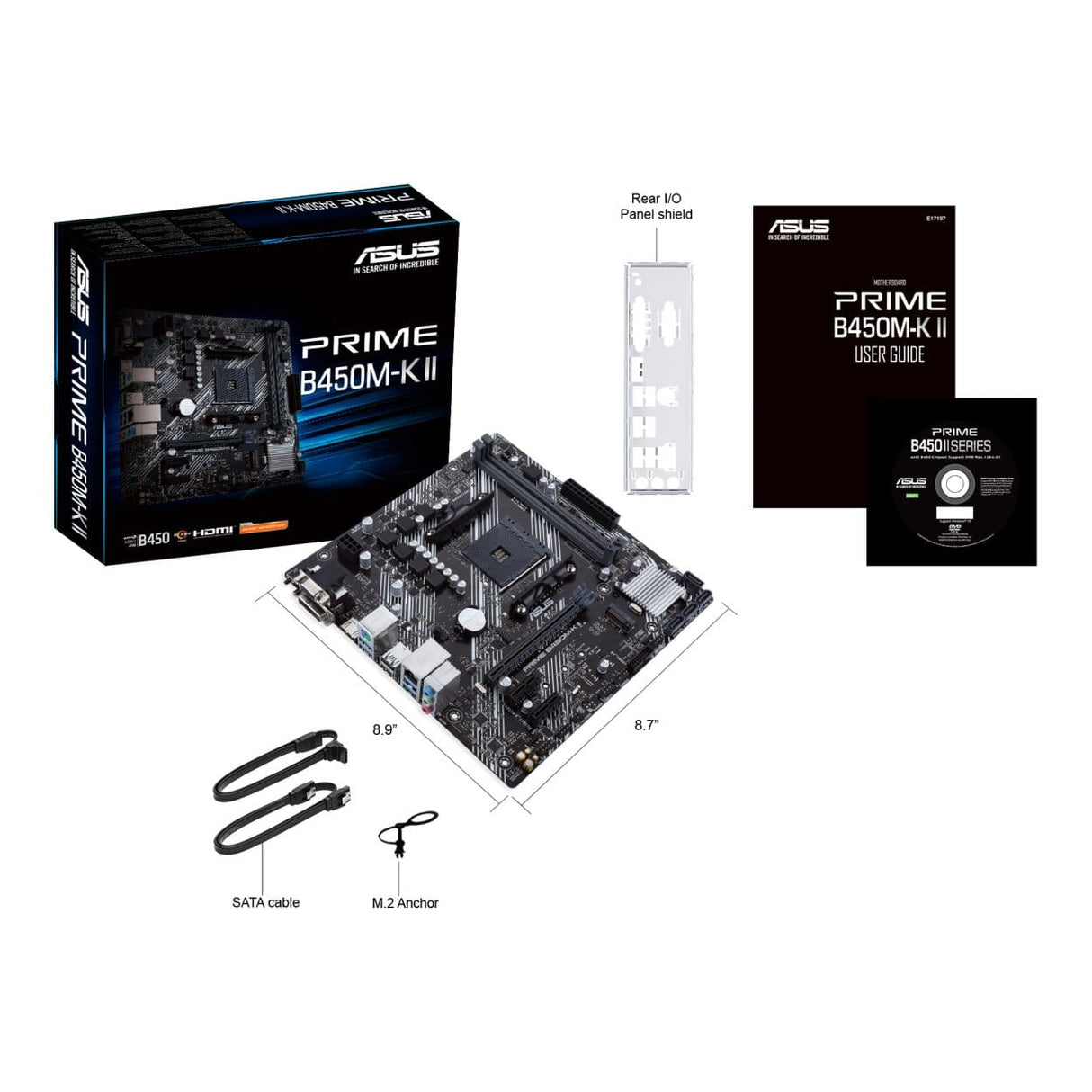

Asus Prime B450M-K II AMD Socket AM4 micro ATX Motherboard 90MB1600-M0EAY0

Asus Prime B450M-K II AMD Socket AM4 micro ATX Motherboard 90MB1600-M0EAY0

Features

• Comprehensive cooling: PCH heatsink, and Fan Xpert
• Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 1 Type-A
• 5X Protection III: Multiple hardware safeguards for all-around system protection
• LED illumination: Lighting control for both PCIe slot and audio trace paths

ASUS Prime B450M II Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into AMD Ryzen™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450M II Series motherboard, you build smart, easy and affordably.

Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B450M II motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

Cooler by Design
PRIME B450M-K II is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads.

Build on a Solid Foundation
Prime B450M II motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

PCIe 3.0 M.2
(up to 32 Gbps)
Achieve speed with onboard M.2
M.2 Slot supports data-transfer speed up to 32Gbps via x4 PCI Express® 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.

Little Things Make a Big Difference
Prime B450M II series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customize your system to create a unique personal look.

Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Technical Specification

Model: ASUS PRIME B450M-K II

CPU support

• AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors

Chipset: B450

Socket: AM4

Memory Type: DDR4

Memory Slots: 2 x DIMM

Maximum Capacity: 64GB

Maximum Memory Speed: Up to DDR4-4400 (OC)

Expansion Slots

• 1x PCIe 3.0 x16
• 2x PCIe 2.0 x1

Storage

• 1x M.2 Socket 3 (2242/2260/2280)
  PCIe 3.0 x4
  SATA Mode Supported
• 4x SATA 6Gb/s ports
• RAID 0, 1, 10 support

Networking

• Realtek RTL8111H Gigabit Ethernet
• 1x RJ45 LAN Port
• No onboard Wi-Fi

Audio

• Realtek ALC887 / ALC897 High Definition Audio Codec
• 7.1-Channel Audio
• 3x Audio Jacks

Graphics Outputs

• 1x HDMI
• 1x DVI-D
• 1x D-Sub (VGA)

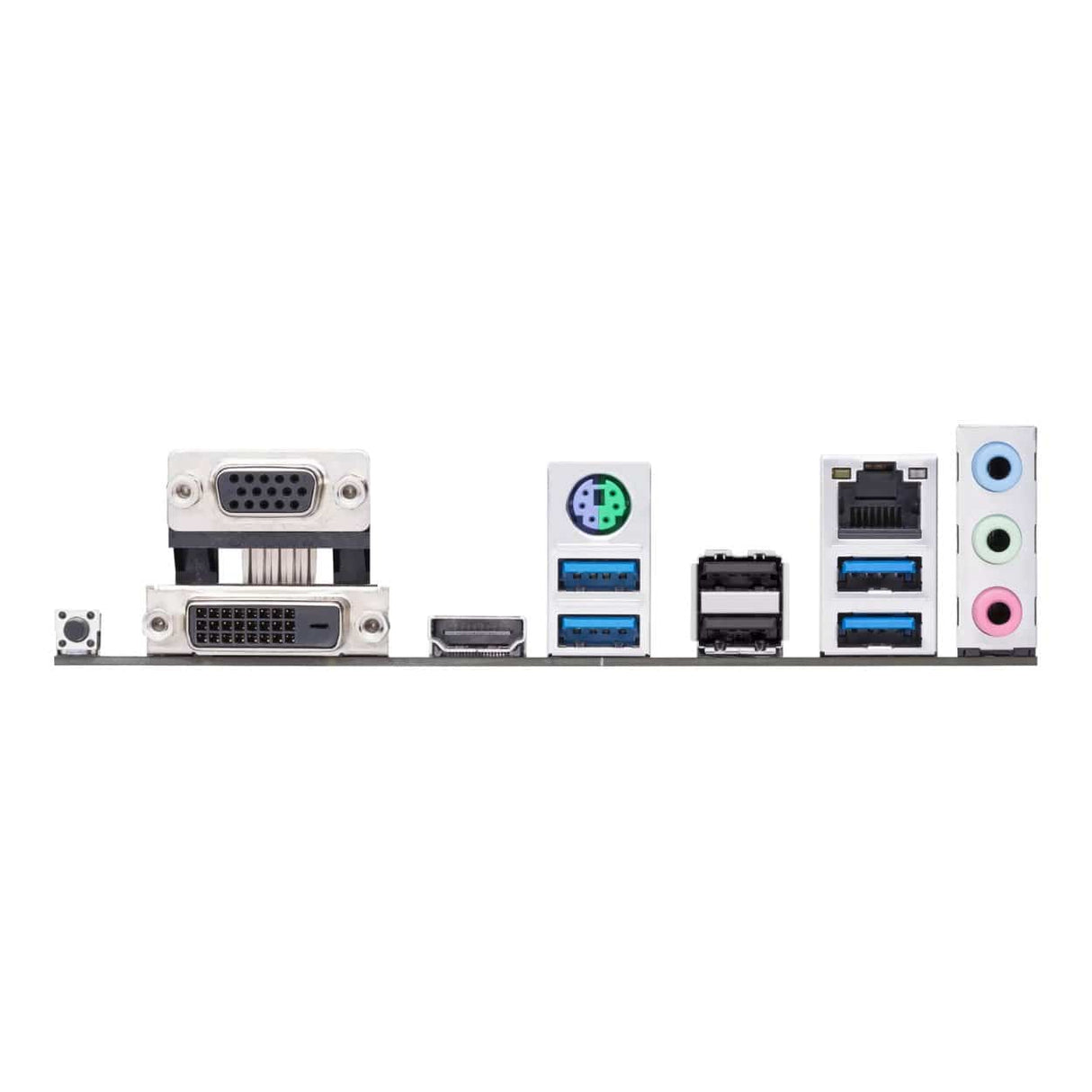

Rear I/O Ports

• 1x PS/2 Combo Port
• 4x USB 3.2 Gen 1 Type-A
• 2x USB 2.0 Type-A
• 1x HDMI
• 1x DVI-D
• 1x VGA (D-Sub)
• 1x RJ45 Gigabit LAN
• 3x Audio Jacks
• 1x BIOS FlashBack Button

Internal Connectors

• 1x USB 3.2 Gen 1 Header (supports 2 ports)
• 2x USB 2.0 Headers (supports 4 ports)
• 1x COM Port Header
• 1x TPM Header
• 1x S/PDIF Out Header
• 1x CPU Fan Header
• 1x Chassis Fan Header
• 1x Front Panel Audio Header
• 1x 24-pin ATX Power Connector
• 1x 8-pin CPU Power Connector

Form Factor: Micro-ATX (mATX)

Operating System: Win10 64bit / Win7 64bit
