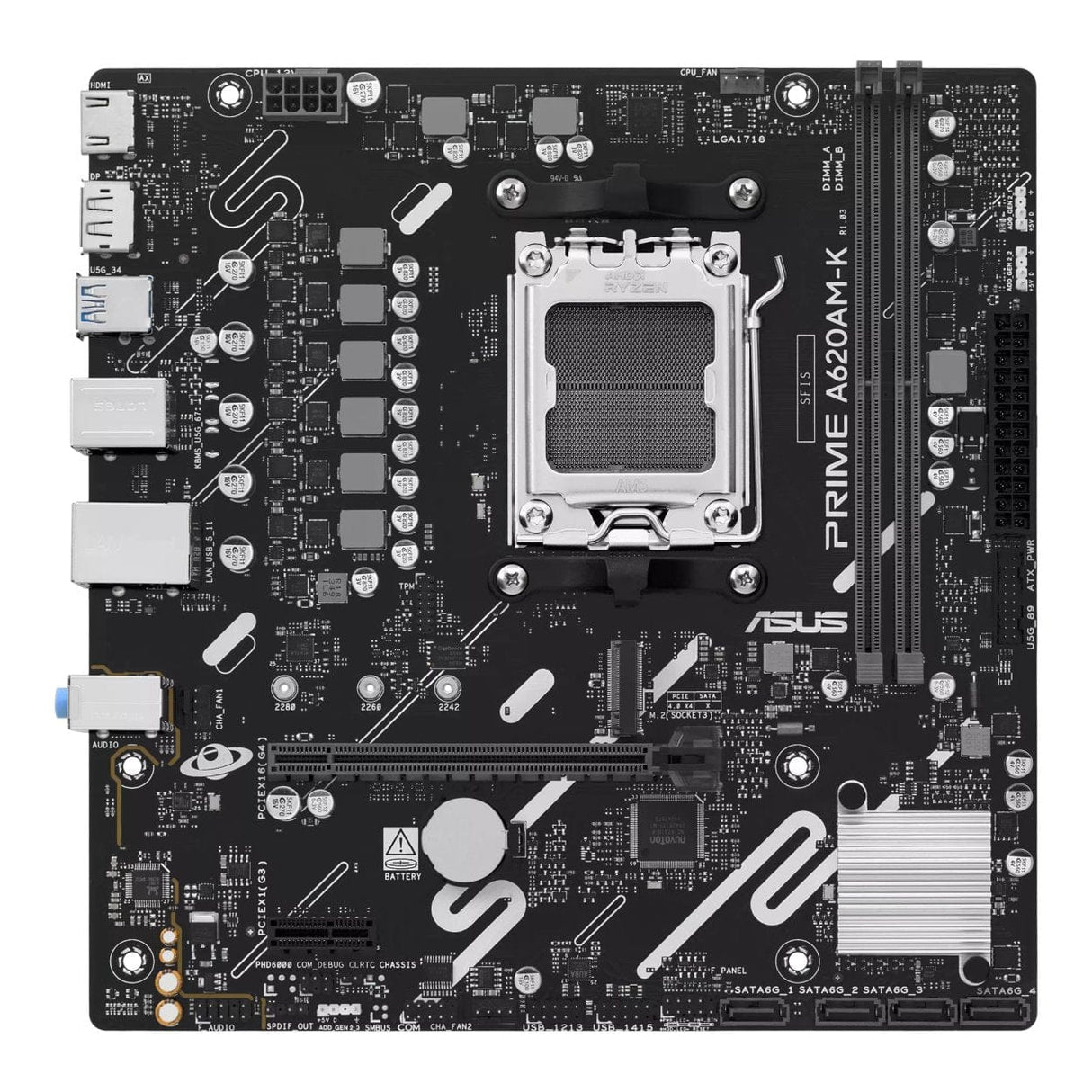

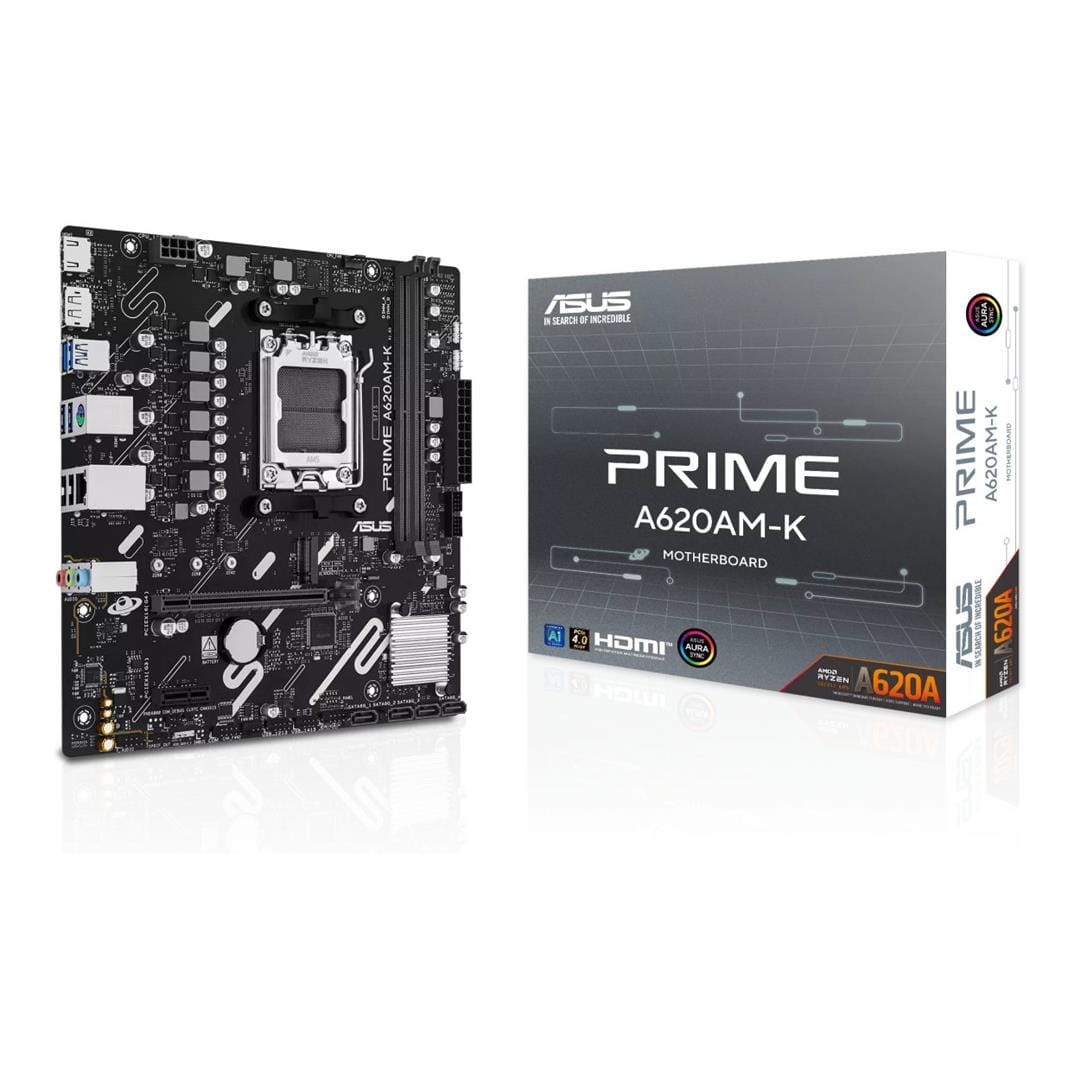

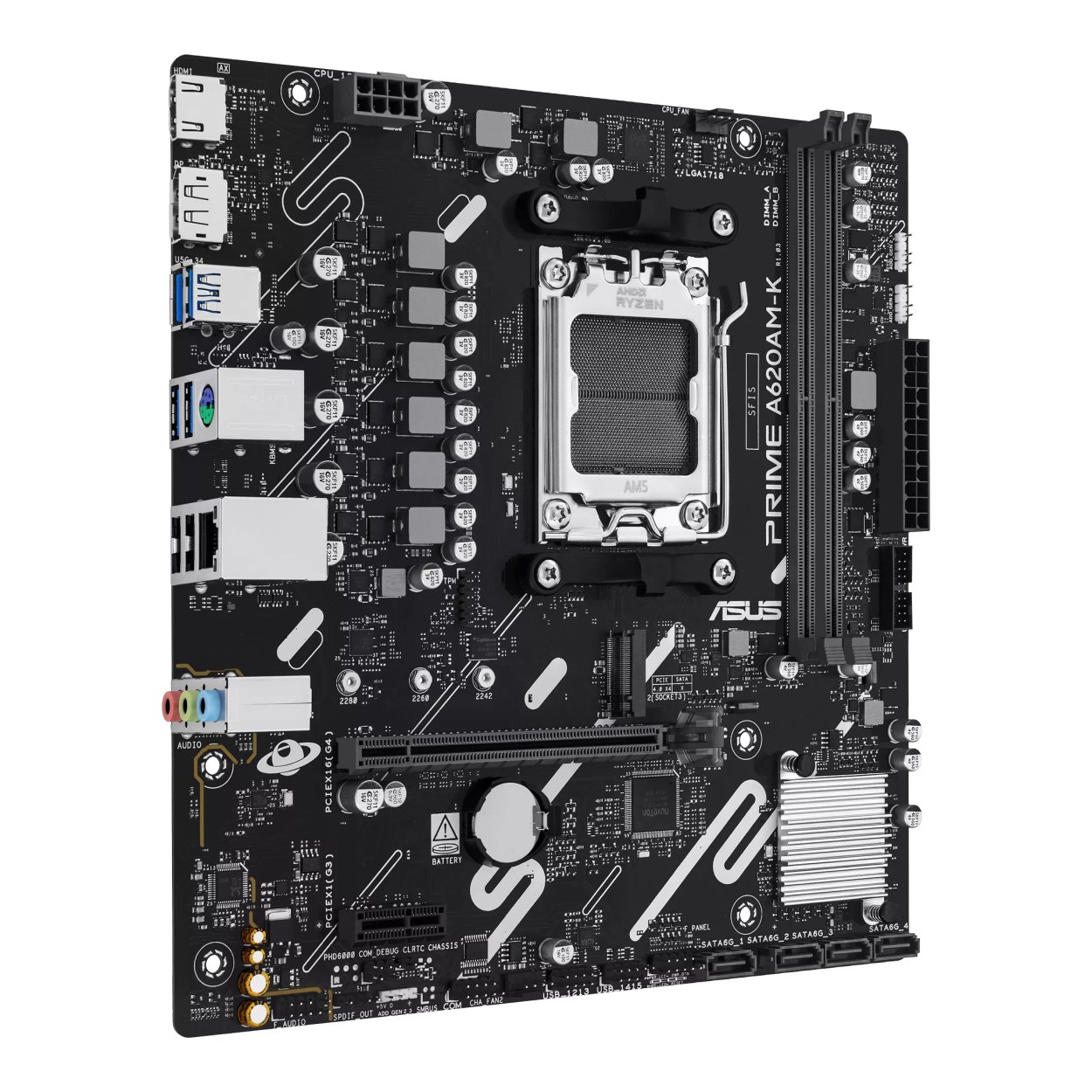

ASUS PRIME A620AM-K AMD Socket AM5 micro ATX Motherboard 90MB1GX0-M0EAY0

ASUS PRIME A620AM-K AMD Socket AM5 micro ATX Motherboard 90MB1GX0-M0EAY0

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen^™ 9000 series processors. The PRIME A620AM-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance

Digital Power Design

PRIME A620AM-K features 6+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.

Enhanced Memory & Storage Performance

Enhanced DDR5 performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME A620AM-K maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.

For entry-level modules without EXPO^™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.

For those looking to surpass stock DDR5 speeds, the PRIME A620AM-K offers extensive AMD Extended Profiles for Overclocking (EXPO^™) support and a wide array of UEFI settings for further performance tweaks.

Cooling

Cooler by design

The PRIME A620AM-K motherboard is engineered with onboard chipset heatsink and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Flexibility

Empowering connections

This motherboard offers a versatile range of connectivity, including support for PCIe 4.0 slot, 1Gb Ethernet and an arsenal of USB ports connection.

Customization

Personalization

The PRIME A620AM-K enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

Customization

DIY friendly

The PRIME A620AM-K motherboard features EZ PC DIY that simplify and speed up the PC building process, making DIY easy and convenient.

Build for the most advanced pc for gaming and creating

When only the fastest will do, ASUS motherboards deliver. With faster dual-channel DDR5 memory support, AMD EXPO^™ technology and PCIe^® 4.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS motherboard and AMD Ryzen^™ 9000, 8000, and 7000 Series processors.

Technical Specifications:

CPU: AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors (supports up to 120W CPU)
Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset: AMD A620A Chipset

Memory: 2 × DIMM slots, max. 128 GB, DDR5. Supports up to 7200+ MT/s (OC) with Ryzen™ 9000 & 7000 Series, 7600+ MT/s (OC) with Ryzen™ 8000 Series. Dual-channel memory architecture, Non-ECC un-buffered DIMM. Supports AMD Extended Profiles for Overclocking (EXPO™) and ASUS Enhanced Memory Profile (AEMP).

Graphics: 1 × DisplayPort (supports max. 8K@30Hz), 1 × HDMI™ port (supports 4K@60Hz)

Expansion Slots:

• AMD Ryzen™ 9000 & 7000 Series: 1 × PCIe 4.0 ×16 (x16 mode)
• AMD Ryzen™ 8000 Series: 1 × PCIe 4.0 ×16 (x8/x4 mode)
• AMD A620A Chipset: 1 × PCIe 3.0 ×1

Storage: 1 × M.2 slot (Key M, 2242/2260/2280, PCIe 4.0 x4), 4 × SATA 6Gb/s ports

RAID Support:

• Ryzen™ 9000 Series: RAID 0/1/5/10
• Ryzen™ 8000 Series: RAID 0/1
• Ryzen™ 7000 Series: RAID 0/1/10

Ethernet: 1 × Realtek 1Gb Ethernet, ASUS LANGuard

USB:

• Rear: 4 × USB 5Gbps (Type-A), 2 × USB 2.0 (Type-A)
• Front: 1 × USB 5Gbps header (supports 2 additional USB 5Gbps ports), 2 × USB 2.0 headers (support 4 additional USB 2.0 ports)

Audio: Realtek 7.1 Surround Sound HD Audio CODEC, supports jack-detection, multi-streaming, front panel jack-retasking. Playback up to 24-Bit/192 kHz.
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

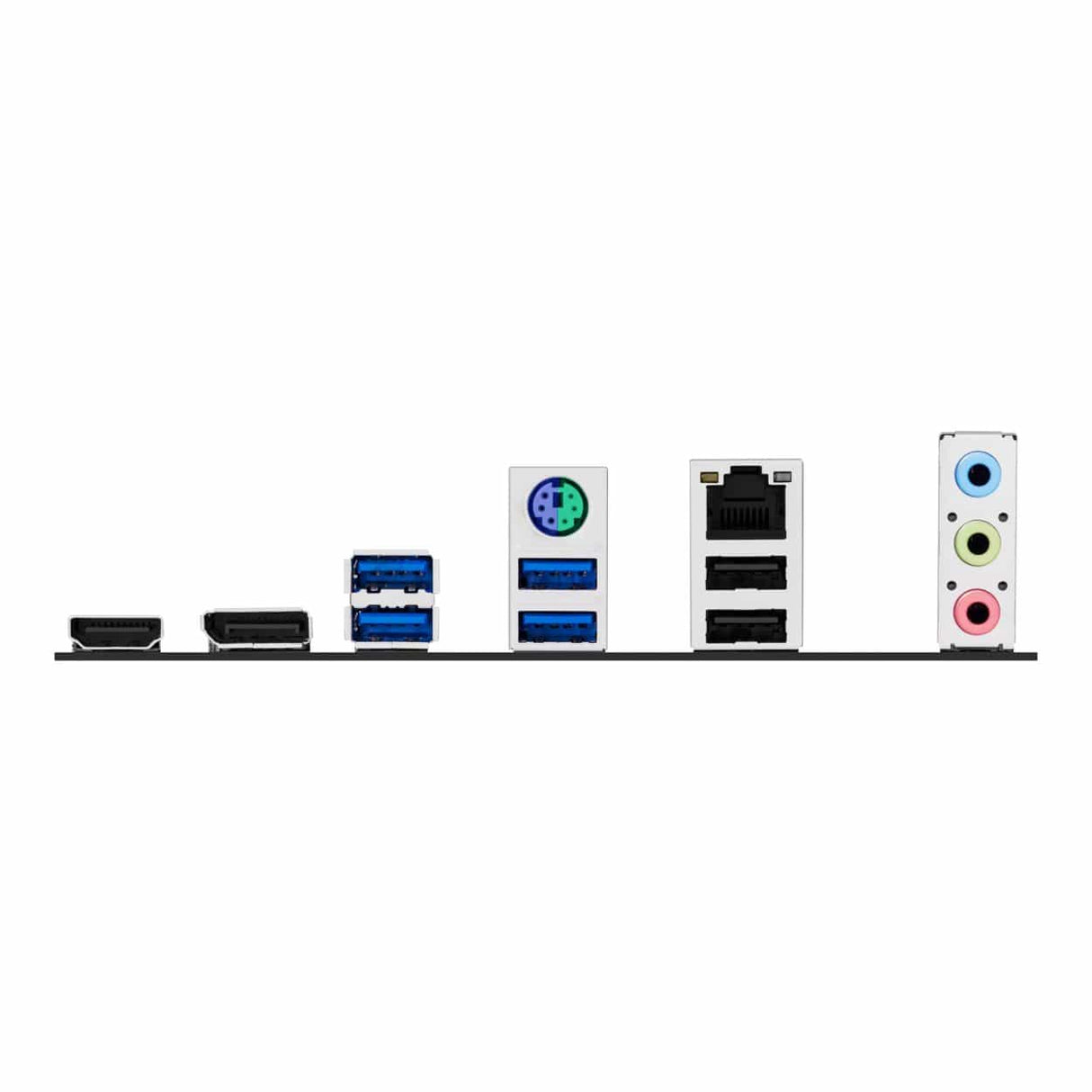

Back Panel I/O Ports: 4 × USB 5Gbps (Type-A), 2 × USB 2.0 (Type-A), 1 × DisplayPort, 1 × HDMI™ port, 1 × Realtek 1Gb Ethernet, 3 × Audio jacks, 1 × PS/2 keyboard/mouse combo port

Internal I/O Connectors: 1 × 4-pin CPU Fan header, 2 × 4-pin Chassis Fan headers, 1 × 24-pin Main Power connector, 1 × 8-pin +12V CPU Power connector, 1 × M.2 slot (Key M), 4 × SATA 6Gb/s ports, 1 × USB 5Gbps header (supports 2 additional ports), 2 × USB 2.0 headers (support 4 additional ports), 3 × Addressable RGB Gen 2 headers, 1 × Clear CMOS header, 1 × COM Port header, 1 × Front Panel Audio header, 1 × S/PDIF Out header, 1 × SPI TPM header, 1 × 10-1 pin Front Panel System header

Special Features: ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core, Stainless-steel back I/O), ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), ASUS Thermal Solution (Aluminum heatsink design), Aura Sync (Addressable RGB Gen 2 headers)

Software Features: ASUS Exclusive Software (Armoury Crate: Aura Creator, Aura Sync, Fan Xpert 2+, ASUS DriverHub, ASUS CPU-Z), Adobe Creative Cloud (Free Trial), Norton 360 Deluxe (60 Days), WinRAR (40 Days), UEFI BIOS, AI Cache Boost, ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode)

Manageability: WOL by PME, PXE

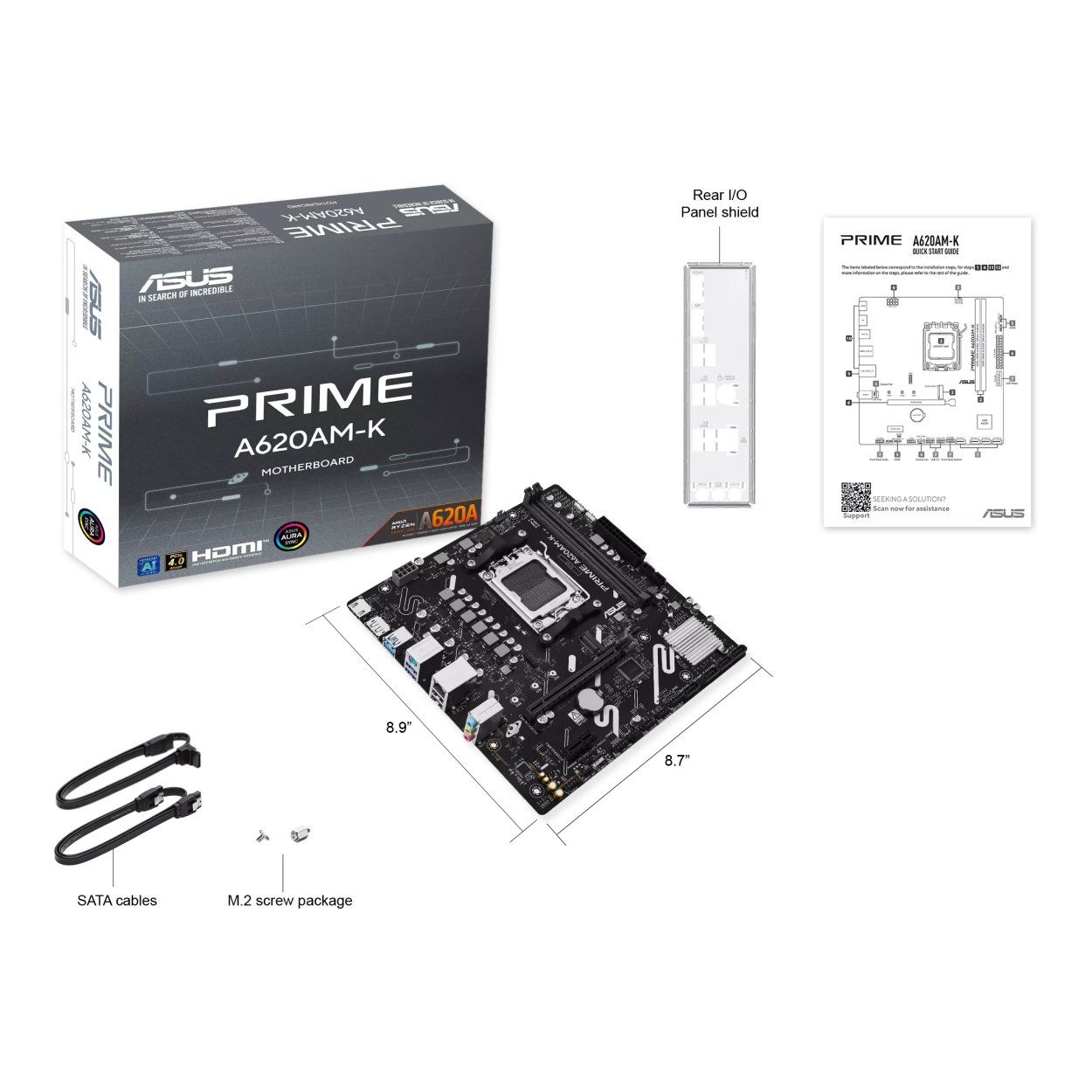

Accessories:

• 2 × SATA 6Gb/s cables

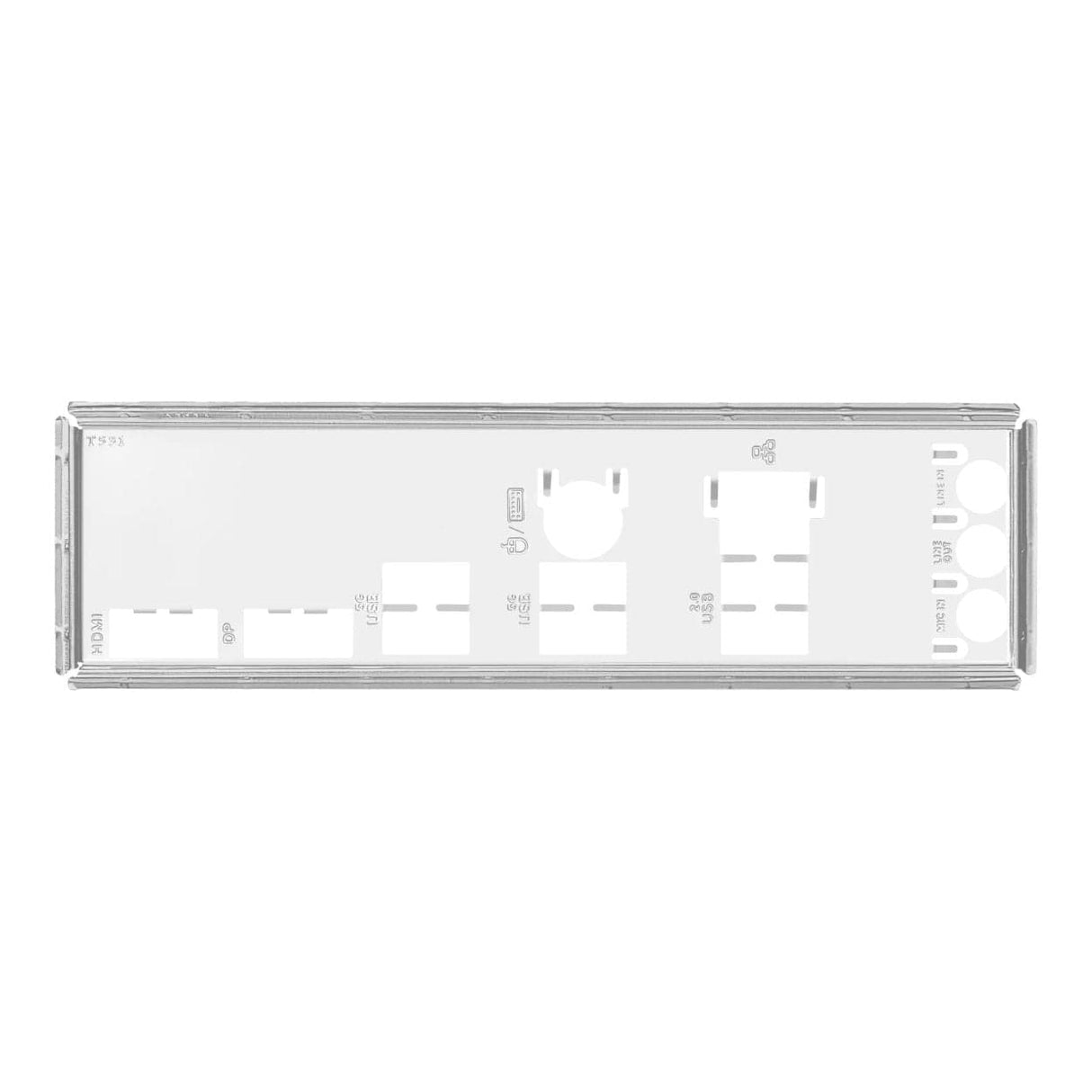

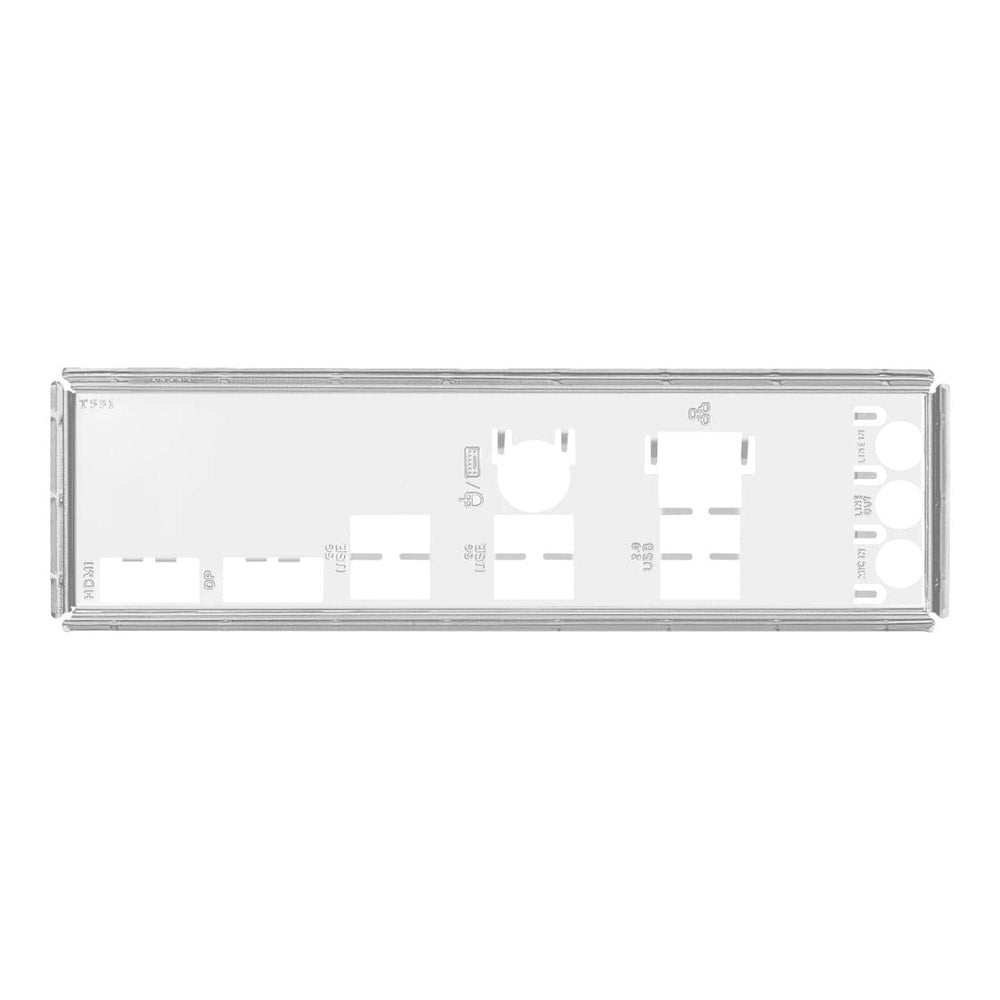

• 1 × I/O shield
• 1 × Screw package for M.2 SSD
• 1 × Quick start guide

Operating System: Windows 11, Windows 10 64-bit

Form Factor: micro-ATX, 22.6 × 22.1 cm (8.9 × 8.7 in)
