Optimized VRM Design

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

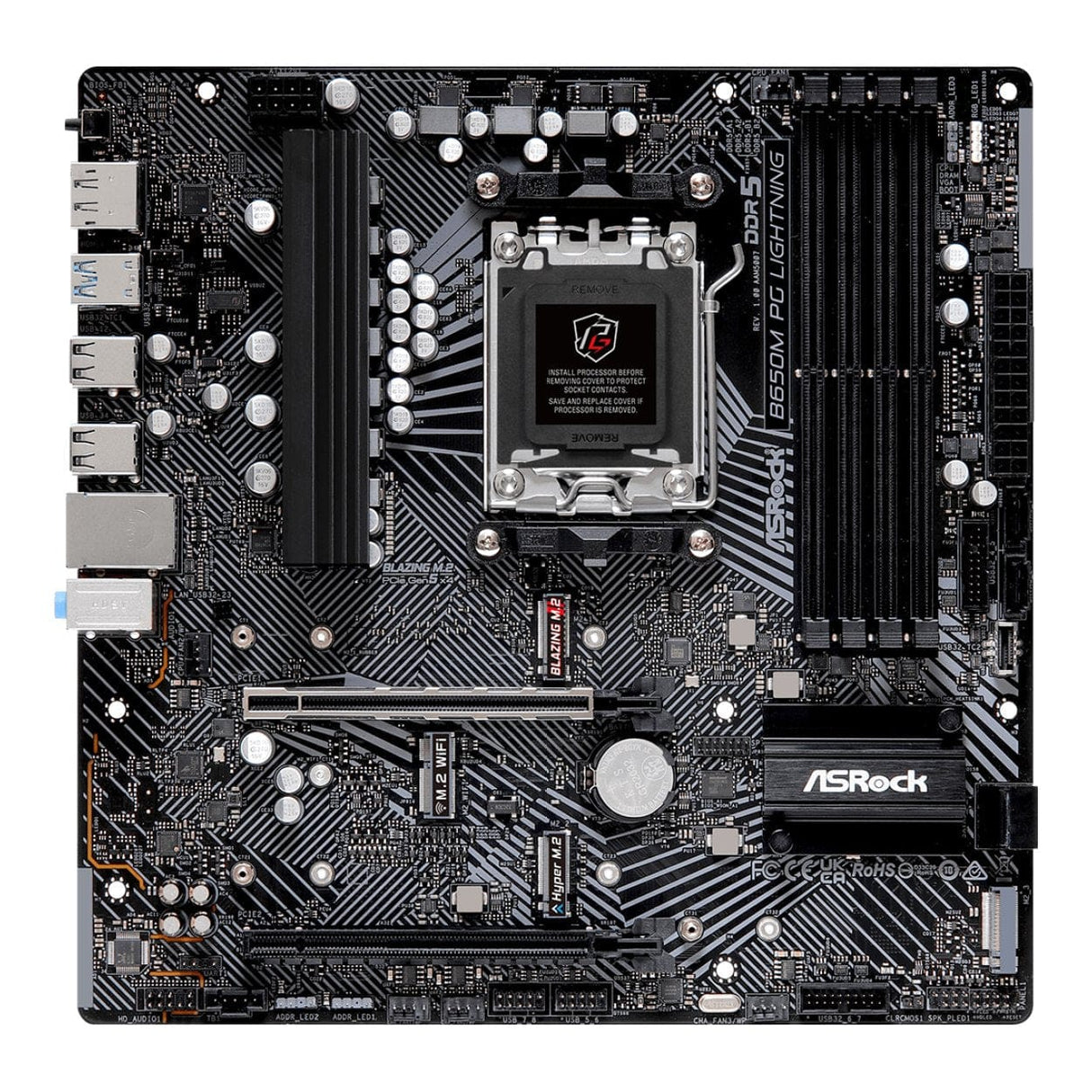

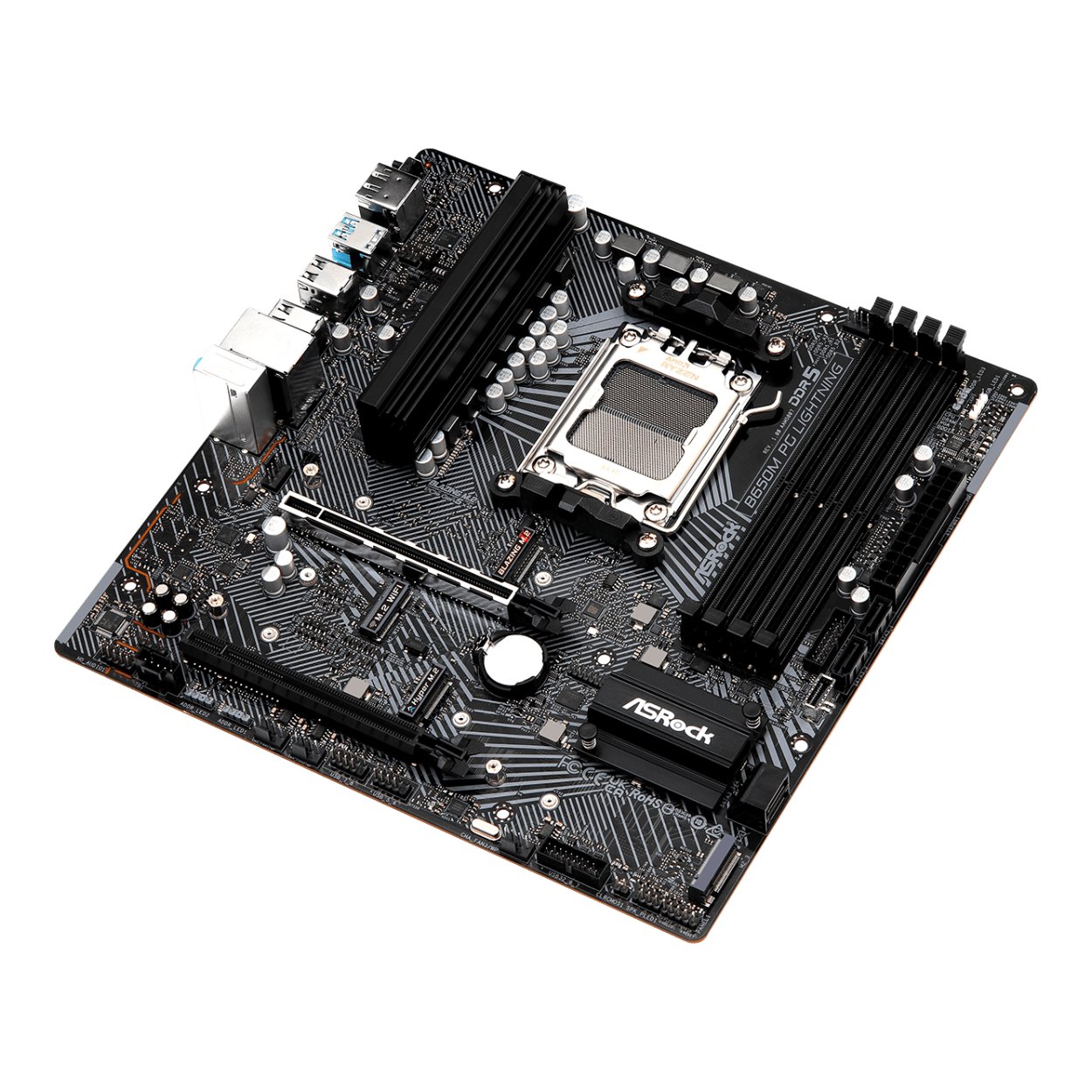

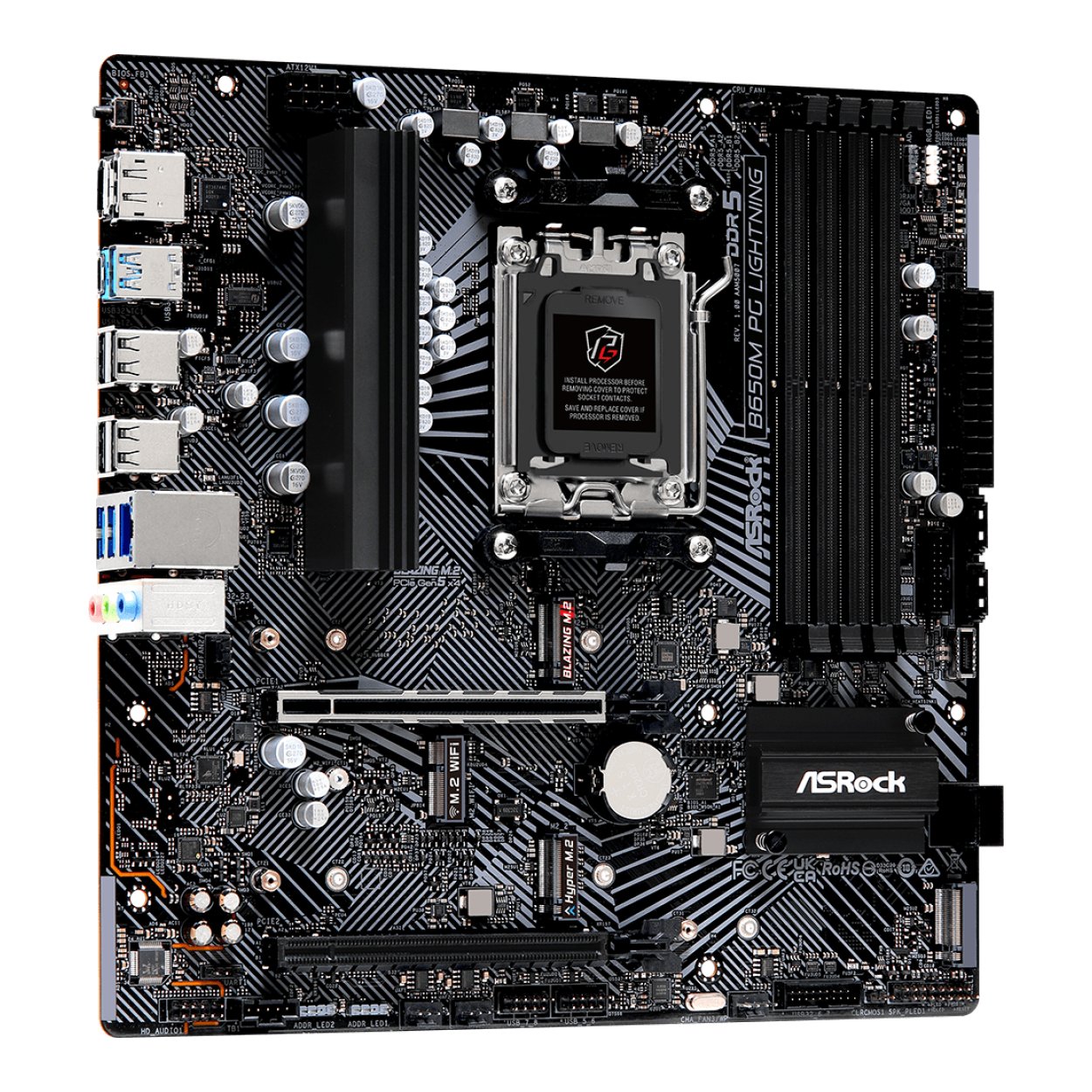

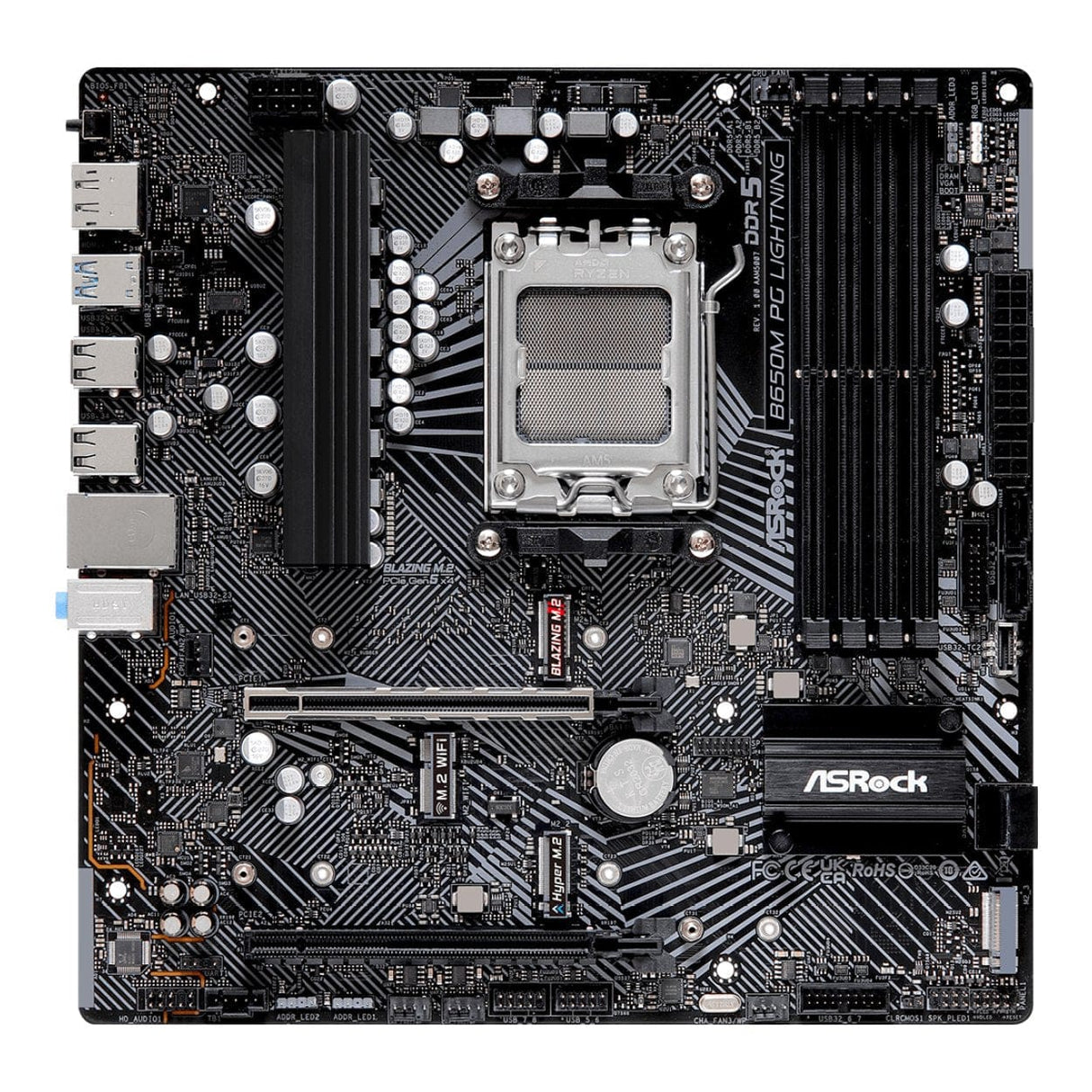

Features:

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 6+2+1 Power Phase, Dr.MOS
• 4 x DDR5 DIMMs

Supports Dual Channel, up to 7200+ (OC)

• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi
• Graphics Output: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),

1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)

• 1 USB 3.2 Gen2 Type A+C (Rear),
• 1 USB 3.2 Gen1 Type-C (Front),
• 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front),

Phantom Gaming 2.5G LAN

Supports ASRock Auto Driver Installer, BIOS Flashback

6+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Extreme Overclocking PerformanceDDR5 EXPO & XMP Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 6-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Blazing OC Tuner

The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.

AMD PBO Technology

PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.

Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:

• Extra anchor points
• Stronger latch
• Ensure signal stability
• Make sure heavy graphics cards to be well-installed.

Nahimic AudioAudio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

• Static Noise Suppression
• Echo Cancellation
• Lateral Sound Cancellation
• Voice Stabilizer

Ultimate Gaming Experience

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

Technical Specifications:

Unique Feature
Superb Productivity: PCIe Gen5 (M.2), Dual Channel DDR5
Rock-Solid Durability: 6+2+1 Power Phase, 50A Dr.MOS
Ultrafast Connectivity: 2.5G LAN
EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer
EZ Troubleshooter: ASRock Post Status Checker

CPU
Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors
*Availability of expansion slots may vary by CPU

Chipset
AMD B650

Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC un-buffered memory up to 7200+(OC)
Maximum system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS
256Mb AMI UEFI Legal BIOS with GUI support

Graphics
Integrated AMD RDNA™ graphics (actual support depends on CPU)
1 x HDMI 2.1 (supports HDR, HDCP 2.3, max resolution 4K 120Hz)
1 x DisplayPort 1.4 with DSC (supports HDCP 2.3, max resolution 4K 120Hz)

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG
Supports Phantom Gaming LAN Software, Smart Auto Adjust Bandwidth Control, Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

Slots
CPU: 1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x4 mode)
Chipset: 1 x M.2 Socket (Key E) for WiFi/BT PCIe module
Supports AMD CrossFire™
15μ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks

Storage
CPU: 1 x M.2 Socket (M2_1, PCIe Gen5 x4, 128 Gb/s)
Chipset: 1 x M.2 Socket (M2_2, PCIe Gen4 x4), 1 x M.2 Socket (M2_3, PCIe Gen4 x2), 4 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disks

RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices*
*Requires additional M.2 NVMe expansion cards to support RAID 10

USB
Rear: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
Front: 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
*All USB ports support ESD Protection

Connectors
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector (Hi-Density)
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin)
2 x USB 2.0 Headers (support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type-C USB 3.2 Gen1 Header

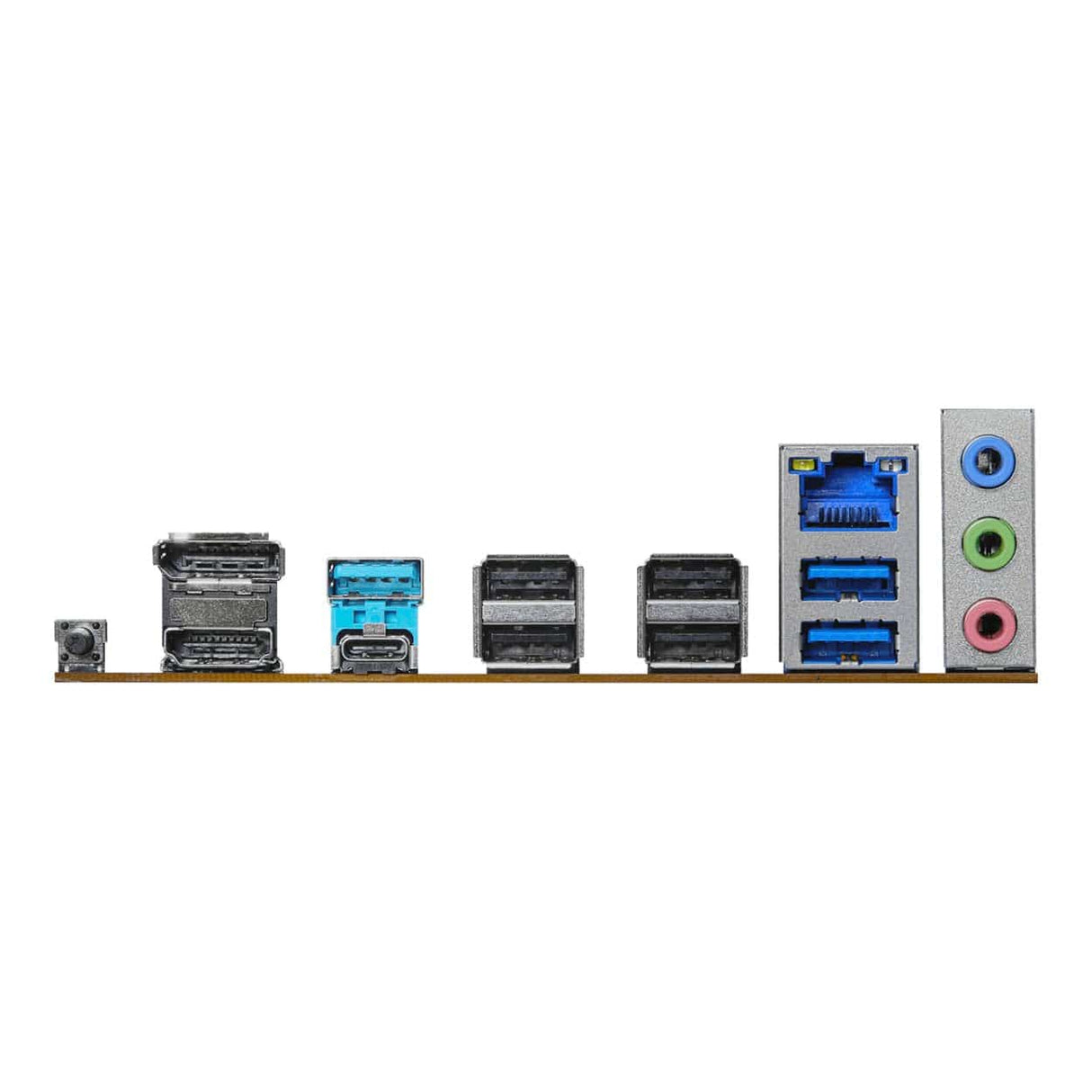

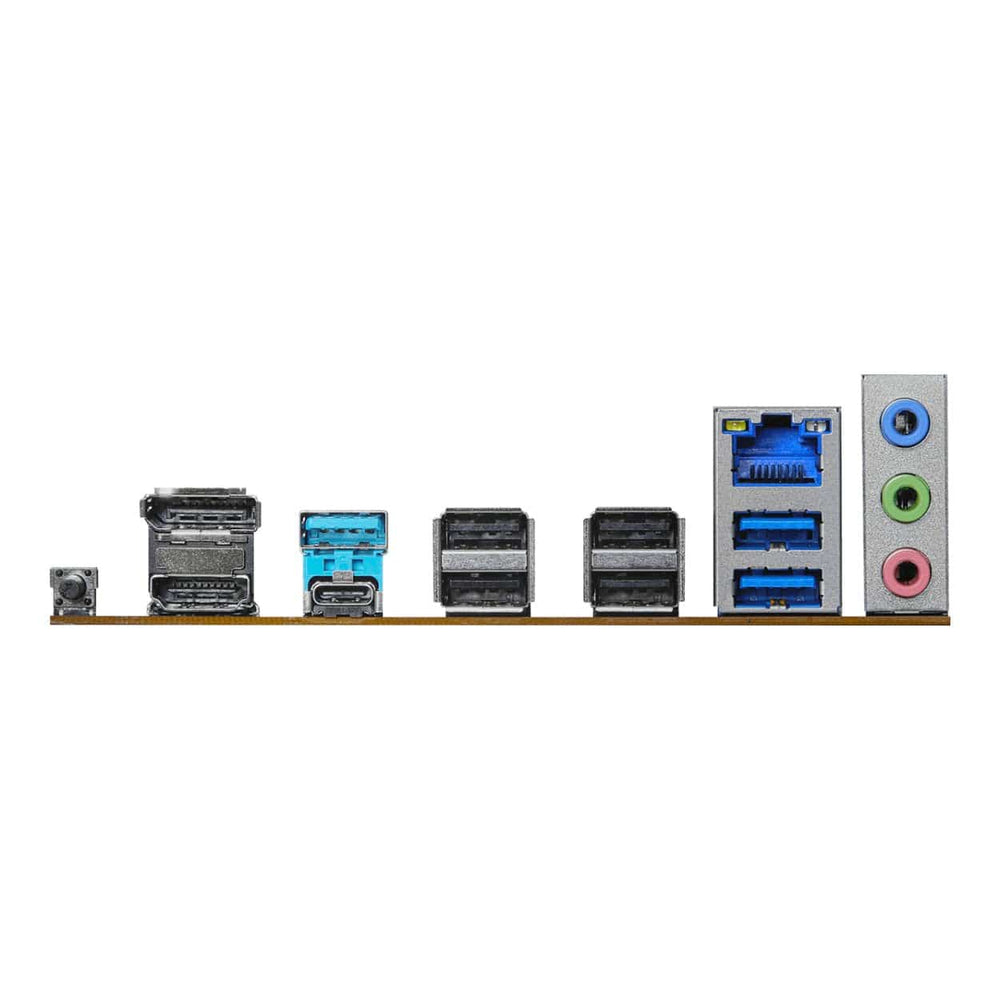

Rear Panel I/O
2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A (10 Gb/s)
1 x USB 3.2 Gen2 Type-C (10 Gb/s)
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
ASRock Motherboard Utility (Phantom Gaming Tuning)
ASRock Phantom Gaming LAN Software
ASRock Polychrome SYNC
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

Accessories
User Manual
I/O Shield
2 x SATA Data Cables
4 x Screws for M.2 Sockets

Form Factor
Micro ATX, 24.4 cm x 24.4 cm

OS
Microsoft Windows® 10 64-bit / 11 64-bit

Certifications
FCC, CE, ErP/EuP ready
