Brateck Desk Mount Bracket with Tilt for 13-27-inch Monitor LDT07-C012

Brateck Desk Mount Bracket with Tilt for 13-27-inch Monitor LDT07-C012

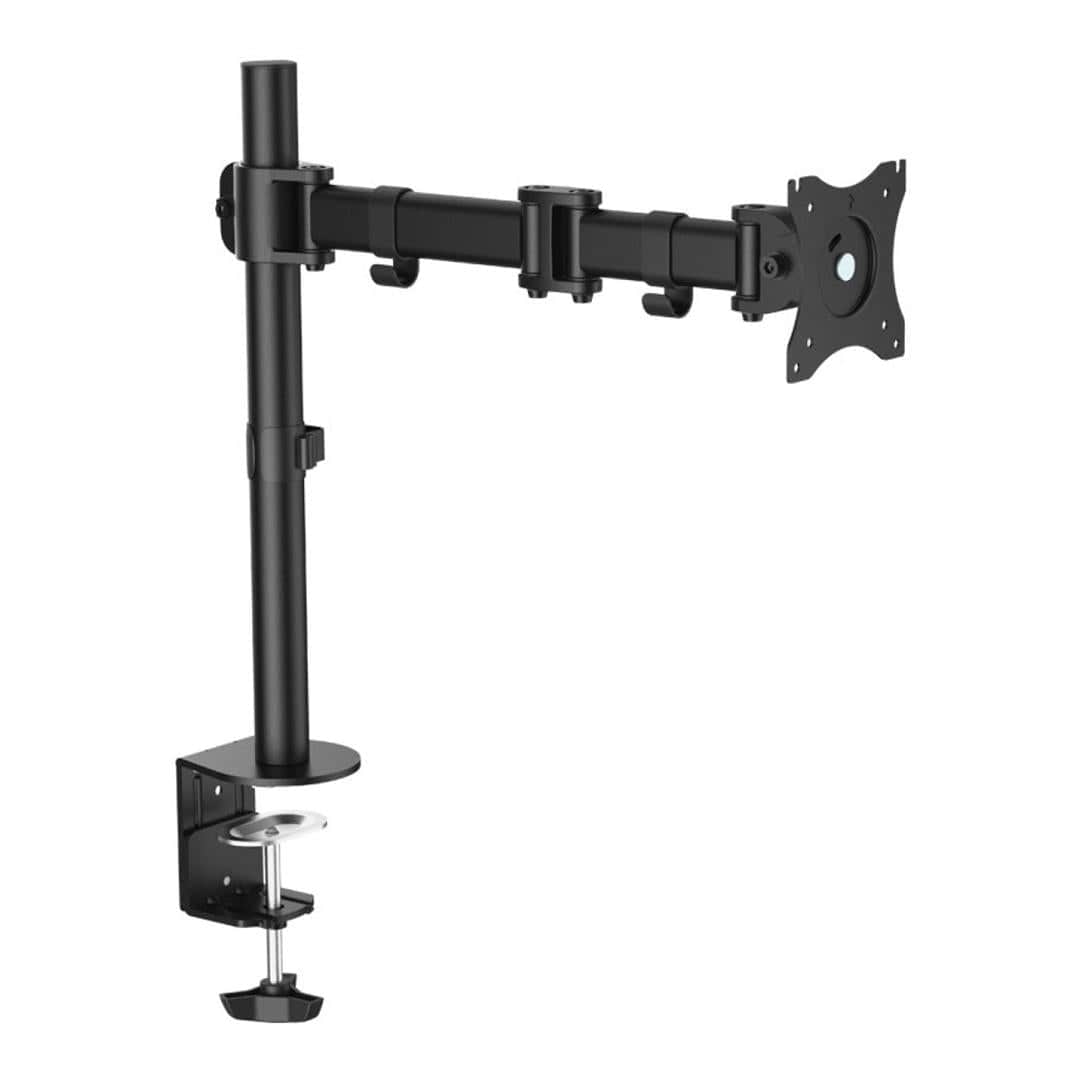

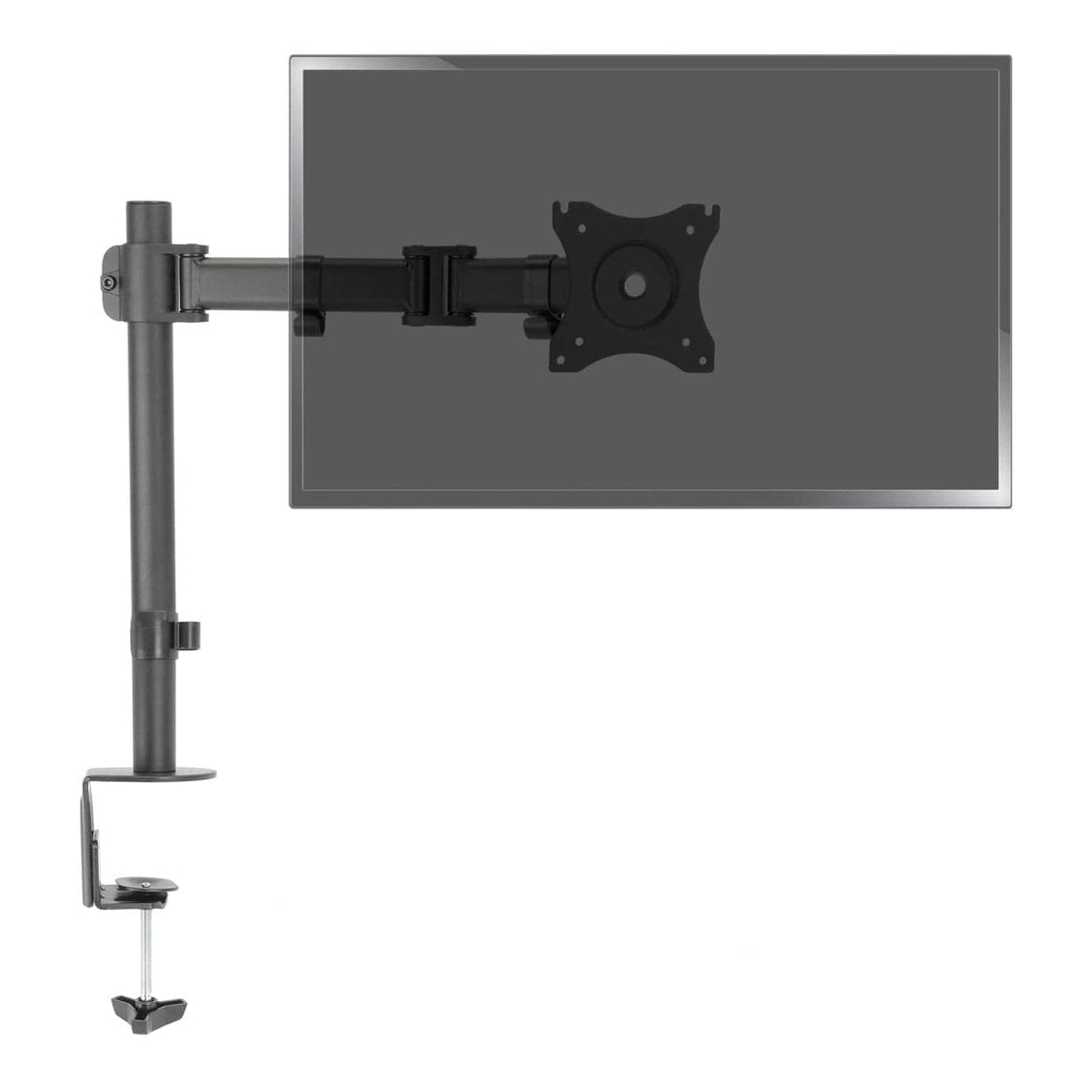

The LDT07-C012 allows you to clear out your desk surface, while providing an ergonomic working position. It is designed to use with 13''-27'' monitors. The weight capability is 8kg/17.6Ibs for each arm. Full motion structure allows maximum flexibility — extends, tilt and swivel your monitor up to 90° left and right for easy viewing. Its ball-joint structure allows smooth, effortless rotating and positioning for any direction, making it easy to reduce glare and find the perfect viewing angle. You can also adjust the monitor vertically to a desired position. Besides, cable clip is included for organizing cables.

Features:

• 360° Rotary VESA Plate: for more viewing experience

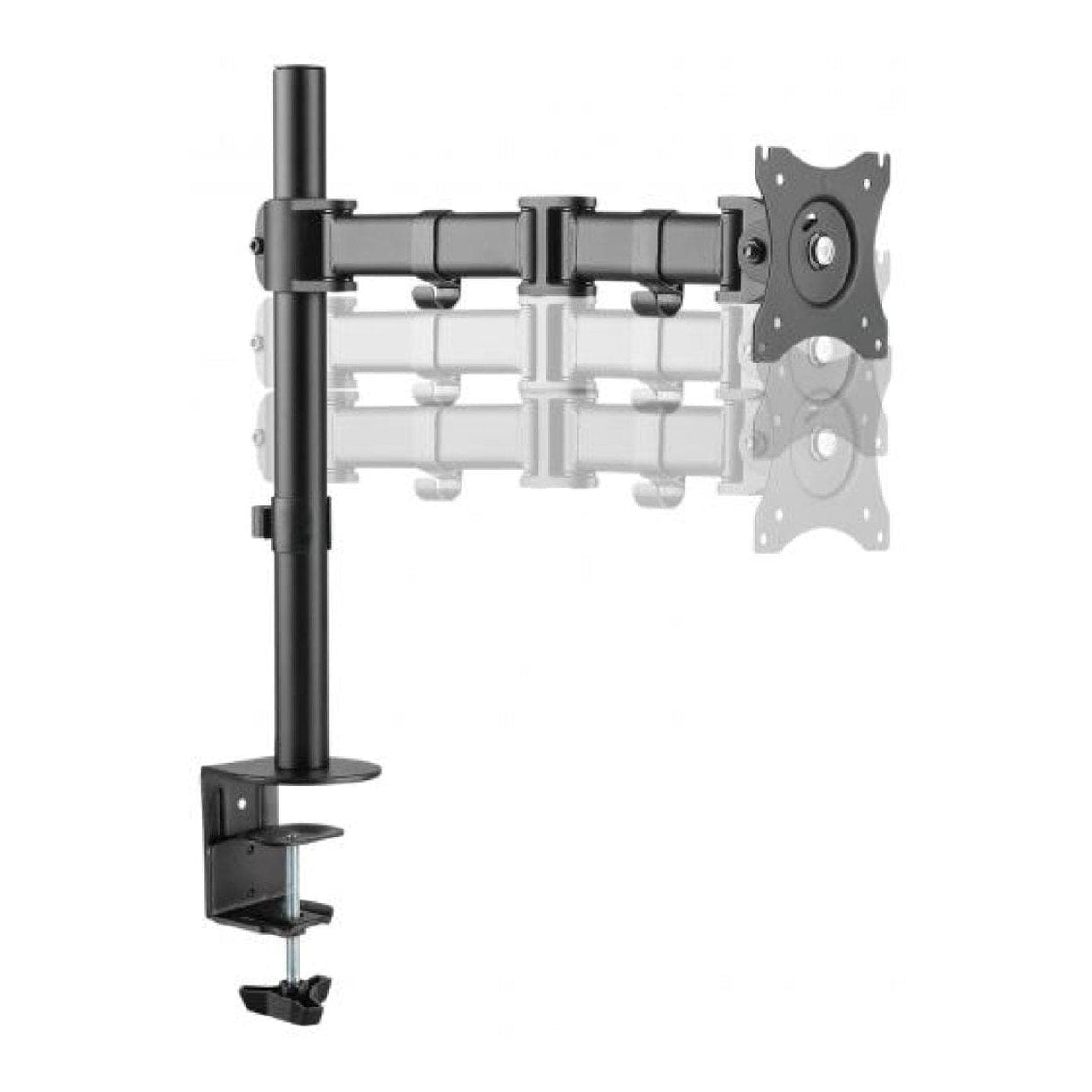

• Freely Adjusting Height: for an optimal ergonomic position

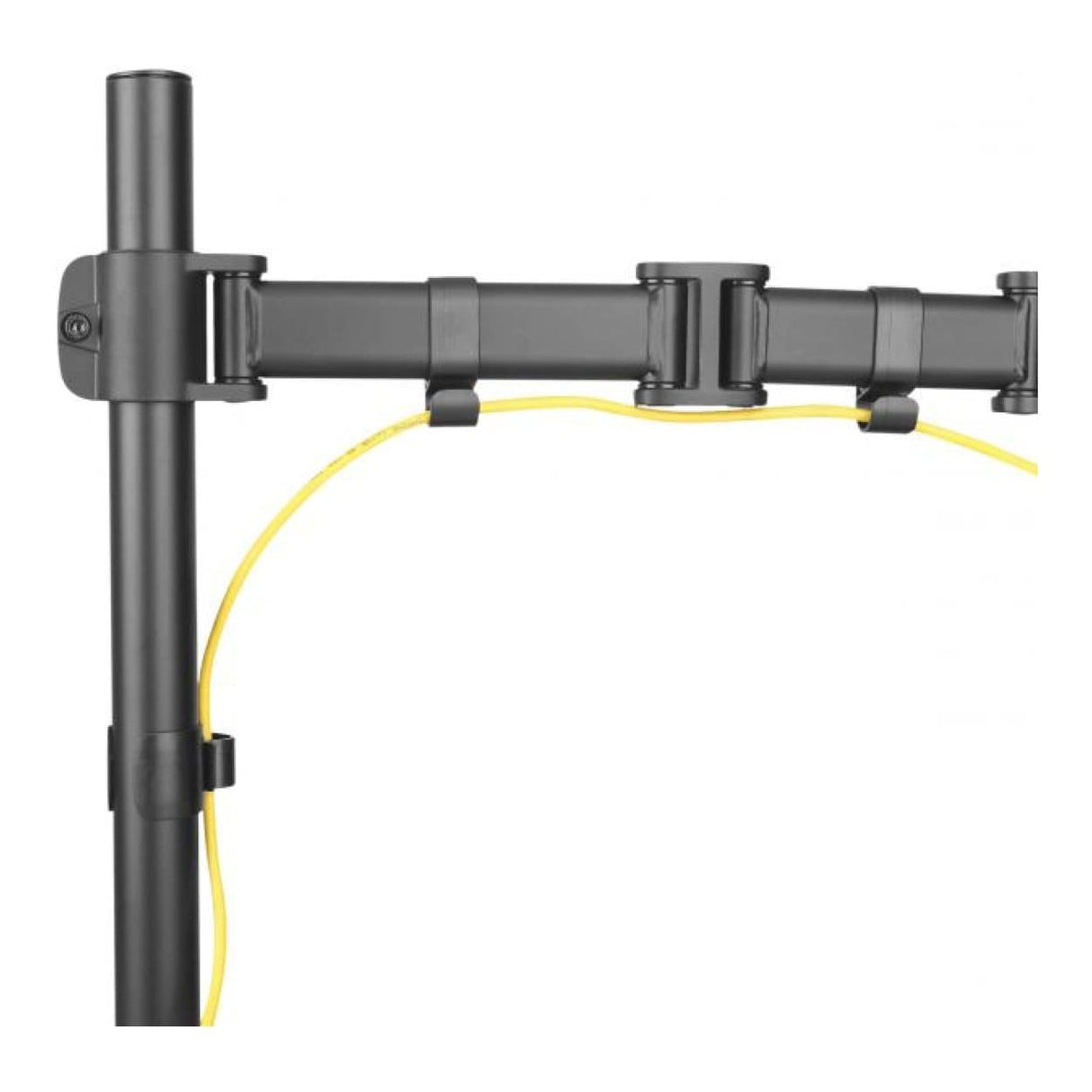

• Cable Management: keeps everything organized
• Two Mounting Options: both desk clamp and grommet are included

Technical Specifications:

Product Category: Articulating Monitor Arm

Rank: Standard

Material: Aluminum, Plastic, Steel

Surface Finish: Powder Coating

Color: Matte Black

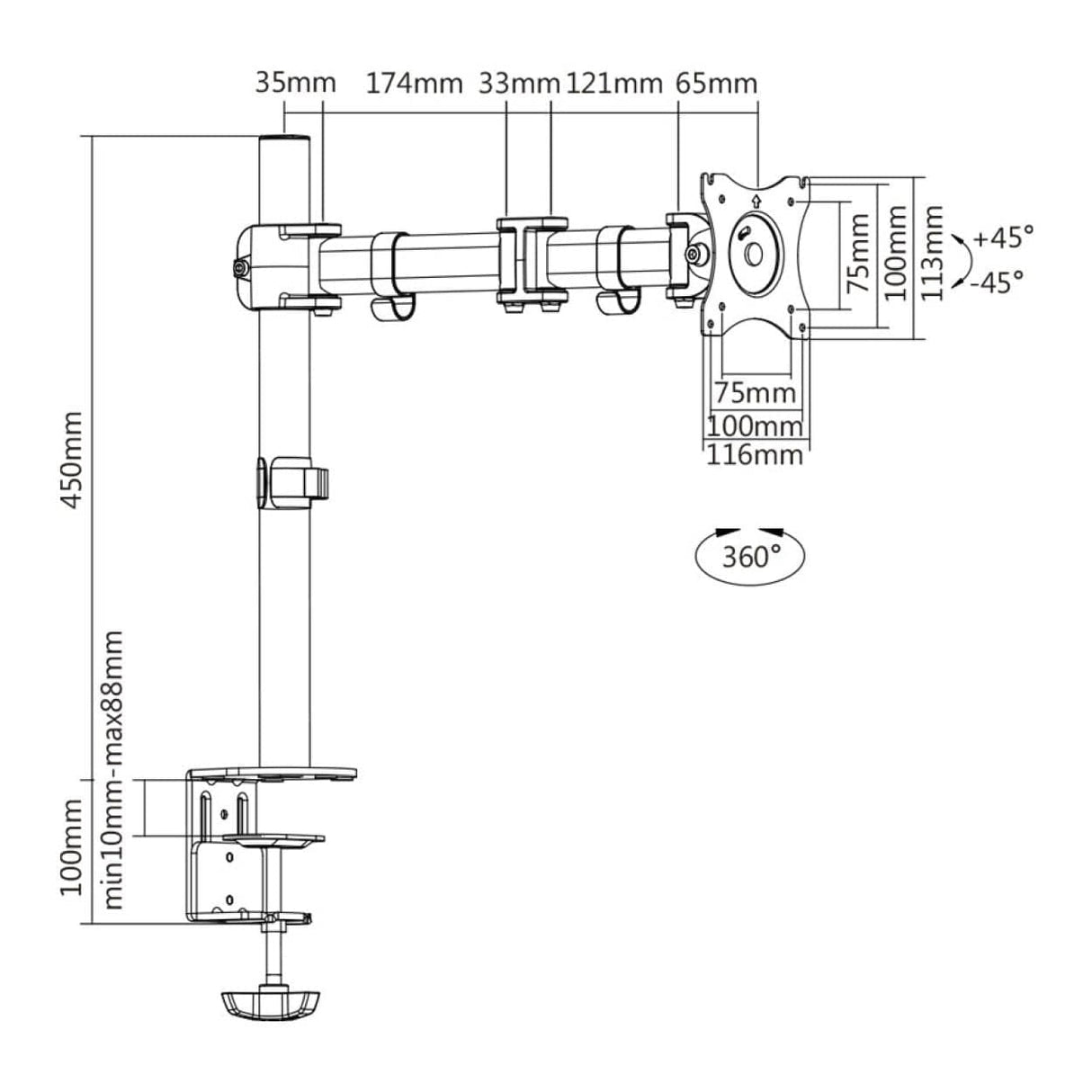

Dimensions: 116 × 490 × 550 mm (4.6" × 19.3" × 21.7")

Fit Screen Size: 13"–27"

Screen Quantity: 1

Weight Capacity (per screen): 8 kg (17.6 lbs)

VESA Compatible: 75 × 75, 100 × 100

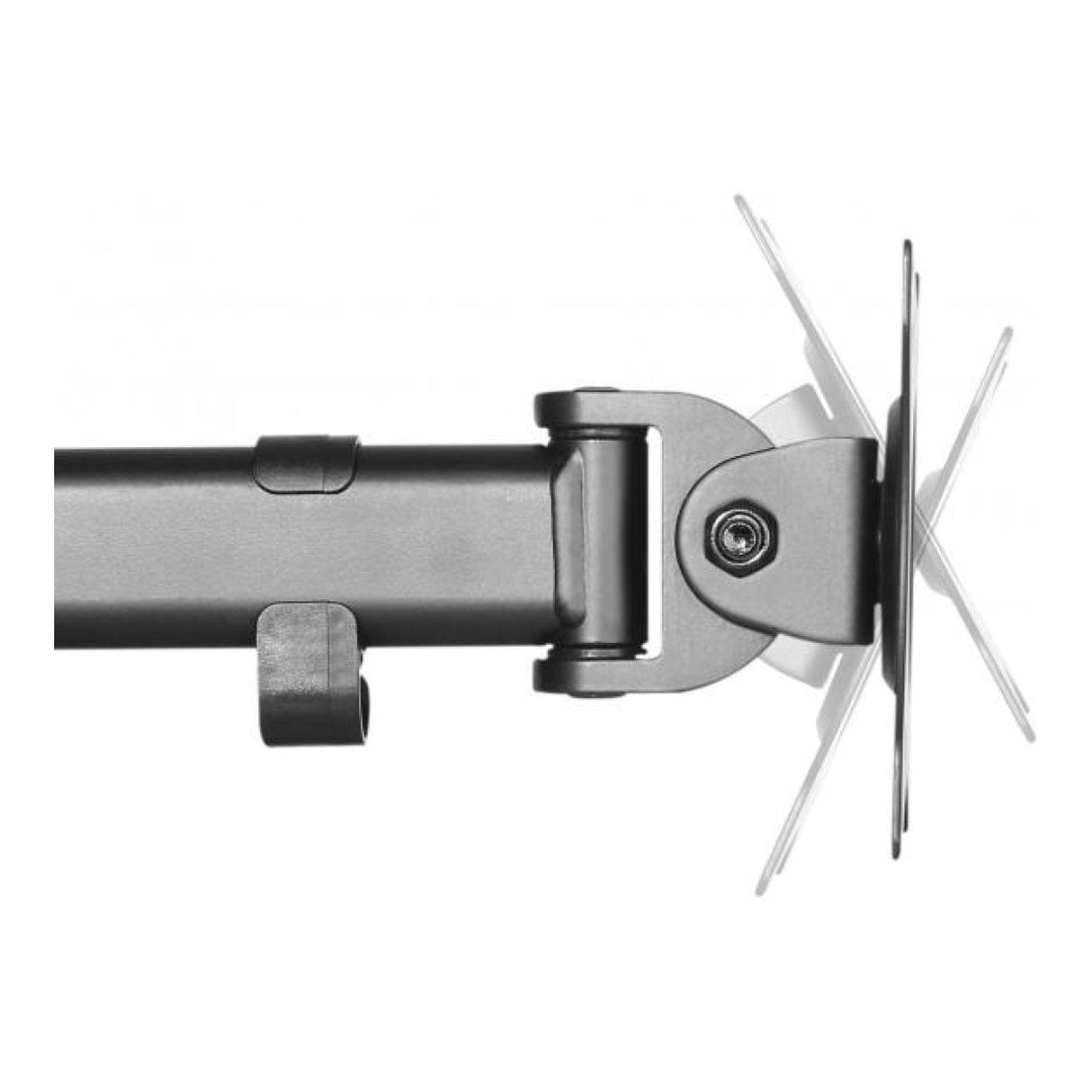

Tilt Range: +45° to –45°

Swivel Range: +90° to –90°

Screen Rotation: +180° to –180°

Arm Full Extension: 428 mm (16.9")

Pole Height: 450 mm (17.7")

Installation: Grommet, Clamp

Suggested Desktop Thickness: Clamp 10–88 mm (0.39"–3.5"), Grommet 10–75 mm (0.39"–3")

Cable Management: Yes

Patent: 2015300644292

Accessory Kit Package: Normal/Ziplock Polybag, Compartment Polybag

Instruction Manual Included: Yes
