Aopen DT3239D dTILE 32-inch 1920 x 1080p FHD 16.9 60Hz 6ms LED VA Monitor

Aopen DT3239D dTILE 32-inch 1920 x 1080p FHD 16.9 60Hz 6ms LED VA Monitor

The dTILE 32-D is a commercial-grade open-frame model and AOPEN's first 31.5'' touch display. The dTILE has a 400 nits panel, which is IP65 grade dust- and waterproof. This screen also has a 10 points PCAP touch screen. With 4 mounting holes and 8 included clamps, inside kiosks or vending machines.

Open Frame

With an open frame design, the AOPEN dTILE series is perfectly embedded in solutions for various commercial environments such as education, or kiosks in a retail environment.

Embedded Touch Monitors

The AOPEN dTILE series are embedded touch displays, which are specifically designed for kiosk solutions. Due to the mounting holes and the design, open frame monitors are ideal for embedded solutions.

IP65 Dust and Waterproof

The front panel of all AOPEN all-in-one touch solutions is dust- and waterproof. With the IP65 grade, this device is safe from water and dust. Because of the edge-to-edge glass, cleaning is easy and customers with food and drinks are no threat.

Specifications:

Housing Material: Metal with implanted IP design

Unit Size (WxHxD mm): 749 x 455 x 58 mm

Display Size: 31.5"

Active Display Area (H x V): 699 x 393 mm

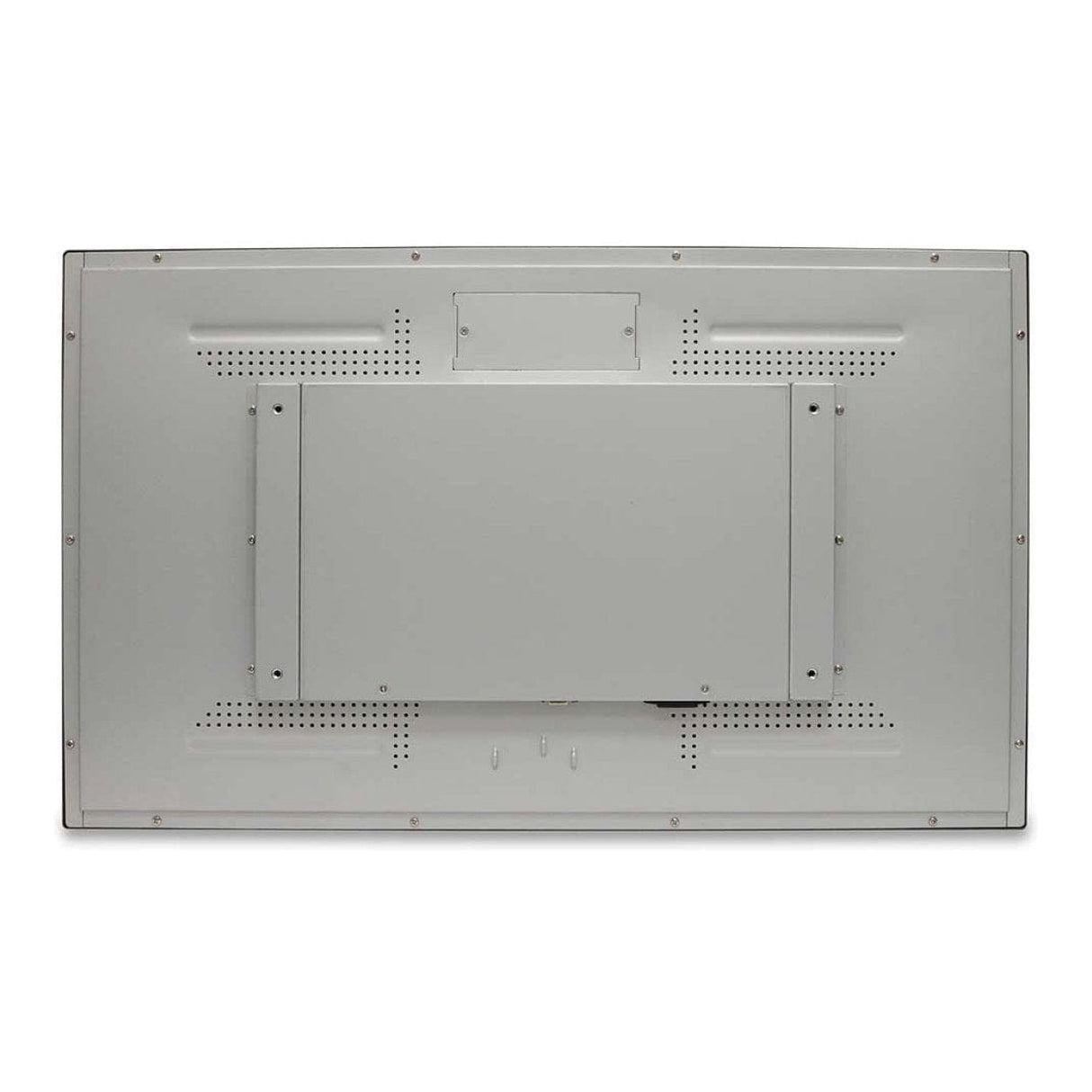

Mounting: Rear: 400x200mm VESA mount, Side: Mounting brackets on all four sides

Net Weight (kg): 13.3 kgs

Resolution: 16:9, 1920 x 1080px, 60Hz

Brightness (cd/m2): 400cd/m²

Panel Type: VA

Viewing Angle: Horizontal: 89/89, Vertical: 89/89

Response Time: 6ms

Contrast Ratio: 1400:1

Touch Technology: Touch Glass: Projected capacitive touch, 27 inch, 3.0mm chemically strengthened glass, 7H

Touch Controller: 10 points touch

Colour: 16.7M

Glass Hardness: 3.0mm chemically strengthened glass, 7H

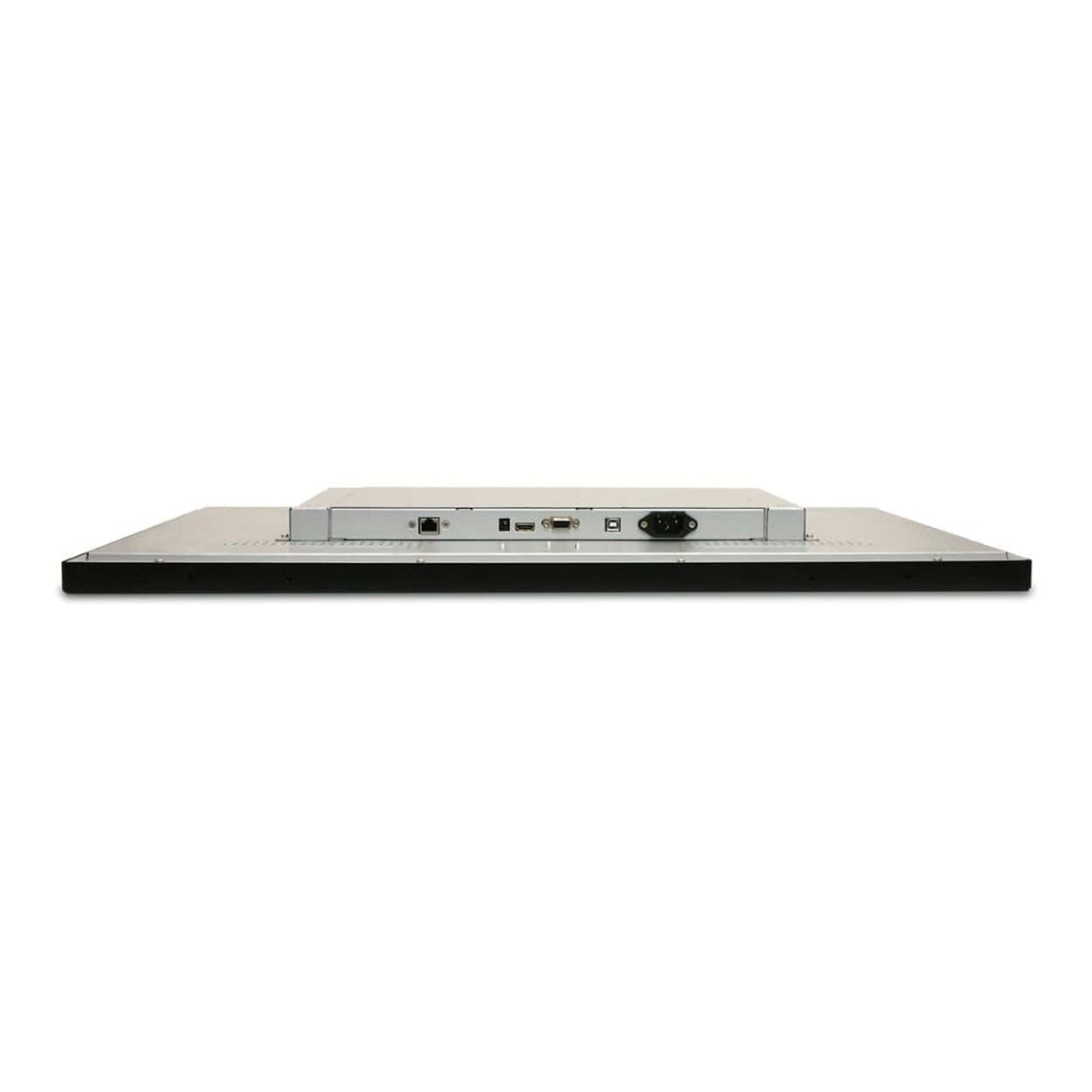

Rear Panel I/O

• HDMI type A
• USB for touch (5V input from USB host), VGA DB-15 female
• RJ45 for OSD remoter
• AC-in for AC power

Side Panel I/O: Power Button x 1

System I/O: N/A

Adapter: 95W / 19V

Input Voltage: AC input 100~240 VAC, 50/60Hz

Warranty: 3 Years

Operation Temperature: 0 ~ 50ºC (32 ~ 122ºF)

Operation Humidity: 90% RH (40 ºC non-Condensing)

Certifications: FCC / CE(Class B) / RoHS / CB
