ONERugged B10R Mini PC - Rockchip RK3568 64GB ROM 4GB RAM Android 12

ONERugged B10R Mini PC - Rockchip RK3568 64GB ROM 4GB RAM Android 12

Features

Excellent Performance

Equipped with the latest RK3568 computing platform by Rockchip, Android 12 OS

Wireless Network

WI-FI 5, BT5.0, supports 4G expansion

Progress Steadily

Supports wide temperature range from -20°C to 60°C; Supports wide voltage input from 12V to 24V.

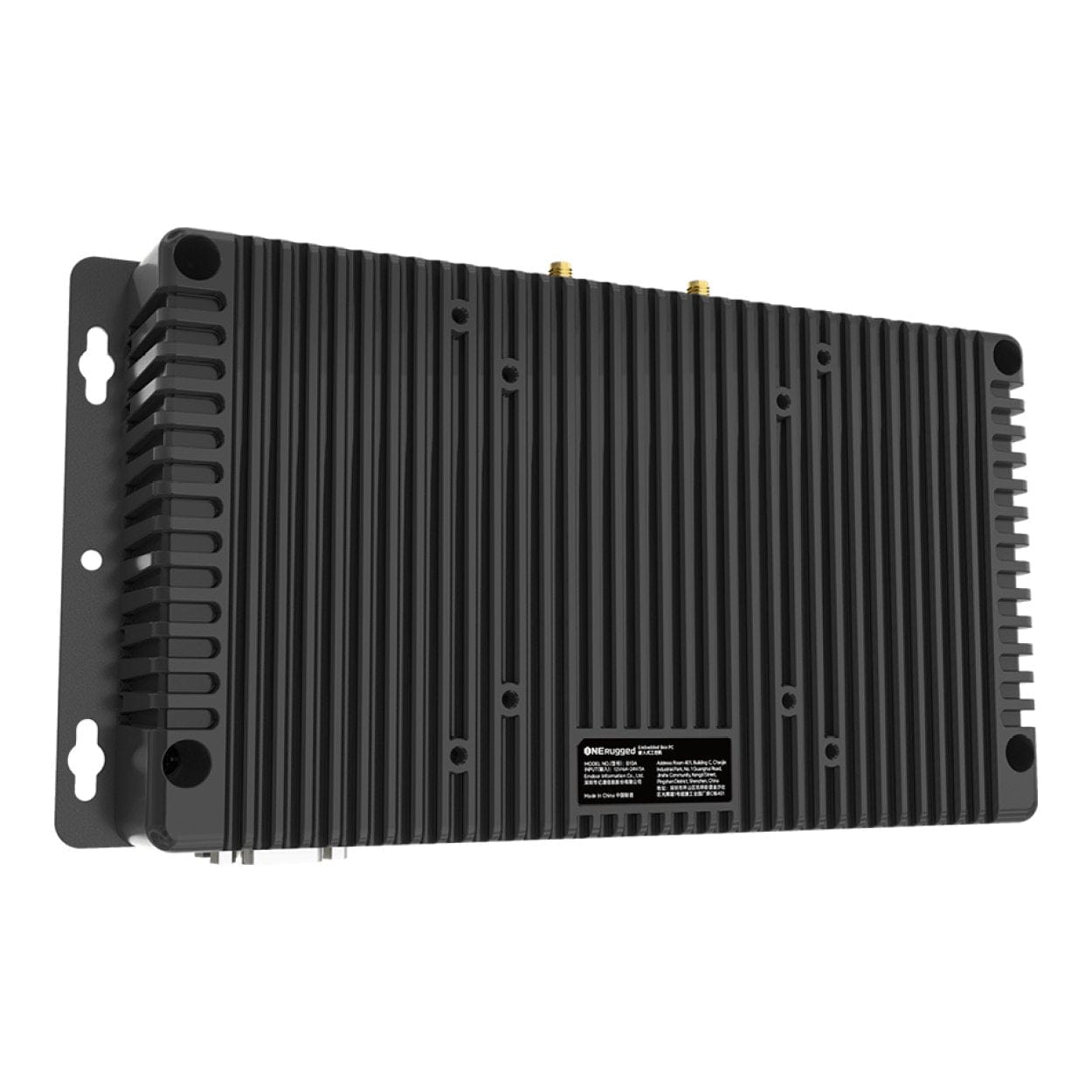

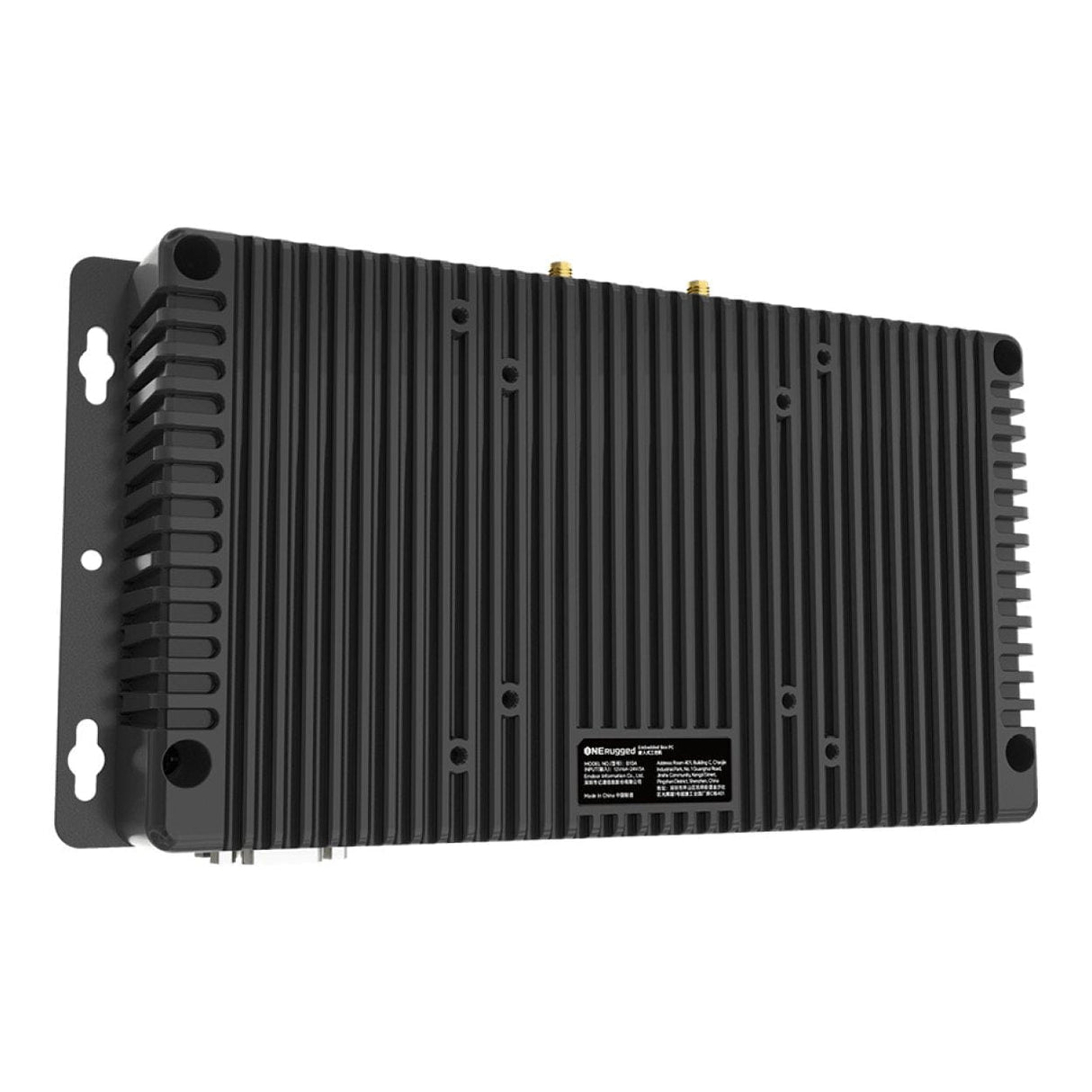

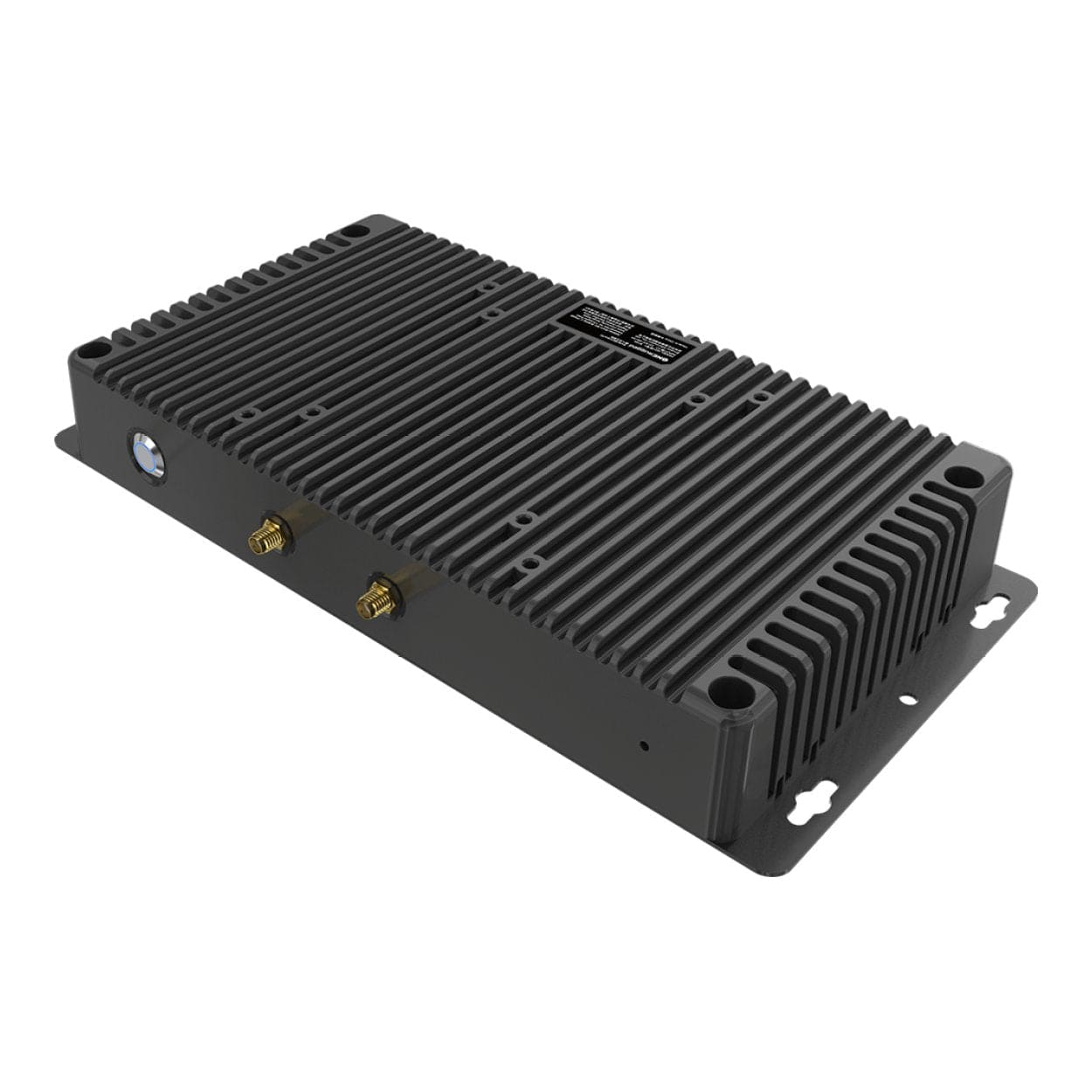

Fanless design

Fanless design and implementation of metal fin cooling solution for improved cooling efficiency

Interface richness

Featuring up to 10 interfaces, fully meets your external expansion needs

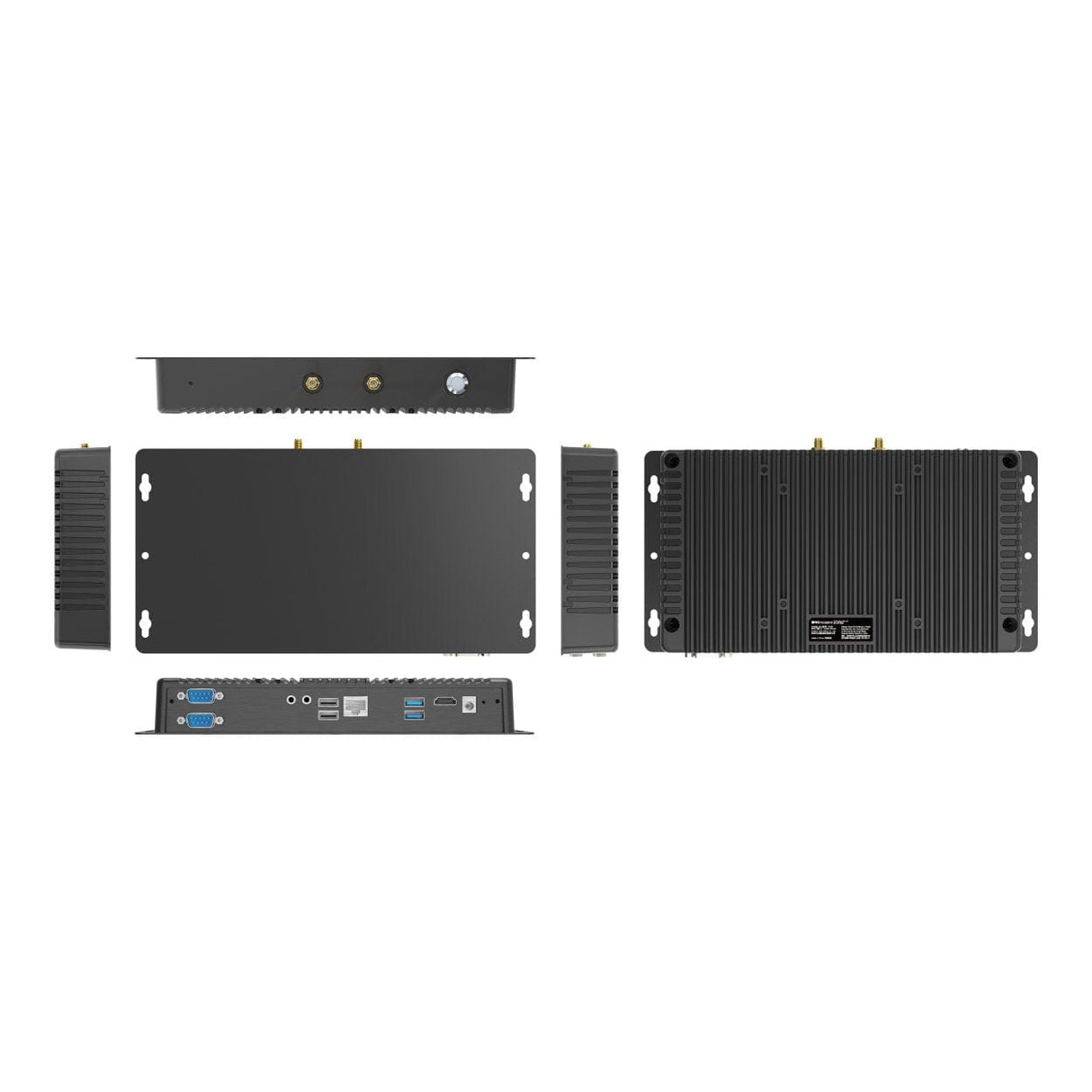

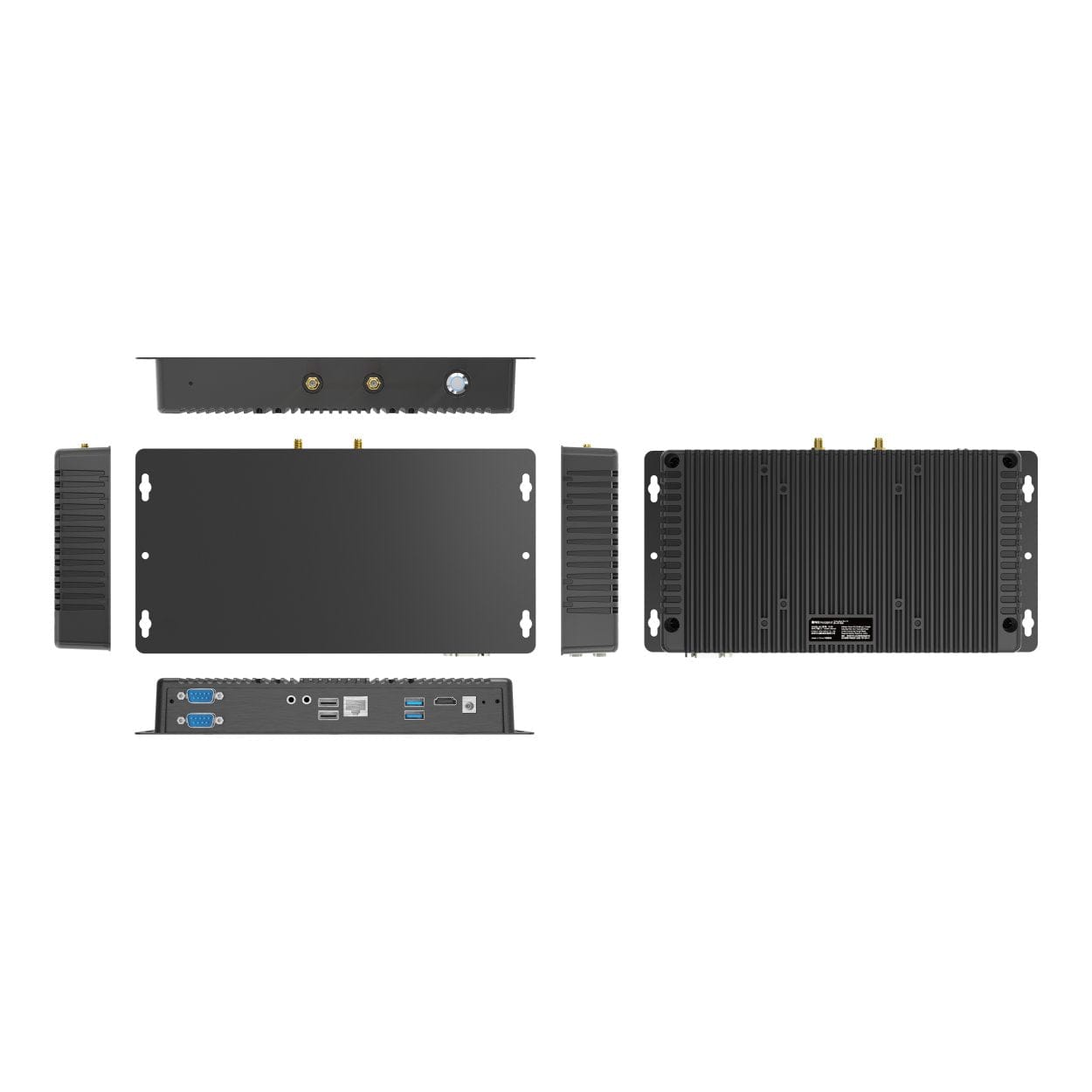

Compact fuselage

With dimensions of 264 x 135.2 x 37.2 mm, supports multiple installation options

Strict quality

Backed by the strength of a top-tier enterprise and industrial-grade standards, the B10R ensures long lifecycle and cost advantages

Technical Specification

Product: ONERugged B10R Android Mini PC

Product type: Embedded Box PC

Chassis type: Mini PC

Processor family: Rockchip RK3568

Processor model: ARM Cortex A55

Processor frequency: 2.00 GHz (4 Cores)

Internal memory: 4 GB

Internal memory type: DDR4

Total storage capacity: 64 GB

Storage media: ROM

On-board graphics card model: ARM G52 2EE

Operating system installed: Android 12

Connectivity: Wi-Fi 5 (802.11ac) + Bluetooth 5.0

Mobile broadband: 4G Expandable (Not included)

Power adapter: AC100V ~ 240V, 50Hz/60Hz output DC 12V/4A

Product colour: Black

Weight: 1.00 kg

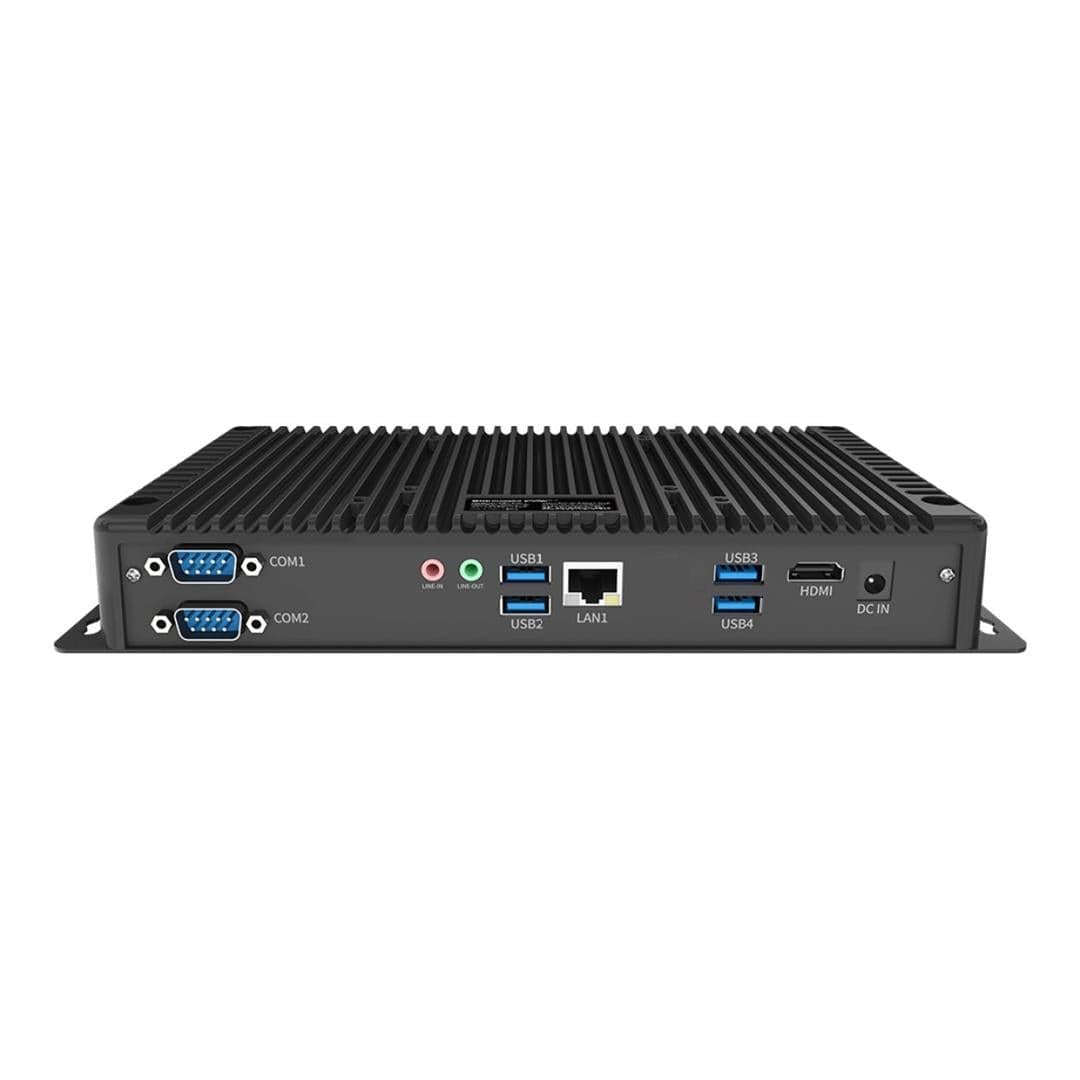

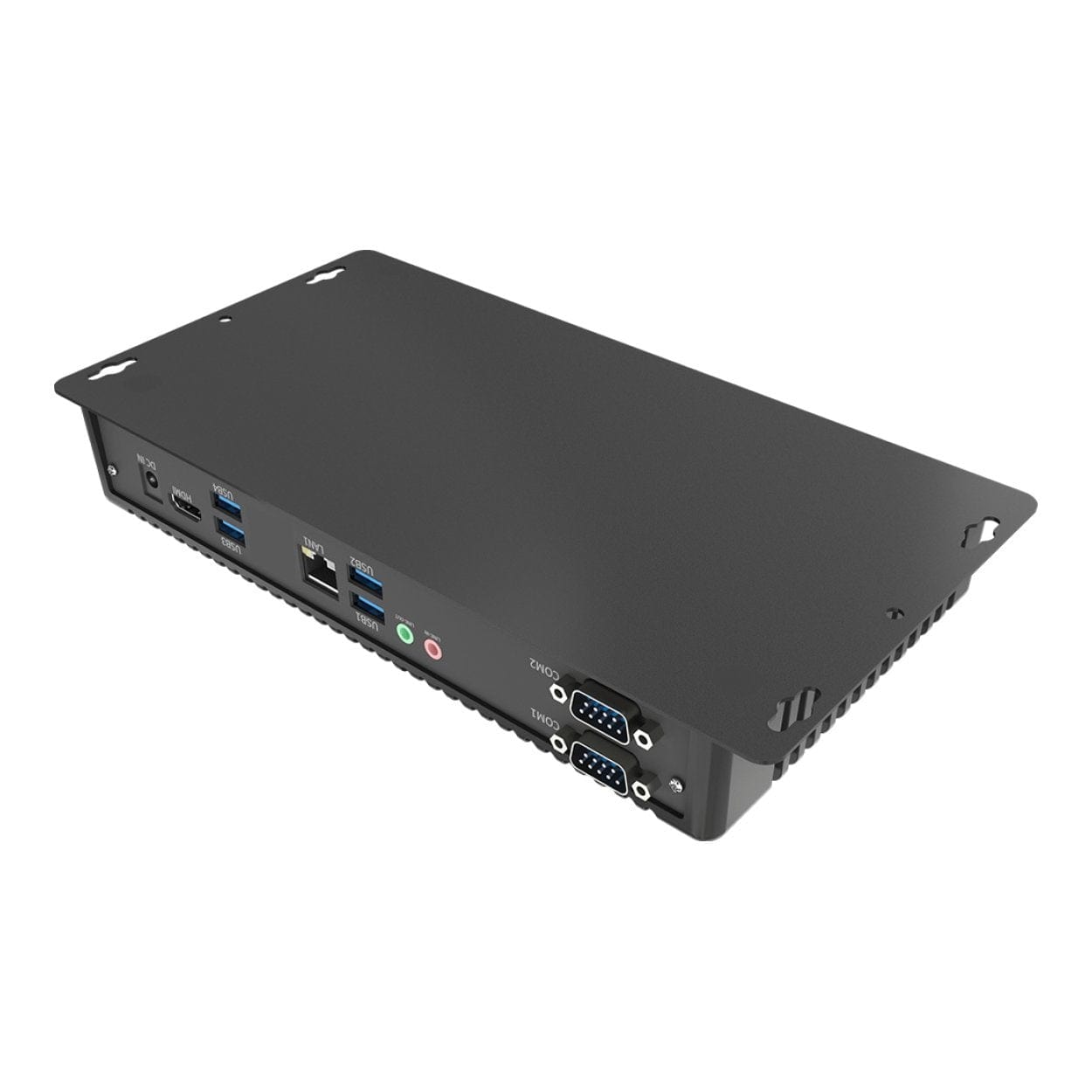

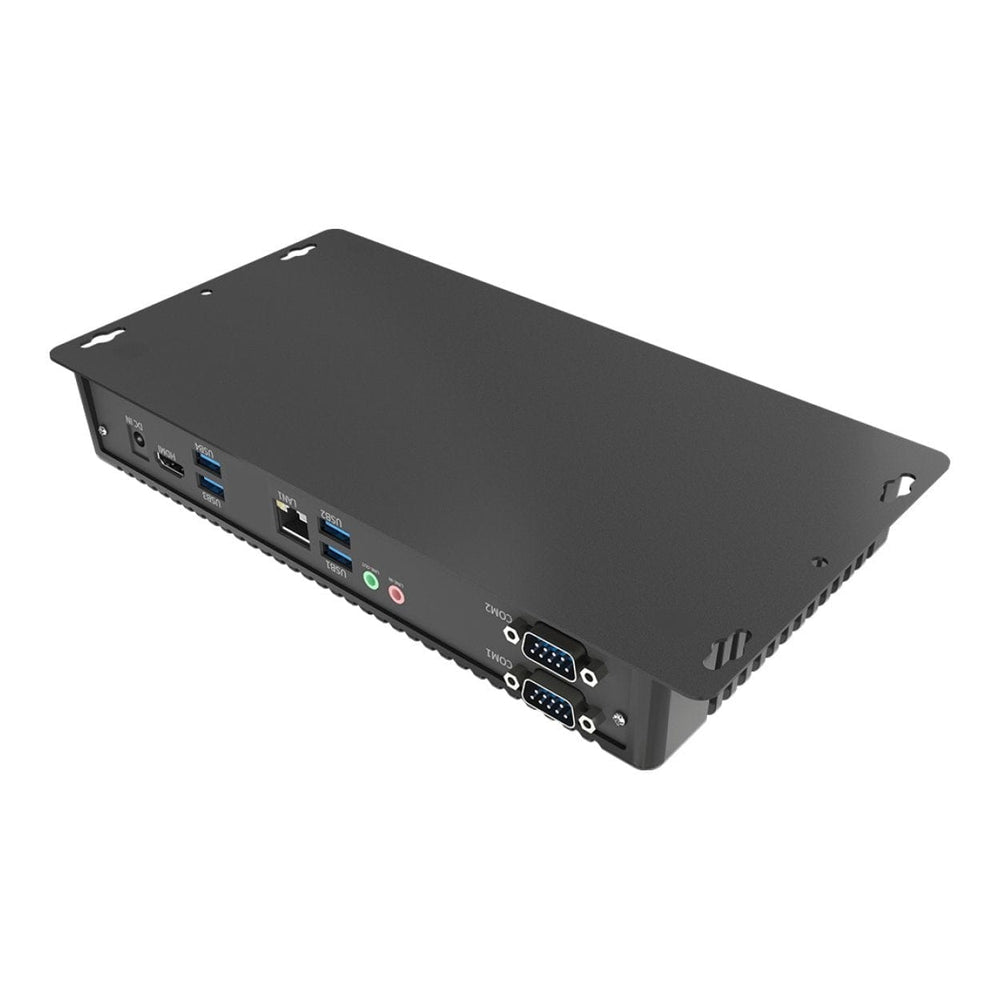

Ports and Slots

• 2x USB-A 3.0
• 2x USB-A 2.0
• 1x DC 12V-24V
• 1x 3.5mm Line Output
• 1x 3.5mm Line Input
• 1x HDMI
• 1x RJ45
• 2x DB9 RS232
• 2x External Wi-Fi Antenna ports
