MSI Cubi NUC 1M Barebones Mini PC - Intel Core 7 150U

MSI Cubi NUC 1M Barebones Mini PC - Intel Core 7 150U

Mini Yet Powerful

The Cubi NUC is the ideal solution for confined spaces. It confidently handles a myriad of tasks, from basic computing to multimedia streaming and multitasking, leveraging their compact size.

Maximize Space with the Versatile Cubi NUC

The Cubi NUC is perfect for spaces with limited room, featuring a 0.826-liter chassis. It can be mounted behind a monitor, on a wall, or in digital signage, freeing up desk space and creating a tidier workspace.

Tailored for Professional Users

Equipped with up to Intel^® Core™ 7 Processor 150U with 10 cores and 12 threads, it provides faster and more reliable performance. It also features 5.40 GHz with Intel Turbo Boost Max Technology 3.0, which allows users to multitask a variety of applications with ease.

DDR5 Dual-Channel Memory

DDR5 memory with dual-channel can enhance work efficiency and quality, processing large amounts of data and complex multitasking quickly and reducing waiting times and delays.

Thunderbolt 4:
A Single Cable to Serve All

Thunderbolt 4 supports power delivery input of up to 100W, making it an excellent choice for both powering and displaying through a single port.

Quadruple Display Support

Supporting up to 4 displays with HDMI™-out and Thunderbolt 4 allows for increased productivity by providing more screen space to manage multiple applications simultaneously.

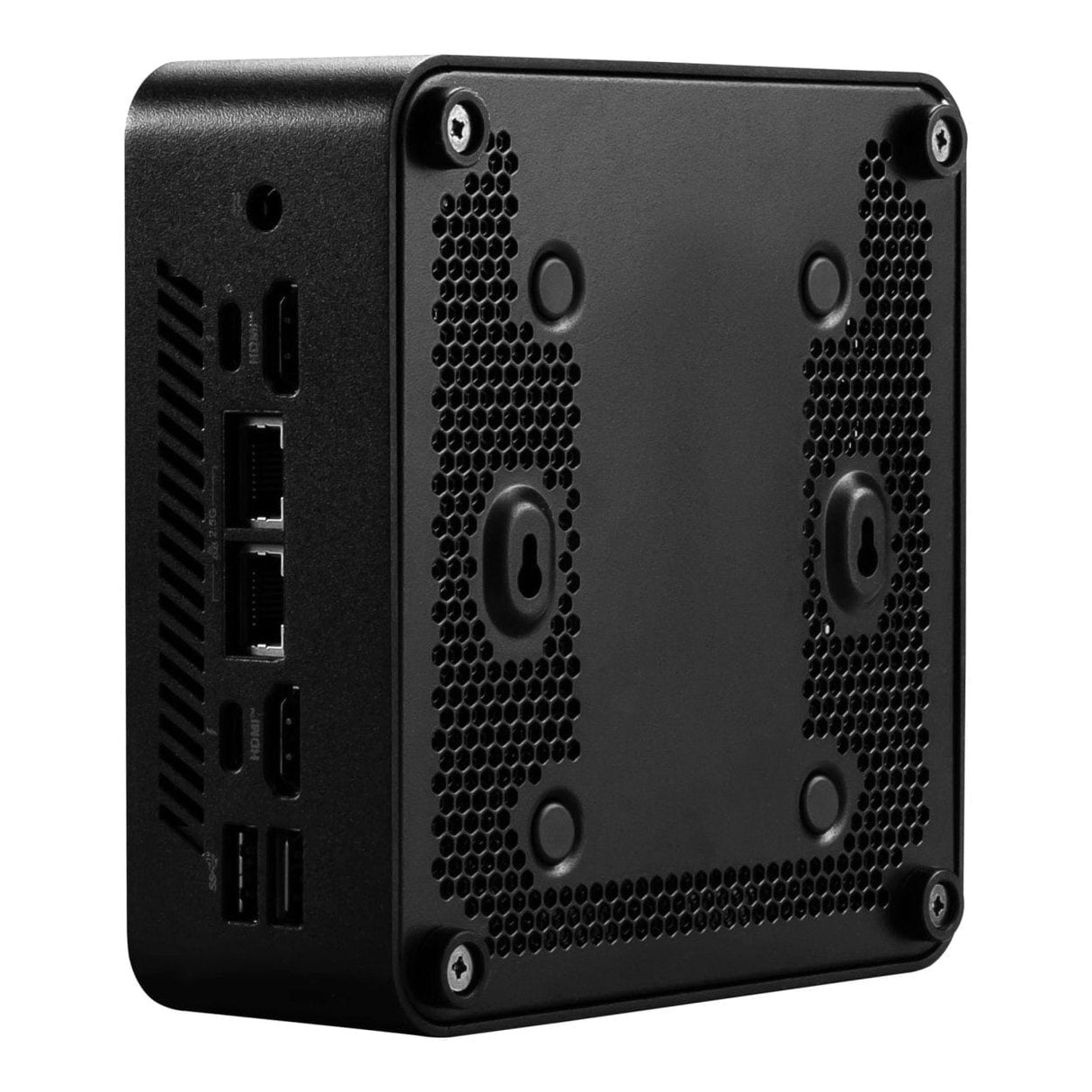

VESA Mountable Design

With its VESA Mountable design, the Cubi NUC Series can be easily installed in any location, providing users with greater flexibility and efficient space management in both home and office settings.

MSI Power Link

The Cubi NUC Series can be powered on using the power button on the MSI-selected monitor to bring the most convenient user experience.

Reliable Choice for Business

Ensuring top quality is not just a catchphrase for us; it is our utmost priority to deliver a hassle-free and high-quality product.

Technical Specifications:

Processor: Intel Core 7 150U, 10 cores (2P + 8E) / 12 threads, 1.80 GHz base, up to 5.40 GHz turbo

Graphics: Integrated Intel graphics with 96 execution units

Memory: Dual-channel DDR5-5200 SO-DIMM, up to 64 GB (2 slots)

Storage: Two M.2 PCIe Gen4 slots (2280 & 2242) and one 2.5″ SATA bay

Ethernet: Dual 2.5 GbE (Intel I226V)

Wireless: Intel Wi-Fi 6E (AX211) + Bluetooth 5.3 (optional Wi-Fi 7 BE200 + BT 5.4)

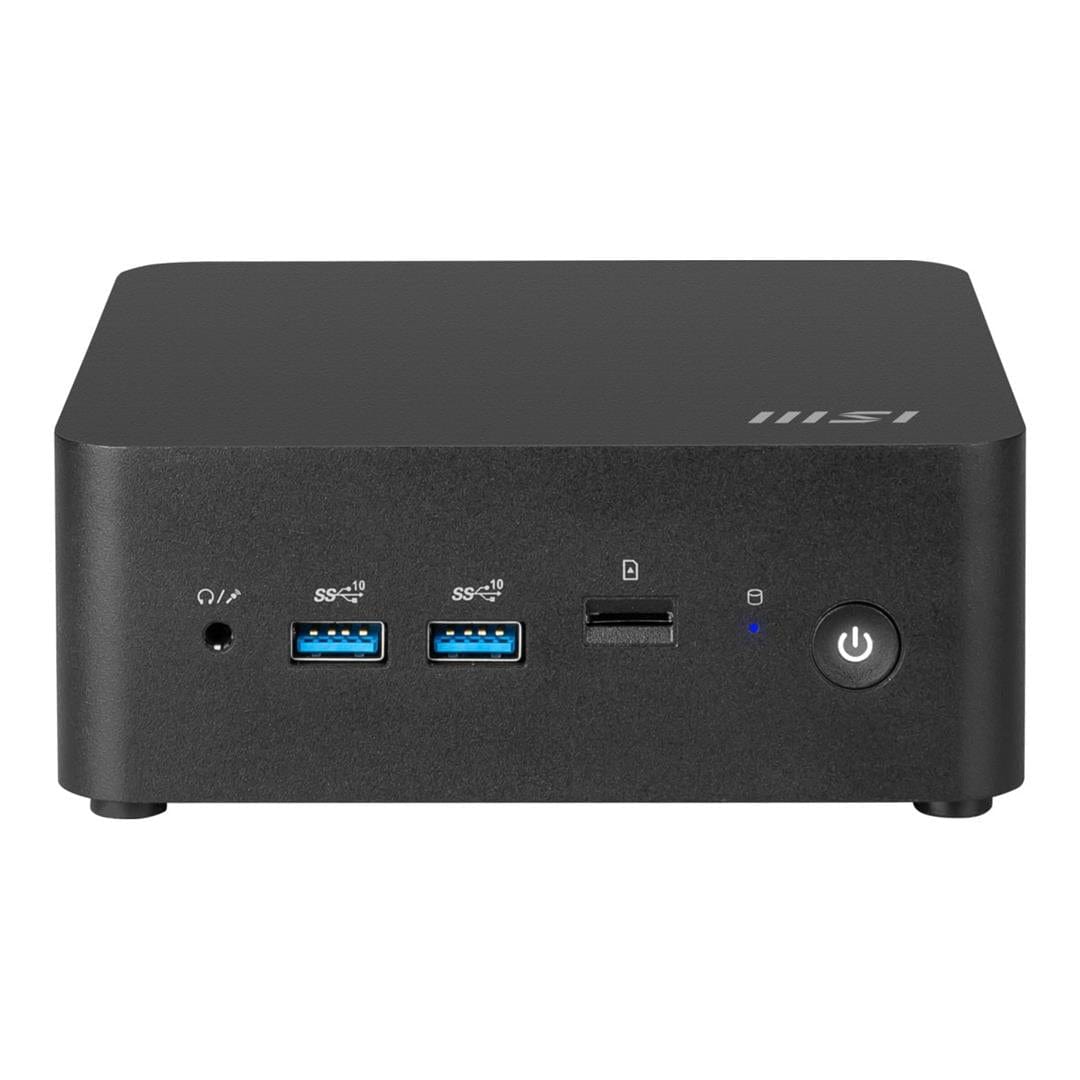

Front I/O: 2 × USB 3.2 Gen2 Type-A (10 Gbps), 1 × 3.5 mm audio combo jack, microSD reader

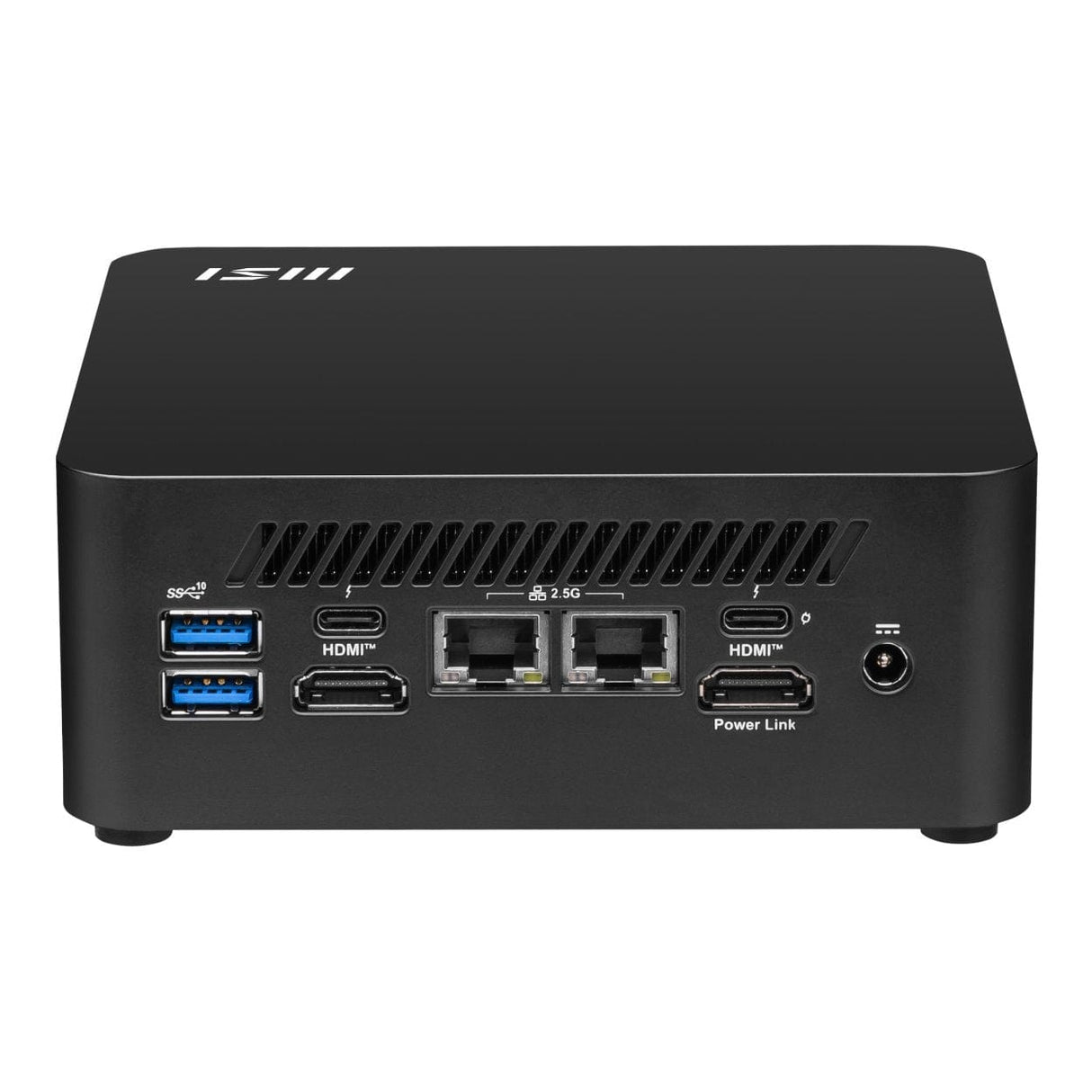

Rear I/O: 2 × HDMI 2.1, 2 × Thunderbolt 4 (one with 100 W PD-in/out), 2 × USB-A 10 Gbps, 2 × 2.5 GbE, Kensington lock, DC-in

Dimensions: 135.6 × 132.5 × 50.1 mm

Weight: 0.63 kg net, 1.45 kg gross

Chassis Volume: 0.8 L, VESA-mountable (100 × 100 mm)

Power Supply: 120 W external PSU

Cooling: Active cooling (fan)

Security: dTPM 2.0

Compliance: EPEAT & ENERGY STAR, PCR plastic design

Display Support: Up to four independent 4K displays via HDMI and Thunderbolt

Features: MSI Power Link (power over monitor), easy memory and storage upgrades
