AOpen ACE Mini DE3650-S Mini PC - Intel Celeron N6210 64GB SSD 4GB RAM

AOpen ACE Mini DE3650-S Mini PC - Intel Celeron N6210 64GB SSD 4GB RAM

Small, robust, and cost-effective, the DE3650-S features an Intel® Celeron® CPU and Intel® UHD graphics. It delivers performance and reliability for applications ranging from industrial controllers to kiosk solutions while bringing something entirely new to market. Until now, device selection was decided by OS; but AOPEN ACE Mini configures to any major operating system, at scale - including Windows, Chrome, and Linux.

Effortless, Ready to Scale, Reliable

The AOPEN ACE series of digital signage media players are the next generation of Mini PC - designed for excellence across a broader range of applications, environments, and use cases. The AOPEN ACE series enables end users to select the right device from a single product line based on their unique requirements.

CHALLENGES

A persistent obstacle facing organizations looking to scale is the process of identifying appropriate devices to meet complex project requirements. Though some products may satisfy certain use cases, choosing a PC to deploy at scale is no simple task.

CHALLENGES

End-users find that reliability and affordability are on opposite ends of the spectrum. Finding that proper balance is a constant challenge that never has a resolution. Ideally, the lesser time thinking about their investment and focusing on the demands of their industry is a top priority.

SOLUTION

With design versatility, the AOPEN ACE Mini is a scalable-ready solution that addresses vital points and fits a wide range of applications. Scalable means high-quality, multiple platform compatibility at the right price point.

Technical Specifications:

Dimensions (W x H x D): 125 × 35 × 110 mm
4.9 × 1.38 × 4.33 inch
Volume: 0.45 L
Weight:
N.W.: 125 × 110 × 35 (43) mm, 0.53 kg
G.W.: 235 × 210 × 91 mm, 0.82 kg (Boxed)

CPU: Intel® Celeron® N6210 @ 1.20 GHz (Dual Core)
Chipset: N/A
AiCU: N/A

Memory:
Channels: Dual Channel
Type: DDR4 SO-DIMM
Data Rate: 2666 / 3200 MHz
Max Memory: Max 20 GB

Graphics: Intel® UHD Graphics for 10th Gen Processors

Expansion: M.2 2230 × 1, M.2 2280 × 1

Audio:
Type: Realtek HD Audio Codec ALC897
Channel: Stereo

LAN:
Chip: Maxlinear Gigabit ×1 (non-PXE supported)
Speed: 10 / 100 / 1000 Mbps

Storage:
Onboard: eMMC 64 GB
M.2 SSD: M.2 2280 (Key M) SATA

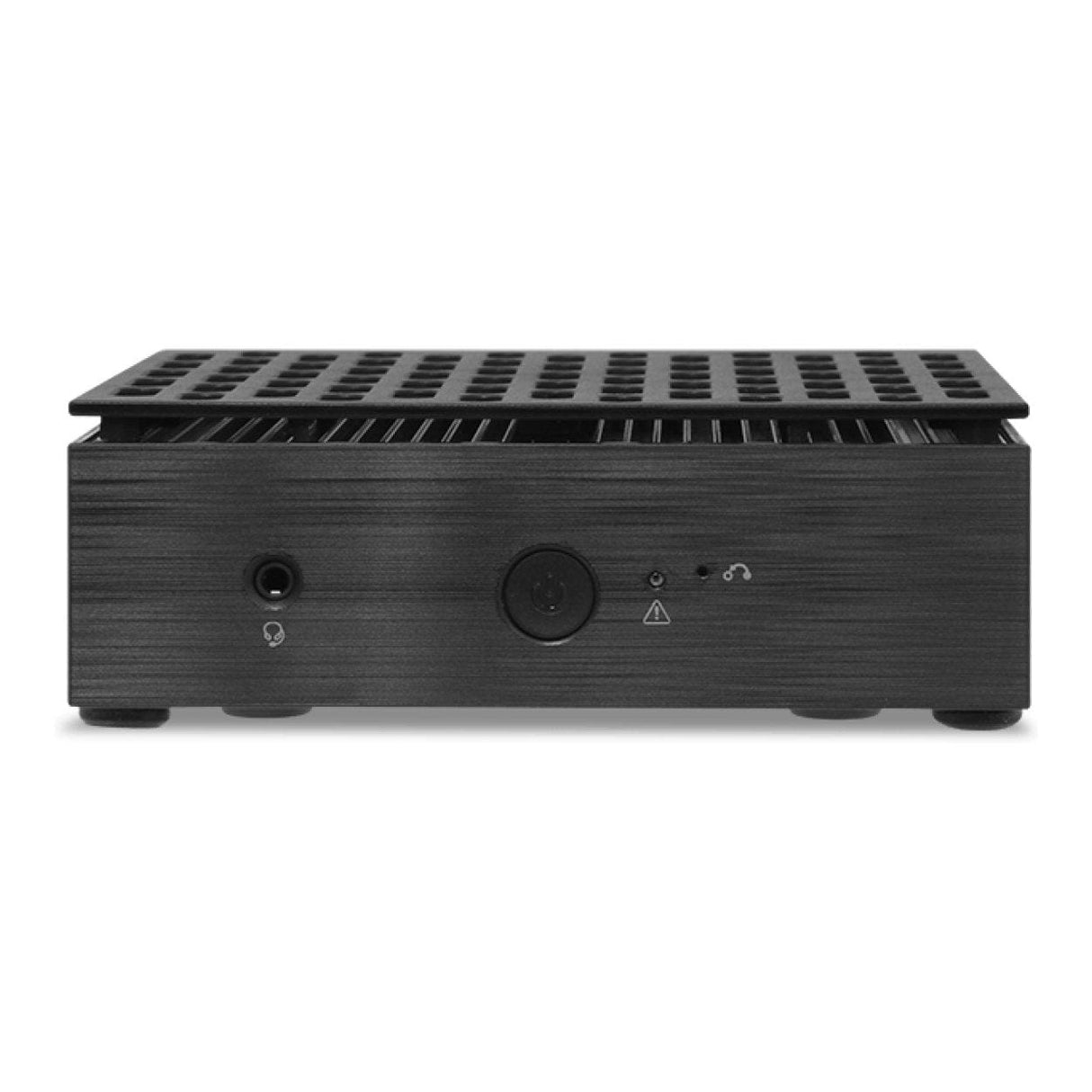

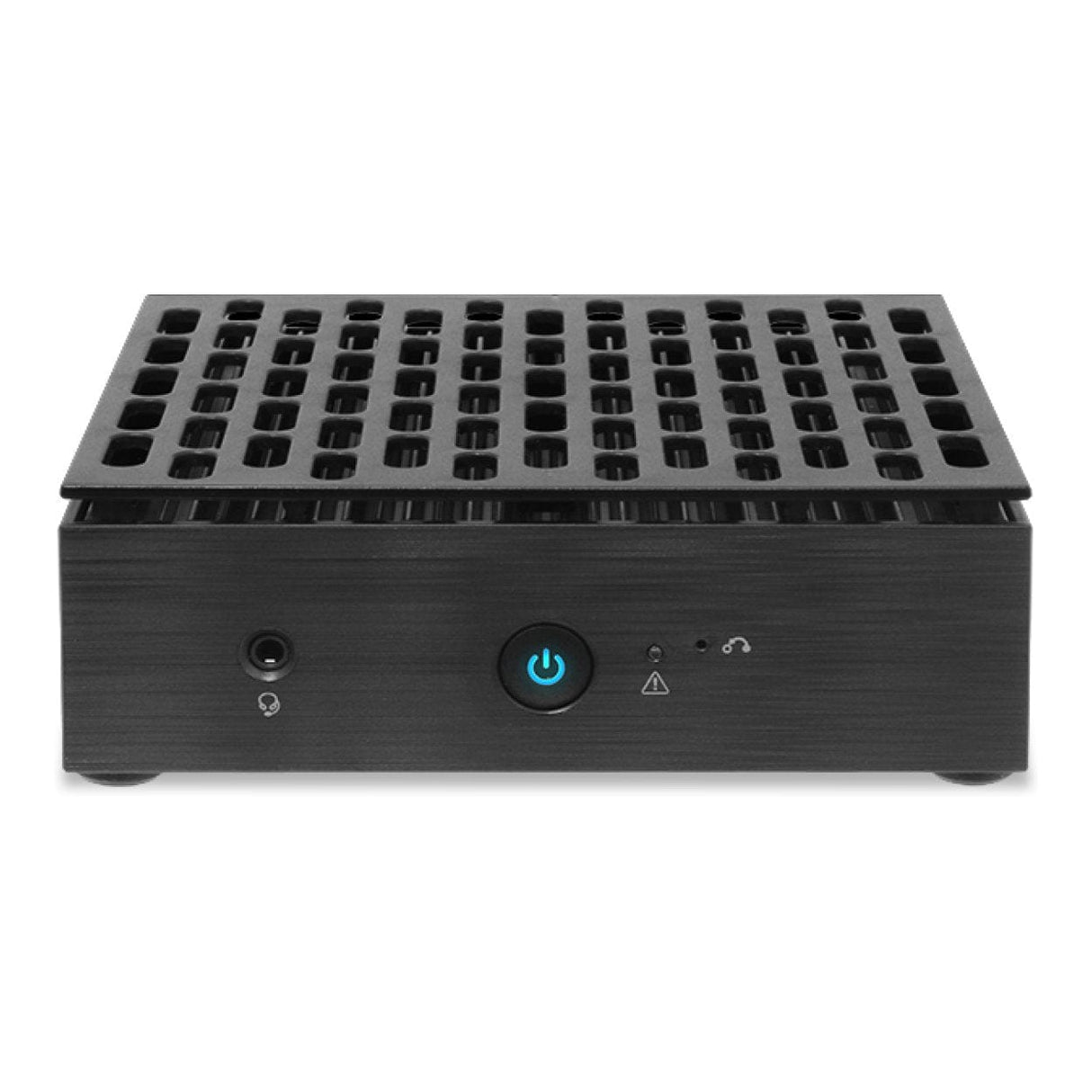

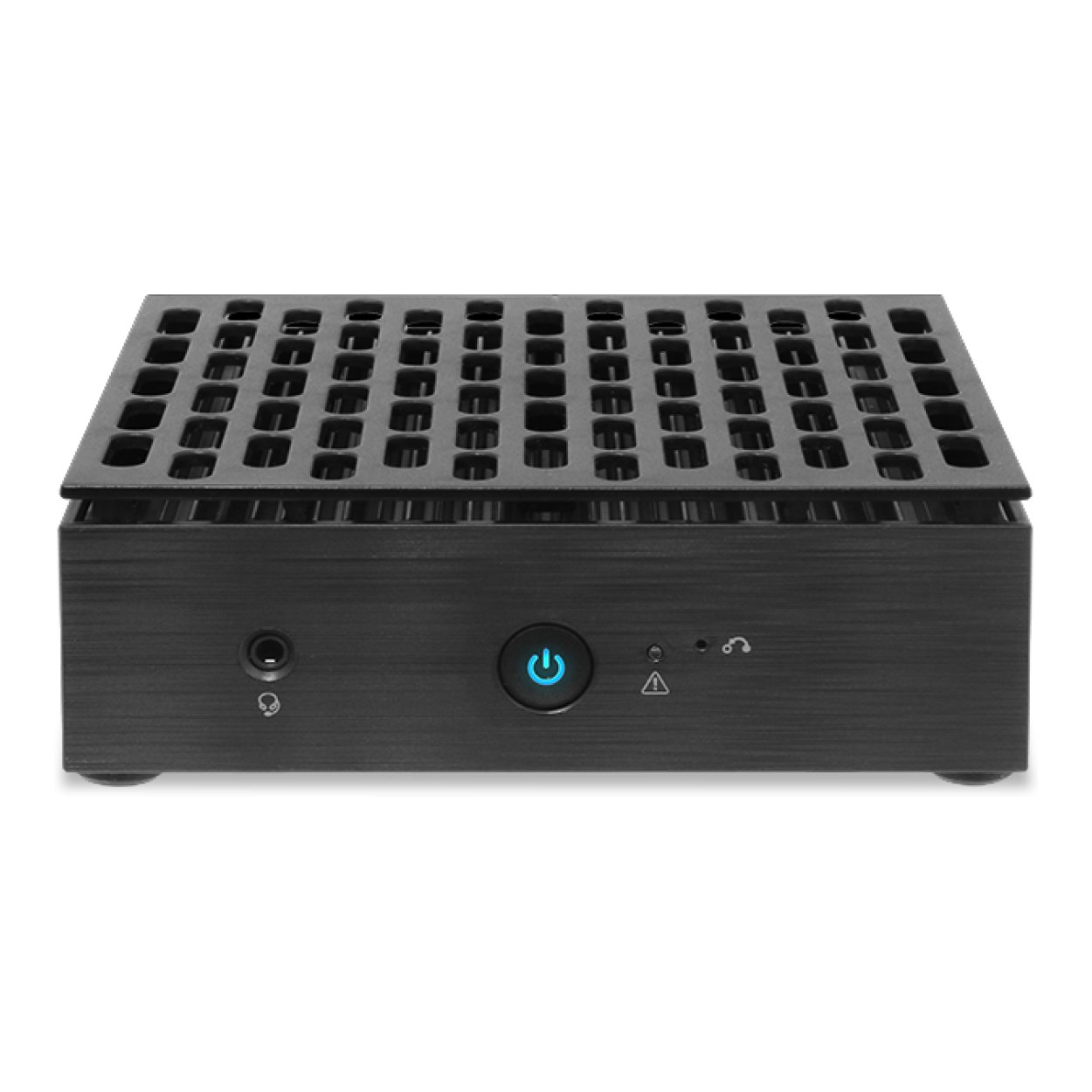

Front Panel I/O:
Power Button ×1
Others: Audio Combo ×1, BIOS Recovery ×1

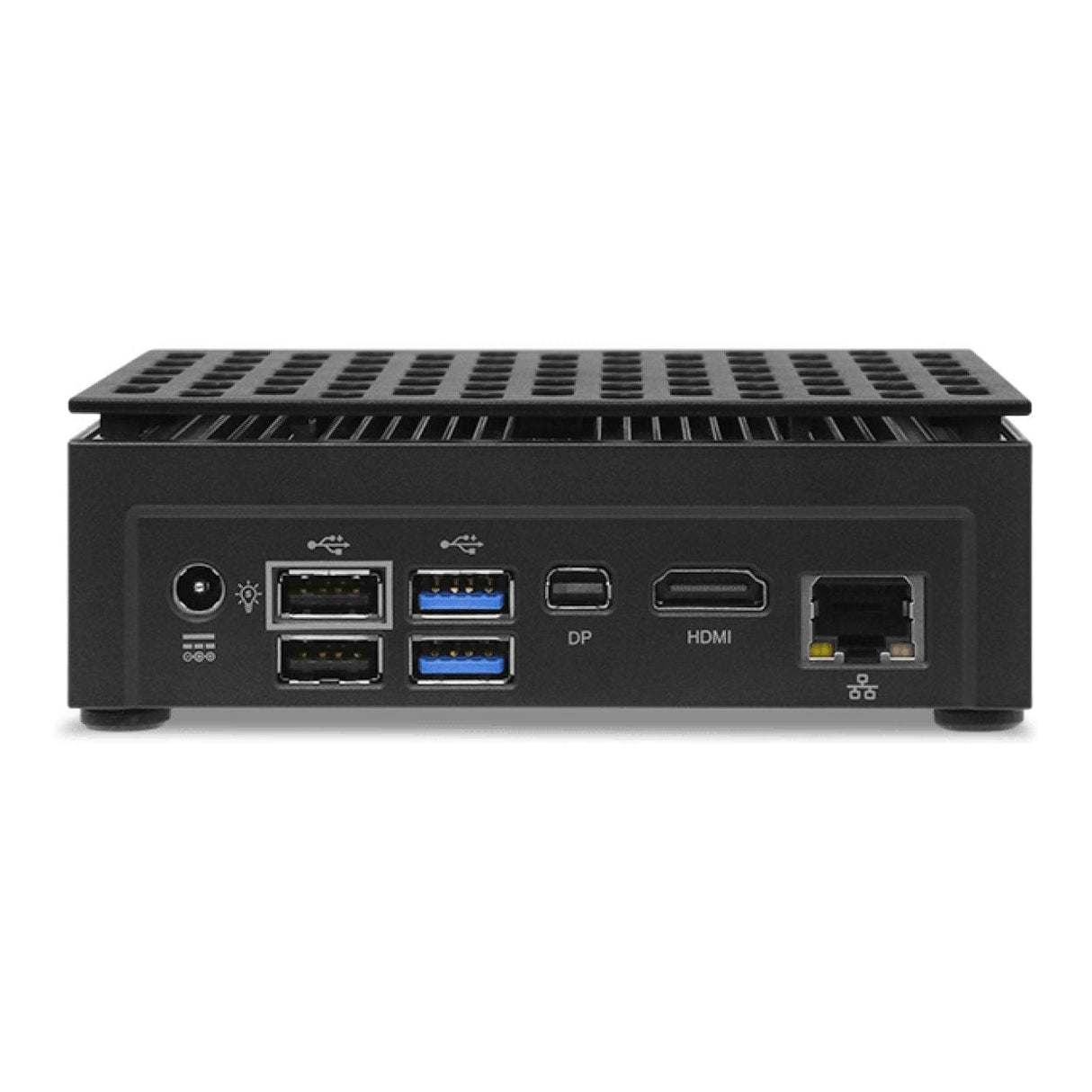

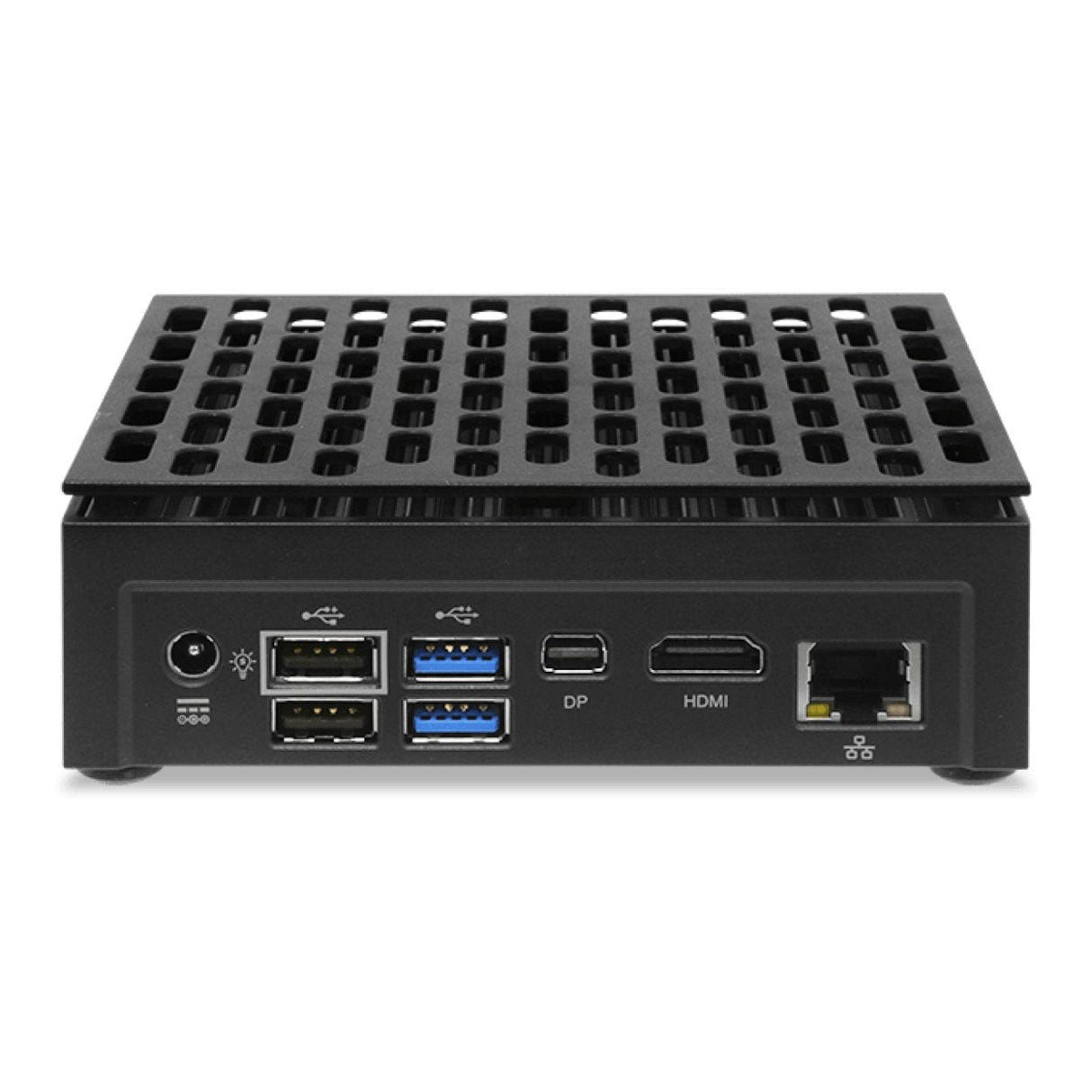

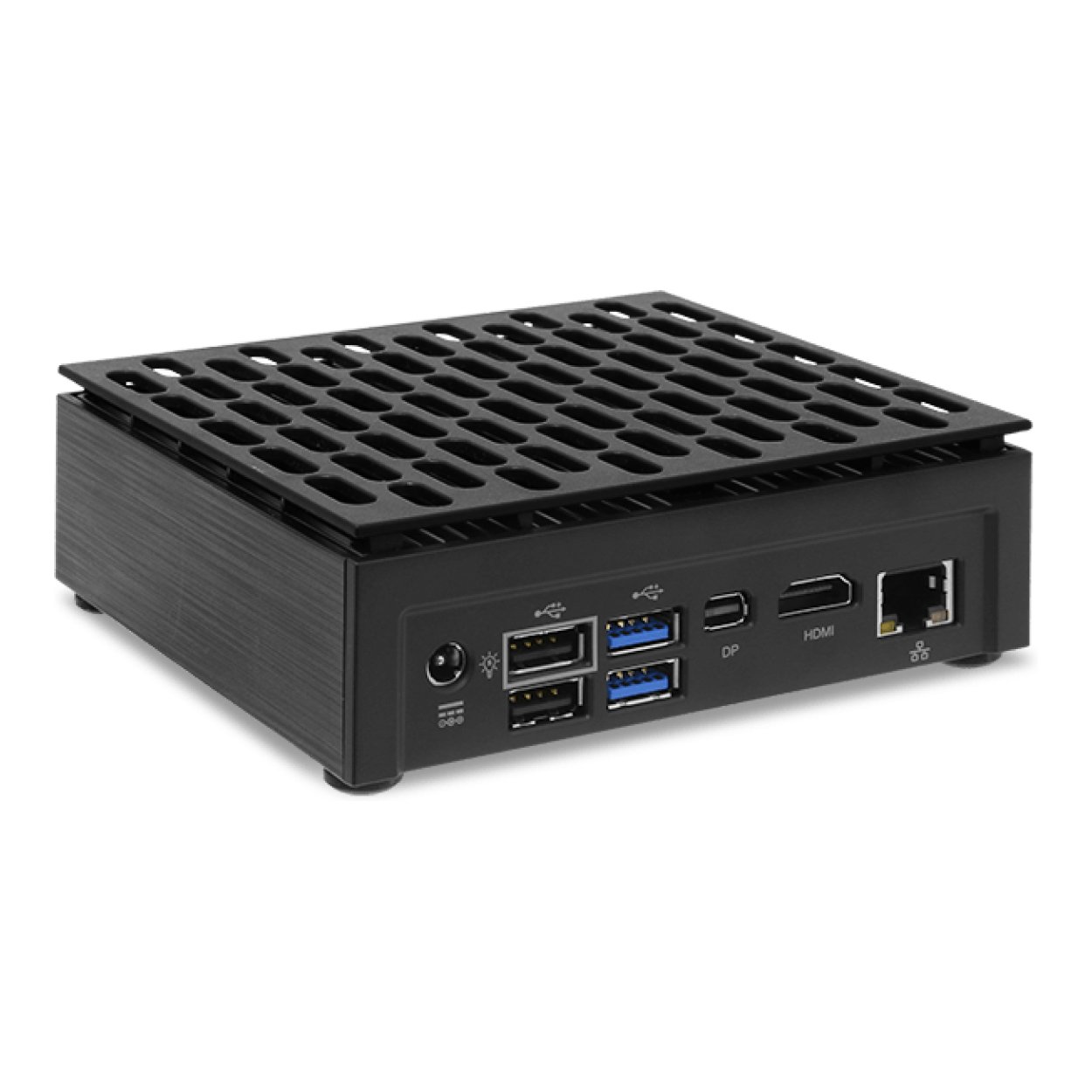

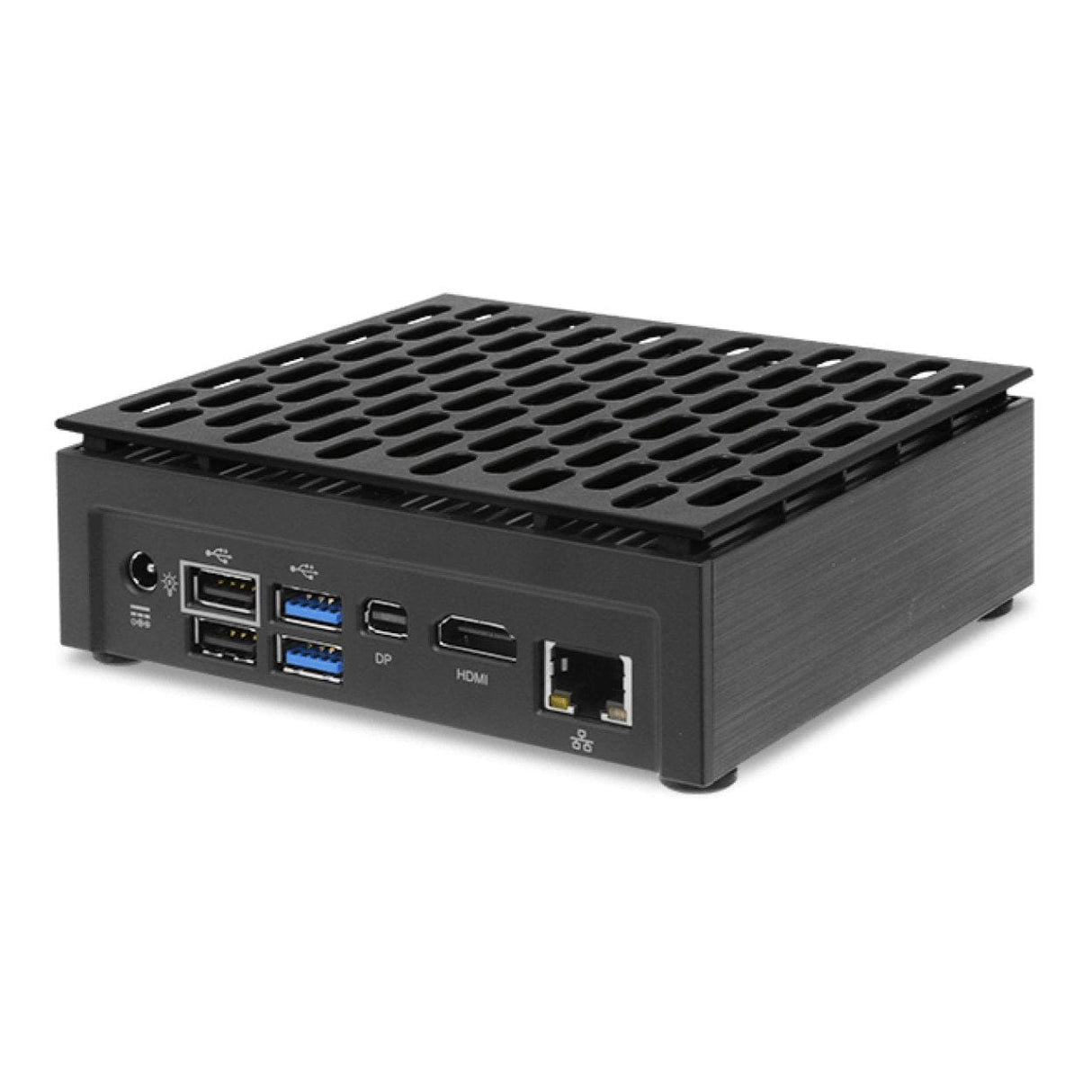

Rear Panel I/O:
DC Input ×1 (12 ~ 24 V)
HDMI Port ×1 (HDMI 2.0)
Display Port ×1 (miniDP)
USB Port ×4 (USB 2.0 ×2, USB 3.1 ×2)
RJ45 LAN Jack ×1

CPU Thermal Module: N/A
Watchdog Timer: 1 ~ 255 sec/min

Adapter: 40 W Adapter
Input Voltage: AC 100 ~ 240 V

Warranty: 1 Year
MTBF: 50,000 hrs

Operating Temperature: 0 ~ 35 °C (32 ~ 95 °F)
Storage Temperature: -30 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity: 90% RH (35 °C, Non-Condensing)

Support: Chrome, Windows, Linux
