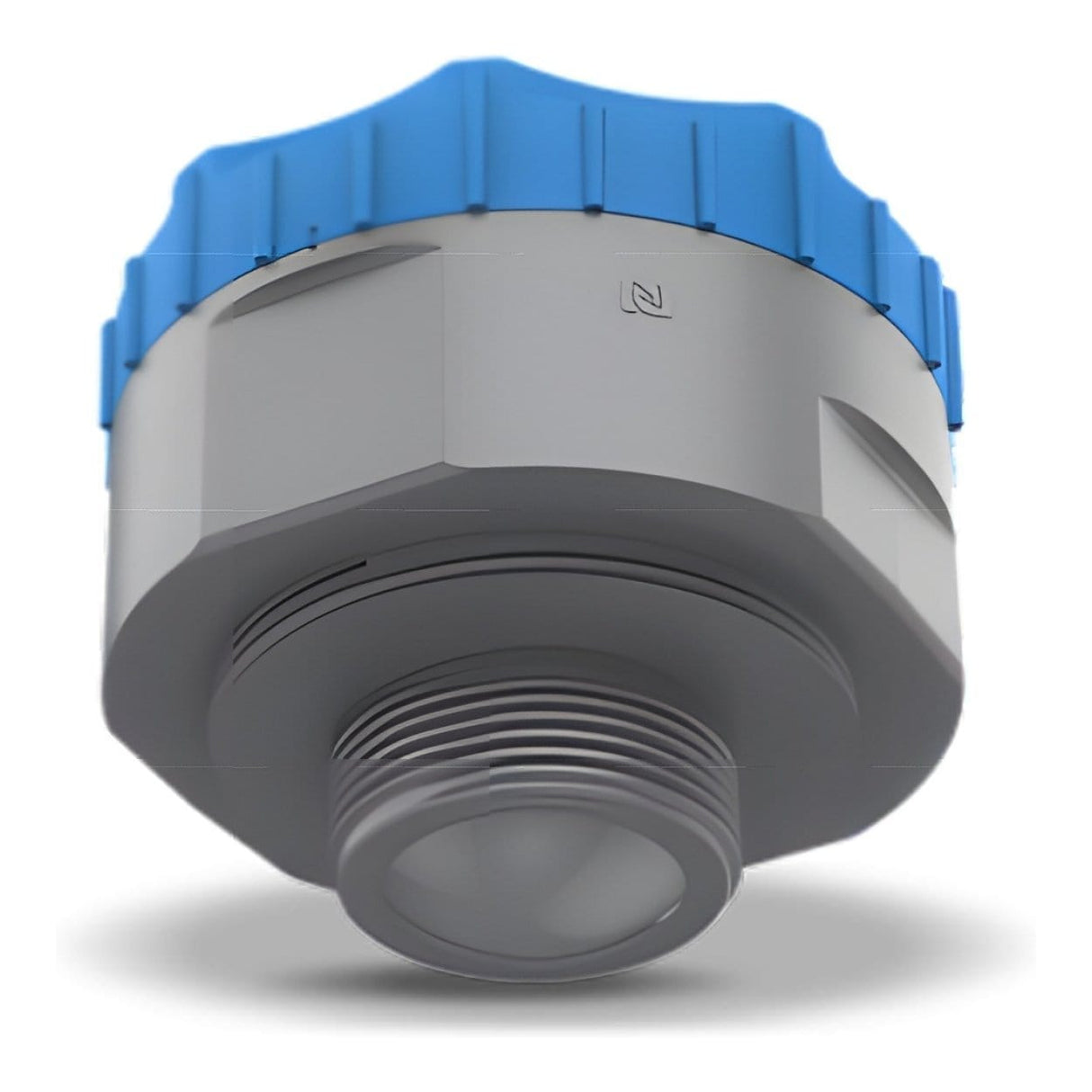

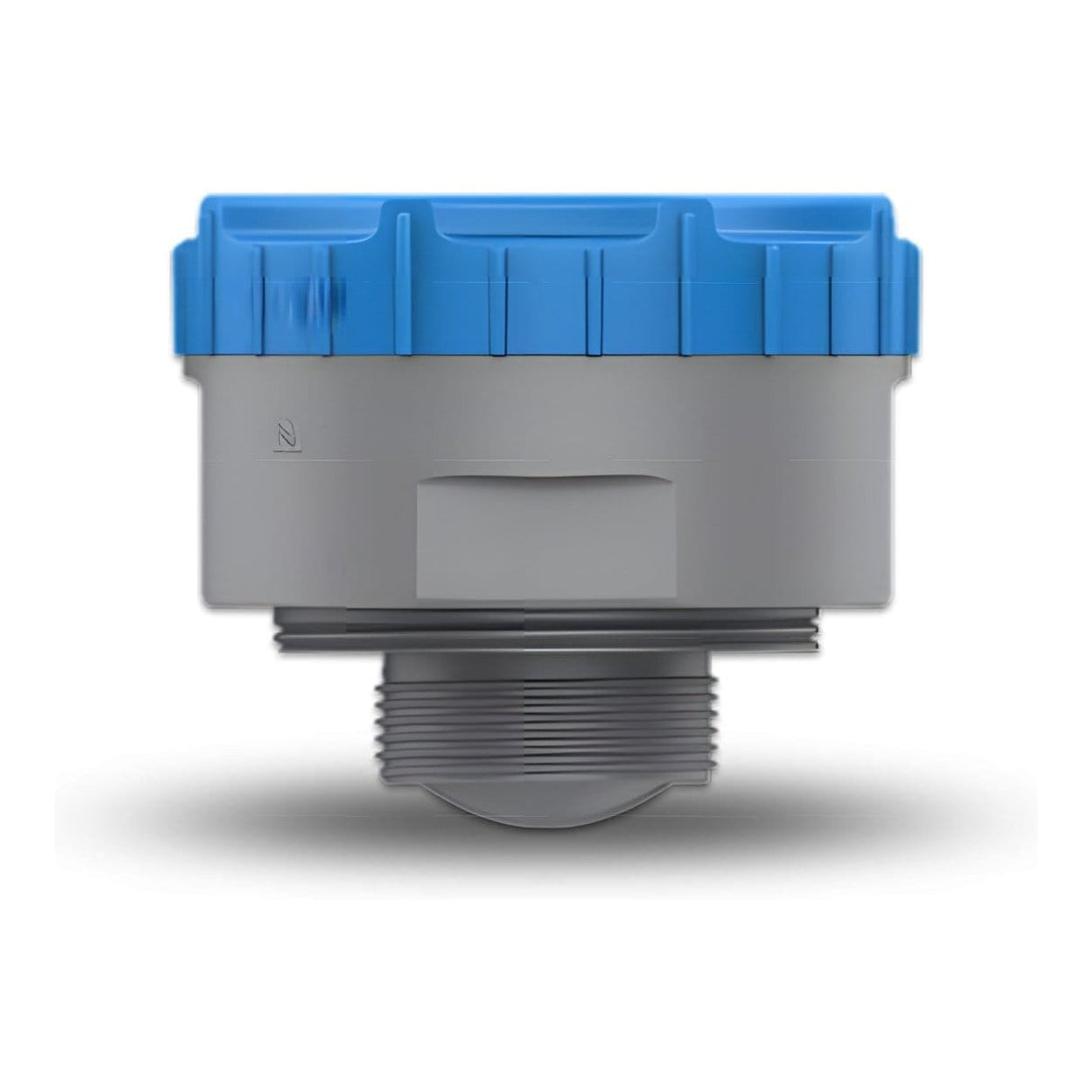

Milesight Radar Distance Level Sensor EM410-RDL-868-EA

Milesight Radar Distance Level Sensor EM410-RDL-868-EA

Smarter Distance & Level Monitoring Starts with EM41x-RDL

Milesight EM41x-RDL is a pioneering device designed to offer real-time monitoring of liquid levels in a wide range of scenarios. The device is equipped with millimeter wave radar that enables enhanced transmission frequency and penetration ability, tailored for sewers, canals, factories, liquid tanks, and more.

Features:

• Intrinsically Safe ATEX Zone 0 Certified (EM411-RDL Only)
• Up to 12m Range with 8° Narrow Beam
• Accurate Detection with Millimeter Wave Radar
• Impressive IP68 Rating
• Application Scenario Mode
• Long Battery Life of Up to 7 Years
• Easy NFC & Bluetooth Configuration
• Scenario-based Automated Calibration

Safe Monitoring in Hazardous Locations

Built to withstand explosive atmospheres, the EM411-RDL integrates ATEX Zone 0 certification with a chemical-resistant PVDF housing and robust IP68 rating. This durable design ensures accurate monitoring and maintenance-free operation even in aggressive conditions, effectively eliminating ignition risks to comprehensively safeguard personnel and critical assets.

Radar Technology for Tailored Applications

Aside from its extensive measurement distance, radar technology is also capable of measuring through objects, including plastics, plants, and are less sensitive to snow, dirt, dust, steam and more, making it suitable for a wider range of applications.

Key Features

Millimeter Wave Radar Technology

With enhanced transmission frequency and penetration

High Measuring Accuracy

Narrow 8^o emission angle for precise targeted position measurement

IP68 Rating

Dust tight and waterproof

Real-Time Monitoring

Monitor radar echo curves in real time

Long Battery Life

Battery life of up to 7 years

NFC + Bluetooth Configuration

Allows remote configuration for hard-to-reach locations

Versions of Choice

LoRaWAN® version and Cat. 1 version available

Long Detection Distance

Up to 12m of detection distance for wide application scenarios

Easy Setup and Adjustments

Application Scenario Mode

A choice of standarard, rainwater well, sewage well, and storage tank mode for easy scenario setup.

Built-in Tilt Sensor

Allows level measurement at a tilted angle and send timely alerts when the device has been accidentally dislocated.

Flexible Thread Options

Featuring both NPT and G thread options, the device ensures seamless compatibility across all global markets, including North America.

Stay Informed!

Experience unparalleled control and instantly receive notifications the moment the liquid level in your tank hits a preset threshold or detects a sudden rise.
