Milesight FT101 LoRaWAN Field Tester

Milesight FT101 LoRaWAN Field Tester

The Milesight Field Tester is a versatile, portable device that optimises LoRaWAN® network deployment.Ideal for professionals needing precise network testing and optimisation, the Milesight Field Tester ensures efficient deployment and performance of LoRaWAN® networks.

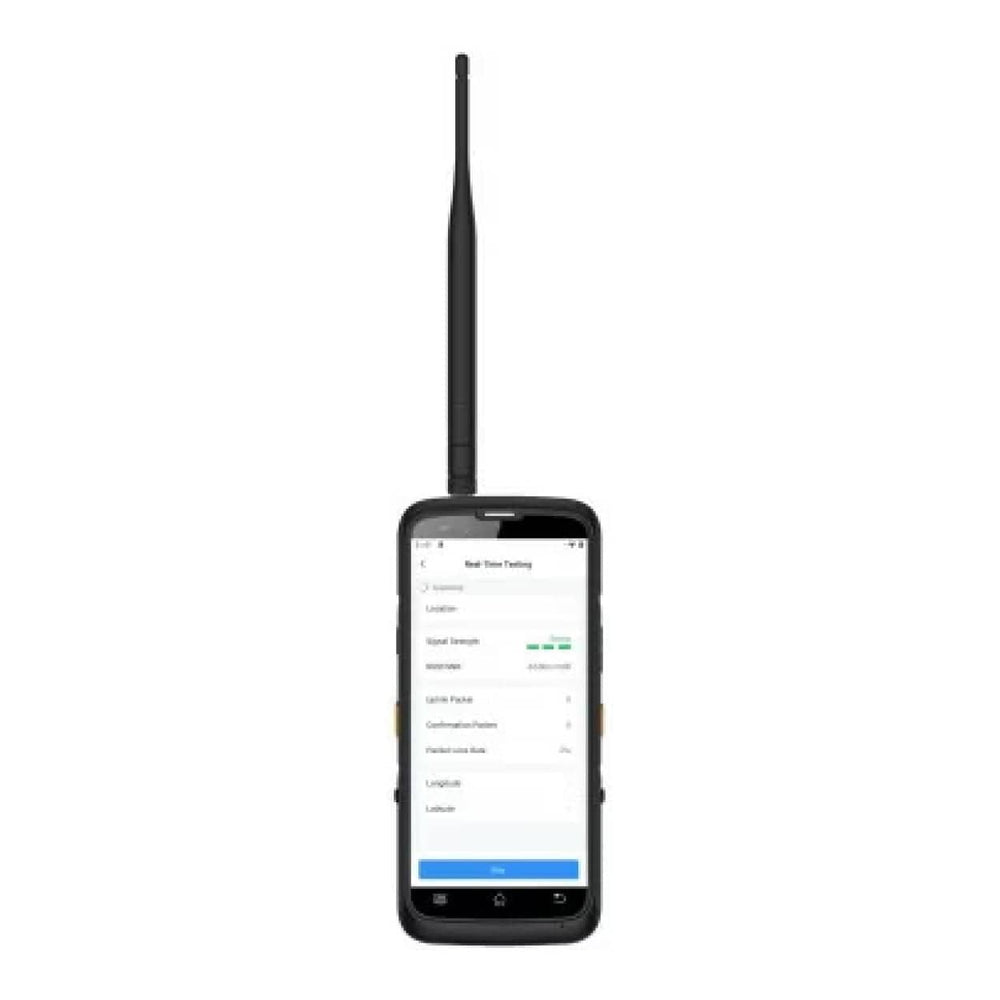

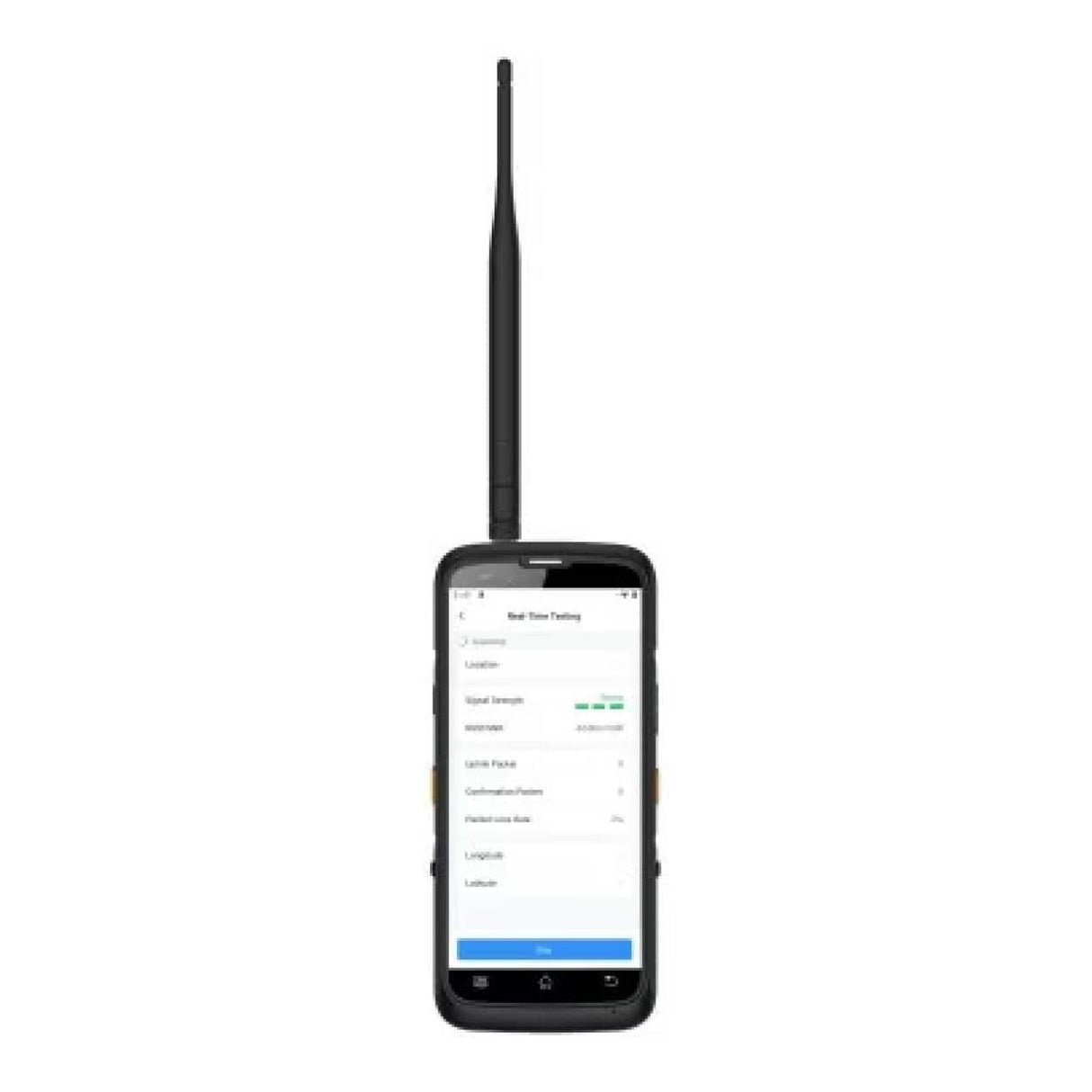

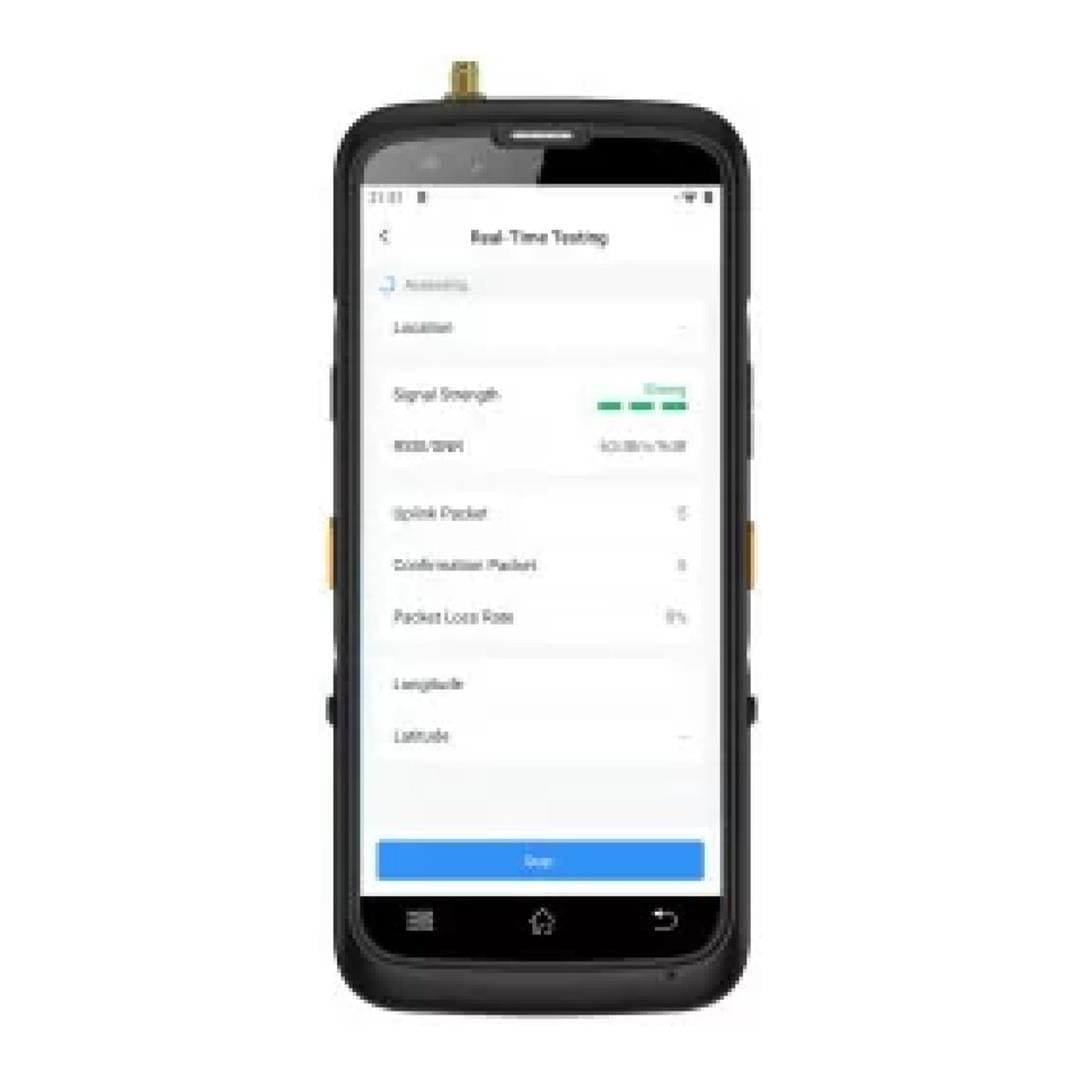

Milesight Field Tester is a portable LoRaWAN® network testingdevice.With different kinds of antennas, it can support global LoRaWAN®frequencies to record the signal status and packet loss rate tomonitor thenetwork status from field and verify the coverage of different LoRaWAN®gateways, to optimize the best places to deploy LoRaWAN®networkdevices. Equipped with a 5.72-inch touchscreen display, users are abletooperatethe signal test procedure and monitor the real-time network statusfriendly.With a built-in battery and type-C port, it can work for 8 hours andsupporttype-C power bank charge to bring the device everywhere easily

Features

Global Frequency Support: Compatible with various global LoRaWAN® frequencies using interchangeable antennas.

Comprehensive Network Monitoring: Records signal status, and packet loss rate, and provides real-time network status updates.

Enhanced Coverage Verification: Assists in verifying coverage and optimising the placement of LoRaWAN® gateways.

User-Friendly Interface: Operated via a 5.72-inch touchscreen display for easy interaction and monitoring.

Built-In Battery: A rechargeable lithium battery provides up to 8 hours of operational time.

Type-C Port: Supports charging and data backup through a USB Type-C port.

Advanced Processing Power: Equipped with an octa-core processor and Android system for flexible integration.

Signal Testing Capabilities: Includes a built-in one-channel SX1262 LoRaWAN® module for signal testing.

Compatibility: Works with any standard LoRaWAN® gateways and global mainstream network servers.

GNSS Positioning: Records the location of test fields for accurate network analysis.

Specifications

• Screen: 5.72-inch TP LCD Touch Screen
• Resolution: 1440 x 720 Pixels
• CPU: Octa-core MTK6762, 2 GHz
• Memory: 4GB RAM + 64GB ROM
• Operating System: Android 12.0
• NFC: Support ISO/IEC 14443A Protocol, Reading Distance: 1-3cm
• Extendable Storage: 1 x Micro SD Slot Support up to 256G
• Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz IEEE 802.11 a/n/ac, 5 GHz
• Bluetooth: Bluetooth 4.0 (BLE)
• Cellular: SIM Card Slot: 1 × Nano SIM Frequency Bands: LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8
• GNSS: GPS/Glonass/Beidou/Galileo
• Rear Camera: 13MP, Autofocus with Flashlight
• Speaker: 8Ω/0.8W

LoRaWAN

• Channel: 1
• Antenna Connector: 1x 50 Ω SMA Female Connector
• Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
• Sensitivity: -137dBm@125kHz, SF=12
• Max Output Power: 19dBm (470 MHz) /16dBm (868 MHz)/22dBm (915 MHz)
• Protocol: LoRaWAN ® V1.0.3
• Work Mode: OTAA Class A
• Configurable Parameter: Frequency Channel, ADR, Spreading Factor, Tx Power
